🔧 17.3" FHD IPS LCD Screen for Lenovo IdeaPad L340-17IRH Gaming and Legion Y730-17ICH 🔧

🖥️ Innolux N173HCE-E31 | 17.3" FHD 1920x1080 | IPS, matte | eDP | FRU 5D10R65304

Genuine Innolux N173HCE-E31 Full HD IPS panel designed for the Lenovo IdeaPad L340-17IRH Gaming and Legion Y730-17ICH. Part sourced from a working device and tested - we guarantee 100% functionality. FRU number 5D10R65304 ensures full compatibility with the IdeaPad L340-17IRH Gaming.

⚙️ PRODUCT DESCRIPTION

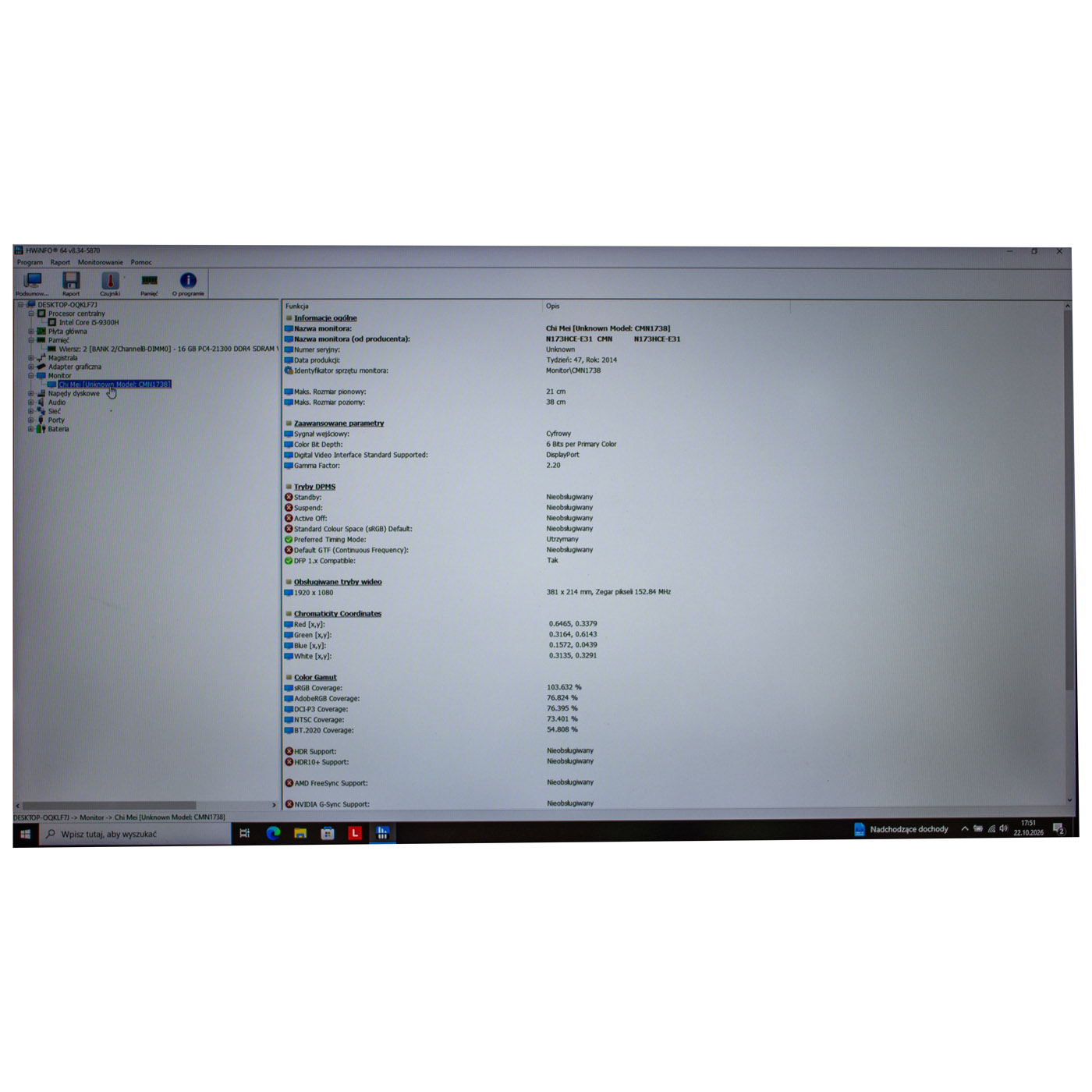

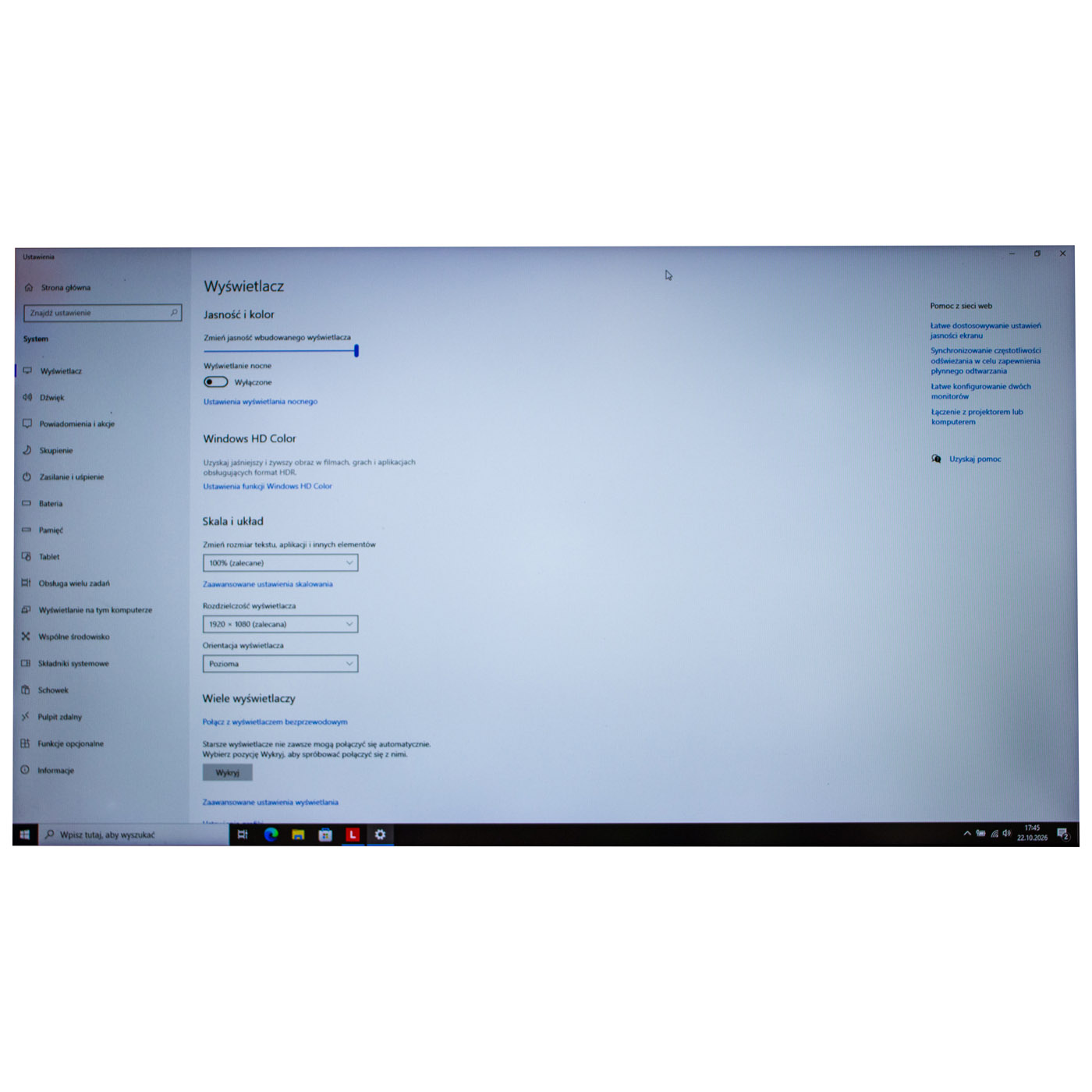

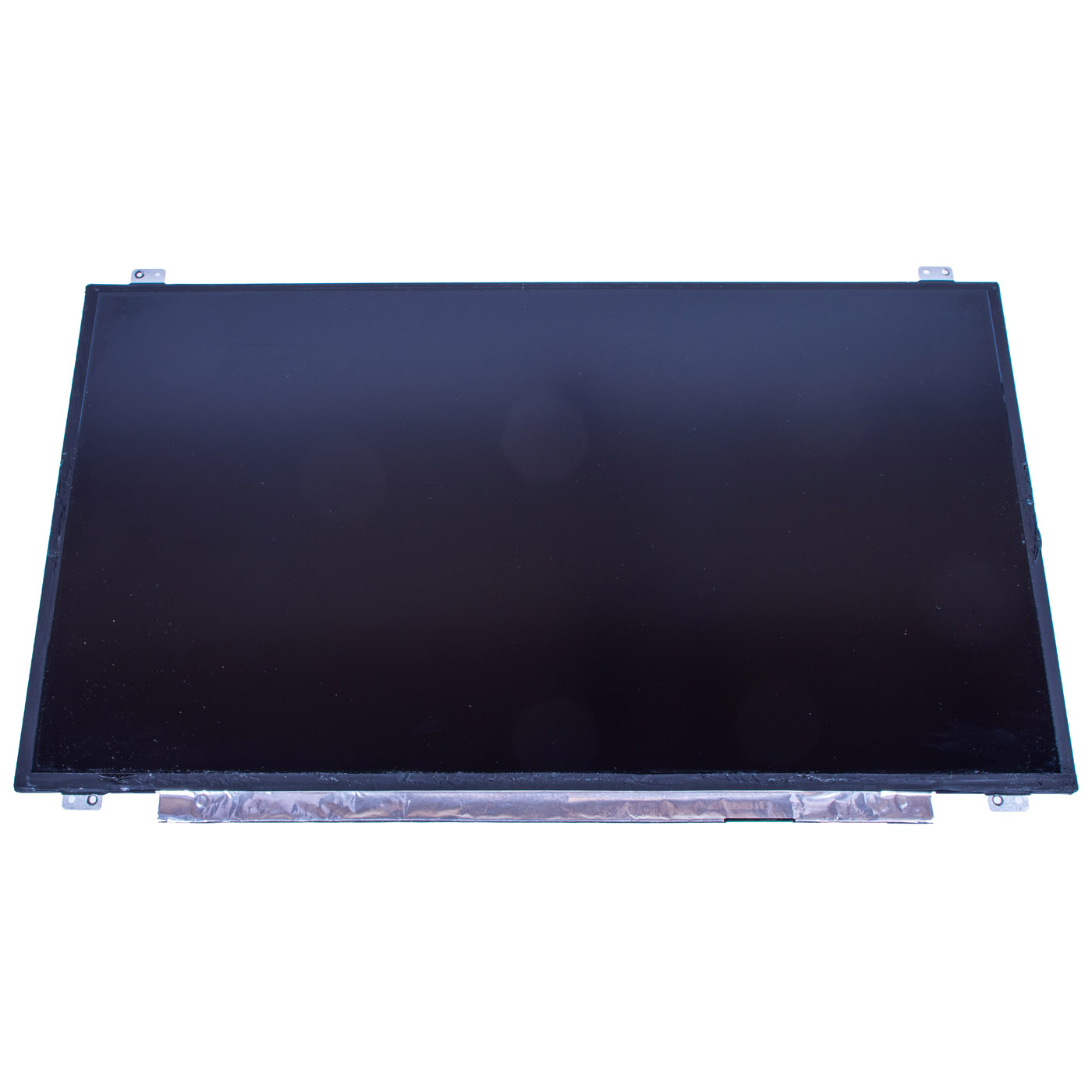

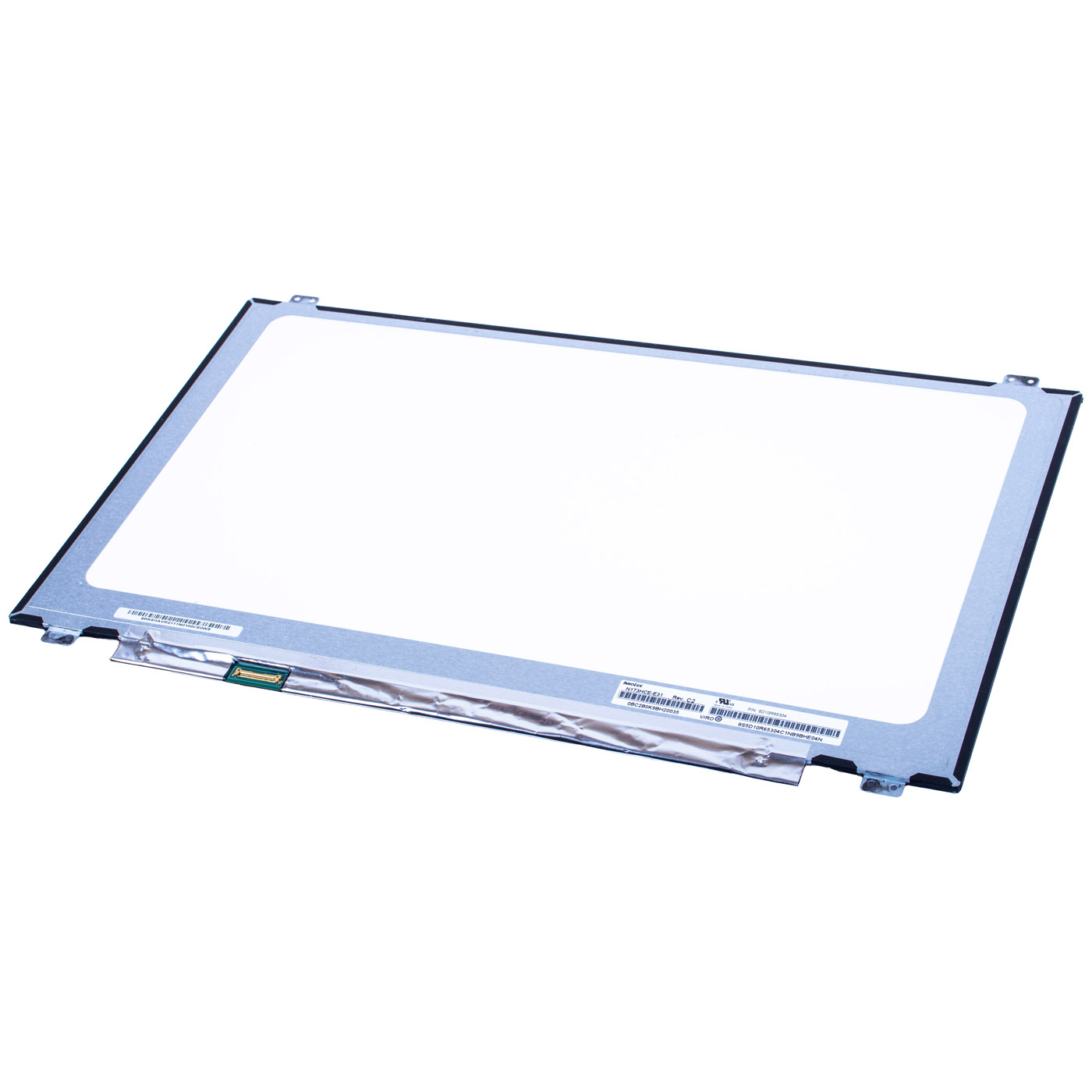

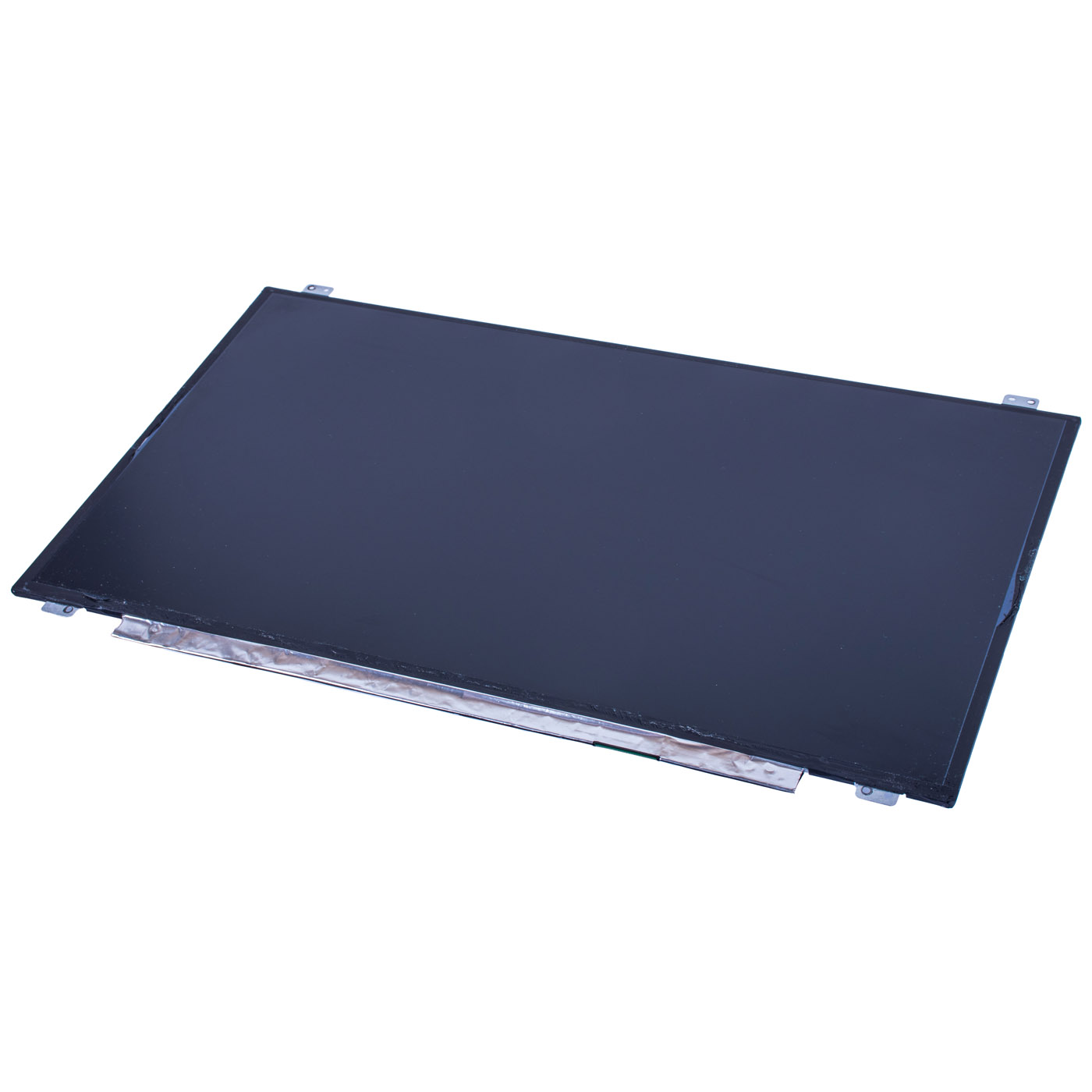

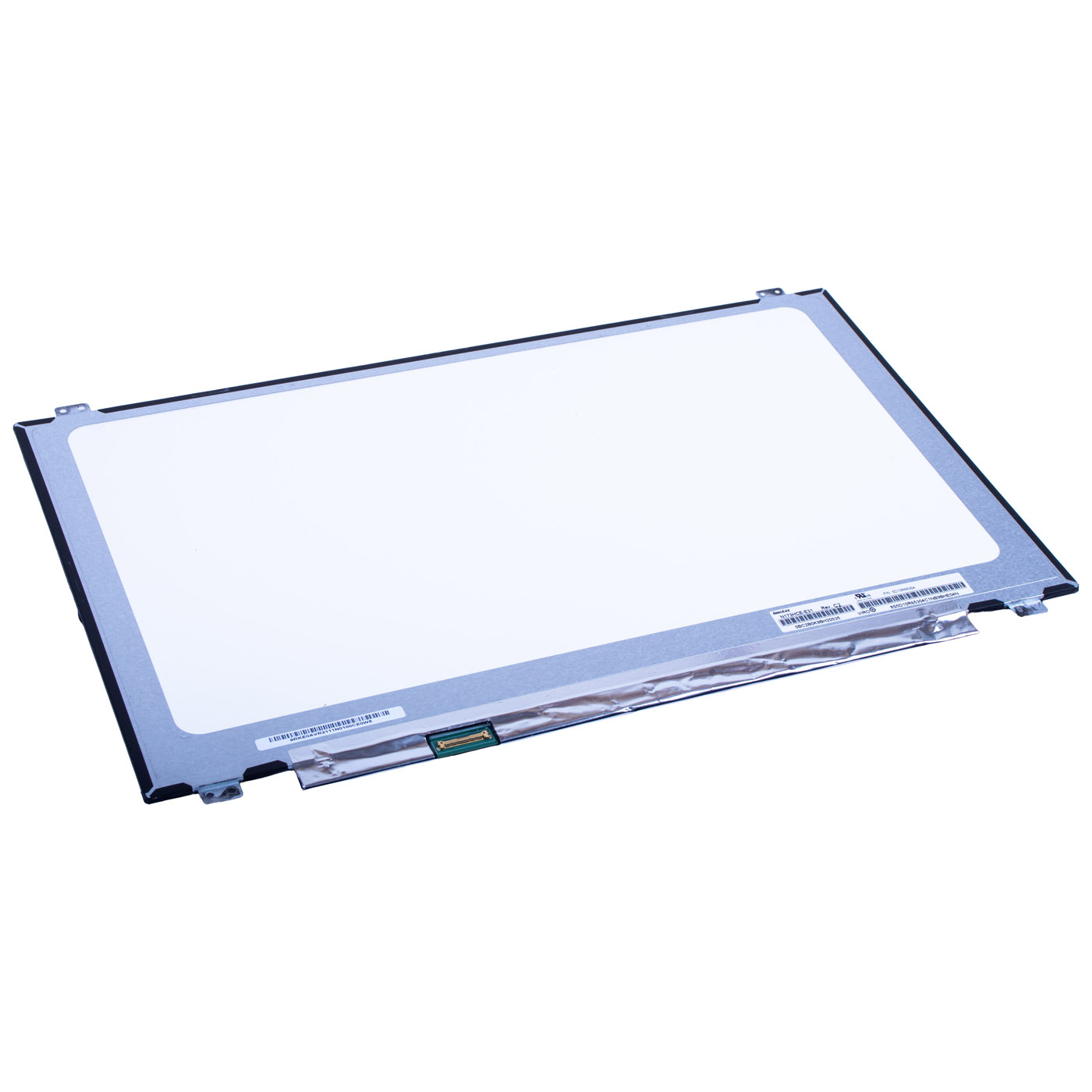

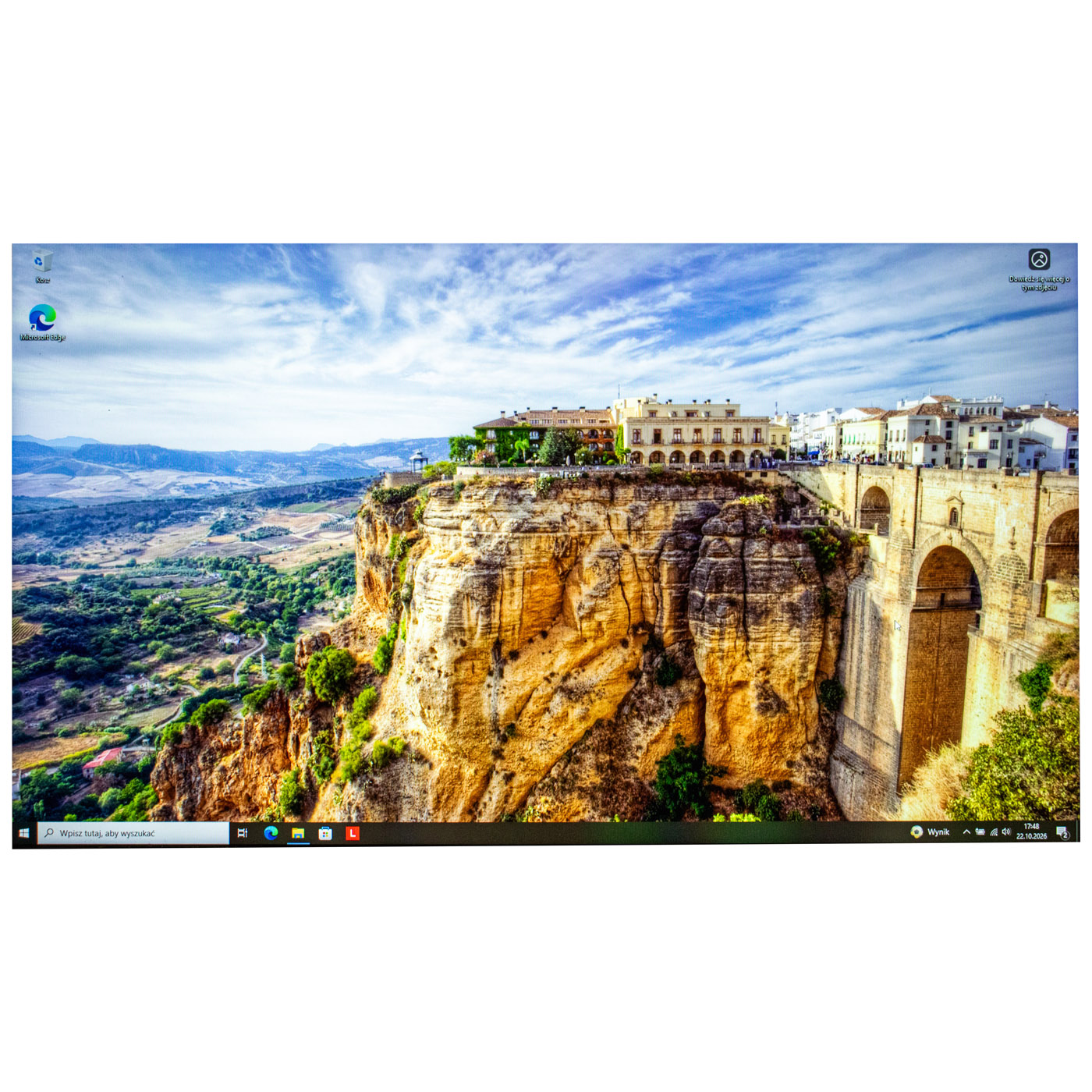

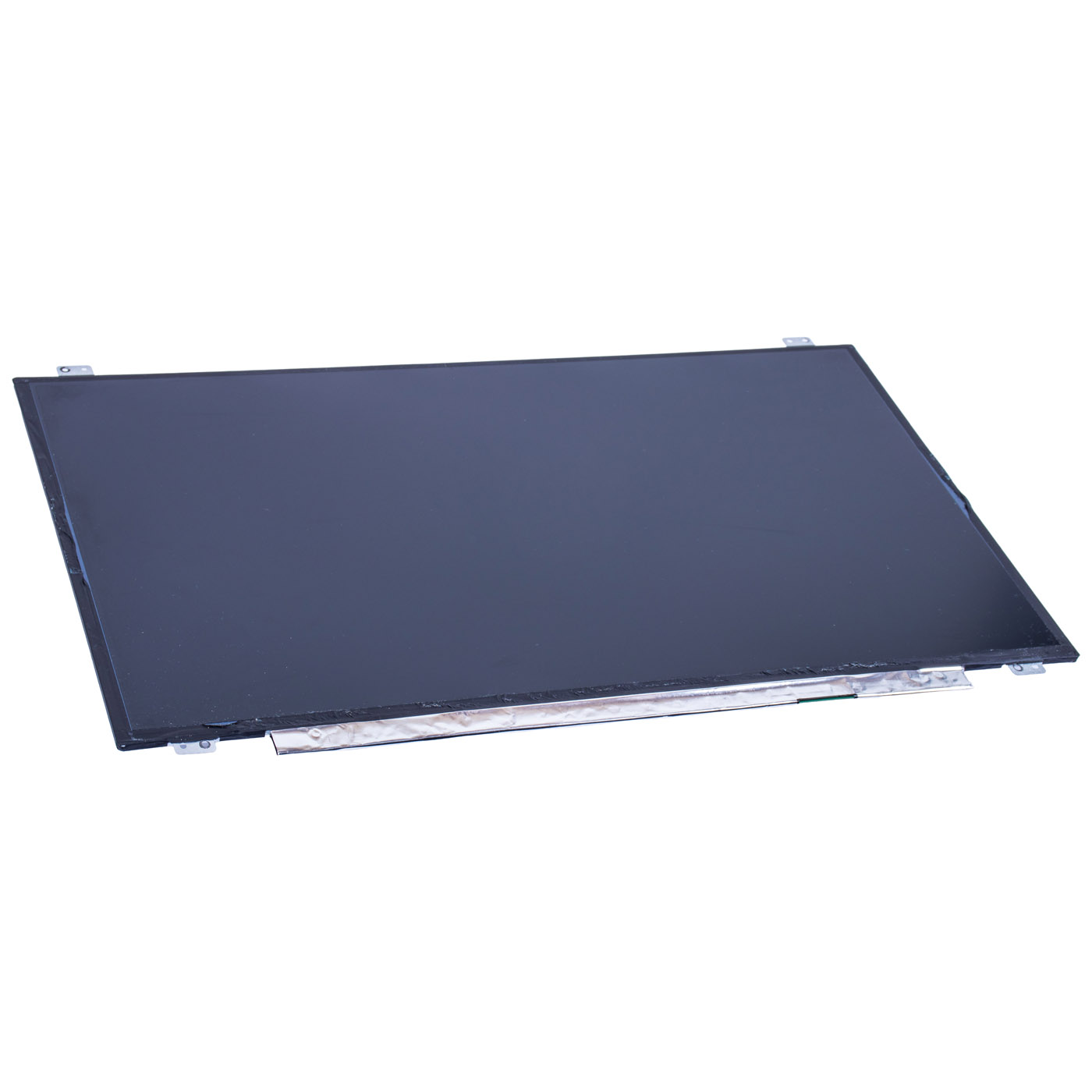

17.3" IPS panel with Full HD resolution (1920x1080), a matte anti-glare coating and a digital eDP connector. Slim version with mounting tabs at the top and bottom. Colour gamut coverage per HWiNFO reading: sRGB 103.6%, NTSC 73.4%, DCI-P3 76.4%. The panel comes from a Lenovo IdeaPad L340-17IRH Gaming, is in good condition with no significant defects, has very good backlight and is 100% functional. Operation was confirmed after connecting it to a laptop, and a photo of the displayed image is included in the listing.

📋 TECHNICAL SPECIFICATIONS

Part name: LCD panel
Brand: Lenovo (Innolux panel)
Panel model: N173HCE-E31 Rev. C2
Compatible models: IdeaPad L340-17IRH Gaming (81LL), Legion Y730-17ICH (81HG) and others - full list below
Screen size: 17.3"
Resolution: 1920x1080 (Full HD)
Panel type: IPS
Surface: Matte (Anti-Glare)
Connector: eDP
Colour gamut: sRGB 103.6%, NTSC 73.4%
Touchscreen: No
Condition: Used (removed from a working unit, good condition, 100% functional, tested)
FRU: 5D10R65304
Substitute numbers: 5D10Q59856, 5D10Q16071, 5D10Q16070, 5D10M56006, 5D10H45210, 5D10H45206, 5D10K84476, 5D10F76132, 18201682
Lenovo description: DISPLAY IN N173HCE-E31 C2 FHDI AG S NB

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - perfect fit and reliability
🔹 IPS panel - colours don't wash out when viewed from the side, so the picture looks good to the person next to you too
🔹 Matte coating - in a bright room or by a window you don't see your own reflection in the screen
🔹 Wide colour gamut (103% sRGB) - photos and videos look natural, without faded colours
🔹 Tested in operation - even, very good backlight with no significant defects
🔹 Full compatibility - matched under FRU 5D10R65304 and many Lenovo equivalents

🔢 PART NUMBERS AND COMPATIBILITY

FRU: 5D10R65304
Substitute numbers: 5D10Q59856, 5D10Q16071, 5D10Q16070, 5D10M56006, 5D10H45210, 5D10H45206, 5D10K84476, 5D10F76132, 18201682
Panel model: Innolux N173HCE-E31 Rev. C2
Compatible models:
• Lenovo IdeaPad L340-17IRH Gaming (Type 81LL)
• Lenovo Legion Y730-17ICH (Type 81HG)
• Lenovo IdeaPad L340-17API
• Lenovo IdeaPad L340-17IWL
• Lenovo IdeaPad 330-17AST (81D7)
• Lenovo IdeaPad 330-17IKB (81DK, 81DM)
• Lenovo IdeaPad 700-17ISK
• Lenovo Z70-80 (80FG)

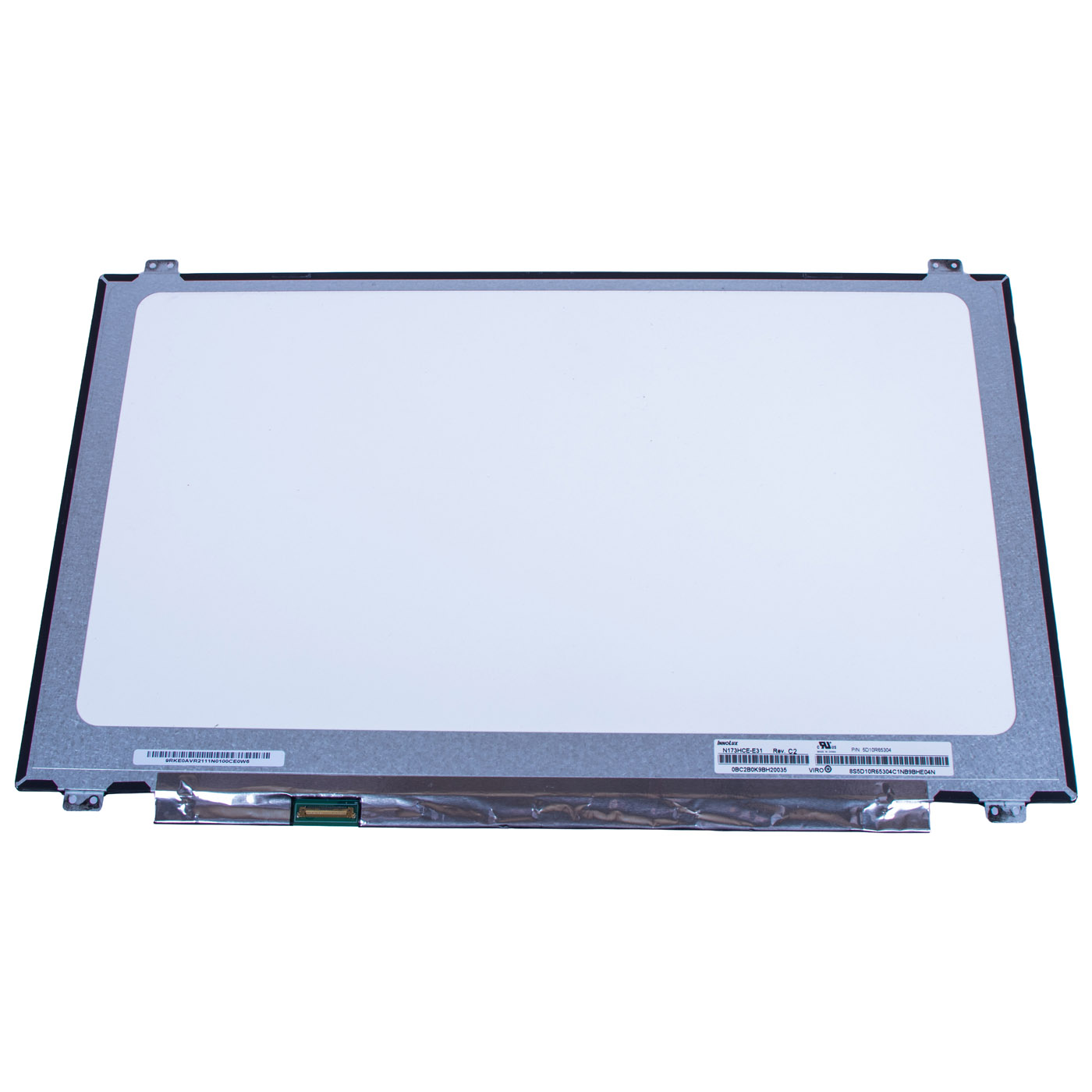

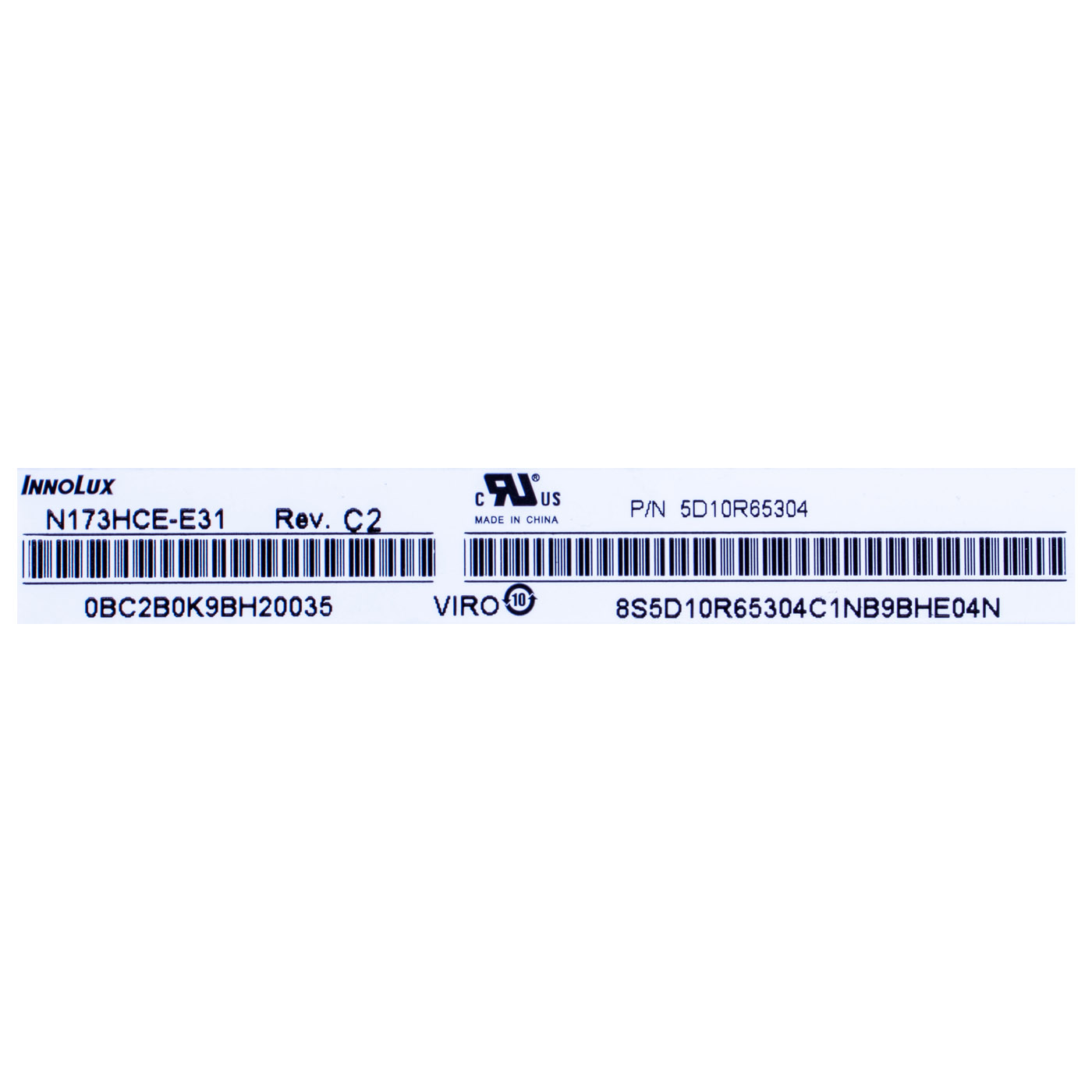

Before buying, we recommend comparing the FRU or panel model on the label at the back of your current screen.

❓ WHEN SHOULD THE SCREEN BE REPLACED?

• A cracked screen after the laptop was dropped or the lid was pressed
• Coloured lines, blotches or a "spider web" on the picture
• The screen stays black, while an external monitor shows the image
• Dead pixels or dark corners that get in the way of work
• The image flickers or disappears when you move the lid, even with a working cable

🔧 INSTALLATION PROCESS

1. Power off the laptop and disconnect the power supply and all external devices
2. Remove the bottom cover and disconnect the battery from the system board
3. Carefully pry off and remove the screen bezel
4. Remove the screws holding the panel by its mounting tabs
5. Tilt the panel forward, peel back the securing tape and unplug the eDP connector
6. Plug the eDP cable into the new panel, secure the connector with tape and screw the panel in
7. Refit the bezel, reconnect the battery and check the image after startup
Installation by a technician or a person experienced in laptop repairs is recommended.

🎯 INTENDED USE

For users and repair shops who want to restore a working screen in a Lenovo IdeaPad L340-17IRH Gaming, Legion Y730-17ICH or another compatible 17.3" model. A genuine IPS panel at a lower price than a new part, tested in operation. The exact appearance and condition of the item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The screen on offer has been carefully checked and matched to the Lenovo models listed in the description. We guarantee full compatibility for FRU 5D10R65304 and 100% functionality. If any compatibility issue occurs, we offer a hassle-free return within 14 days.
