🔧 PCH Chipset Heatsink for Lenovo IdeaPad L340-15IRH / L340-17IRH Gaming 🔧

🖥️ IdeaPad L340-15IRH / L340-17IRH Gaming | Intel HM370 chipset heatsink | ET1B4000110

Genuine Intel HM370 PCH chipset cooling plate designed for Lenovo IdeaPad L340-15IRH Gaming and L340-17IRH Gaming laptops. Part sourced from a working device and tested - we guarantee 100% functionality. Part number ET1B4000110 ensures full compatibility with the IdeaPad L340-15IRH and L340-17IRH Gaming.

⚙️ PRODUCT CHARACTERISTICS

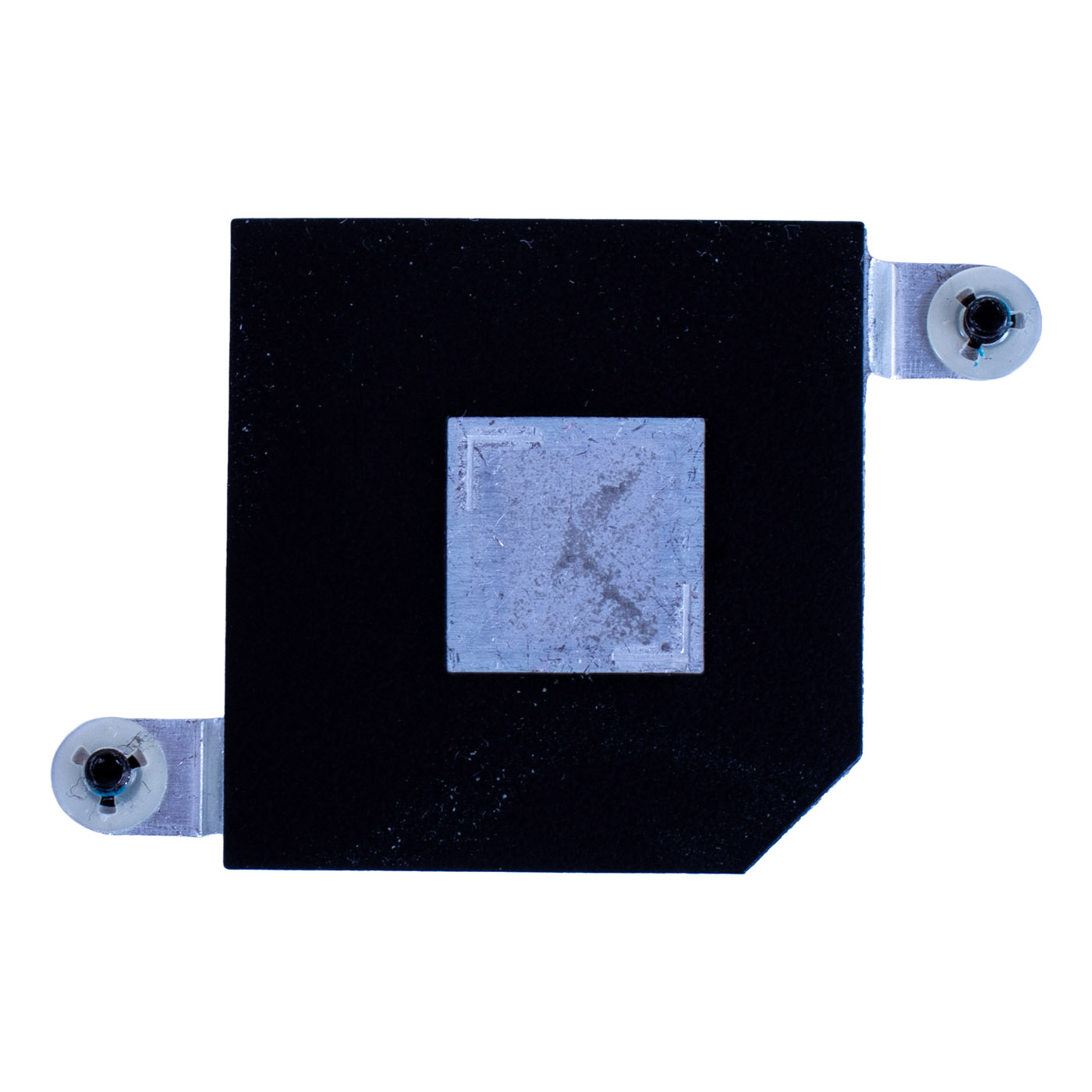

A metal plate screwed directly to the motherboard over the PCH chipset (marked UH1 on the board, next to the M.2 slot). The main heatsink covers only the CPU and GPU, so the chipset is cooled by this separate plate. The underside has a machined square contact pad pressed against the chipset, and the rest of the surface is covered with black insulating film. The plate is secured with 2 screws held in the tabs by retaining washers. The label reads ET1B4000110 TSL1.

📋 TECHNICAL SPECIFICATIONS

Part name: PCH chipset heatsink (cooling plate)
Brand: Lenovo IdeaPad
Compatible model: IdeaPad L340-15IRH Gaming, IdeaPad L340-17IRH Gaming
Cooled component: Intel HM370 chipset (PCH)
Motherboard: FG541 / FG741 (NM-C361 / NM-C362)
Mounting: 2 screws with retaining washers (included)

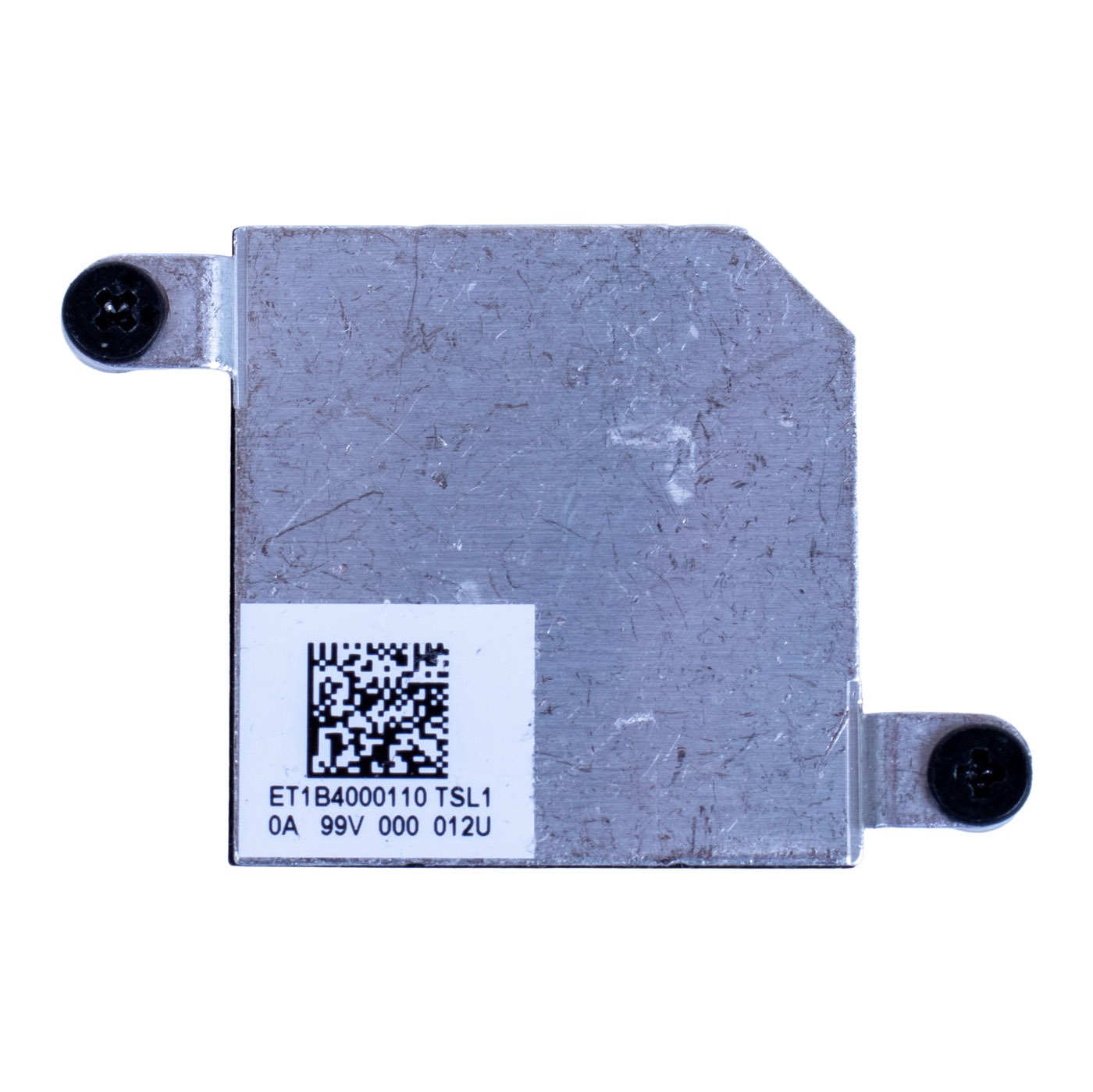

Label markings: ET1B4000110 TSL1, 0A 99V 000 012U
Condition: Used (removed from a working device, tested)
Warranty: 6 months
FRU: ET1B4000110

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - factory shape and hole spacing, the plate presses on the chipset with the correct contact pressure
🔹 Chipset contact pad - draws heat away from the HM370, so during long gaming or rendering sessions the chipset does not overheat and the laptop does not slow down or freeze for no reason
🔹 Insulating film on the underside - protects the motherboard components around the chipset from shorting against the metal
🔹 Screws included - held in the plate, no need to hunt for matching ones
🔹 Full compatibility - fits L340-15IRH and L340-17IRH Gaming (shared FG541 / FG741 motherboard)

🔢 CATALOGUE NUMBERS

FRU: ET1B4000110
Substitute numbers: none
Label markings: ET1B4000110 TSL1, 0A 99V 000 012U
Laptop model: Lenovo IdeaPad L340-15IRH Gaming, Lenovo IdeaPad L340-17IRH Gaming

❓ WHEN SHOULD YOU REPLACE THE CHIPSET HEATSINK?

• Problem with a missing chipset heatsink after swapping in a replacement motherboard that came without this plate
• Problem with a bent plate that no longer touches the chipset and leaves a gap
• Problem with a laptop that freezes or restarts under prolonged load when the chipset is left uncooled
• Problem with a stripped thread or a lost screw holding the plate

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power supply and all external devices
2. Remove the screws securing the bottom cover and carefully take it off
3. Disconnect the battery from the motherboard
4. Locate the chipset cooling plate next to the M.2 slot, remove the 2 screws and lift off the old plate
5. Clean the old thermal material off the chipset and the contact pad of the new plate, then apply fresh thermal material
6. Place the plate with the pad on the chipset and tighten the 2 screws alternately for even pressure
7. Reconnect the battery, refit the bottom cover, power on the laptop and check stability under load
Replacement by a technical service or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

A chipset heatsink for Lenovo IdeaPad L340-15IRH and L340-17IRH Gaming laptops where the original PCH cooling plate is missing or bent. It restores factory cooling of the Intel HM370 chipset and stable operation under load. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered chipset heatsink has been carefully checked and matched to the Lenovo IdeaPad L340-15IRH and L340-17IRH Gaming. We guarantee full compatibility with part number ET1B4000110 and 100% functionality of the item. In case of any compatibility issues, we offer a hassle-free return within 14 days.
