🔧 M.2 2242 SSD Bracket for Lenovo IdeaPad L340-17IRH Gaming 🔧

🖥️ IdeaPad L340 / L3 / V340 / Legion 5 | M.2 2242 adapter bracket | 5B40S21899

Genuine Lenovo metal bracket (adapter) for mounting an M.2 2242 SSD designed for the Lenovo IdeaPad L340-17IRH Gaming and the other models listed below. Part sourced from a working device and tested - we guarantee 100% functionality. FRU number 5B40S21899 guarantees full compatibility with the IdeaPad L340-17IRH Gaming.

⚙️ PRODUCT CHARACTERISTICS

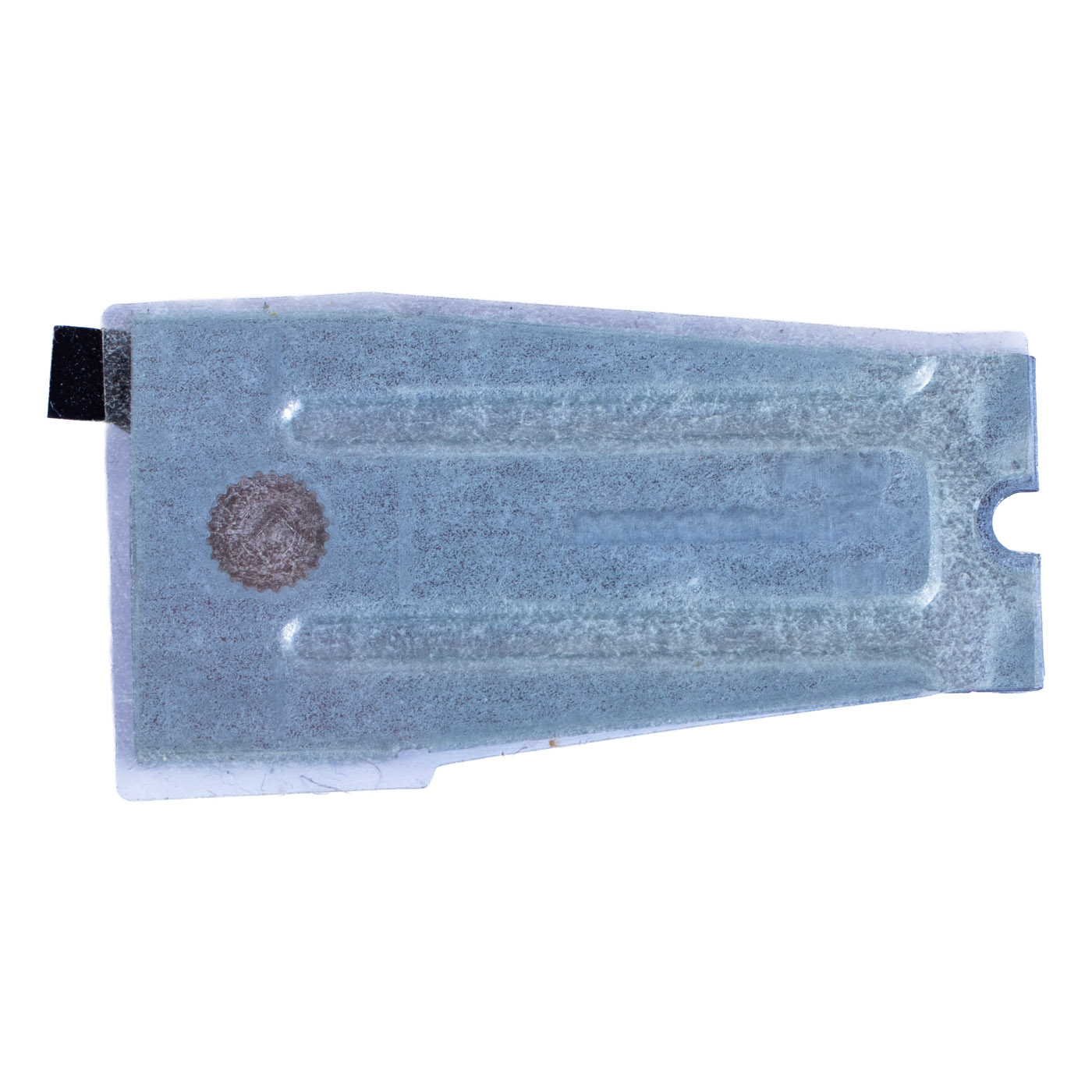

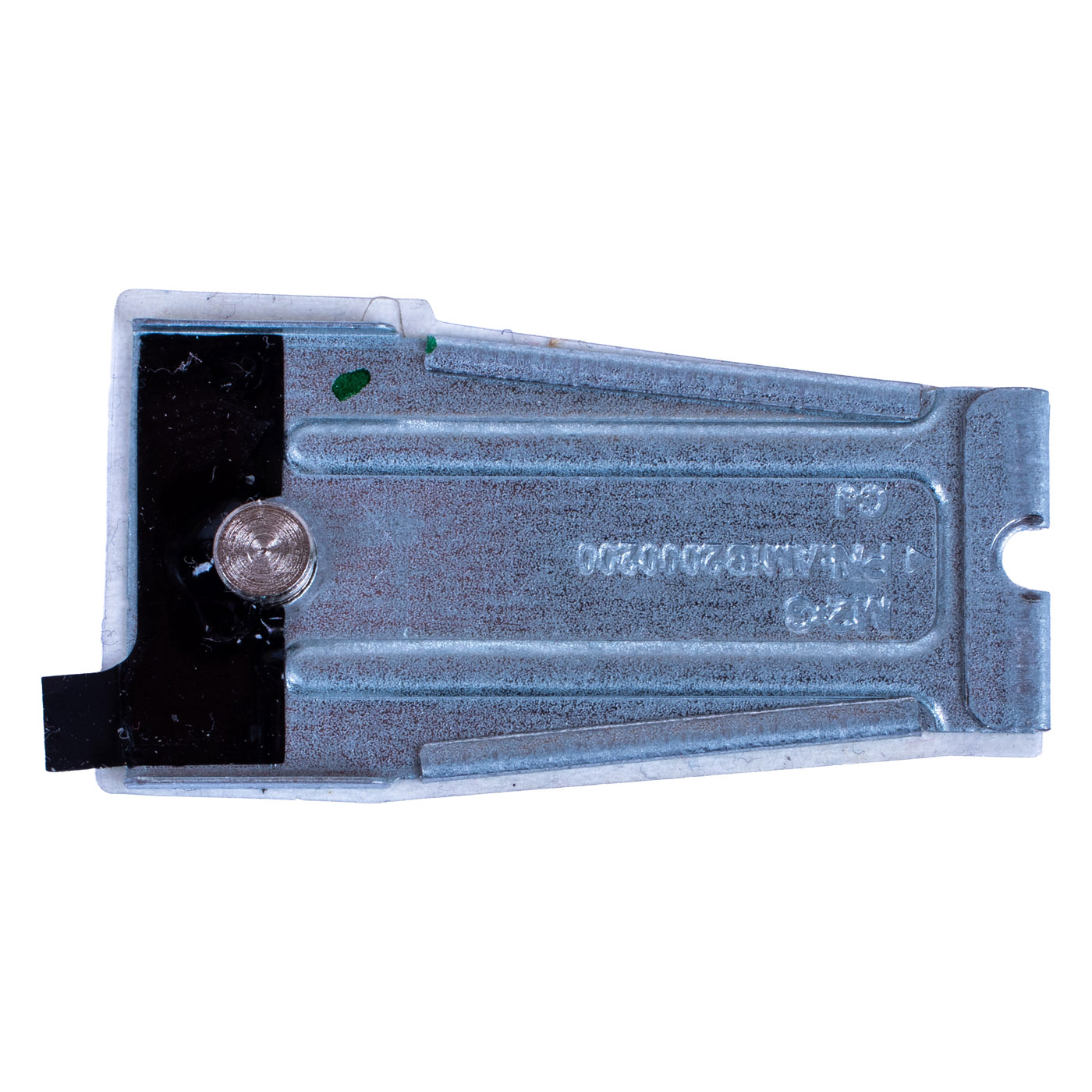

The 5B40S21899 bracket (Lenovo: Bracket L 81LH For 2242 SSD) is a metal plate that lets you mount a shorter M.2 2242 SSD in a laptop whose slot is designed for M.2 2280 drives. It has a press-fitted mounting standoff, a semicircular mounting notch at the opposite end, a transparent insulating film underneath and black tape with a pull tab. Without this bracket an M.2 2242 drive has no point to be screwed down to.

📋 TECHNICAL SPECIFICATIONS

Part name: M.2 2242 SSD bracket (adapter)
Brand: Lenovo IdeaPad / Lenovo V / Legion / Yoga
Purpose: mounting an M.2 2242 SSD in place of an M.2 2280 drive
Material: metal, insulating film, tape with pull tab
Compatible models: IdeaPad L340-17IRH Gaming, L340-15IRH Gaming, L340-15IWL, L340-17IWL, L340-15API, L3-15IML05, L3-15ITL6, V140-15IWL, V340-17IWL, V155-15API, Legion 5-15ARH05H, Legion 5P-15ARH05H, Legion 5P-15IMH05, Yoga Pro 9 16IAH10
Removed from: Lenovo IdeaPad L340-17IRH Gaming
Condition: Used (removed from a working device, tested)
FRU: 5B40S21899
Substitute numbers: FA1MB000200
Part markings: FA1MB000200

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - exactly the bracket Lenovo fits at the factory in configurations with a 2242 drive
🔹 M.2 2242 drive in a 2280 slot - the shorter drive is held firmly by its screw instead of sticking loosely out of the slot
🔹 Insulating film underneath - the plate does not touch the components below directly
🔹 Wide compatibility - IdeaPad L340, L3, Lenovo V, Legion 5 and Yoga Pro 9 according to Lenovo's official list
🔹 Full compatibility - matched to the IdeaPad L340-17IRH Gaming under FRU number 5B40S21899

🔢 PART NUMBERS

FRU: 5B40S21899
Substitute numbers: FA1MB000200
Part markings: FA1MB000200
Compatible models according to Lenovo:
IdeaPad L340-15IRH Gaming (81LK), L340-17IRH Gaming (81LL), L340-15IWL (81LG), L340-17IWL (81M0), L340-15API (81LW)
IdeaPad L3-15IML05 (81Y3), L3-15ITL6 (82HL)
Lenovo V140-15IWL (81K6), V340-17IWL (81RG), V155-15API (81V5)
Legion 5P-15IMH05 (82AY), Legion 5-15ARH05H (82B1), Legion 5P-15ARH05H (82GU)
Yoga Pro 9 16IAH10 (83L0)
Machine types: 81S3, 81SC, 81US

❓ WHEN SHOULD YOU REPLACE THE M.2 SSD BRACKET?

• Problem with a missing bracket - you want to fit an M.2 2242 drive, but there is nothing in the laptop to screw it to
• Problem with a loose SSD - the 2242 drive moves in the slot and the system sometimes loses it
• Problem with a bent or damaged plate - after an earlier repair the bracket no longer holds the drive level
• Problem with a stripped thread in the standoff - the drive screw spins in place and will not tighten

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power and all external devices
2. Remove the M2.5 x 7 screws securing the bottom cover and carefully take it off
3. Disconnect the battery from the motherboard
4. Remove the M2 x 3.5 screw securing the SSD and slide the drive out of the M.2 slot
5. Fit the 5B40S21899 bracket at the drive mounting point, in the same position as from the factory
6. Insert the M.2 2242 drive into the slot at an angle, press it down onto the bracket and secure it to the standoff with the M2 x 3.5 screw
7. Reconnect the battery, refit the bottom cover and tighten the screws
8. Start the laptop and check that the drive is visible in BIOS and in the operating system
Replacement by a technical service or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

This bracket is useful for anyone fitting an M.2 2242 SSD into a Lenovo laptop with a slot designed for a 2280 drive, or replacing a bracket that went missing during an earlier drive swap. It keeps the shorter drive firmly screwed down so it does not shift in the slot. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered M.2 SSD bracket has been carefully checked and matched to the Lenovo IdeaPad L340-17IRH Gaming. We guarantee full compatibility with FRU number 5B40S21899 and 100% functionality of the part. If you experience any compatibility issues, we offer a hassle-free return within 14 days.
