🔧 Fingerprint Reader for Lenovo ThinkPad P15 / P17 / T14 / T15 / P14s / X13 / X390 🔧

🖥️ ThinkPad P15, P17, T14, T15, P14s, P15s, X13, X390, L14 and more | Match-on-Chip fingerprint reader module | 5F30V25898

Genuine Lenovo fingerprint reader module (FRU FPR Prometheus BK-JYT) fitting more than 30 Lenovo ThinkPad models from 2019-2022, including P15, P17, T14, T15, P14s, P15s, X13, X390 and L14. Part sourced from a working device and tested - we guarantee 100% functionality. FRU number 5F30V25898 guarantees full compatibility with the listed models.

⚙️ PRODUCT CHARACTERISTICS

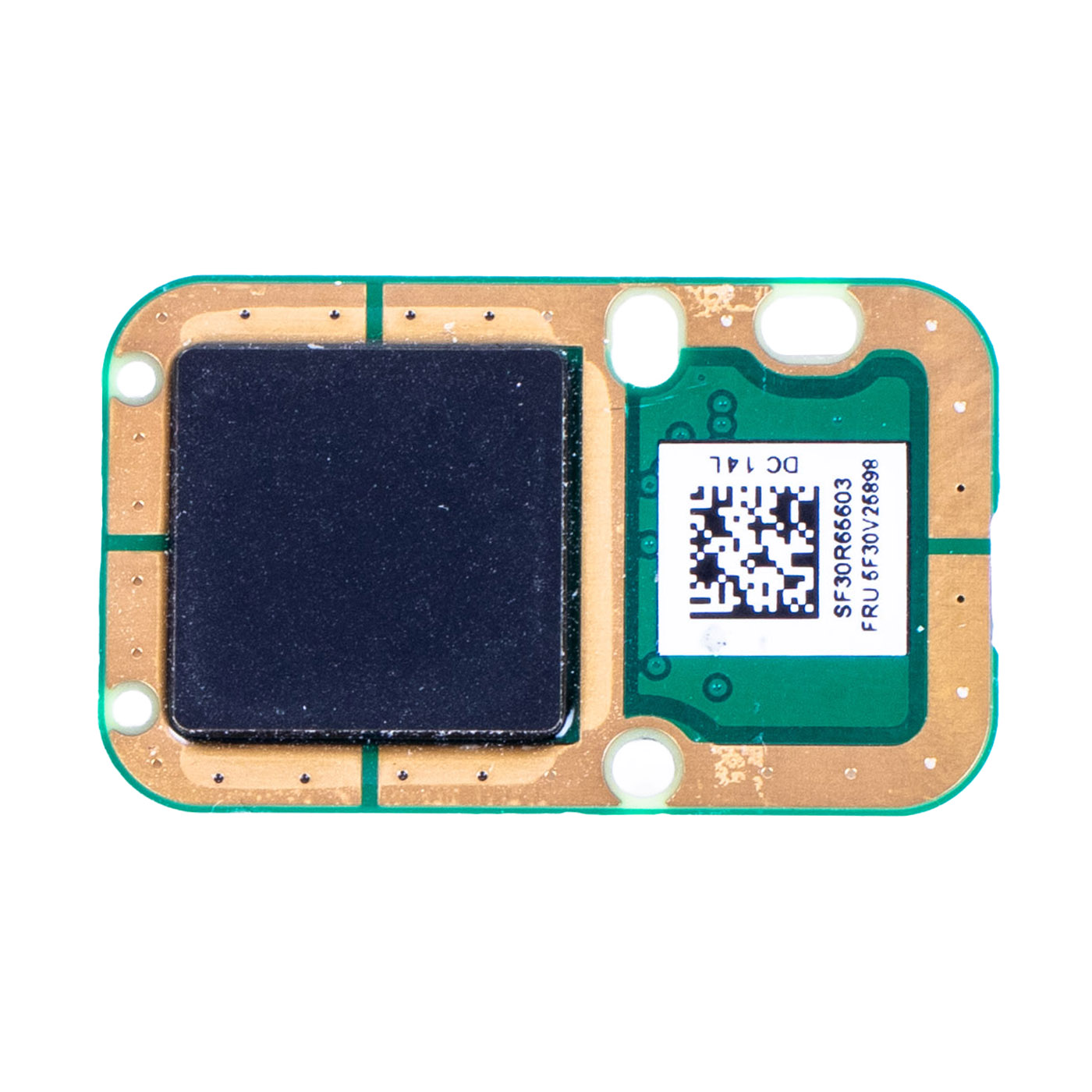

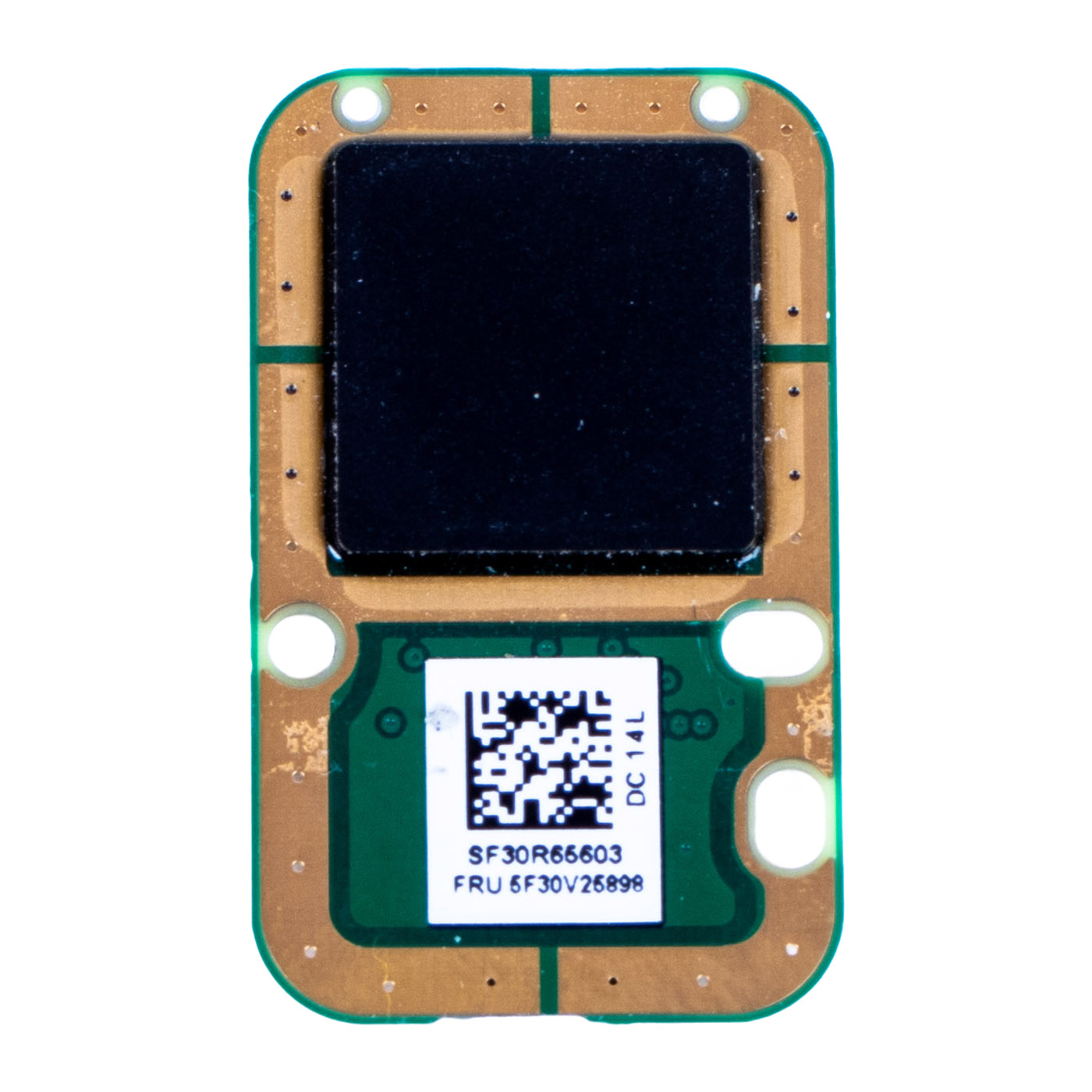

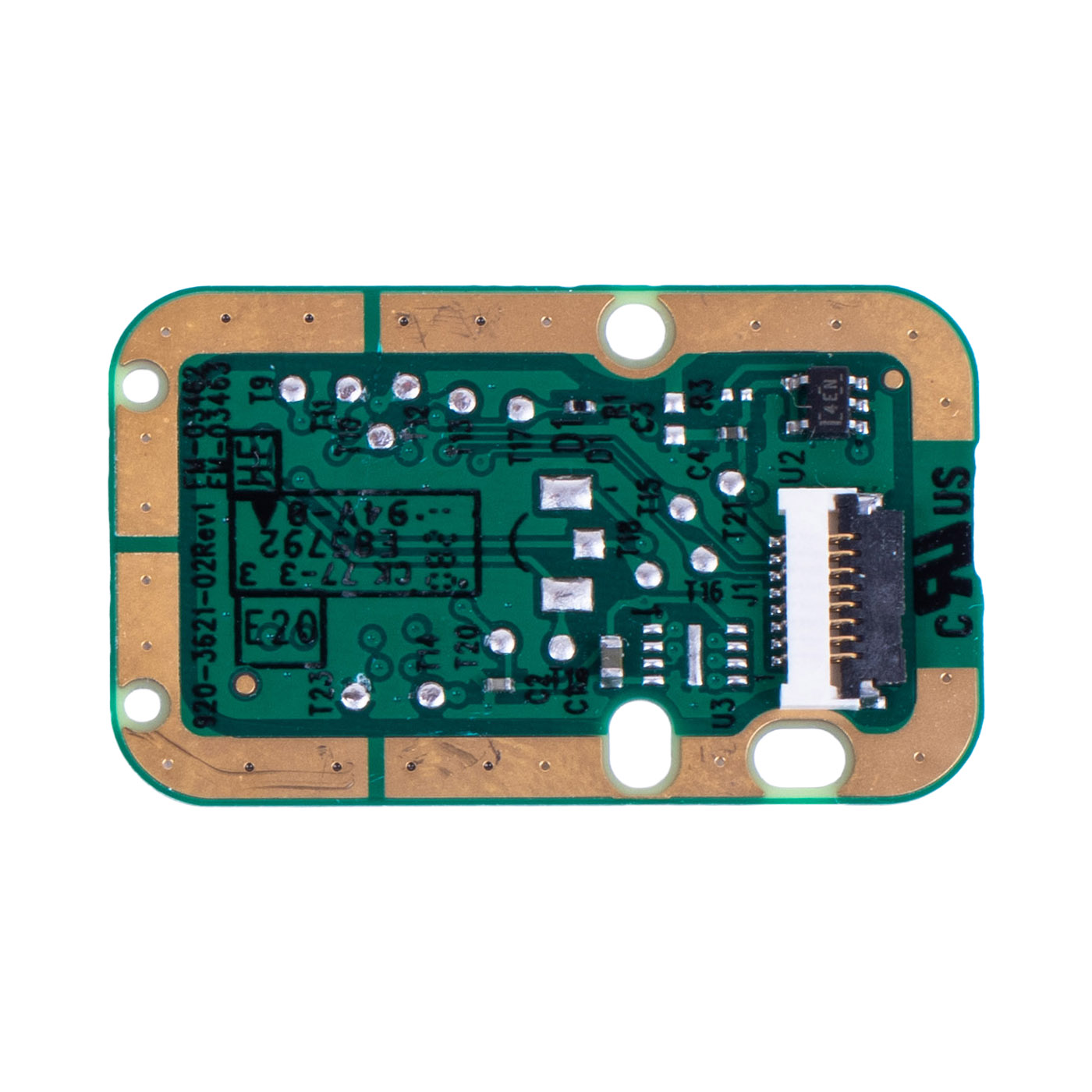

The module is a board with a Match-on-Chip (MoC) fingerprint sensor: the fingerprint template is stored and matched inside the sensor itself, not in the operating system. The sensor has a black coating, and the underside of the board carries the J1 cable connector. The reader supports Windows Hello fingerprint sign-in. The board label shows SF30R65603 and FRU 5F30V25898, and the PCB is marked 920-3621-02 Rev1. In the Lenovo catalogue it is listed as FRU FPR Prometheus BK-JYT.

📋 TECHNICAL SPECIFICATIONS

Part name: Fingerprint reader (FPR)
Brand: Lenovo ThinkPad
Compatible models: ThinkPad P15 Gen 1, P15 Gen 2, P17 Gen 1, P17 Gen 2, P14s Gen 1, P14s Gen 2, P15s Gen 1, P15s Gen 2, P15v Gen 3, P1 Gen 3, T14 Gen 1, T14 Gen 2, T14s Gen 1, T15 Gen 1, T15 Gen 2, T15g Gen 2, T15p Gen 1, T15p Gen 2, T15p Gen 3, T490s, T590, X1 Carbon Gen 8, X1 Nano Gen 1, X1 Nano Gen 2, X13 Gen 1, X13 Yoga Gen 1, X390, X390 Yoga, L13 Gen 2, L14 Gen 2, L15 Gen 2
Technology: Match-on-Chip (MoC), Windows Hello support
Package contents: Fingerprint reader module (sensor board)
Markings on the part: SF30R65603, FRU 5F30V25898, 920-3621-02 Rev1
Condition: Used (removed from a working unit, tested)
Warranty: 6 months
FRU: 5F30V25898
Substitute numbers: 5F30V26012, 5F30V26014, 5F30V25901, 5F30V25959, 5F30V25962, 00HW581, 00HW582, 01YU977, 01YU978

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - factory board size and hole spacing, the reader sits exactly in its chassis opening
🔹 One-touch sign-in - Windows Hello unlocks the laptop with your fingerprint, no password typing at every start
🔹 Match-on-Chip - the fingerprint template stays in the sensor, so biometric data is not stored on the drive
🔹 One reader for 30+ models - the same FRU fits the P, T, X and L series, easy to match to your laptop
🔹 Tested and working - checked before listing, 100% functional

🔢 PART NUMBERS

FRU: 5F30V25898
Substitute numbers: 5F30V26012, 5F30V26014, 5F30V25901, 5F30V25959, 5F30V25962, 00HW581, 00HW582, 01YU977, 01YU978
Markings on the part: SF30R65603, 920-3621-02 Rev1
Laptop model: Lenovo ThinkPad P15 Gen 1, P15 Gen 2, P17 Gen 1, P17 Gen 2, P14s Gen 1, P14s Gen 2, P15s Gen 1, P15s Gen 2, P15v Gen 3, P1 Gen 3, T14 Gen 1, T14 Gen 2, T14s Gen 1, T15 Gen 1, T15 Gen 2, T15g Gen 2, T15p Gen 1, T15p Gen 2, T15p Gen 3, T490s, T590, X1 Carbon Gen 8, X1 Nano Gen 1, X1 Nano Gen 2, X13 Gen 1, X13 Yoga Gen 1, X390, X390 Yoga, L13 Gen 2, L14 Gen 2, L15 Gen 2

❓ WHEN SHOULD YOU REPLACE THE FINGERPRINT READER?

• Problem with an undetected reader - Windows Hello says no fingerprint reader was found
• Problem with an unrecognised fingerprint - you touch the sensor several times and sign-in still fails
• Problem with a damaged sensor - cracked or worn surface after a drop or liquid spill
• Problem with a reader that disappears and reappears in Device Manager
• Problem with a missing reader - you want to add fingerprint sign-in to a laptop that did not have it

🔧 INSTALLATION PROCESS

1. Turn off Windows Fast Startup, restart the laptop, press F1 and in ThinkPad Setup select Config → Power → Disable built-in battery. The laptop turns off, wait 3-5 minutes
2. Unscrew and remove the bottom cover
3. Gain access to the reader - on ThinkPad P15 Gen 1 and P17 Gen 1 this requires removing the keyboard and the keyboard bezel assembly (palm rest). For other models follow the removal order in the model's Hardware Maintenance Manual (HMM)
4. Disconnect the cable from the reader's J1 connector, remove the retaining bracket and take out the old module
5. Place the new module with the sensor in the chassis opening, refit the bracket and connect the cable to J1, closing the latch
6. Reassemble in reverse order and connect the AC adapter, which re-enables the built-in battery
7. Boot the system and enrol your fingerprint in Settings → Accounts → Sign-in options (Windows Hello)
Replacement by a technical service or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

This reader is intended for repairing Lenovo ThinkPad P, T, X and L series laptops (2019-2022) where fingerprint sign-in stopped working. Replacing just the module is much cheaper than replacing the palm rest. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered reader has been carefully checked and matched to the listed Lenovo ThinkPad models. We guarantee full compatibility within FRU number 5F30V25898 and 100% functionality of the part. In case of any compatibility issues, we offer a hassle-free return within 14 days.
