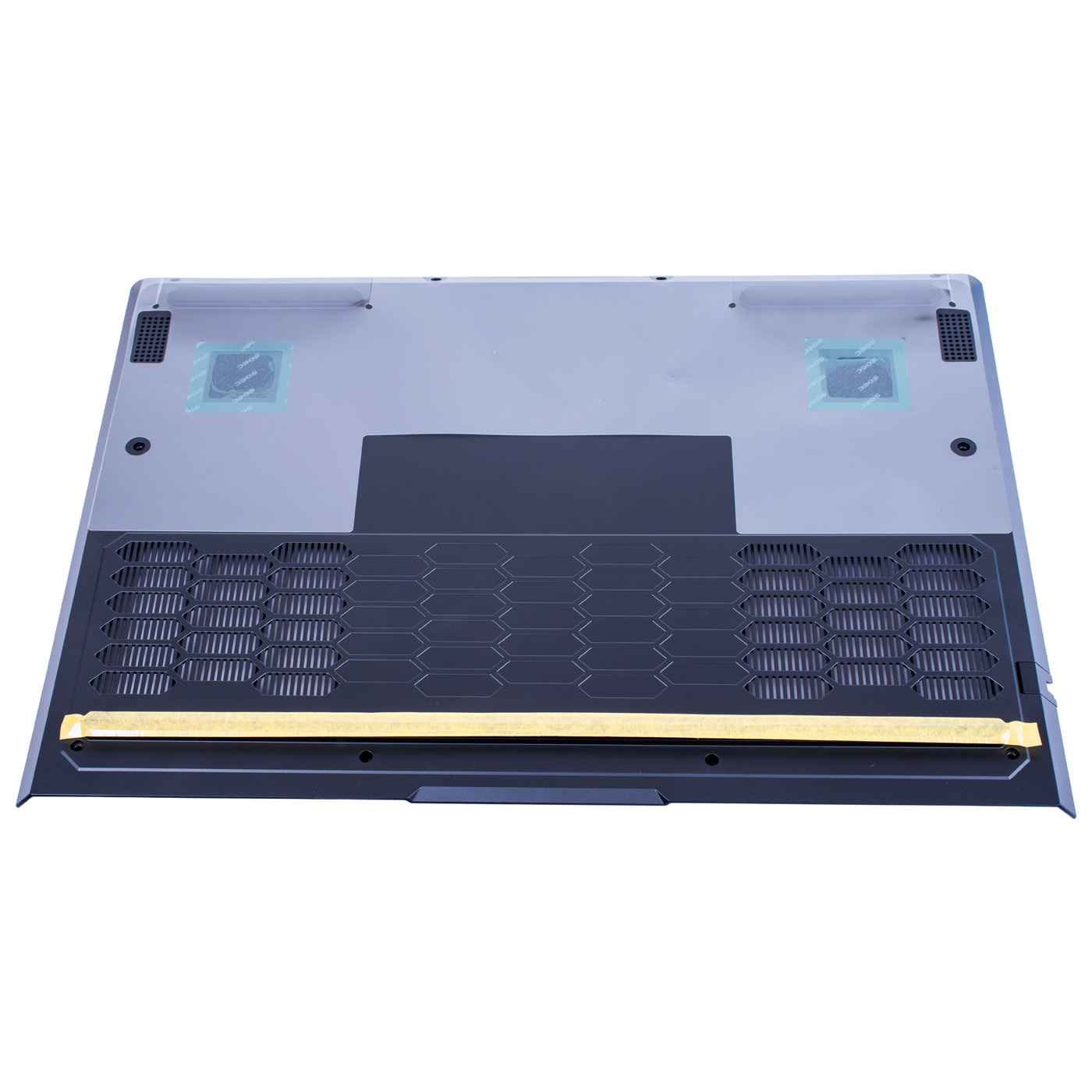

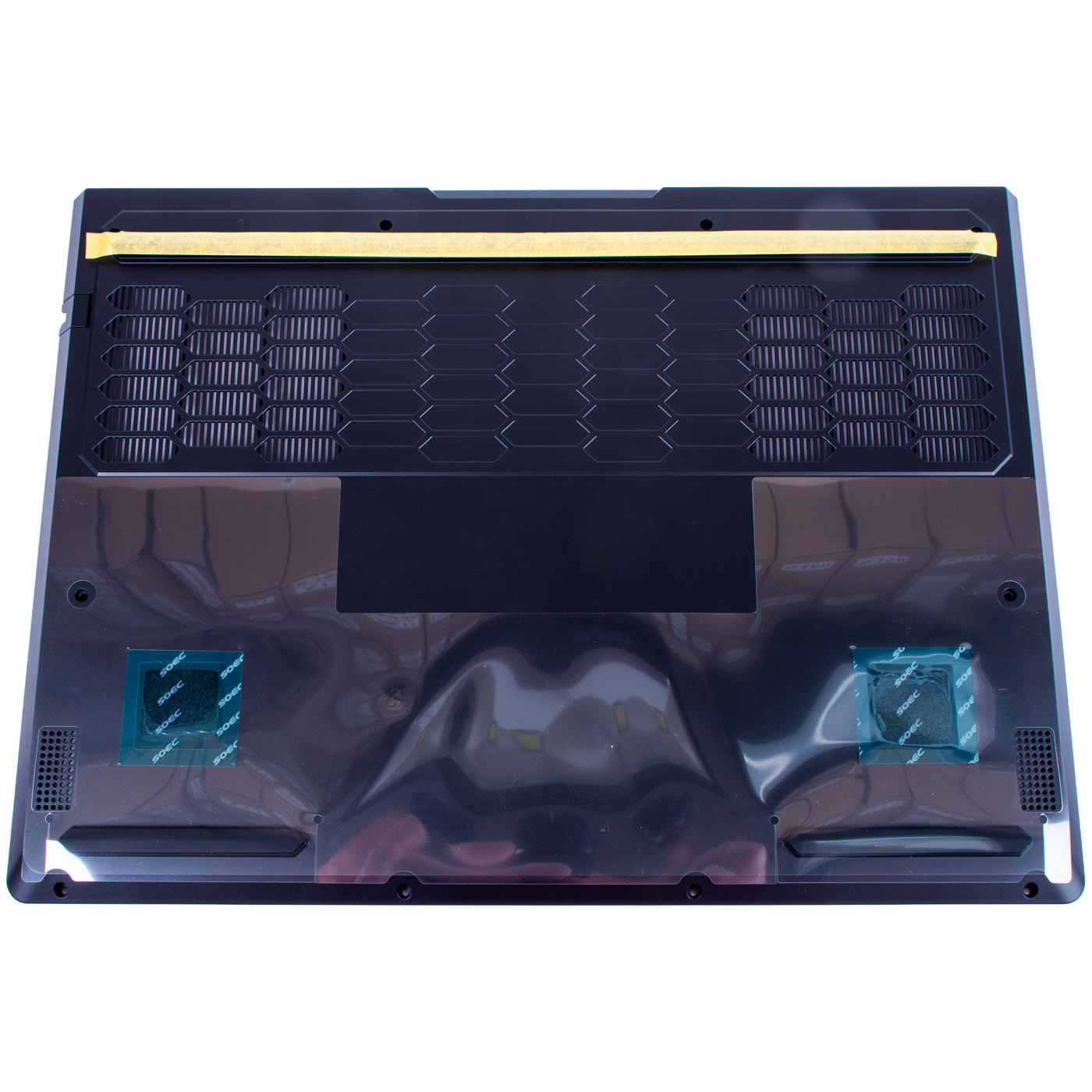

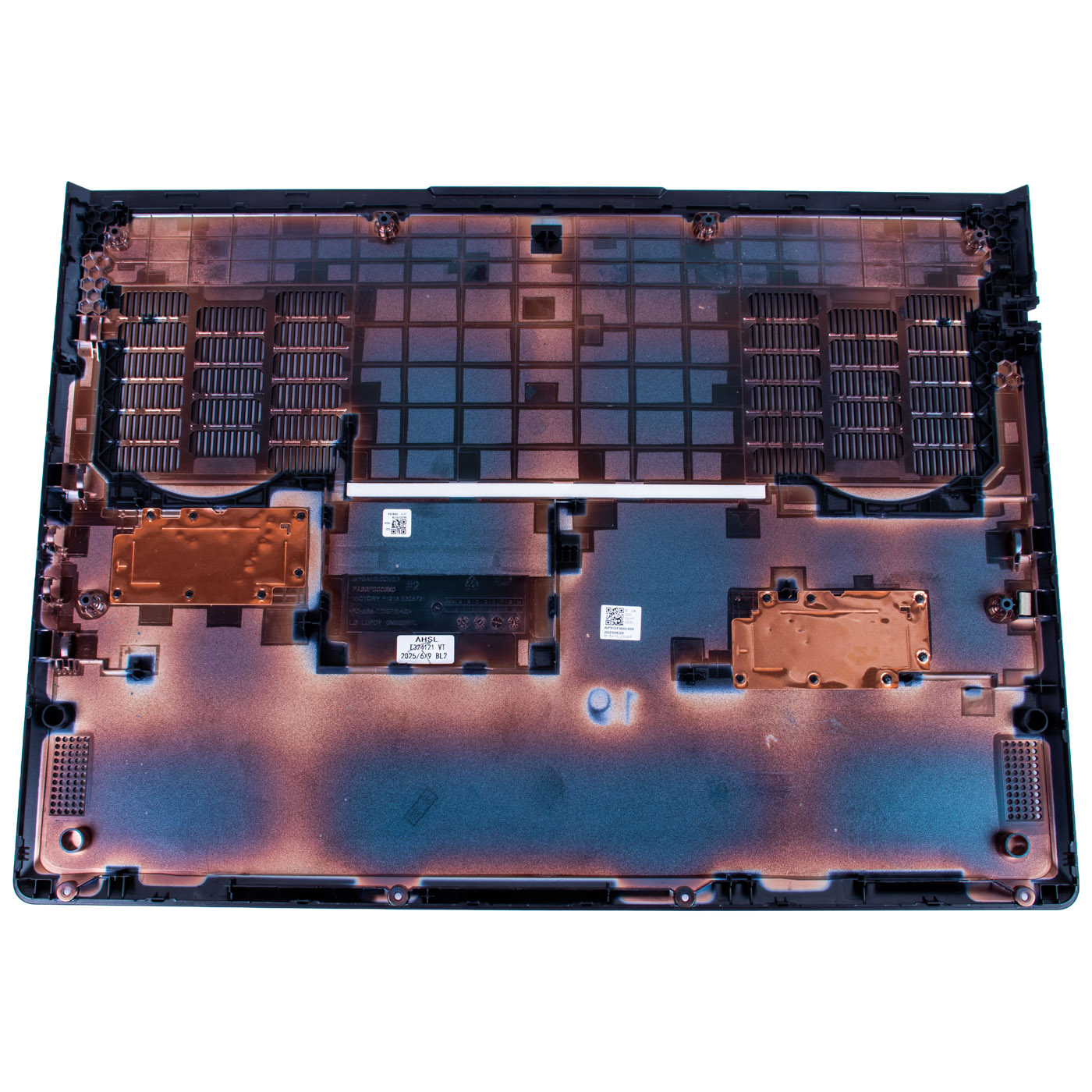

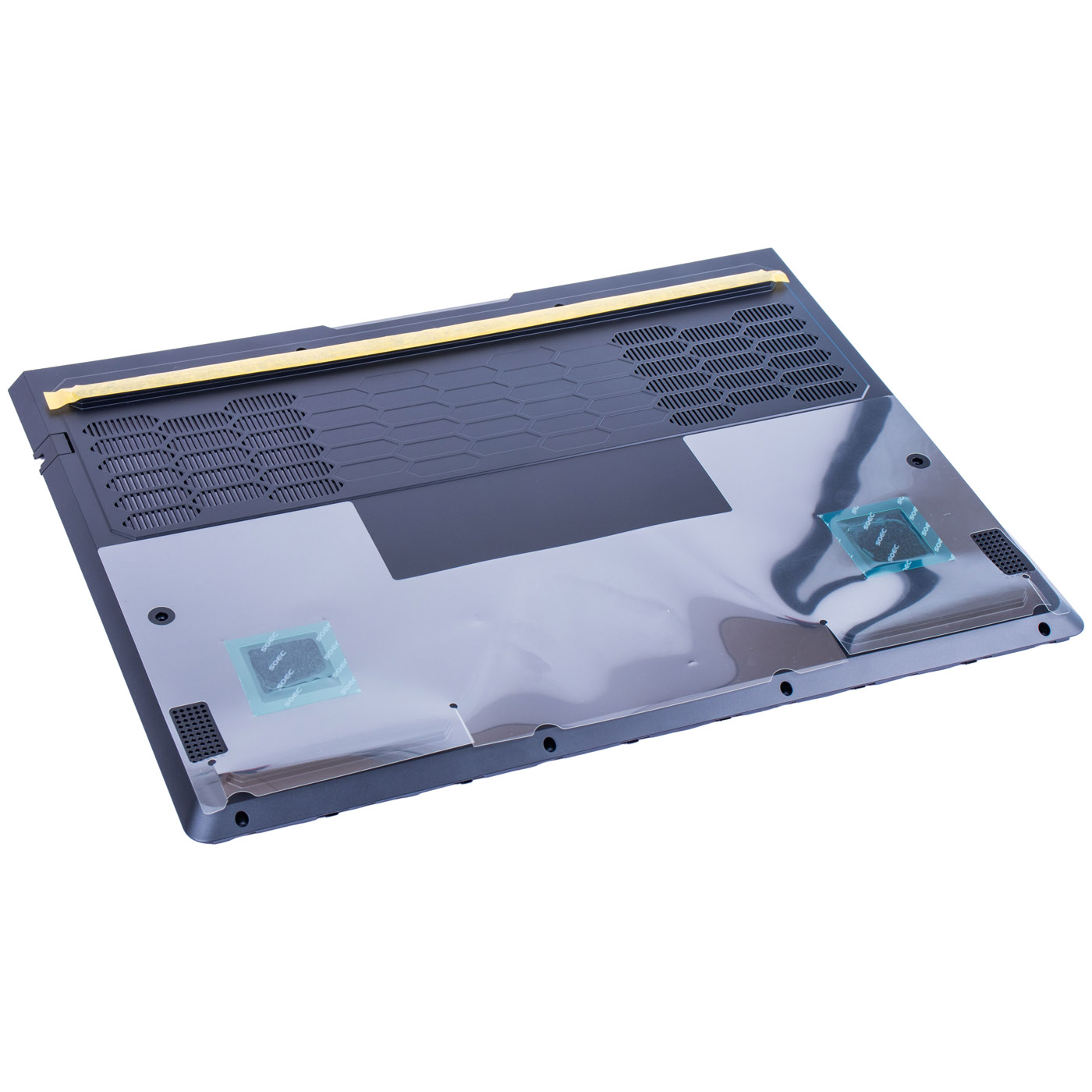

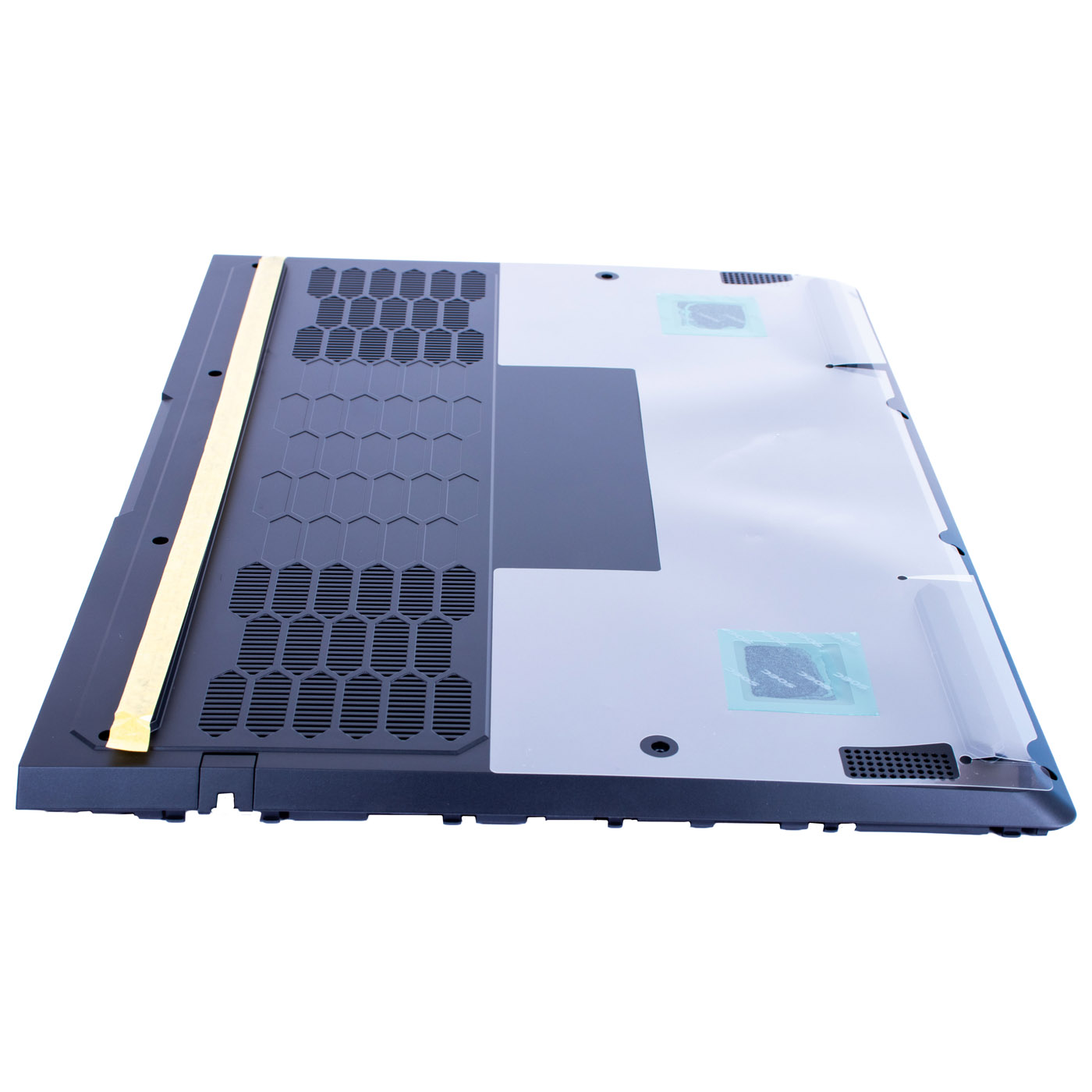

Lenovo Legion 5 PRO 16 IRX10 AFR10 black lower case | 5CB1S31096

🔧 Bottom Cover for Lenovo Legion Pro 5 16 IRX10 🔧

🖥️ Legion Pro 5 16 | Black | 16" | IRX10 / ADR10 / IAX10 / AFR10

⚙️ PRODUCT DESCRIPTION

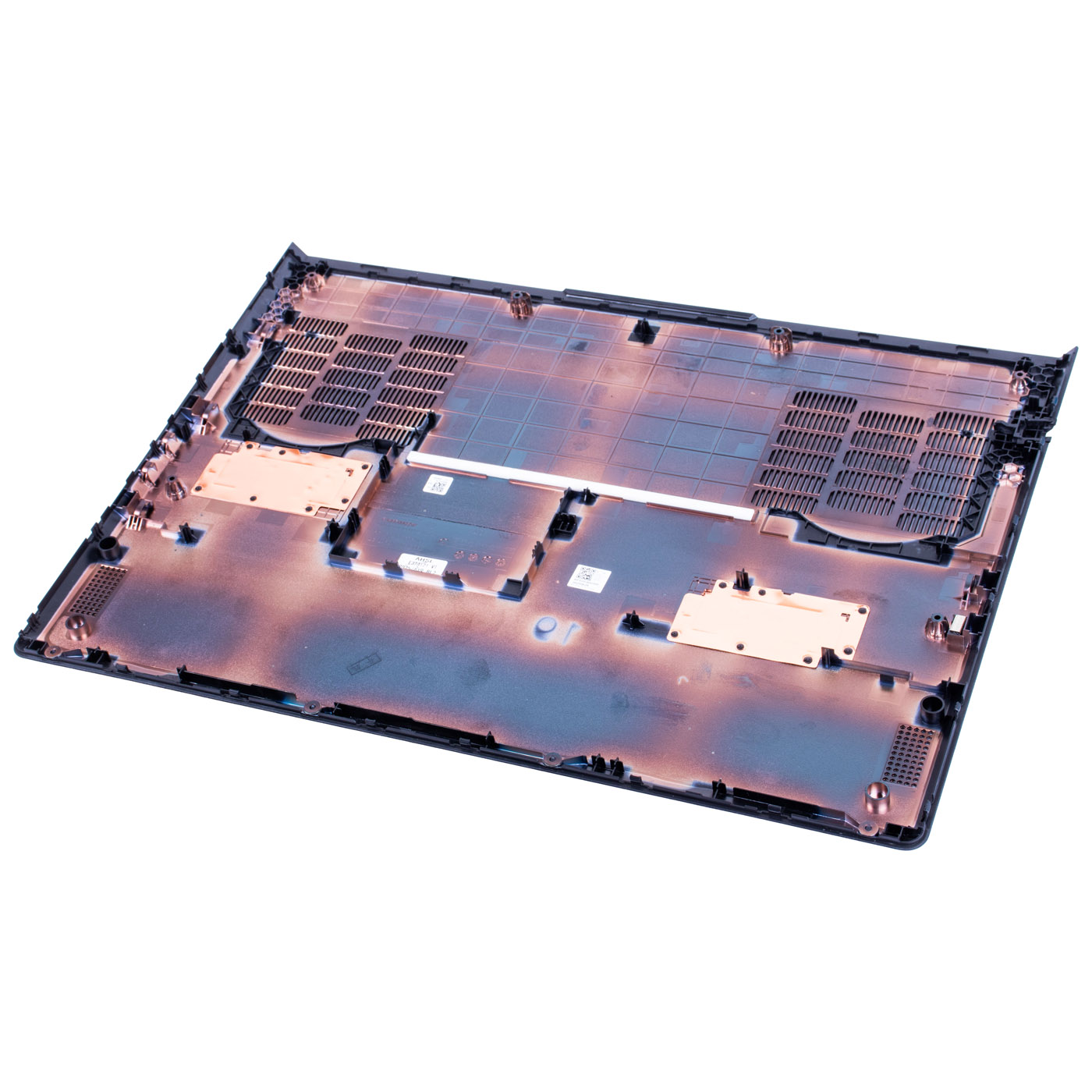

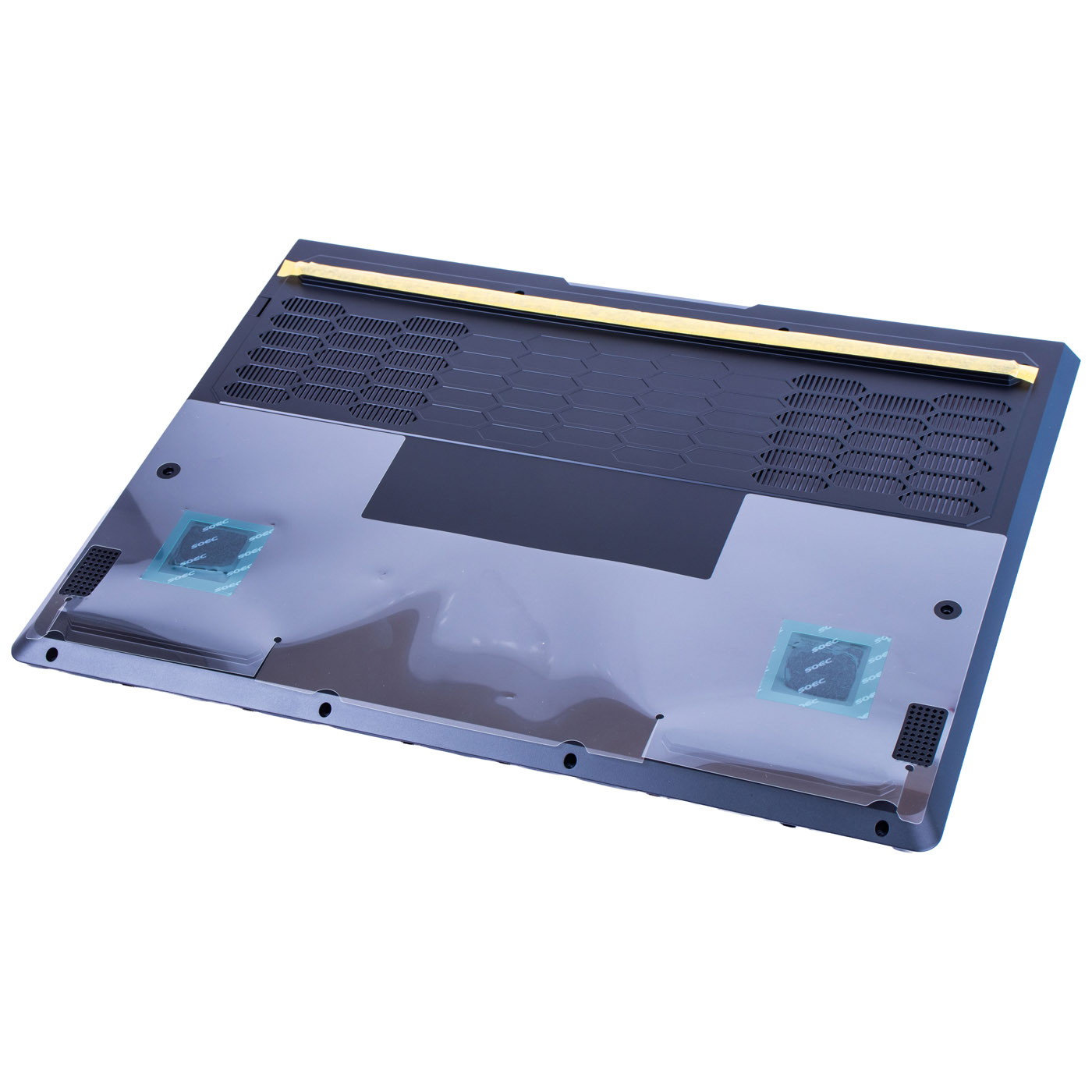

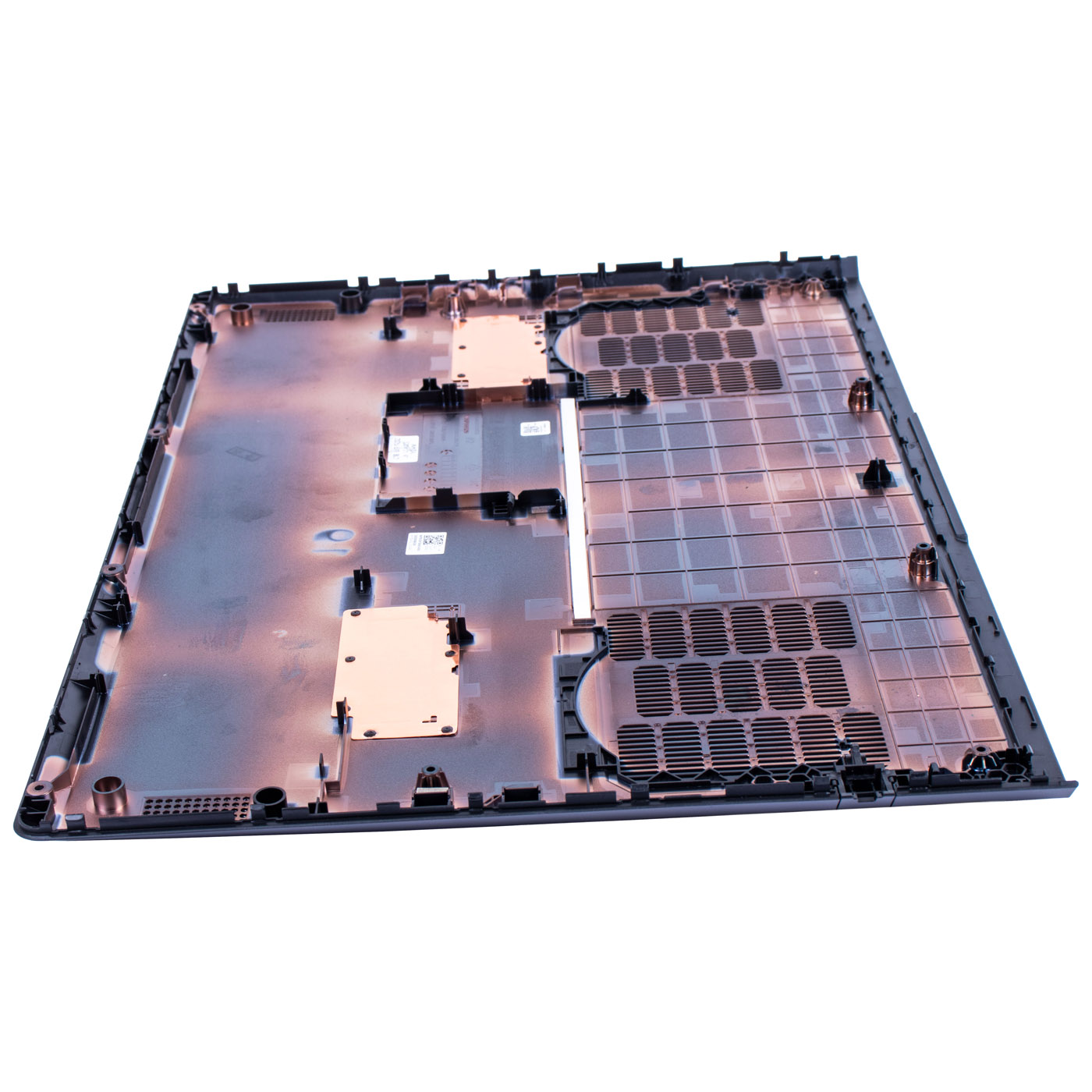

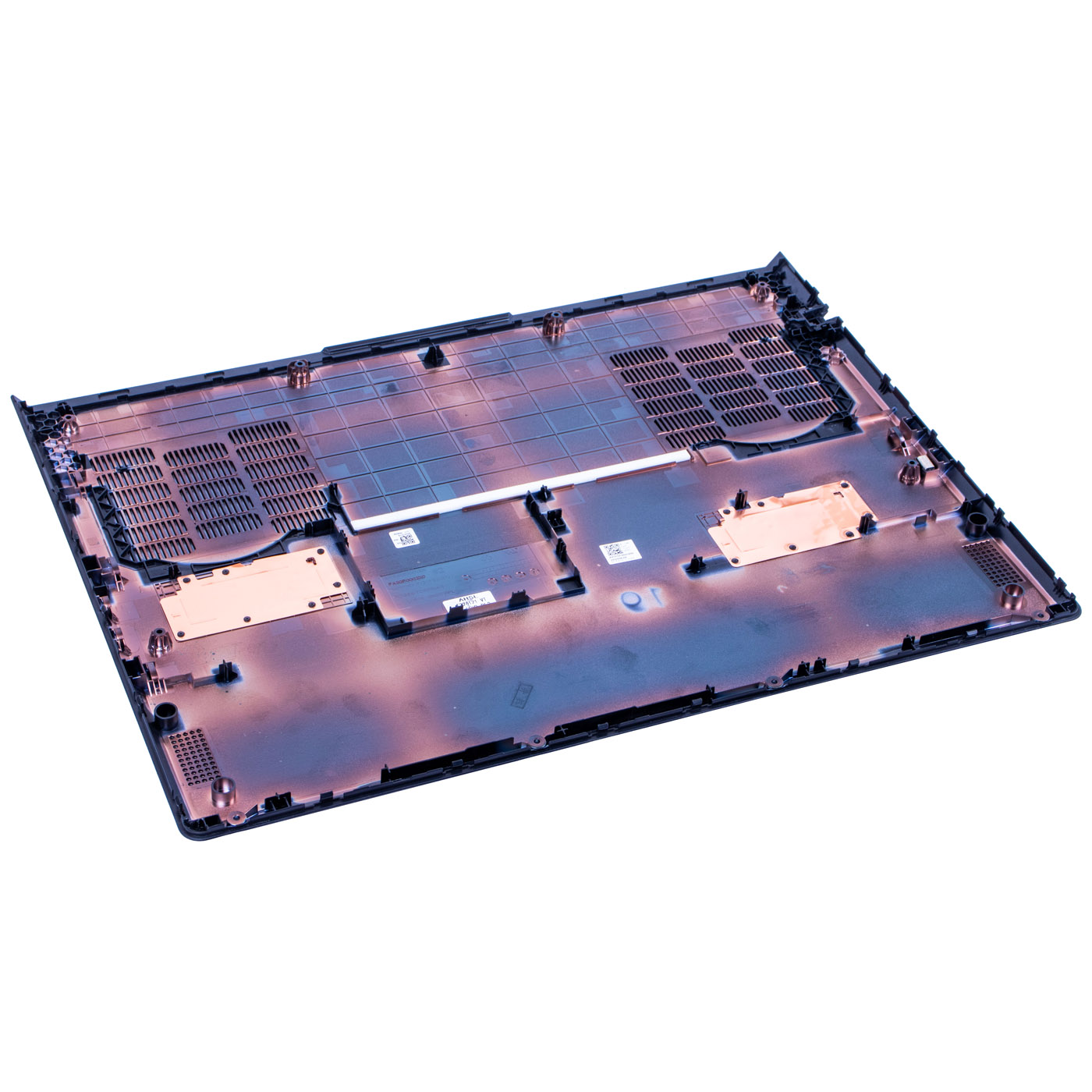

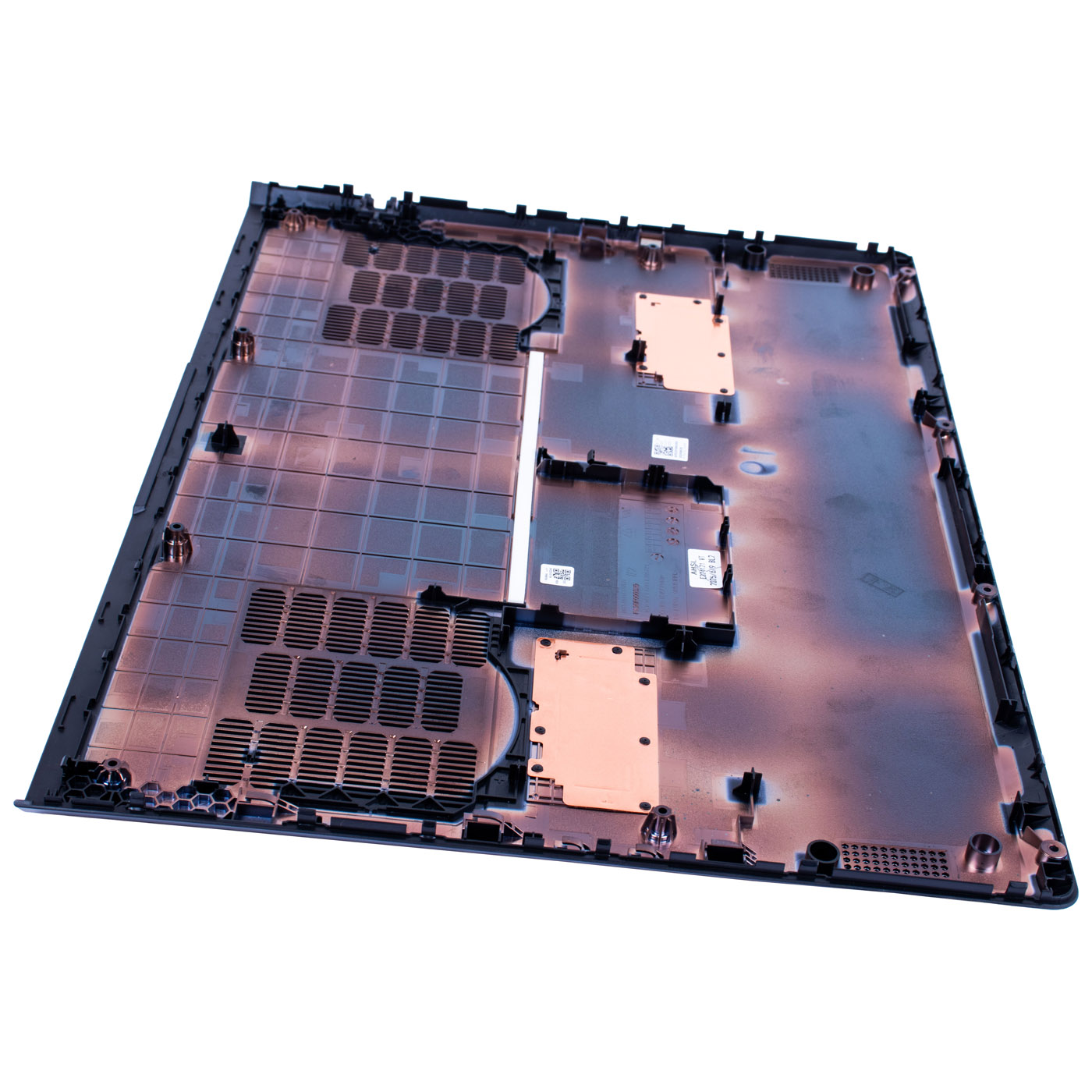

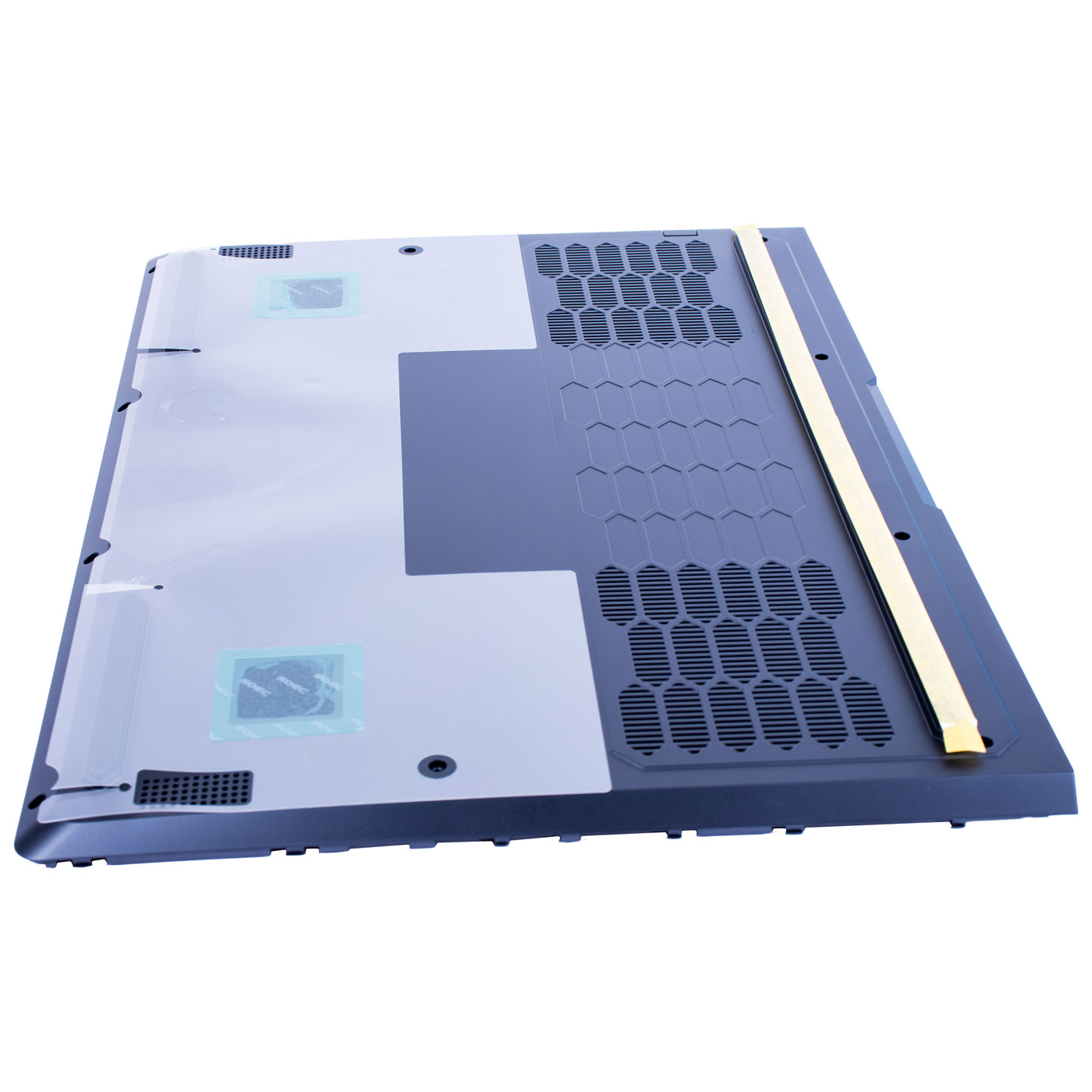

Original, brand new bottom cover (D-Cover) for Lenovo Legion Pro 5 16 laptops. The part is made in the characteristic gaming style of the Legion series - featuring an aggressive geometric ventilation grille pattern, speaker openings on both sides, and rubber feet for stability. The cover comes with factory-installed thermal pads (SOEC). The part marked with FRU number 5CB1S31096 guarantees full compatibility with Legion Pro 5 16AFR10, 16IAX10, 16IAX10H, 16ADR10, and 16IRX10 models. The product does not include any internal components - this is the bottom cover only.

📋 TECHNICAL SPECIFICATIONS

Type: Bottom cover (D-Cover)
Brand: Lenovo
Model: Legion Pro 5 16 (AFR10 / IAX10 / IAX10H / ADR10 / IRX10)
Color: Black
Design: Gaming geometric ventilation grille, speaker openings
Thermal pads: Factory-installed (SOEC)
Condition: New
Size: Compatible with 16" laptops
Contents: Bottom cover only

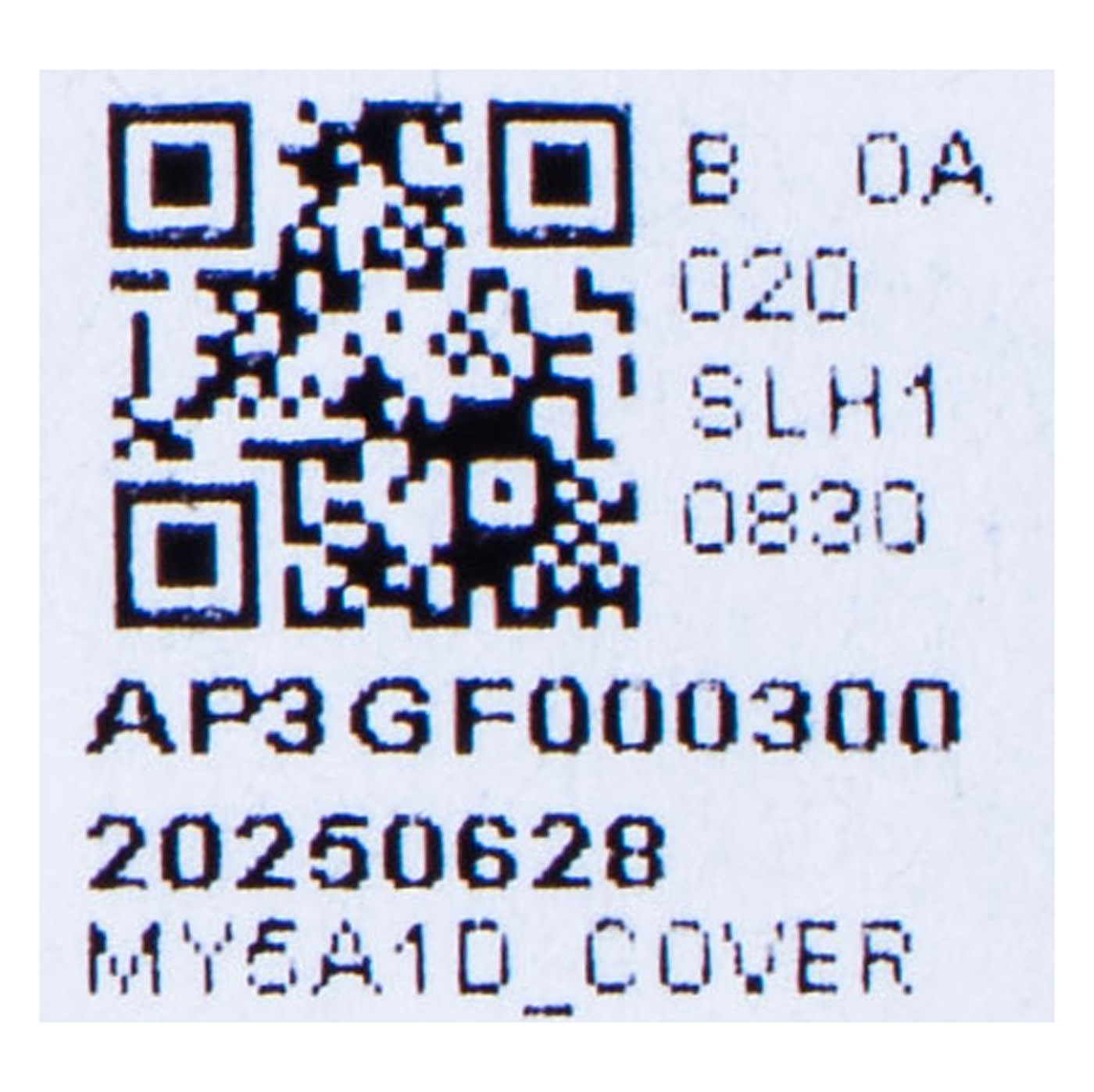

Alternative numbers: AP3GF000300

🔑 KEY FEATURES

🔹 Original Lenovo part - guaranteed perfect fit and full compatibility
🔹 Gaming design - characteristic geometric ventilation grille of the Legion series
🔹 Factory thermal pads - ready to install without purchasing additional components
🔹 Speaker openings on both sides - full compatibility with the original audio system
🔹 Rubber feet - ensure stability and proper airflow under the laptop
🔹 Wide compatibility - fits 5 variants of the Legion Pro 5 16 model
🔹 Brand new part - guaranteed reliability and long service life

🔢 PART NUMBERS

FRU: 5CB1S31096
Alternatives: AP3GF000300

❓ WHEN TO REPLACE THE BOTTOM COVER?

• Mechanical damage - cracks, dents or breaks in the cover after a laptop drop
• Ventilation grille damage - deformations restricting airflow and cooling performance
• Rubber feet damage - detached or worn rubber feet causing instability
• Housing deformation - deformations preventing proper seating of the bottom cover
• Aesthetic damage - scratches or damage affecting the appearance of the device
• Mounting hole damage - stripped threads or damaged screw holes

🔧 INSTALLATION PROCESS

Replacing the bottom cover on the Lenovo Legion Pro 5 16 requires basic service skills. Turn off the laptop and disconnect the power supply. Remove all screws securing the bottom cover, then use a plastic pry tool (spudger) to gently unclip the housing clips starting from the edges. Carefully lift the cover and disconnect the battery cable and any other cables attached to the cover. Install the new cover in reverse order, tightening the screws and ensuring all clips are properly fastened.

🎯 APPLICATION

The bottom cover is dedicated to Lenovo Legion Pro 5 16 laptops with a 16" screen. Compatible with: Legion Pro 5 16AFR10, Legion Pro 5 16IAX10, Legion Pro 5 16IAX10H, Legion Pro 5 16ADR10, and Legion Pro 5 16IRX10. It is an essential part for gamers who need to restore the integrity and appearance of their laptop housing after damage. The original part numbers 5CB1S31096 / AP3GF000300 guarantee a perfect fit for your model. The product does not include any internal components - all internal parts (battery, motherboard, cooling) are transferred from the old cover to the new one.

✅ COMPATIBILITY GUARANTEE

The offered part has been carefully verified and matched to Lenovo Legion Pro 5 16 models. We guarantee full compatibility with Lenovo Legion Pro 5 16IRX10 and the listed variants under FRU number 5CB1S31096. The exact appearance and condition of the offered item is shown in the photos in the listing. In case of any compatibility issues, we provide a hassle-free return within 14 days.
