🔧 Backlit Nordic QWERTY Keyboard for Lenovo ThinkPad P15 / P17 / T15g Gen 1 🔧

🖥️ ThinkPad P15 Gen 1 · P17 Gen 1 · T15g Gen 1 | Backlit Keyboard with Numeric Keypad | Nordic QWERTY | 5N20Z74856

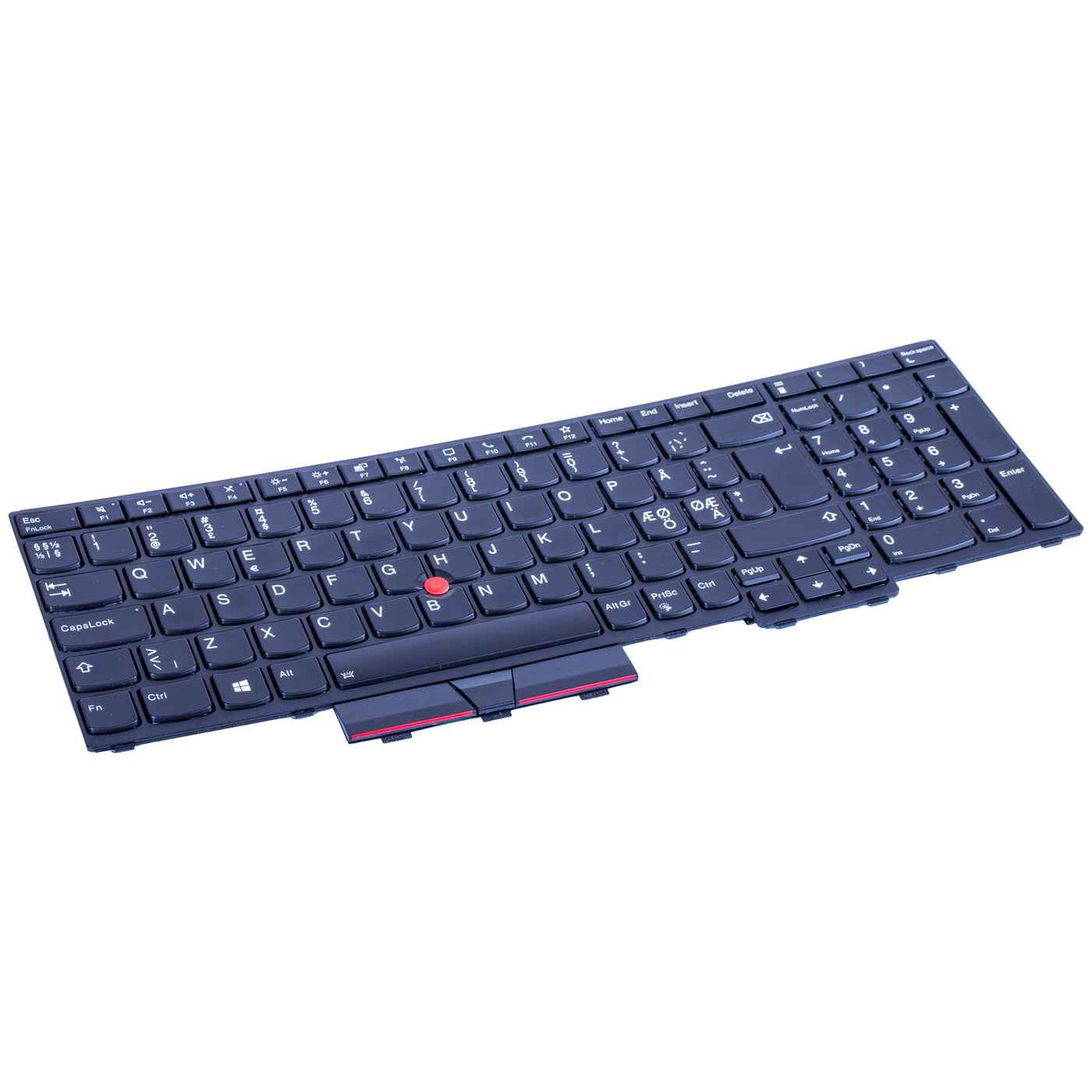

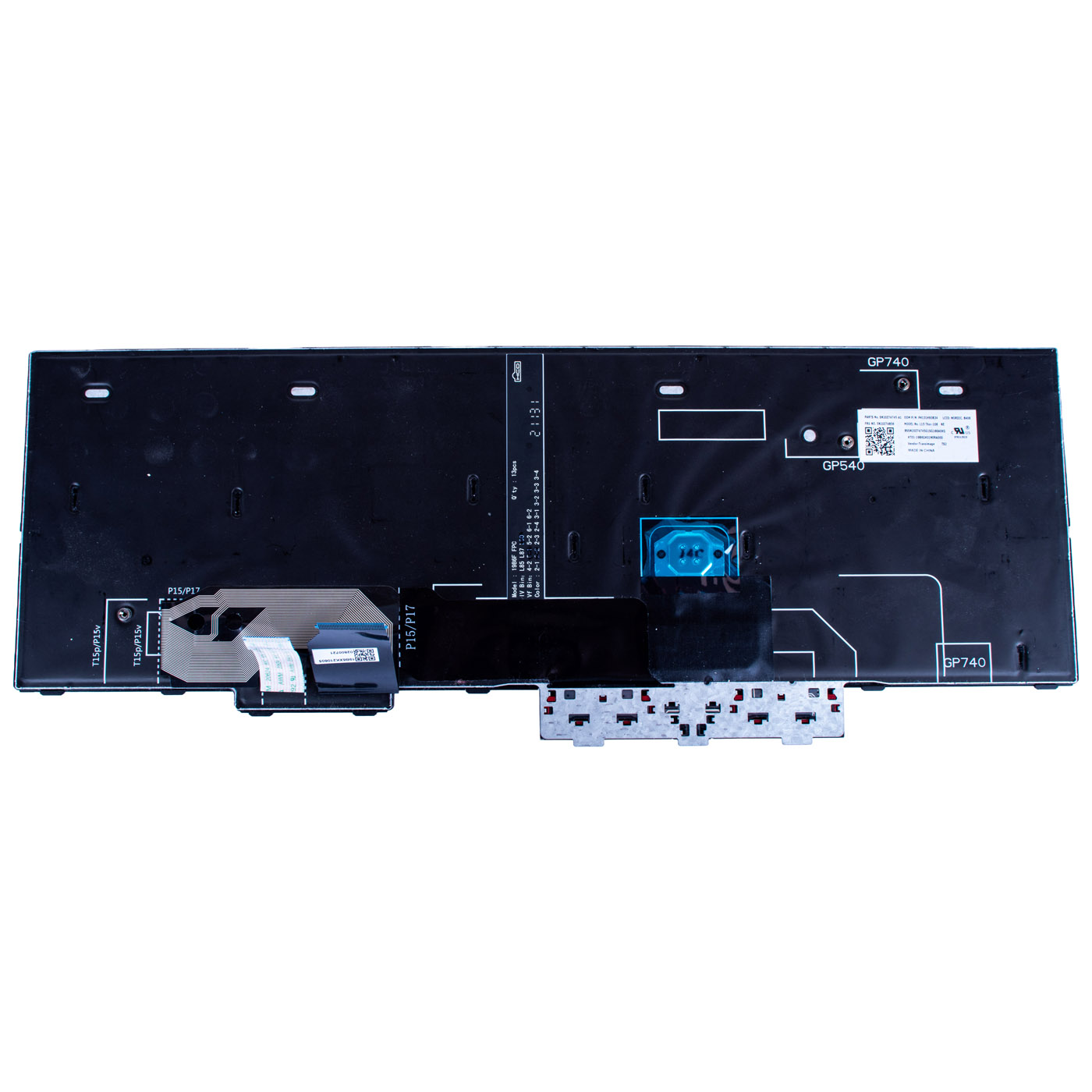

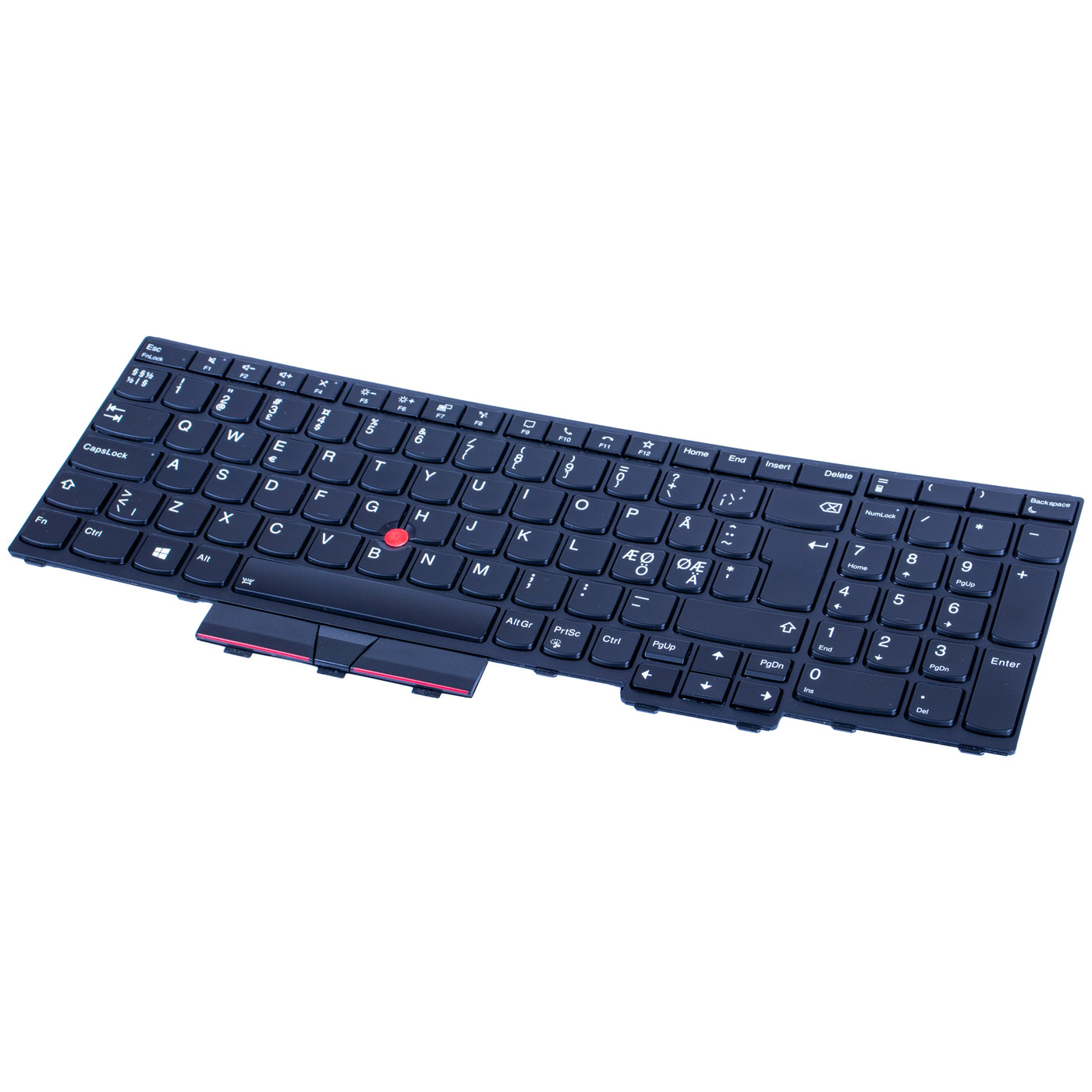

Genuine backlit keyboard with numeric keypad and TrackPoint designed for the Lenovo ThinkPad P15 Gen 1, P17 Gen 1 and T15g Gen 1. Part sourced from a working device and tested - we guarantee 100% functionality. The keyboard is in very good condition. FRU number 5N20Z74856 ensures full compatibility with the listed models.

⚙️ PRODUCT OVERVIEW

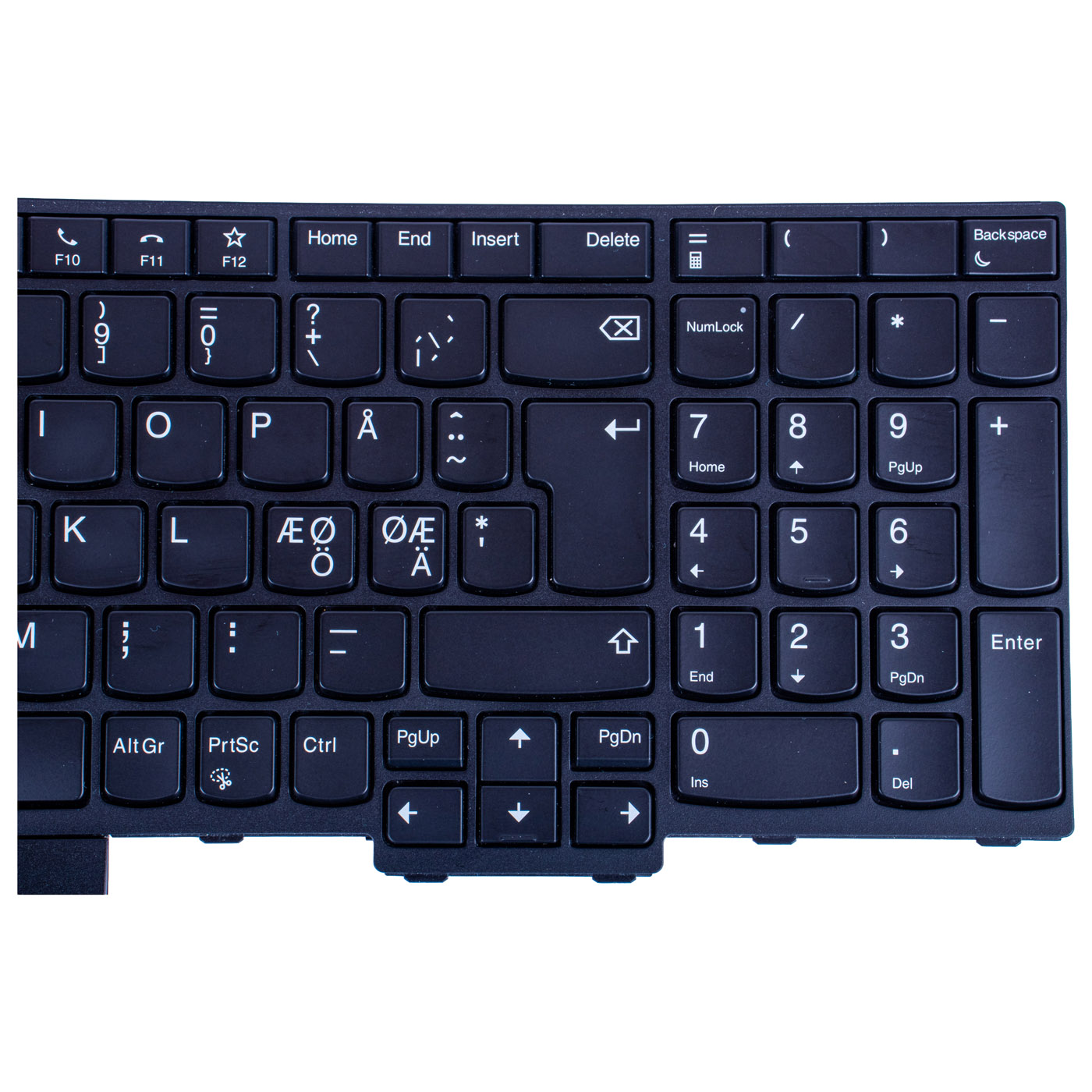

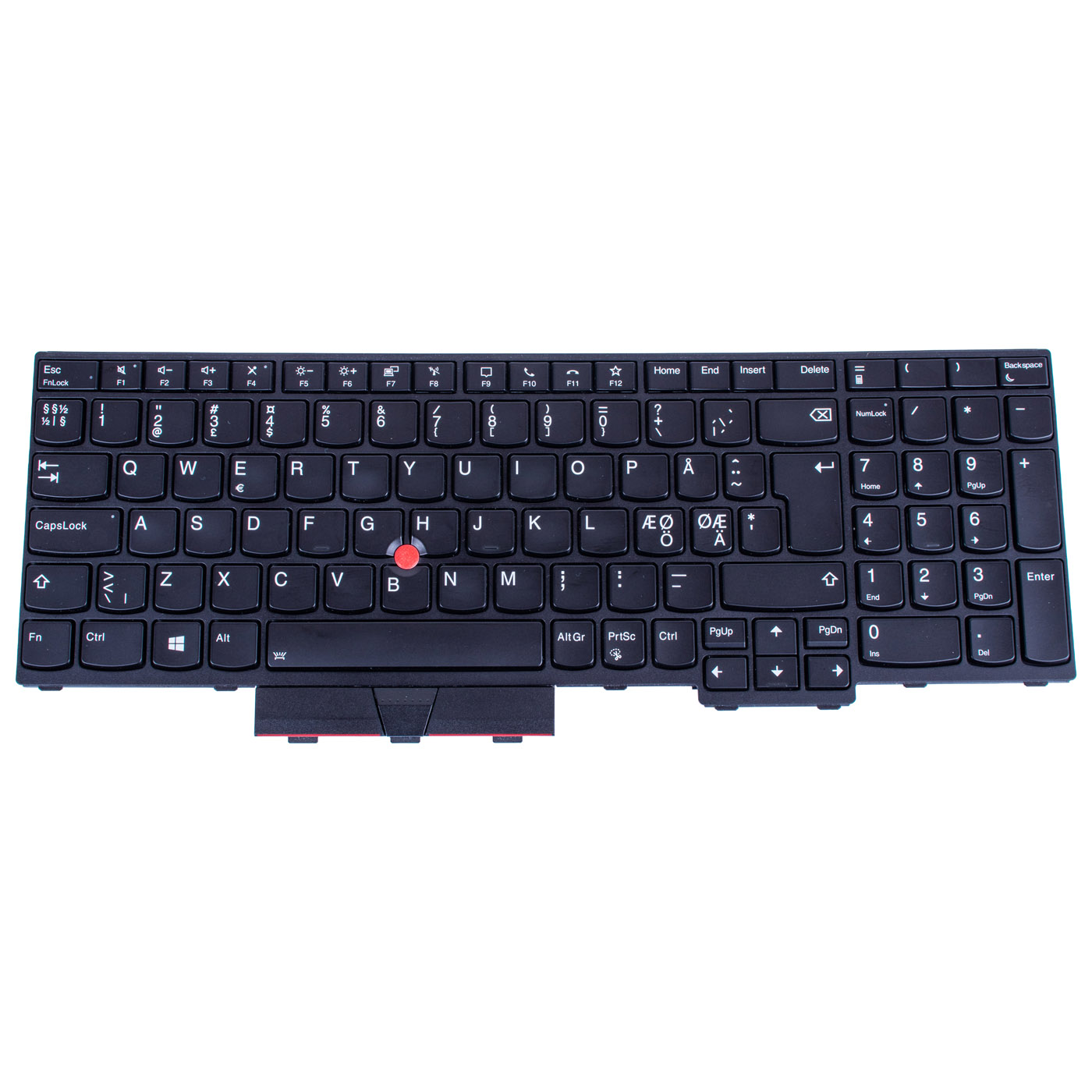

Nordic QWERTY layout (Å, Æ/Ä, Ø/Ö characters) on a physical ISO layout: an inverted-L Enter key and an extra < > key next to the left Shift. It has key backlighting, a full numeric keypad, a TrackPoint with three buttons, and Home, End, Insert and Delete keys in the top row. The letters are in the same places as on a Polish keyboard, so with the Windows "Polish (Programmers)" layout you type Polish characters with right Alt (AltGr). On request we can add Polish overlay stickers. A few stickers are an easy way to match the key labels to the Polish programmer layout.

📋 TECHNICAL SPECIFICATIONS

Part name: Internal keyboard (backlit, with numeric keypad)
Brand: Lenovo ThinkPad
Compatible models: ThinkPad P15 Gen 1, P17 Gen 1, T15g Gen 1
Keyboard layout: Nordic QWERTY (physical ISO layout), Polish overlay stickers available on request
Backlight: Yes
Numeric keypad: Yes
TrackPoint: Yes, with 3 buttons
Colour: Black
Condition: Used (pulled from a working unit, tested), very good condition
FRU: 5N20Z74856
Substitute numbers: 5N20Z74819, 5N20Z74893, PK131K93B34

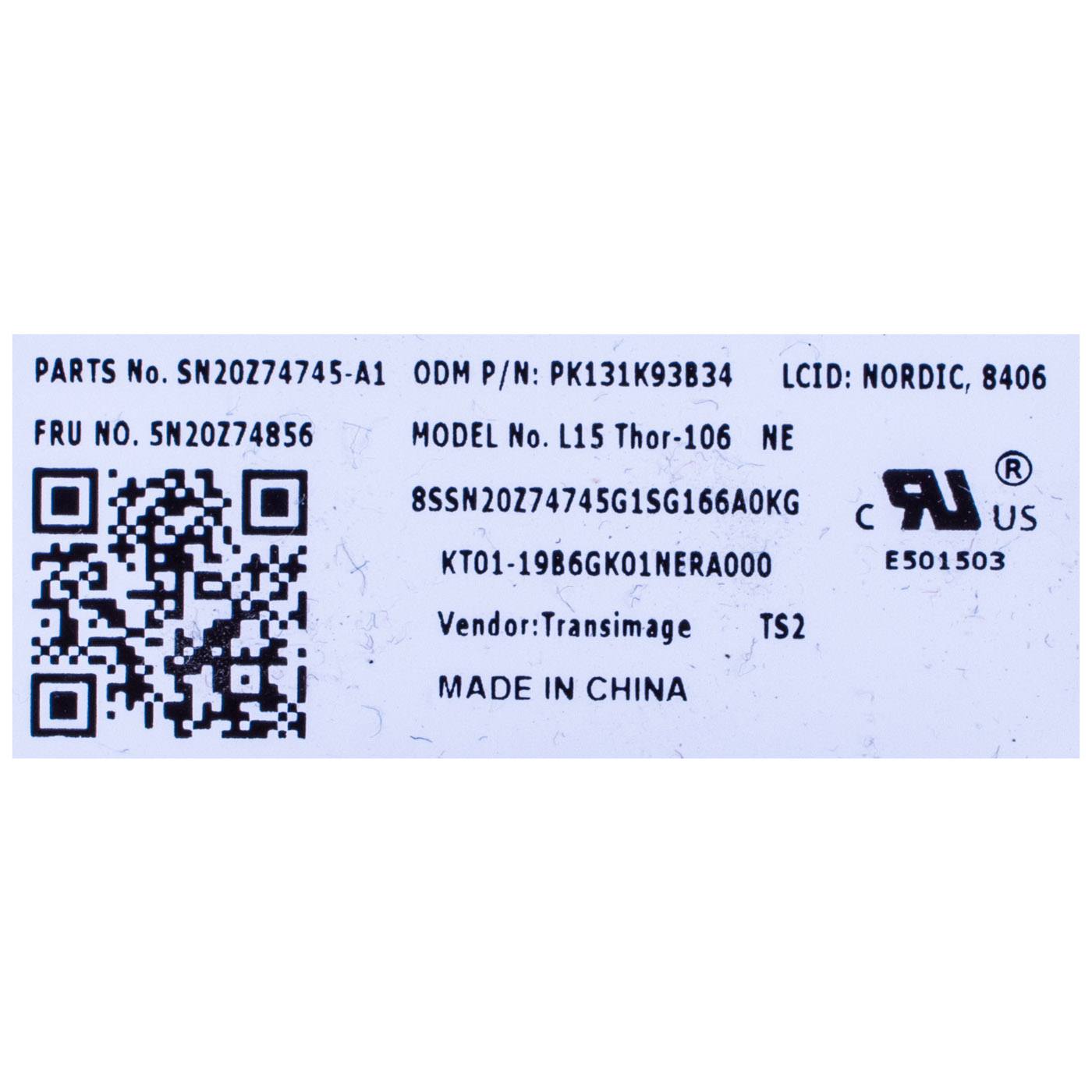

Label markings: SN20Z74745-A1, LCID: NORDIC 8406, L15 Thor-106 NE, KT01-19B6GK01NERA000 (Transimage)

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - perfect fit and reliability
🔹 Key backlighting - you can see the keys in the evening or in a dark room without switching on a light
🔹 Full numeric keypad - enter numbers in Excel or accounting software with one hand, without hunting along the top row
🔹 ThinkPad TrackPoint - move the cursor without taking your hands off the keyboard
🔹 Polish overlay stickers on request - the keyboard easily switches to the Polish programmer layout
🔹 Full compatibility - matched to the P15 / P17 / T15g Gen 1 under FRU 5N20Z74856

🔢 PART NUMBERS

FRU: 5N20Z74856
Substitute numbers: 5N20Z74819, 5N20Z74893, PK131K93B34
Label markings: SN20Z74745-A1, LCID: NORDIC 8406, L15 Thor-106 NE, KT01-19B6GK01NERA000
Laptop model: Lenovo ThinkPad P15 Gen 1, P17 Gen 1, T15g Gen 1

❓ WHEN SHOULD YOU REPLACE THE KEYBOARD?

• Keys don't respond or need several presses
• Liquid was spilled and keys now stick or type on their own
• The backlight no longer works, so you can't see the keys in the evening
• Keys are broken off or missing
• The TrackPoint has stopped working or the cursor drifts to one side on its own

🔧 INSTALLATION PROCESS

Sequence according to the Lenovo Hardware Maintenance Manual (HMM) for the ThinkPad P15 Gen 1 / T15g Gen 1.
1. Turn off the laptop and disconnect power and all external devices
2. Disable the built-in battery in BIOS (Disable built-in battery option)
3. Remove the bottom door on the underside of the laptop
4. Remove the screws securing the keyboard from below
5. Slide the keyboard towards the display, lift it and disconnect the keyboard cables
6. Connect the cables of the new keyboard, slide it into place and fasten the screws
7. Refit the bottom door
8. Power on and check all keys, the backlight and the TrackPoint
Replacement by a technical service or a person experienced in laptop repair is recommended.

🎯 PURPOSE

This keyboard is intended for repairing ThinkPad P15, P17 and T15g first-generation laptops with faulty or damaged keys. It is also a good choice for anyone used to the Scandinavian layout or typing in the Polish programmer layout. The exact appearance and condition of the item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

This keyboard has been carefully tested and matched to the Lenovo ThinkPad P15 Gen 1, P17 Gen 1 and T15g Gen 1. We guarantee full compatibility within FRU 5N20Z74856 and 100% functionality of the part. If you experience any compatibility issues, we offer a hassle-free return within 14 days.

📞 NEED HELP? CONTACT OUR EXPERTS!

Do you have questions about the compatibility of this keyboard with your ThinkPad, or would you like Polish overlay stickers? Our specialists will be happy to assist you. Contact us!
📱 Phone: +48-601-415357
📧 Email: sklep@abcdeal.pl

🦁 ABCDEAL - Your Trusted Lenovo Parts Specialist

We have been specialising in delivering genuine Lenovo laptop parts for years. Our experience allows us to offer top-quality products that meet the expectations of even the most demanding customers. Trust the experts and restore your ThinkPad to full working order.

🎯 Choose professionals - invest in quality!

By choosing a genuine keyboard for the Lenovo ThinkPad P15 / P17 / T15g Gen 1 from our offer, you invest in reliability and comfortable typing. Benefit from ABCDEAL's expertise and bring your laptop back to full functionality.
