Original CPU Fan Lenovo LOQ 16 IRH8 | DFS5L22H15G86B

🔧 CPU Fan for Lenovo LOQ 16 IRH8 🔧

🖥️ Lenovo LOQ 16 IRH8 / 15 IRH8 | Processor (CPU) Fan | DC 5V 0.9A | FCN

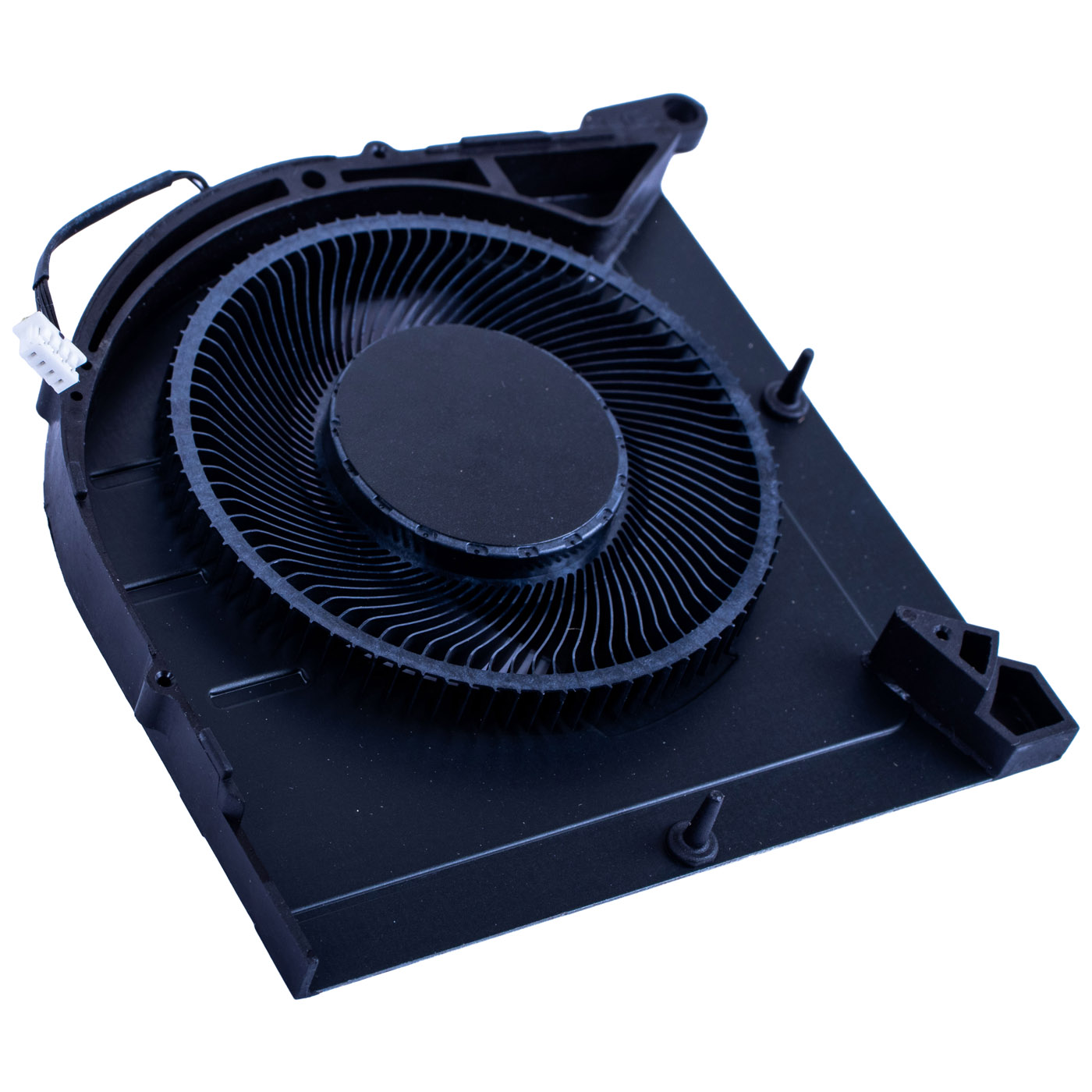

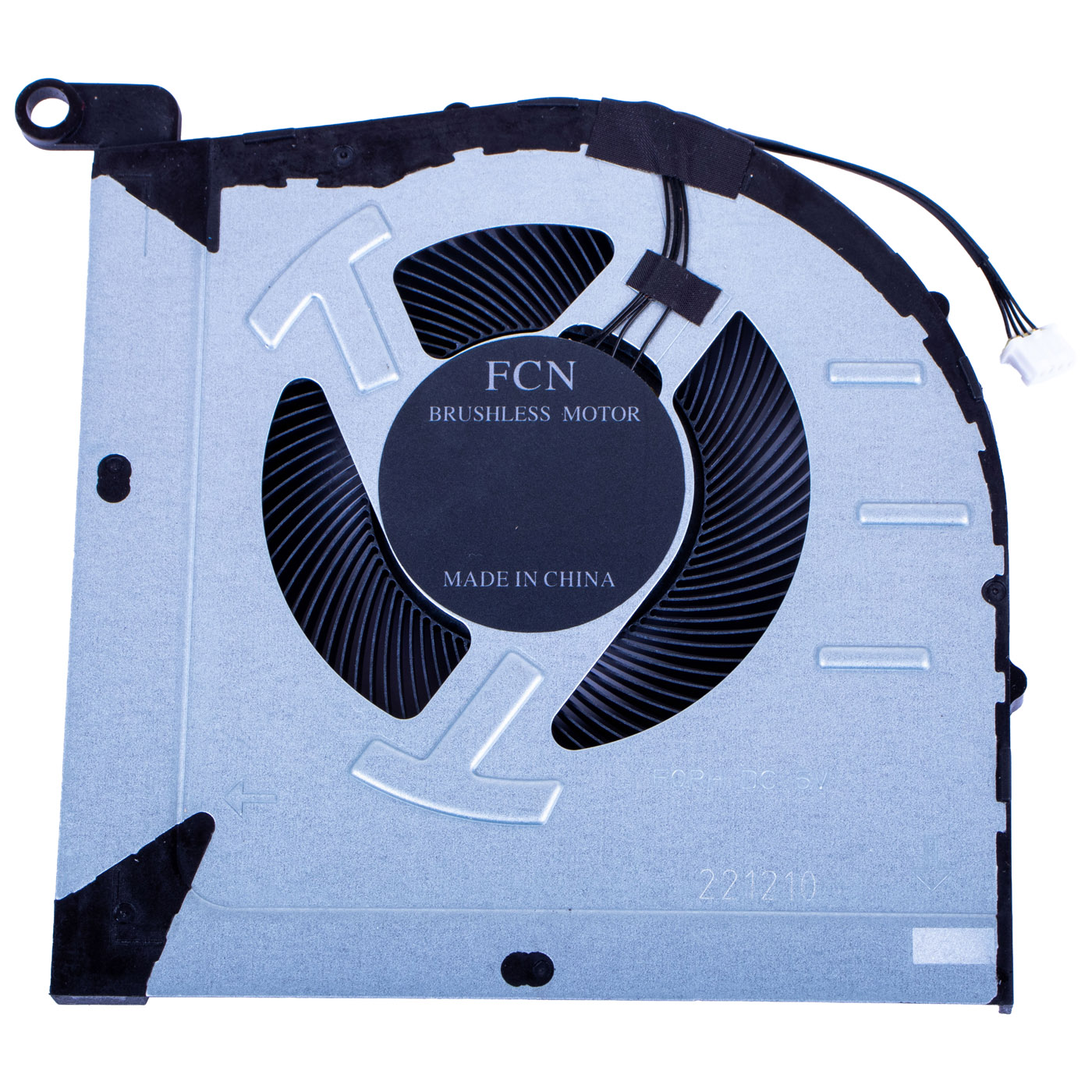

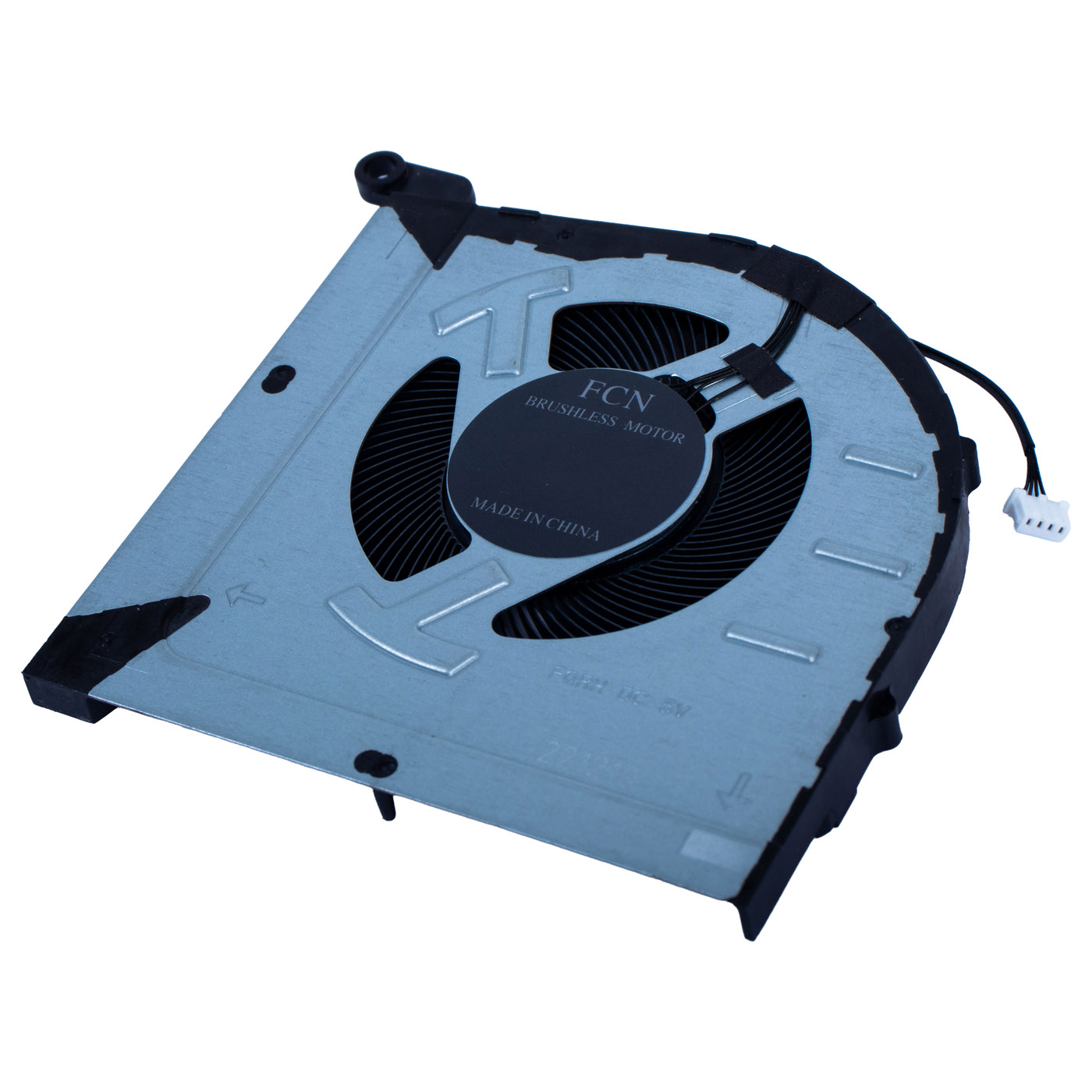

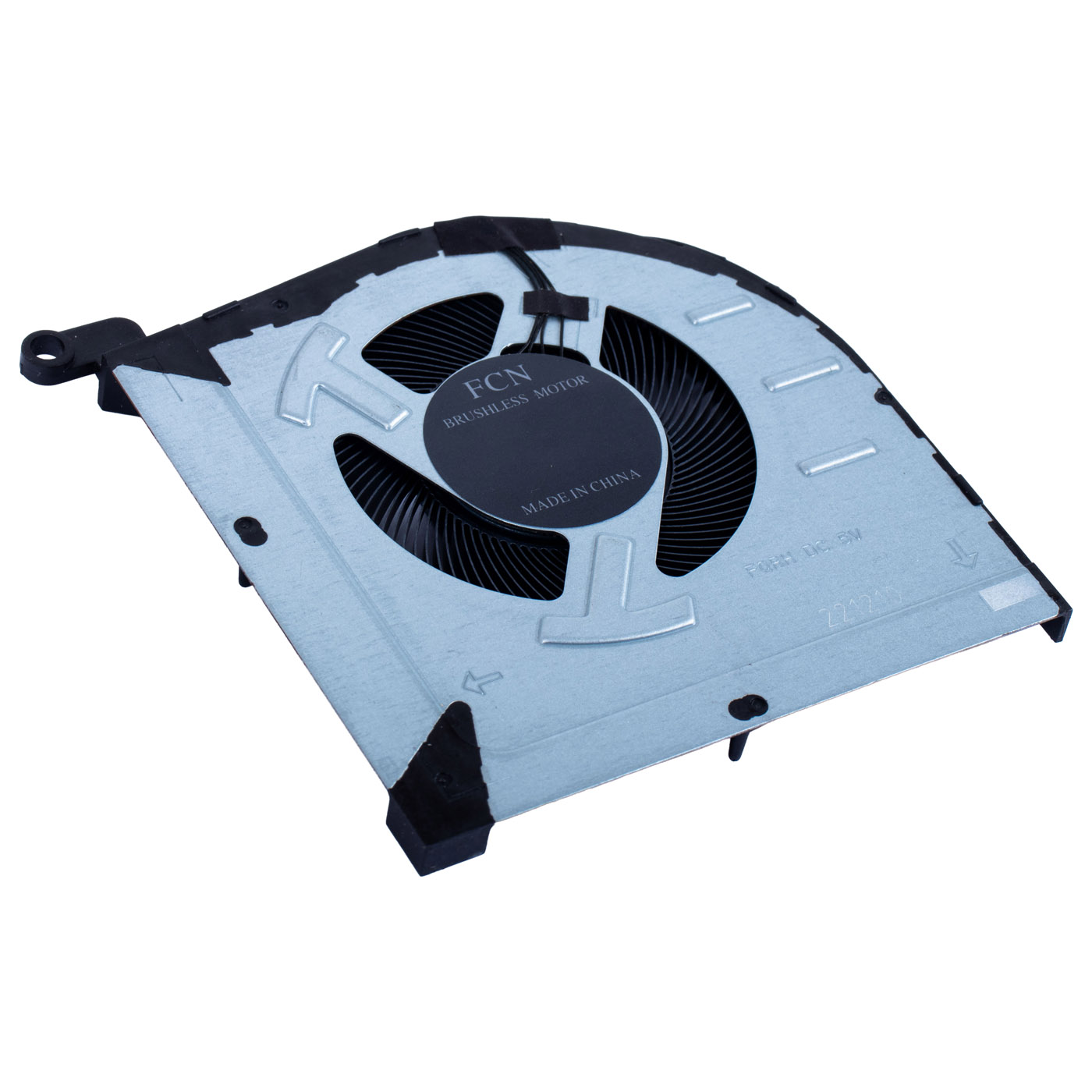

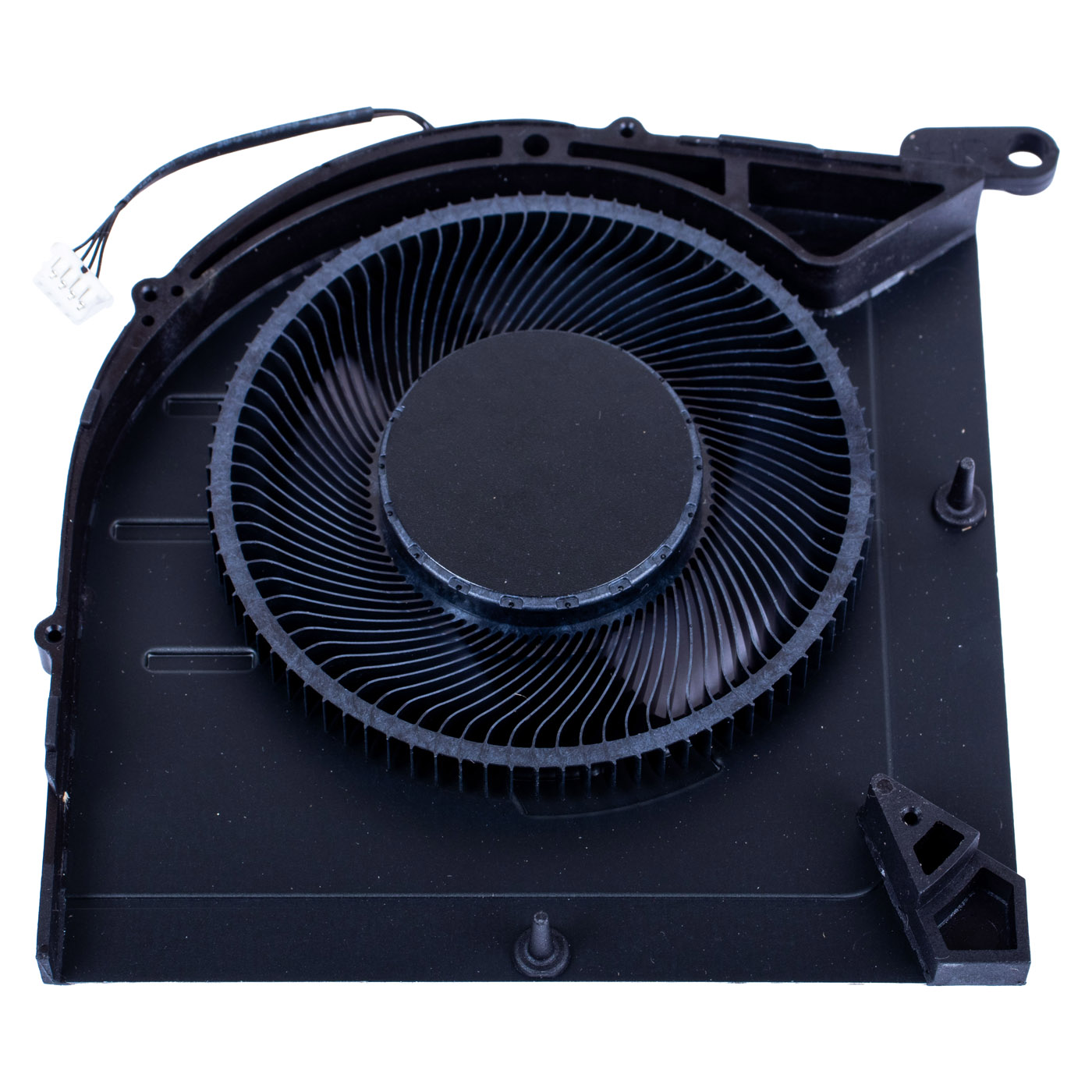

Original, brand new processor (CPU) cooling fan dedicated to Lenovo LOQ 16 IRH8 gaming laptops. The FCN brand (brushless) fan with the designation DFS5L22H15G86B, powered by DC 5V 0.9A, comes from the cooling system with module FRU number 5H40S20891. It ensures effective heat dissipation from the processor and quiet operation, restoring proper temperatures to the laptop during gaming and intensive work.

⚙️ PRODUCT CHARACTERISTICS

The presented fan is an original element of the processor cooling system in Lenovo LOQ 16 IRH8 laptops. The cooling system of this model (module FRU 5H40S20891) consists of two fans connected by a heatpipe - separately for the processor (CPU) and the graphics card (GPU). The offered unit is the CPU fan (designation DFS5L22H15G86B), made in brushless technology (FCN brushless), operating at a voltage of DC 5V with a current draw of 0.9A. A working CPU fan is the foundation of stable operation - it prevents overheating, throttling and sudden shutdowns of the laptop under load.

📋 TECHNICAL DATA

Part name: CPU cooling fan
Brand: Lenovo (FCN fan)
Compatibility: Lenovo LOQ 16 IRH8 and 15 IRH8 - version with RTX 4050 card (5V cooling, types 82XV/82XW); versions with RTX 4060 have 12V fans (different number) and do not fit
Purpose: Processor (CPU) fan
Motor type: Brushless
Power supply: DC 5V, 0.9A
Fan designation: DFS5L22H15G86B (FQRH)
Cooling module FRU: 5H40S20891
Module replacements: 5H40S20892, 5H40S20893, 5H40S21139, 5H40S21140
Condition: New, original
Warranty: 12 months

🌟 KEY ADVANTAGES

🔹 Original FCN fan (CPU) - guaranteed fit and reliable processor cooling
🔹 Effective heat dissipation - protects the CPU from overheating and throttling
🔹 Brushless motor - quiet operation and long service life
🔹 Brand new component - no signs of use
🔹 Easy installation - simple replacement of a worn or noisy CPU fan

🔢 CATALOG NUMBERS

CPU fan designation: DFS5L22H15G86B (FQRH)
Cooling module FRU: 5H40S20891 (repl. 5H40S20892 / 5H40S20893 / 5H40S21139 / 5H40S21140)
Note: this is a CPU fan. The GPU fan from the same module has a different designation - DFS5L22H05G86B (FQRG) - and is a separate part. Before purchasing, make sure you need the CPU fan.

❓ WHEN SHOULD YOU REPLACE THE CPU FAN?

• Noisy operation - knocking, squealing or humming indicating a worn bearing
• CPU overheating - high processor temperatures, throttling and performance drops
• Sudden shutdowns - the laptop shuts down under load due to overheating
• Fan stoppage - the rotor does not spin or spins with resistance
• Dust and wear - accumulated dust and a worn bearing reducing cooling efficiency
A working CPU fan restores proper processor temperatures and protects components from damage.

🔧 INSTALLATION PROCESS

Replacing the fan in a Lenovo LOQ 16 IRH8 laptop requires basic technical skills. The process begins with turning off the laptop, disconnecting the power supply and removing the bottom cover of the casing. Next, disconnect the fan connector from the motherboard and unscrew the screws securing the fan to the cooling system. We remove the old fan and install the new one in its place, remembering to connect the connector correctly and tighten the screws. After completing the installation, we recommend checking temperatures in a monitoring program and occasionally cleaning the cooling system of dust.

🎯 PURPOSE

The CPU fan is dedicated to Lenovo LOQ 16 IRH8 gaming laptops. It is responsible for dissipating heat from the processor and is an ideal solution for users whose laptop runs loudly, overheats or shuts down under load. Replacing a worn CPU fan restores full cooling performance, which is particularly important in gaming laptops operating under high thermal load.

✅ COMPATIBILITY GUARANTEE

The offered CPU fan comes from an original Lenovo cooling system with FRU number 5H40S20891 and is intended for LOQ 16 IRH8 laptops. Every item is verified before shipping. Because the cooling system of this model uses separate CPU (DFS5L22H15G86B) and GPU (DFS5L22H05G86B) fans, make sure you need the CPU fan. If in doubt, our technical department will help you choose the right unit based on the laptop's serial number.
