🔧 HD Webcam with dual microphone (2MIC) for Lenovo IdeaPad L340-17IRH Gaming and other models 🔧

🖥️ L340-17IRH Gaming / IdeaPad 3 / V14 / V15 / ThinkPad L13 | HD 2MIC Camera | FRU: 5C20X55540

HD webcam with a built-in dual microphone (2MIC) - a narrow bar-shaped module mounted in the LCD bezel, providing video and audio for video calls. This part comes from a working, disassembled Lenovo IdeaPad L340-17IRH Gaming and has been tested - we guarantee 100% functionality. FRU 5C20X55540 is also confirmed compatible with a wide range of IdeaPad 3, V14/V15 and ThinkPad L13 laptops.

⚙️ PRODUCT CHARACTERISTICS

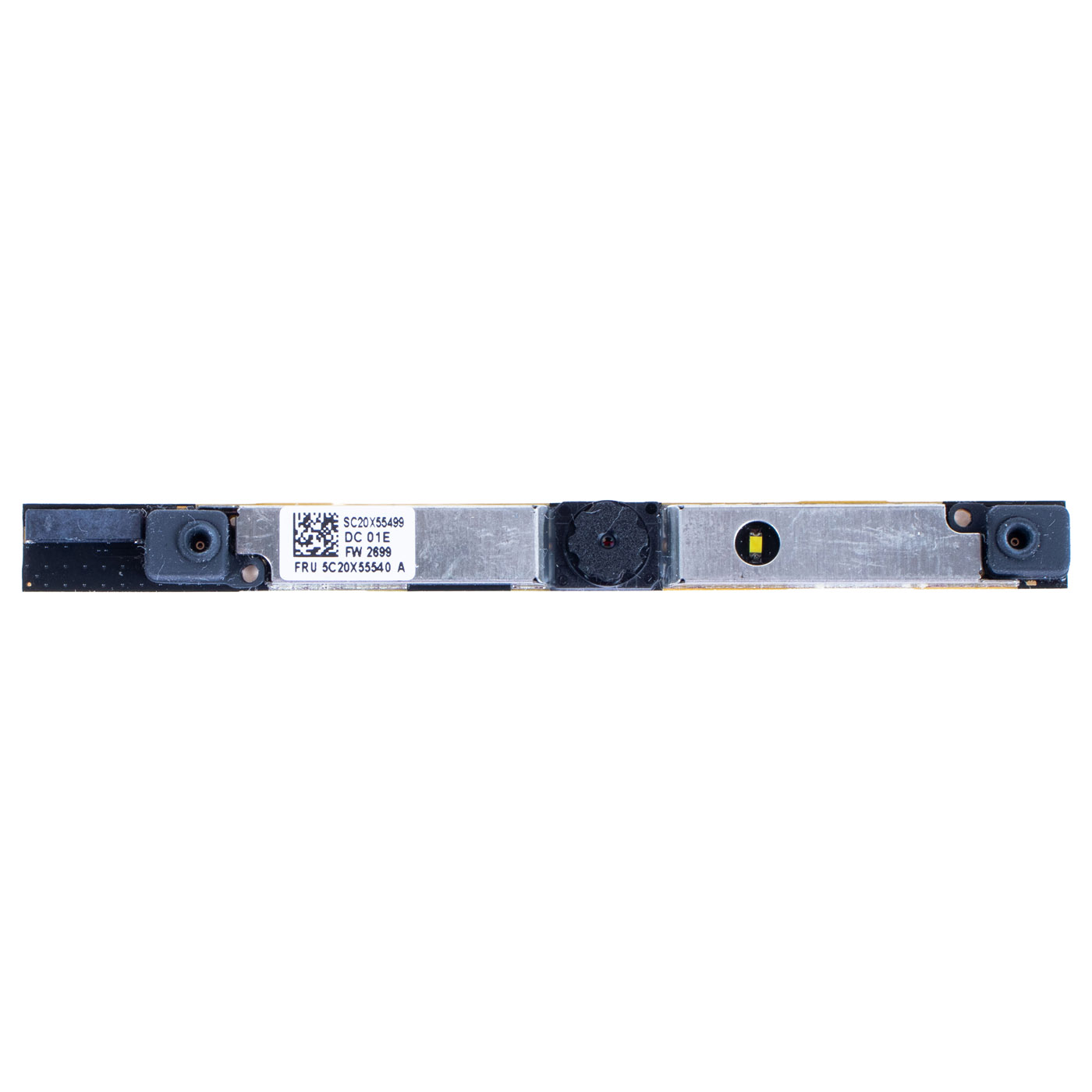

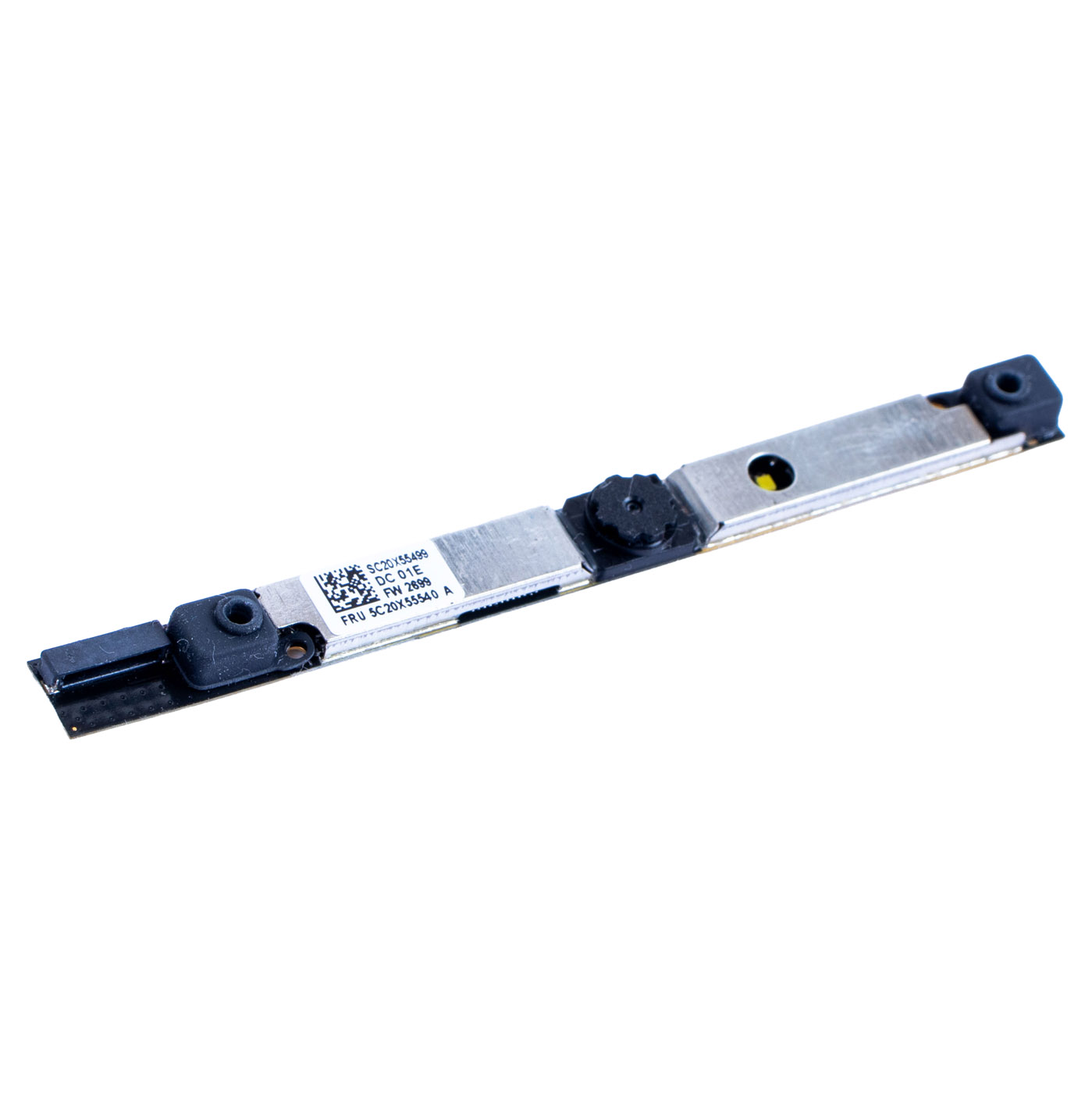

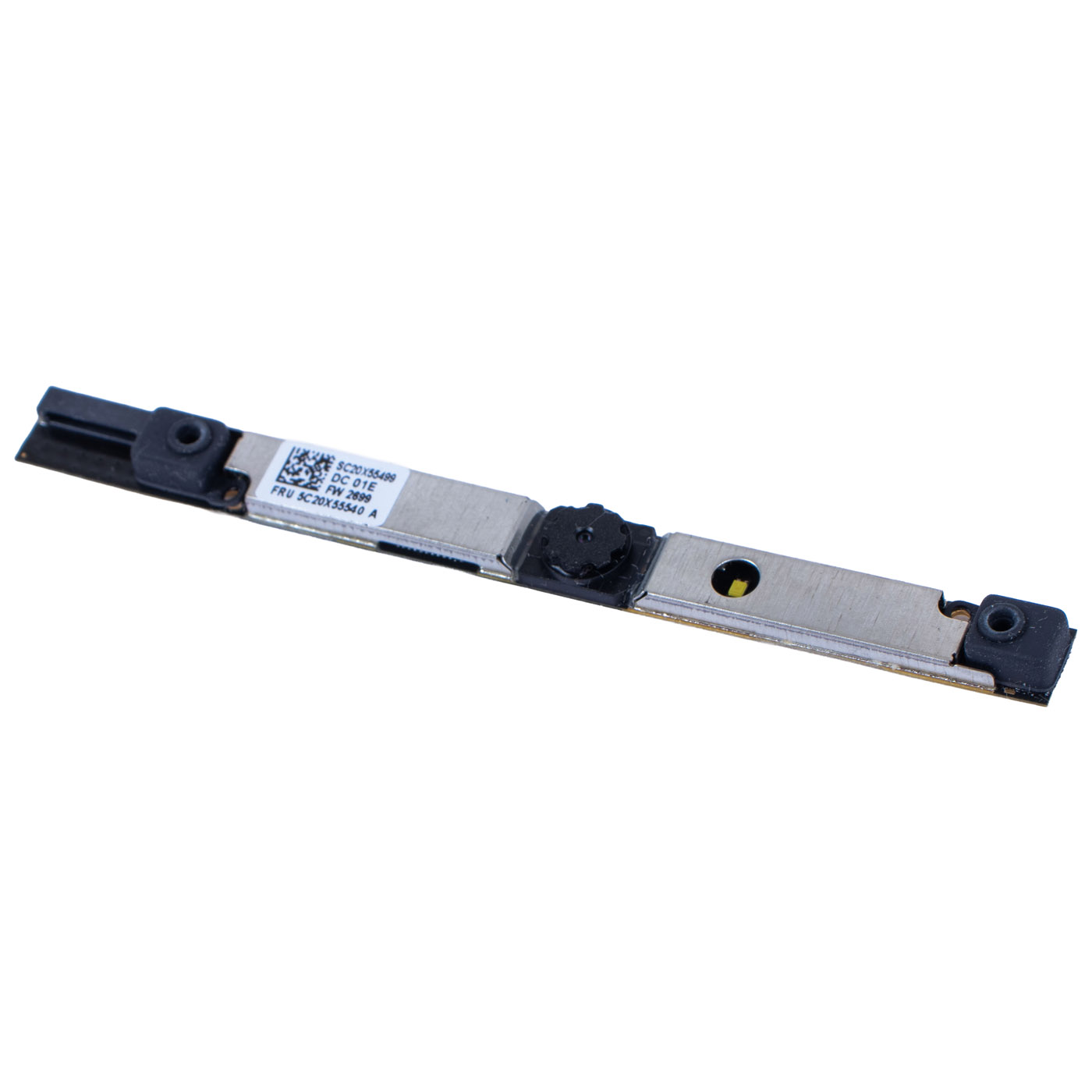

An HD camera module with two built-in microphones (2MIC) in a single housing, mounted in the top of the laptop's LCD bezel. Features an LED indicator showing camera activity. Firmware FW 2699. Compatible with a list of equivalent part numbers (color/vendor variants of the same camera, see part numbers below).

📋 TECHNICAL DATA

Part name: HD webcam with dual microphone (2MIC)
Brand: Lenovo
Condition: Used (removed from a working unit, tested)

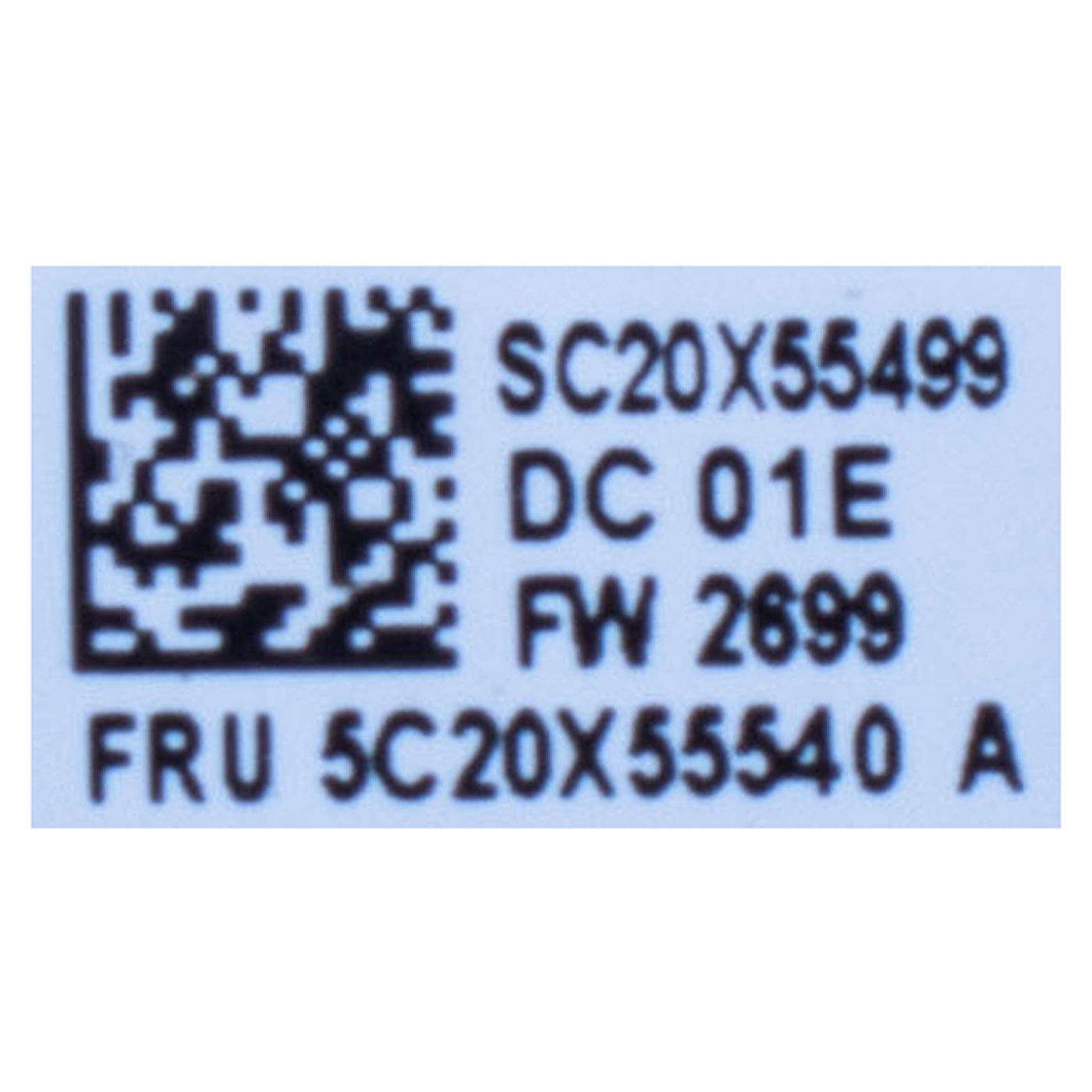

FRU: 5C20X55540
Warranty: 6 months

📋 COMPATIBLE MODELS

Source laptop (confirmed disassembly):
• Lenovo IdeaPad L340-17IRH Gaming

IdeaPad 3:
3-14ADA05, 3-15ADA05, 3-17ADA05, 3-14ARE05, 3-15ARE05, 3-17ARE05, 3-14IML05, 3-15IML05, 3-17IML05, 3-14IIL05, 3-15IIL05, 3-17IIL05, 3-14IGL05, 3-15IGL05, 3-14ITL05, 3-15ITL05

Lenovo V-series:
V14 G1-IML, V15 G1-IML

ThinkPad L13:
L13 Yoga Gen 2 (20VL/20VK), L13 Gen 2 (20VH/20VJ)

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - precise fit in the LCD bezel
🔹 Dual microphone (2MIC) - better audio quality during video calls, a clearer voice without needing a headset mic
🔹 HD image - a clear picture for video calls, online meetings and recordings
🔹 Wide compatibility - one FRU number fits the L340-17IRH plus over a dozen IdeaPad 3, V14/V15 and ThinkPad L13 models
🔹 Tested, working part - checked for proper function before being listed

🔢 PART NUMBERS

FRU: 5C20X55540
Equivalent part numbers (color/vendor variants): 5C20X55544, 5C21C16298, 5C20X55542, 5C21C16297, 01HW027, 01HW028, 01HW029, 01HW037, 5C20X55538
Models: see "Compatible models" section above

❓ WHEN SHOULD YOU REPLACE THE CAMERA?

• The other party can't see any video at all during a call
• The camera image is blurry, dark, or heavily distorted
• The built-in microphone isn't picking up sound, or it's very quiet/distorted
• Windows doesn't detect the camera in Device Manager at all
• The LED indicator doesn't light up despite an active video call

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power and all external devices
2. Remove the LCD front bezel, gently releasing it from its clips
3. Disconnect the camera cable from the module's connector
4. Peel off the old camera module from its mounting spot (usually attached with double-sided tape)
5. Install the new camera in the same position and reconnect the cable
6. Reattach the LCD front bezel
7. Power on the laptop and verify the camera and microphone are working
Replacement by a technical service or an experienced repair person is recommended.

🎯 INTENDED USE

This camera is intended for the Lenovo IdeaPad L340-17IRH Gaming laptop and the IdeaPad 3, V14/V15, and ThinkPad L13 models listed above. It provides HD video and audio for video calls and online meetings. The exact appearance and condition of the offered item are shown in the listing photos.

✅ COMPATIBILITY GUARANTEE

The offered camera has been carefully checked and matched to the Lenovo IdeaPad L340-17IRH Gaming model. We guarantee full compatibility under FRU 5C20X55540 and 100% functionality of this unit. We provide a 6-month warranty on this product. In case of any compatibility issues, we offer a hassle-free return within 14 days.
