🔧 Lower Case for Lenovo Legion 5 15IRX10 / 15IAX10 / 15AKP10 / 15AHP10 🔧

🖥️ Legion 5 15IRX10 | 15IAX10 | 15AKP10 | 15AHP10 | Lower case (D-cover) | dark grey | 5CB1S22982 | AP3HS000700

Genuine Lenovo lower case (D-cover) in dark grey with a large ventilation grille designed for Lenovo Legion 5 15IRX10, 15IAX10, 15AKP10 and 15AHP10 laptops. Brand new part marked with FRU number 5CB1S22982 and manufacturer part number AP3HS000700. FRU 5CB1S22982 guarantees full compatibility with the listed models.

⚙️ PRODUCT OVERVIEW

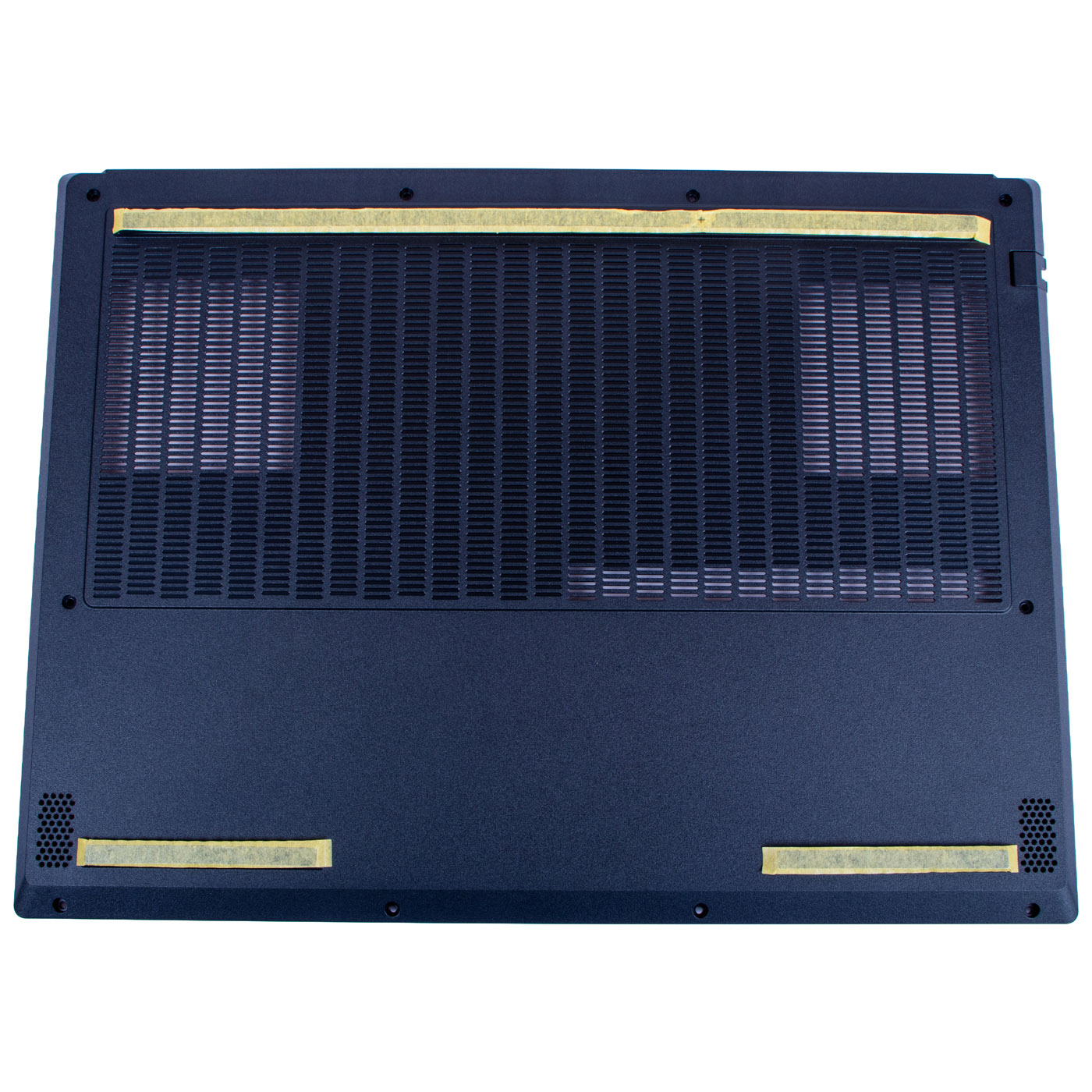

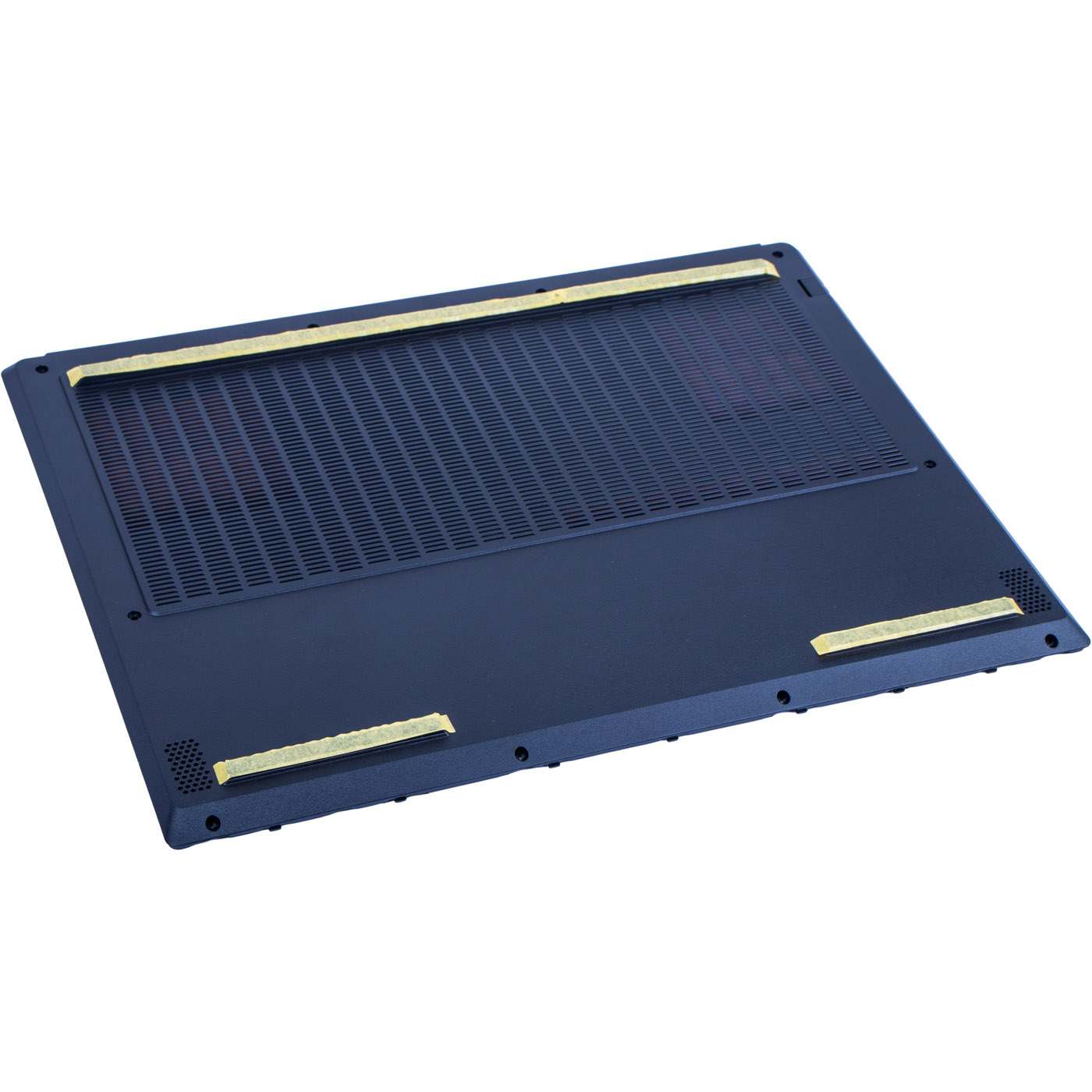

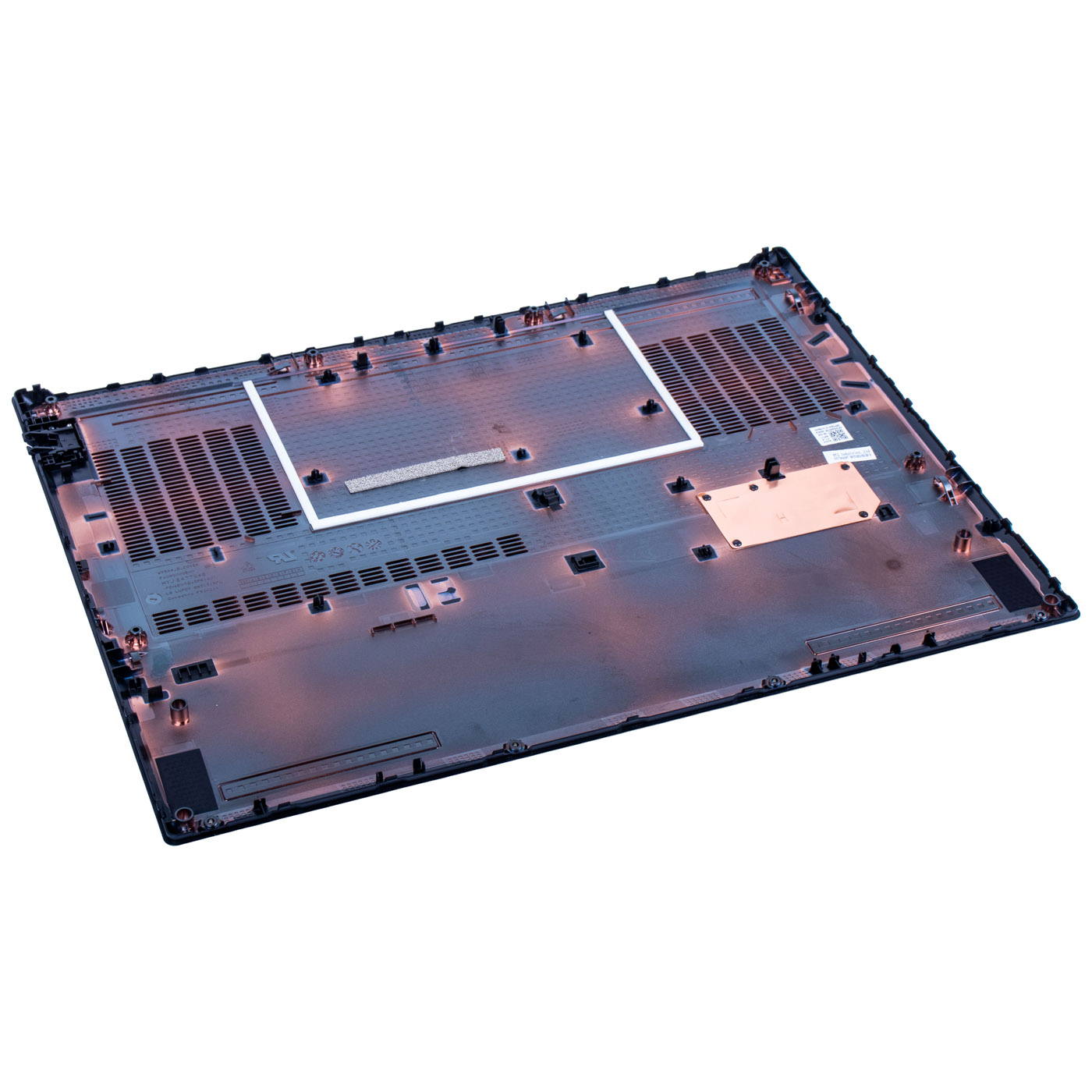

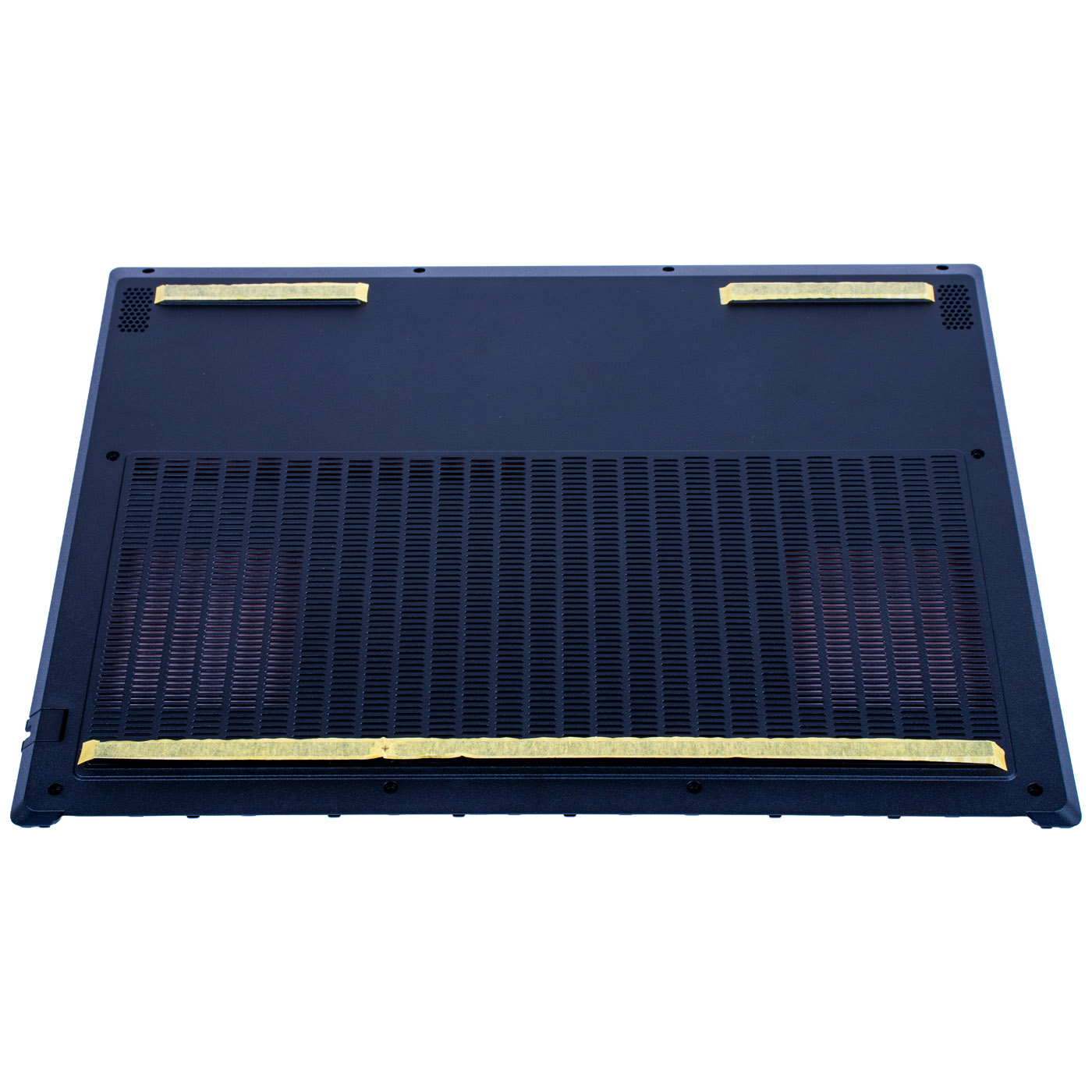

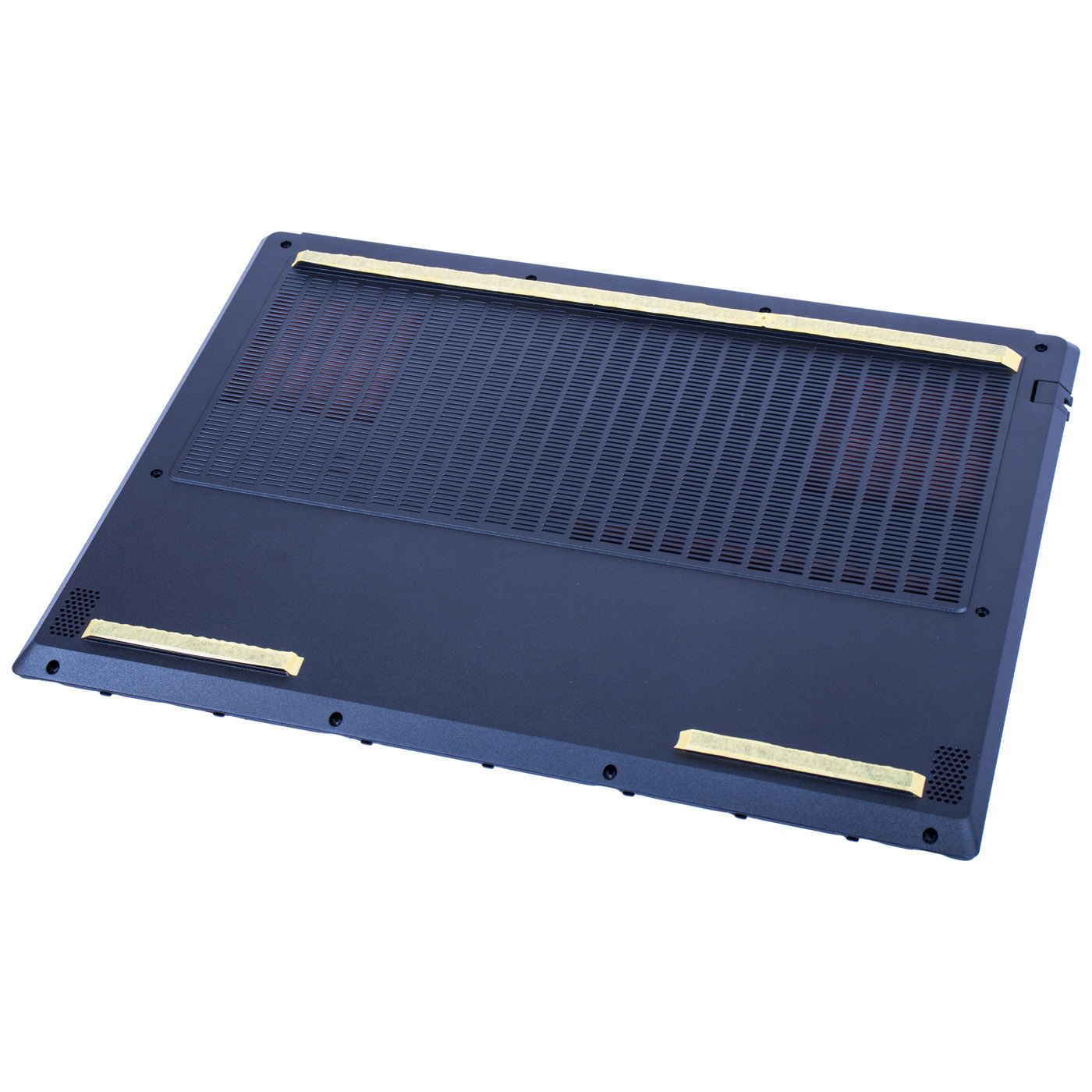

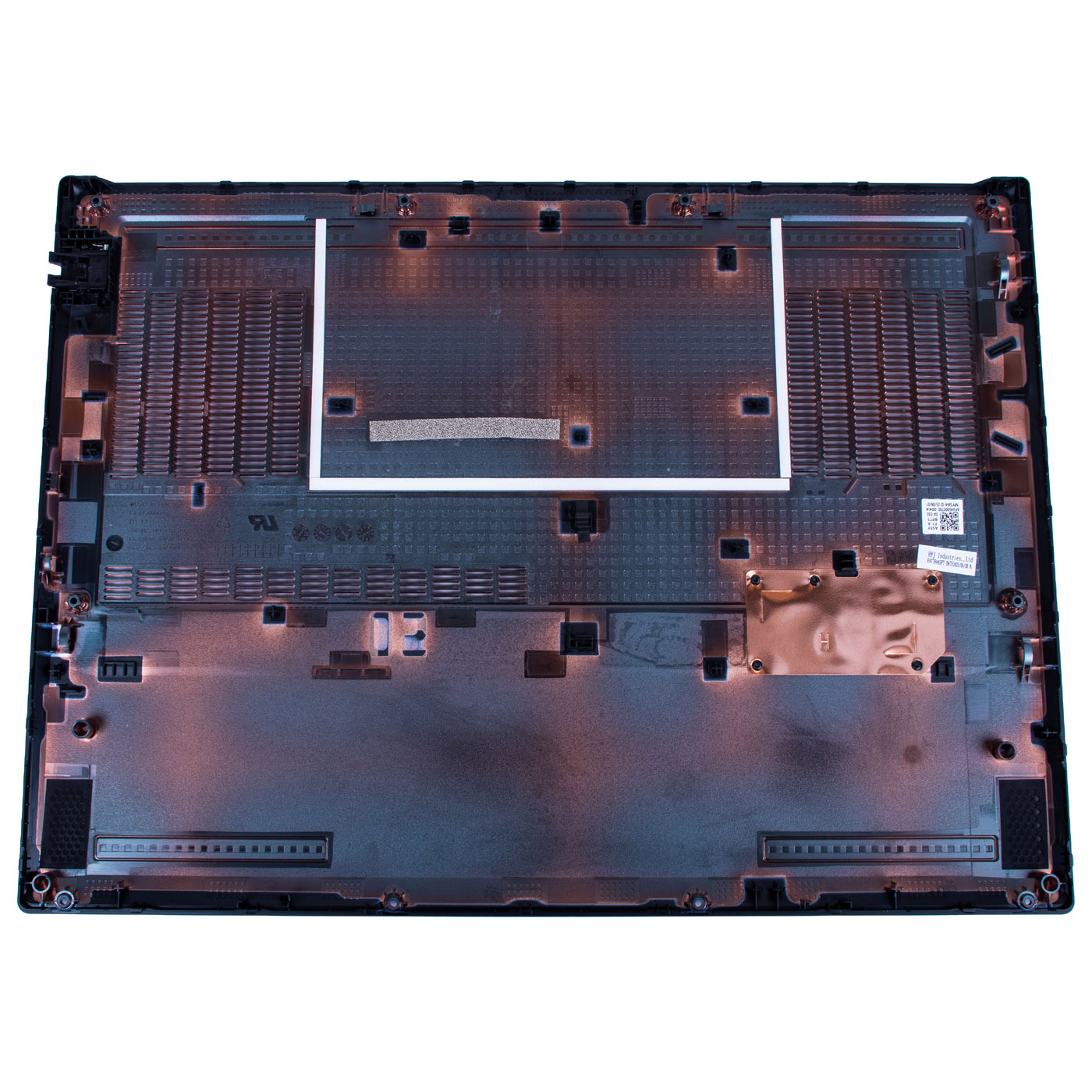

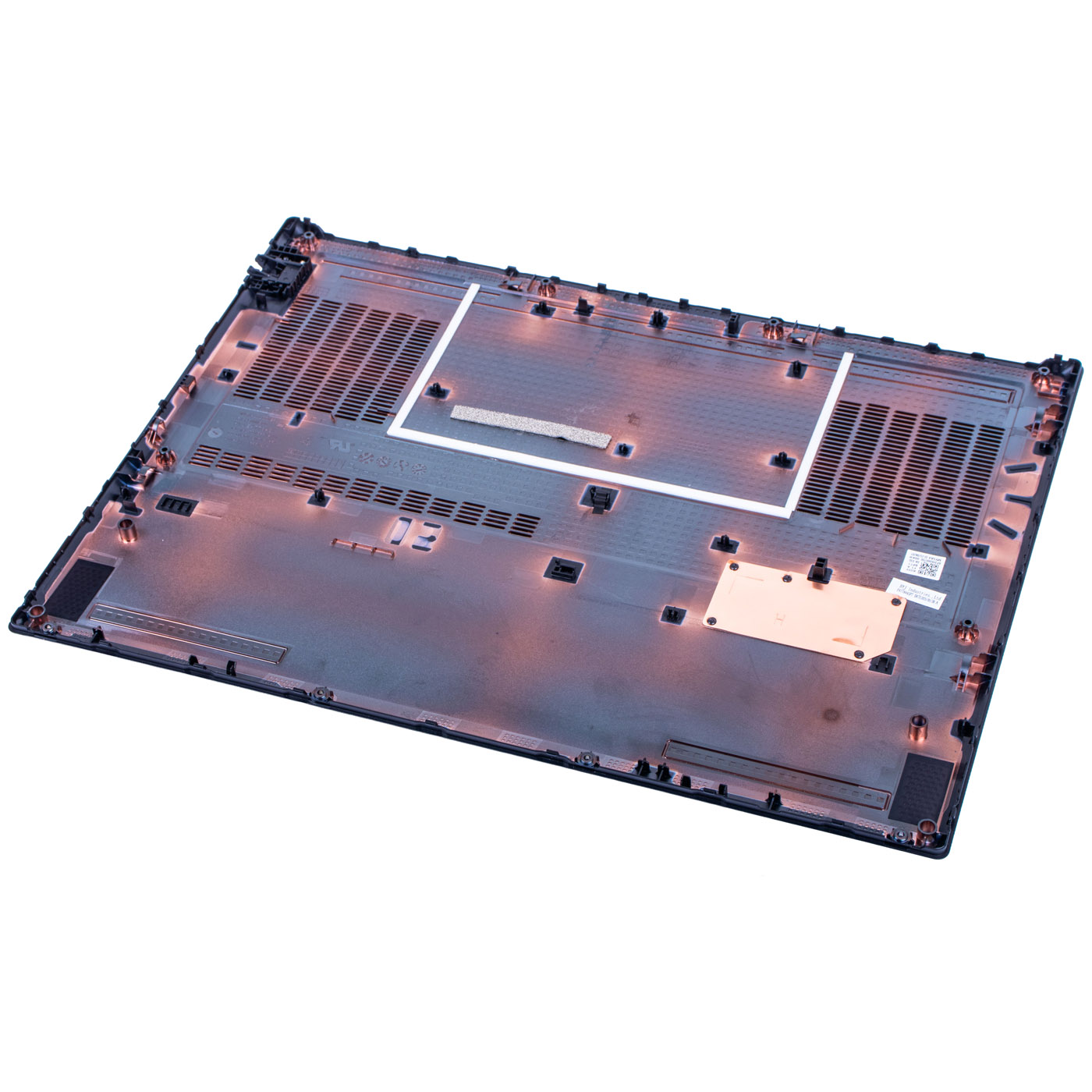

The lower case is the bottom cover of the laptop. It encloses the components and feeds air to the cooling system. It is made of PC-ABS composite with 15% talc, which is stiffer and more dimensionally stable than plain plastic, and comes in dark grey to match the factory bottom of the laptop. It has a wide ventilation grille over the fans, perforated speaker grilles in the front corners and long feet covered with factory protective tape. The inside has copper foil, foam gaskets and mounting clips. The label shows the number AP3HS000700.

📋 TECHNICAL SPECIFICATIONS

Part name: Lower case (D-cover, bottom cover)
Brand: Lenovo Legion
Compatible models: Lenovo Legion 5 15IRX10 (83LY), Legion 5 15IAX10 (83F0), Legion 5 15AKP10 (83F1), Legion 5 15AHP10 (83M0)
Colour: Dark grey
Material: PC-ABS with 15% talc (composite plastic)

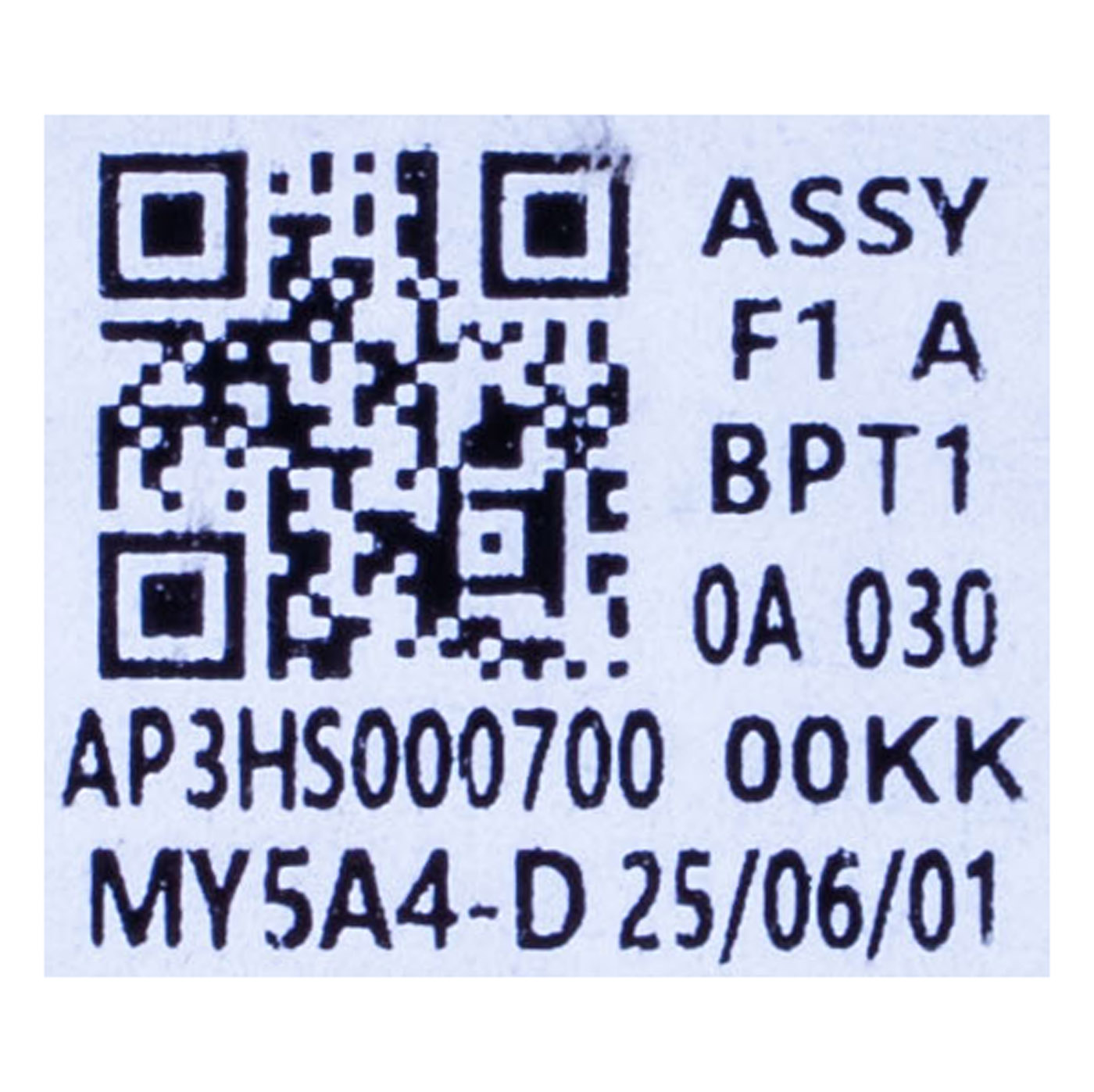

Label markings: Legion 5 15IRX10, FRU: 5CB1S22982, AP3HS000700
Condition: New
FRU: 5CB1S22982
Manufacturer part number: AP3HS000700
Substitute part numbers: none

🌟 KEY BENEFITS

🔹 Genuine Lenovo part - perfect fit and reliability
🔹 Large ventilation grille - the fans draw air freely, so the laptop doesn't overheat or throttle in games and under load
🔹 Rigid PC-ABS talc composite - the bottom doesn't flex under the laptop, and clips and screw holes keep holding after repeated opening
🔹 New feet - the laptop sits firmly on the desk without sliding, with a gap underneath for airflow
🔹 Speaker grilles - sound comes out freely, just like on a factory laptop
🔹 Full compatibility - matched to Legion 5 15IRX10, 15IAX10, 15AKP10 and 15AHP10 under FRU 5CB1S22982

🔢 PART NUMBERS

FRU: 5CB1S22982
Manufacturer part number: AP3HS000700
Substitute part numbers: none
Laptop model: Lenovo Legion 5 15IRX10 (83LY), Legion 5 15IAX10 (83F0), Legion 5 15AKP10 (83F1), Legion 5 15AHP10 (83M0)

❓ WHEN SHOULD YOU REPLACE THE LOWER CASE?

• Problem with a case cracked around the screw holes, so the bottom lifts or won't close
• Problem with broken clips that make the cover creak and stand away from the laptop
• Problem with detached or lost feet, so the laptop wobbles and slides on the desk
• Problem with a scratched or dented bottom after the laptop was dropped
• Problem with a broken ventilation grille over the fans

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power supply and all external devices
2. Remove all screws securing the lower case
3. Using a plastic tool, carefully lift the cover from the hinge side and release the clips around the edge
4. Take off the old case and disconnect the battery from the system board if you are doing further work inside
5. Remove the protective tape from the feet of the new case, place it on the laptop and press until the clips snap in all around
6. Refit the screws, power on the laptop and check that the fans run smoothly
Replacement by a technical service or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

This case is meant for owners of Lenovo Legion 5 15IRX10, 15IAX10, 15AKP10 and 15AHP10 whose laptop bottom is cracked, has broken clips or lost feet, and for repair shops servicing these models. A new case restores a tight fit, stability and proper airflow. The exact appearance and condition of the item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

This lower case has been carefully checked and matched to Lenovo Legion 5 15IRX10, 15IAX10, 15AKP10 and 15AHP10. We guarantee full compatibility under FRU 5CB1S22982 and 100% functionality of the part. The product comes with a 12-month warranty. If there is any compatibility issue, we offer a hassle-free return within 14 days.
