🔧 NVIDIA Quadro T2000 4GB Graphics Card for Lenovo ThinkPad P15 Gen 1 🔧

🖥️ ThinkPad P15 Gen 1 | Graphics card (GPU board) | NVIDIA Quadro T2000 4GB GDDR6 | FRU 5C50Z44698

Fully working, tested NVIDIA Quadro T2000 graphics card with 4 GB of GDDR6 memory designed for the Lenovo ThinkPad P15 Gen 1 mobile workstation. Part sourced from a working device and tested - we guarantee 100% functionality. FRU number 5C50Z44698 guarantees full compatibility with the ThinkPad P15 Gen 1.

⚙️ PRODUCT OVERVIEW

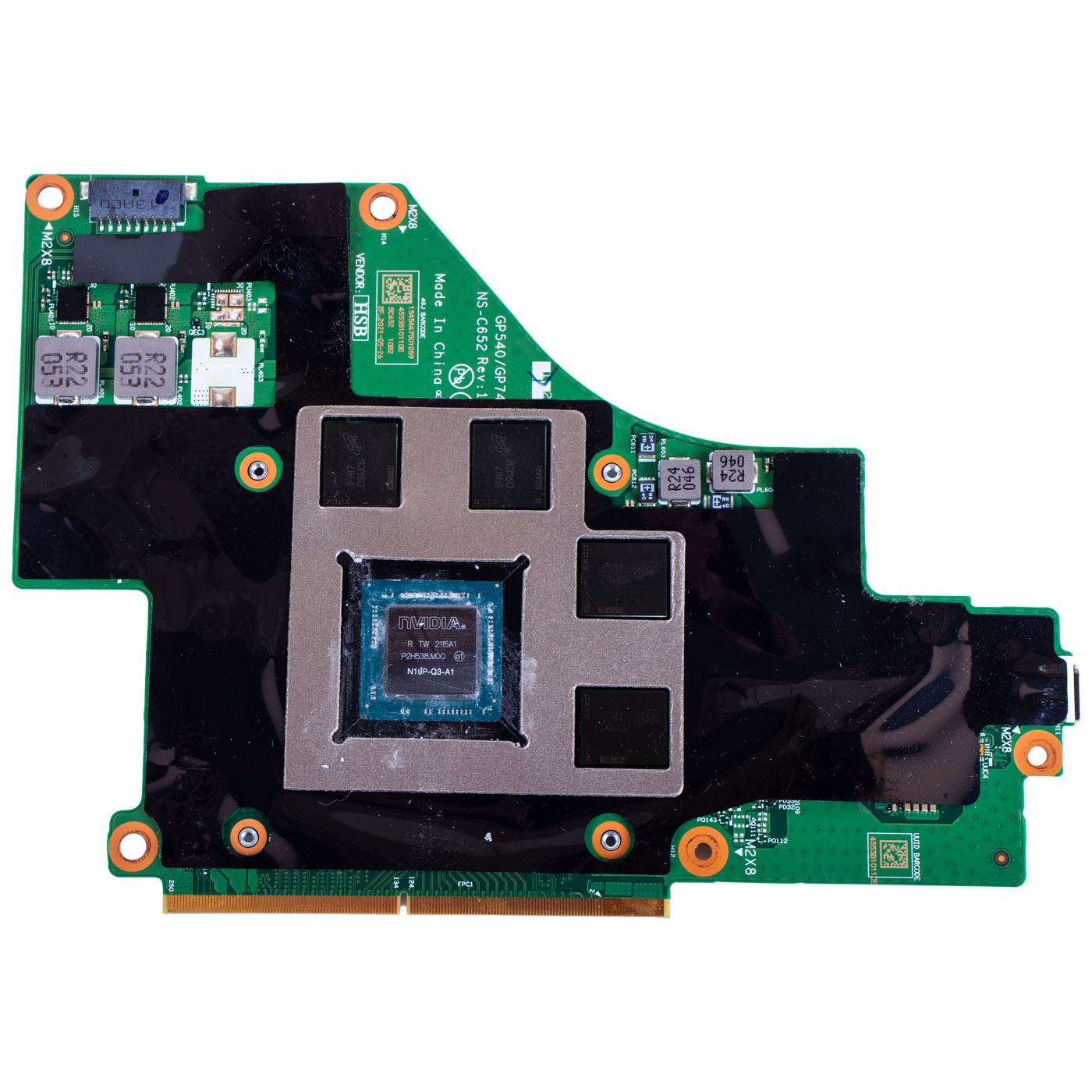

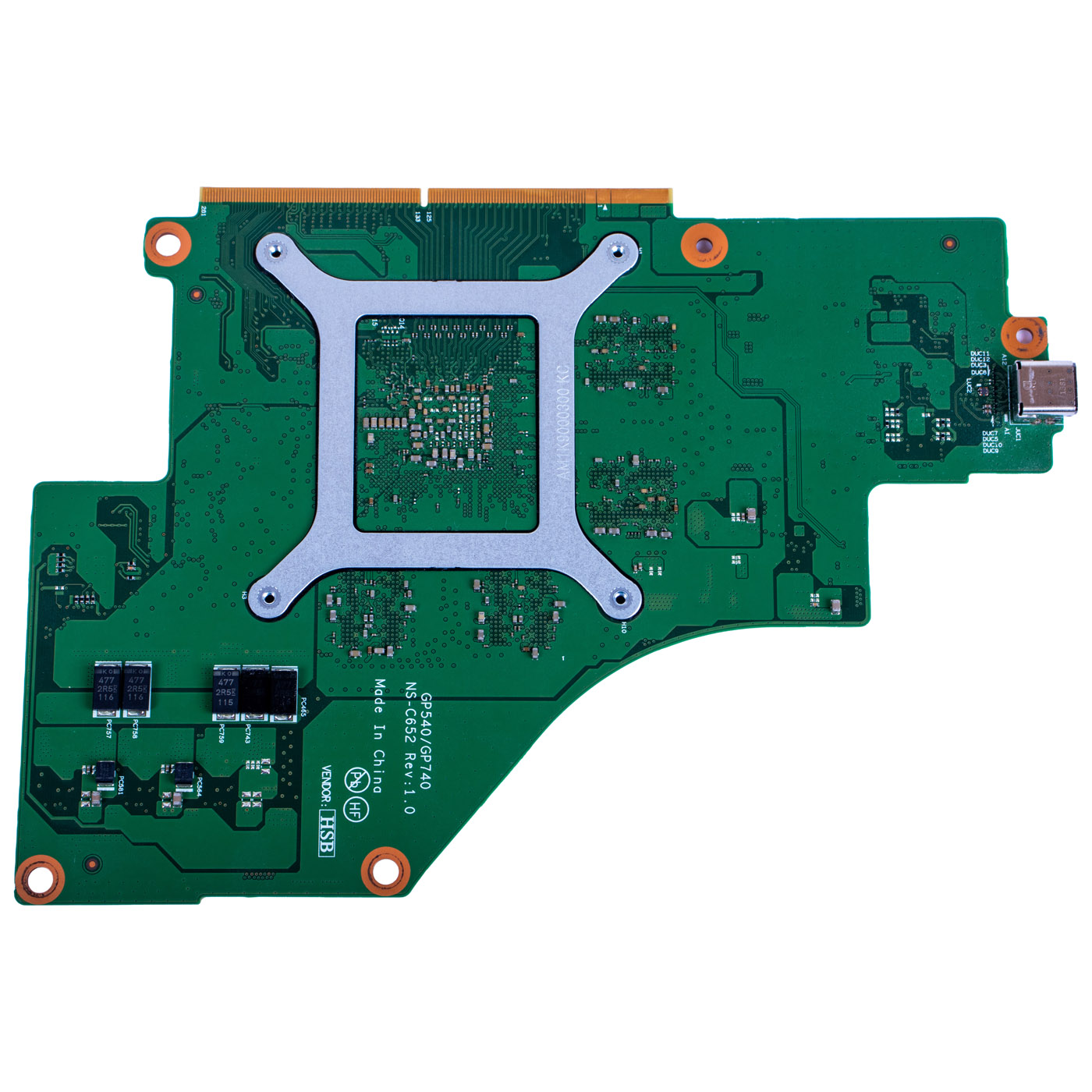

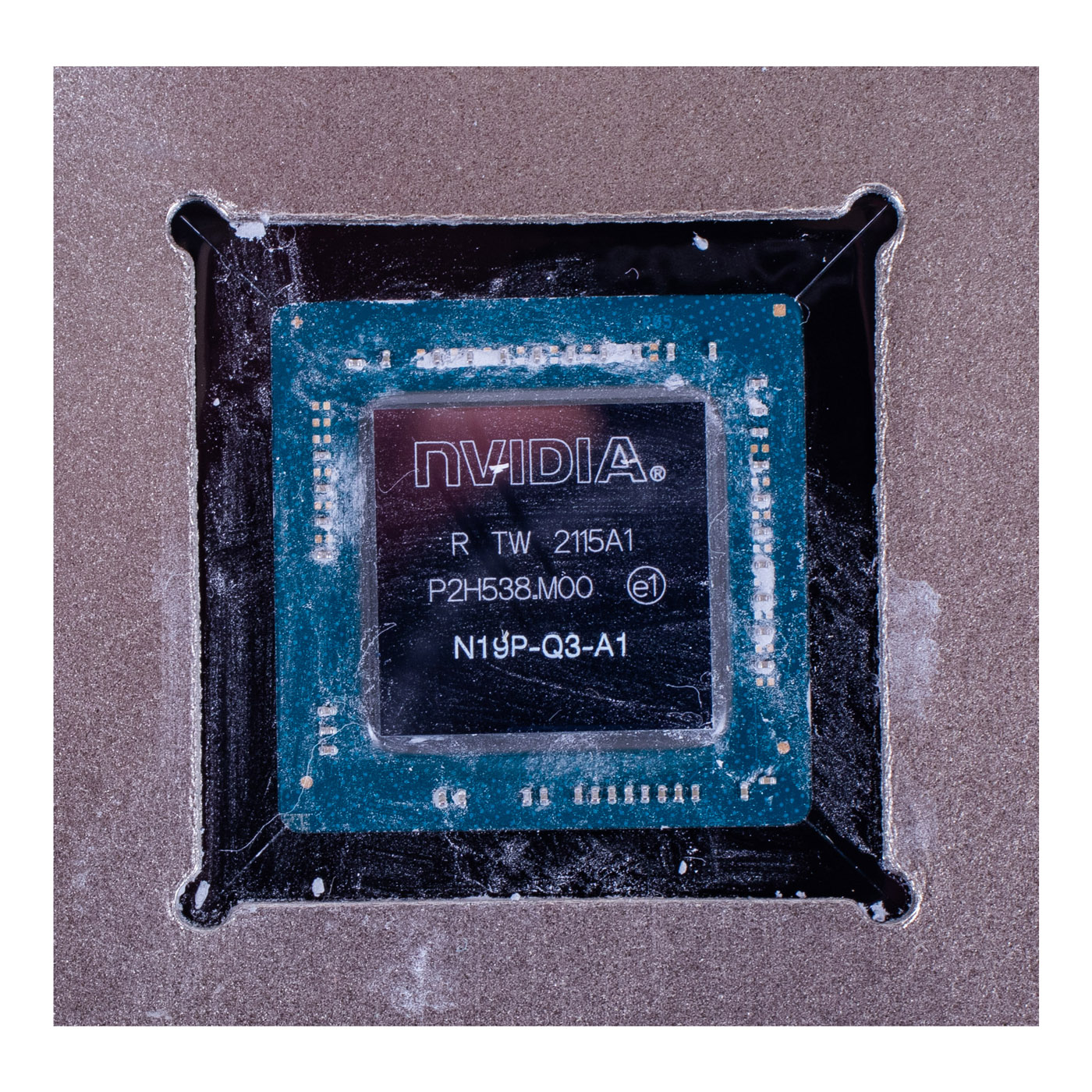

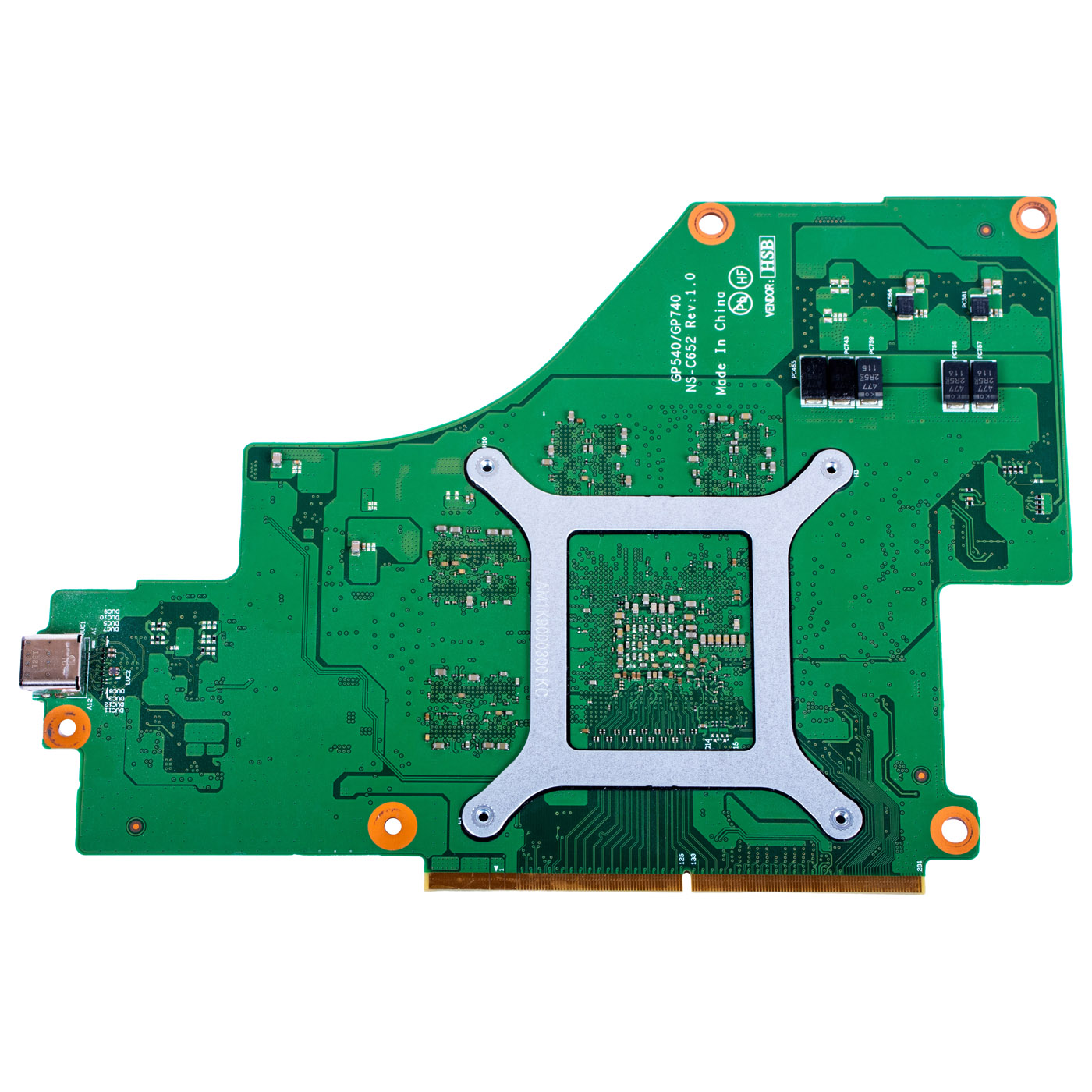

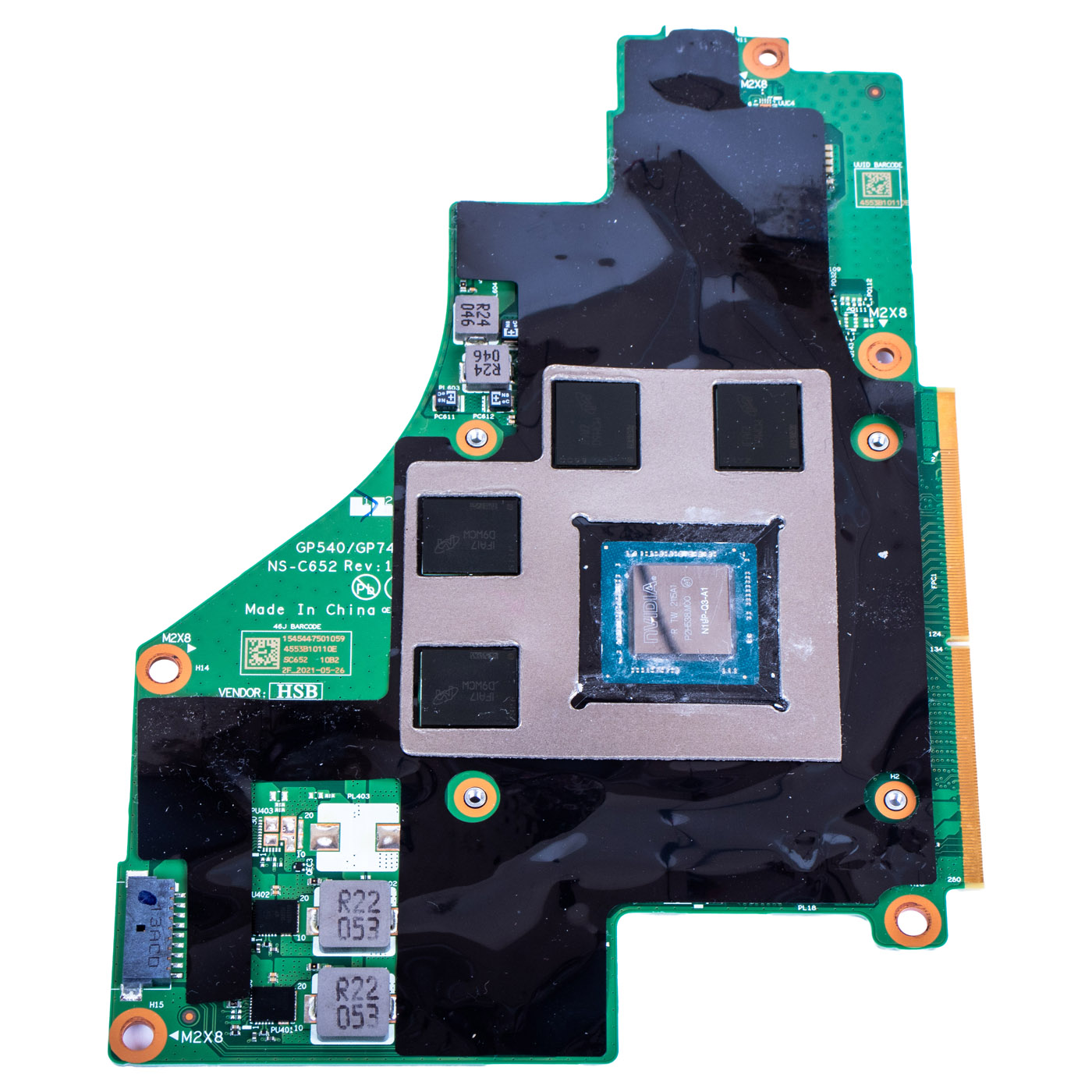

In the ThinkPad P15 Gen 1, the discrete graphics sit on a separate board (GPU board) that plugs into an edge connector on the motherboard. This board carries a soldered NVIDIA Quadro T2000 chip (marking N19P-Q3-A1, Turing architecture, TU117 chip, 1024 CUDA cores, 12 nm process) and 4 GB of GDDR6 memory on a 128-bit bus. Quadro is NVIDIA's professional graphics line, designed for engineering and design applications. Functionality confirmed in Windows 11, which correctly detected the card as NVIDIA Quadro T2000 (4 GB).

📋 TECHNICAL SPECIFICATIONS

Part name: Graphics card (GPU board)
Brand: Lenovo ThinkPad
Compatible model: ThinkPad P15 Gen 1 (20ST, 20SU)
Graphics chip: NVIDIA Quadro T2000 (N19P-Q3-A1)
Architecture: NVIDIA Turing (TU117), 12 nm
CUDA cores: 1024
Memory: 4 GB GDDR6, 128-bit bus
Connectors: edge connector to the motherboard, USB-C connector on the board
Markings on the part: GP540/GP740 NS-C652 Rev:1.0, N19P-Q3-A1, 4553B10110E
Condition: Used (removed from a working unit, tested)
FRU: 5C50Z44698

🌟 KEY BENEFITS

🔹 Genuine Lenovo part - perfect fit and reliability guaranteed
🔹 NVIDIA Quadro T2000, 1024 CUDA cores - smooth work with 3D models in CAD, rendering and video editing, without stutter when rotating complex projects
🔹 4 GB GDDR6, 128-bit - memory headroom for large textures and complex scenes, so the software does not slow down on bigger files
🔹 Separate GPU board - restore graphics in your P15 without replacing the whole motherboard, which is cheaper and faster
🔹 Condition confirmed in the system - card detected and working in Windows 11, not just checked visually
🔹 Full compatibility - matched to the ThinkPad P15 Gen 1 under FRU 5C50Z44698

🔢 CATALOGUE NUMBERS

FRU: 5C50Z44698
Markings on the part: GP540/GP740 NS-C652 Rev:1.0, N19P-Q3-A1, 4553B10110E
Laptop model: Lenovo ThinkPad P15 Gen 1 (20ST, 20SU)

❓ WHEN SHOULD YOU REPLACE THE GRAPHICS CARD?

• The NVIDIA card has disappeared from Device Manager or shows an error (code 43)
• Artefacts, coloured lines or squares appear on screen, especially under load
• CAD and 3D programs crash or the laptop freezes when the graphics card kicks in
• No picture on an external monitor connected to outputs driven by the card
• Problem with a card damaged by liquid or overheating

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power supply and all external devices
2. Remove the screws securing the bottom cover and carefully lift it off
3. Disconnect the battery from the motherboard
4. Remove the cooling assembly (heatsink with fans) covering the card
5. Remove the screws holding the card (holes marked M2X8) and slide it out of the motherboard connector
6. Insert the new card into the connector at the correct angle, press it down and screw it in place
7. Refit the cooling with fresh thermal paste and, if needed, new thermal pads on the memory chips
8. Reconnect the battery, start the laptop and check in Device Manager that the NVIDIA Quadro T2000 is detected
Replacement by a technical service or a person experienced in laptop repairs is recommended.

🎯 INTENDED USE

This card is intended for repairing ThinkPad P15 Gen 1 mobile workstations with Quadro T2000 graphics in which the discrete graphics have stopped working. Replacing only the GPU board restores full performance in professional applications without replacing the motherboard or the whole laptop. The exact appearance and condition of the item offered are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The graphics card offered has been carefully checked and matched to the Lenovo ThinkPad P15 Gen 1. We guarantee full compatibility within FRU 5C50Z44698 and 100% functionality of the part. If you experience any compatibility issues, we offer a hassle-free return within 14 days.

📞 NEED HELP? CONTACT OUR EXPERTS!

Do you have questions about the compatibility of the graphics card with your ThinkPad P15 Gen 1? Our specialists will be happy to assist you. Contact us!
📱 Phone: +48-601-415357
📧 Email: sklep@abcdeal.pl

🦁 ABCDEAL - Your Trusted Lenovo Parts Specialist

We have been specialising in delivering genuine Lenovo laptop parts for years. Our experience allows us to offer top-quality products that meet the expectations of even the most demanding customers. Trust the experts and restore your ThinkPad P15 Gen 1 to full working order.

🎯 Choose professionals - invest in high quality!

By choosing a genuine graphics card for the Lenovo ThinkPad P15 Gen 1 from our range, you invest in reliability and the full graphics performance of your workstation. Benefit from the experience of the ABCDEAL specialists and restore your laptop to full working order.
