🔧 16 GB DDR4 3200 SO-DIMM Ramaxel RAM for Lenovo Laptops 🔧

🖥️ Lenovo ThinkPad / IdeaPad / Legion | 16 GB DDR4-3200 SO-DIMM RAM | Ramaxel | 5M30V06810

Genuine Lenovo 16 GB DDR4 3200 MHz SO-DIMM memory module made by Ramaxel for Lenovo laptops. Part sourced from a working device and tested - we guarantee 100% functionality. FRU 5M30V06810 is the original Lenovo service part number.

⚙️ PRODUCT OVERVIEW

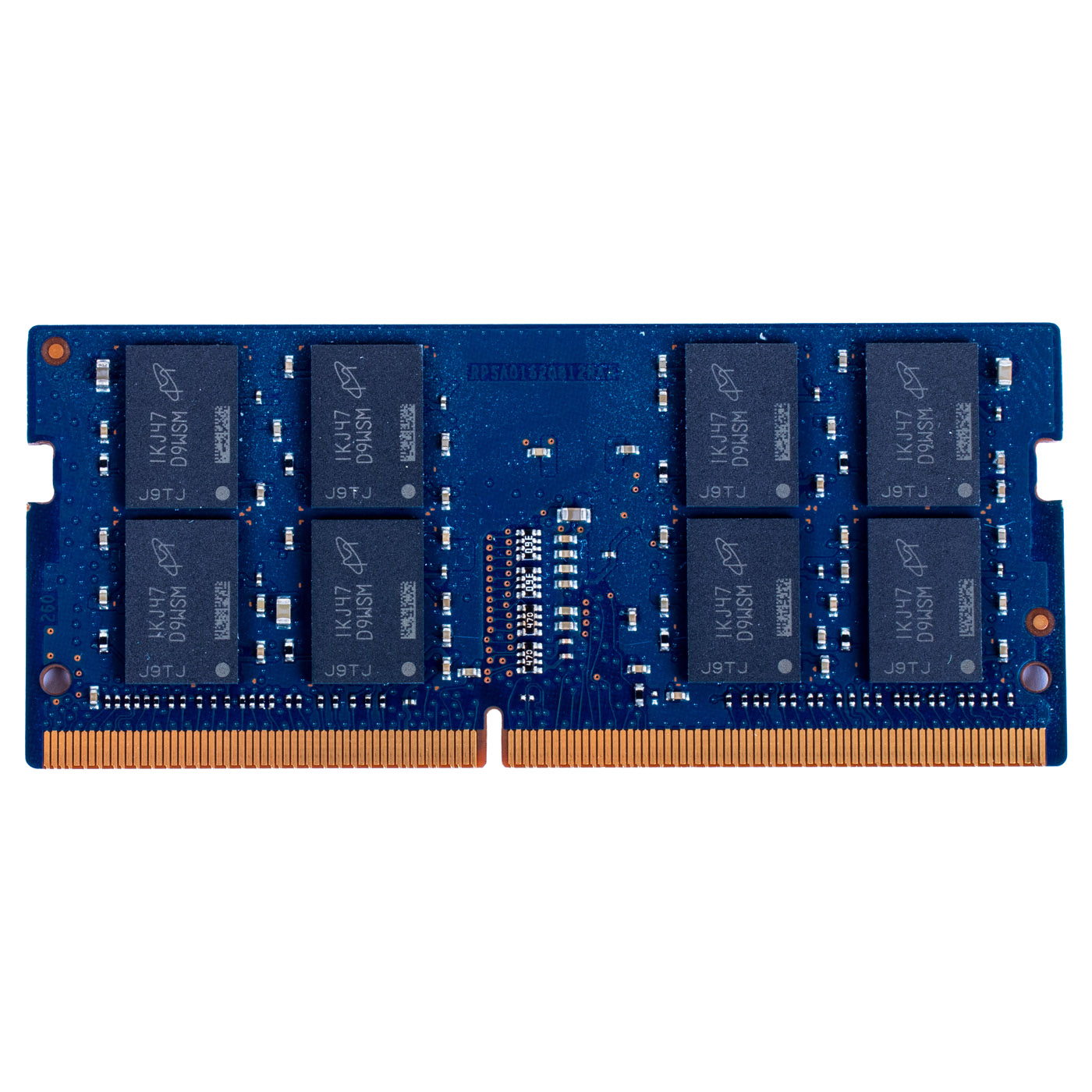

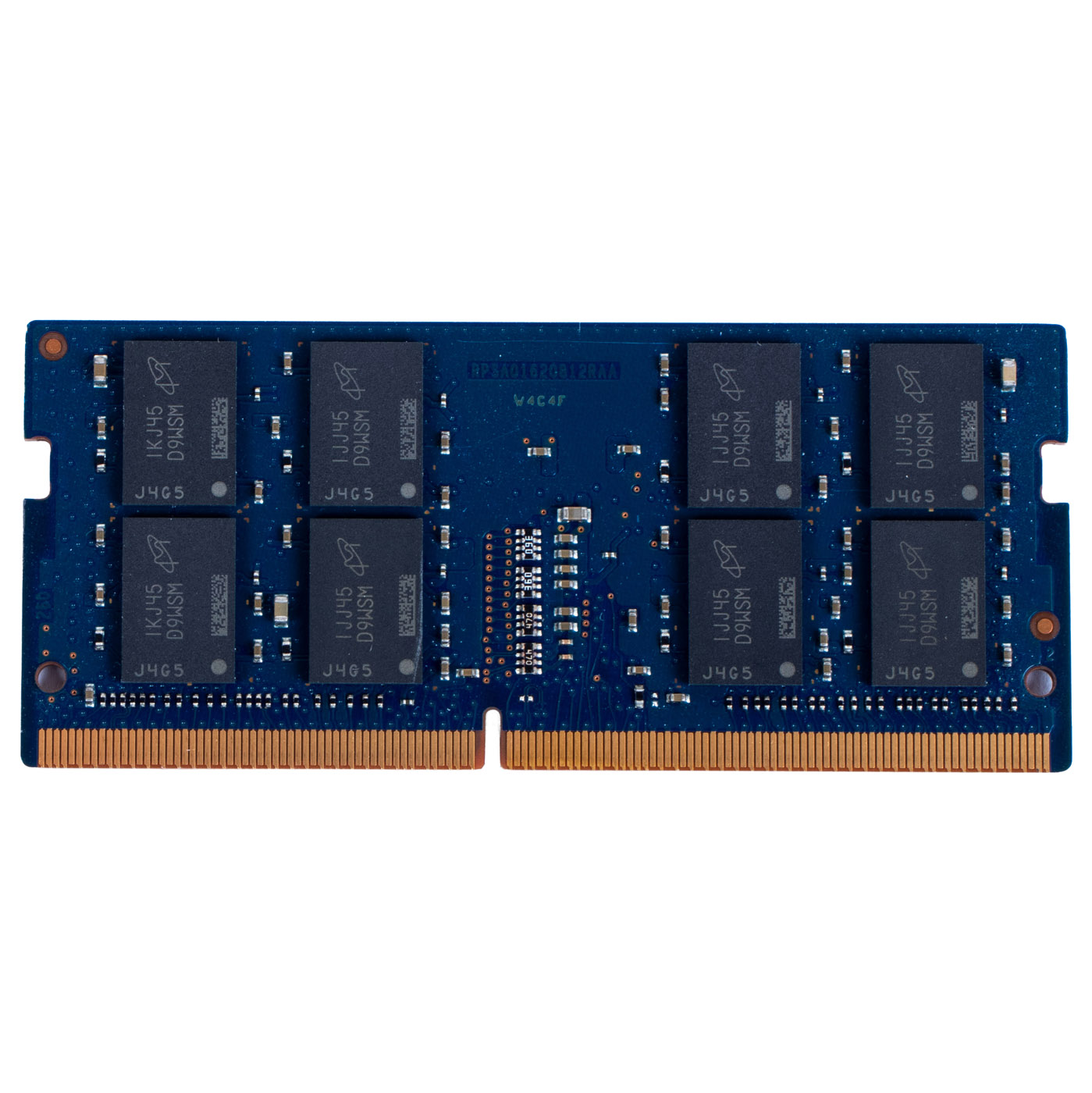

A 16 GB DDR4 SO-DIMM module in dual-rank 2Rx8 organisation, compliant with PC4-3200AA (DDR4-3200). It carries 16 Micron memory chips (8 on each side). Manufacturer model: Ramaxel RMSA3330MJ78HBF-3200. In laptops that support a lower frequency (e.g. 2666 or 2933 MHz), the module automatically runs at the speed supported by the platform.

📋 TECHNICAL SPECIFICATIONS

Part name: SO-DIMM RAM
Brand: Lenovo (module made by Ramaxel)
Compatible models: Lenovo laptops with a DDR4 SO-DIMM slot, including ThinkPad T14 Gen 2, L14 Gen 3, E14 Gen 5, E16 Gen 1 and IdeaPad and Legion models
Capacity: 16 GB
Type: DDR4 SO-DIMM
Frequency: 3200 MHz (PC4-3200AA)
Organisation: 2Rx8 (dual rank)
Memory chips: Micron
Manufacturer model: RMSA3330MJ78HBF-3200
Condition: Used (pulled from a working unit, tested)
FRU: 5M30V06810
Substitute numbers: RMSA3330MJ78HBF-3200, 5M30V06972, 5M30Z71709, 5M31K03115, 5M30Z71754, 5M31L87441

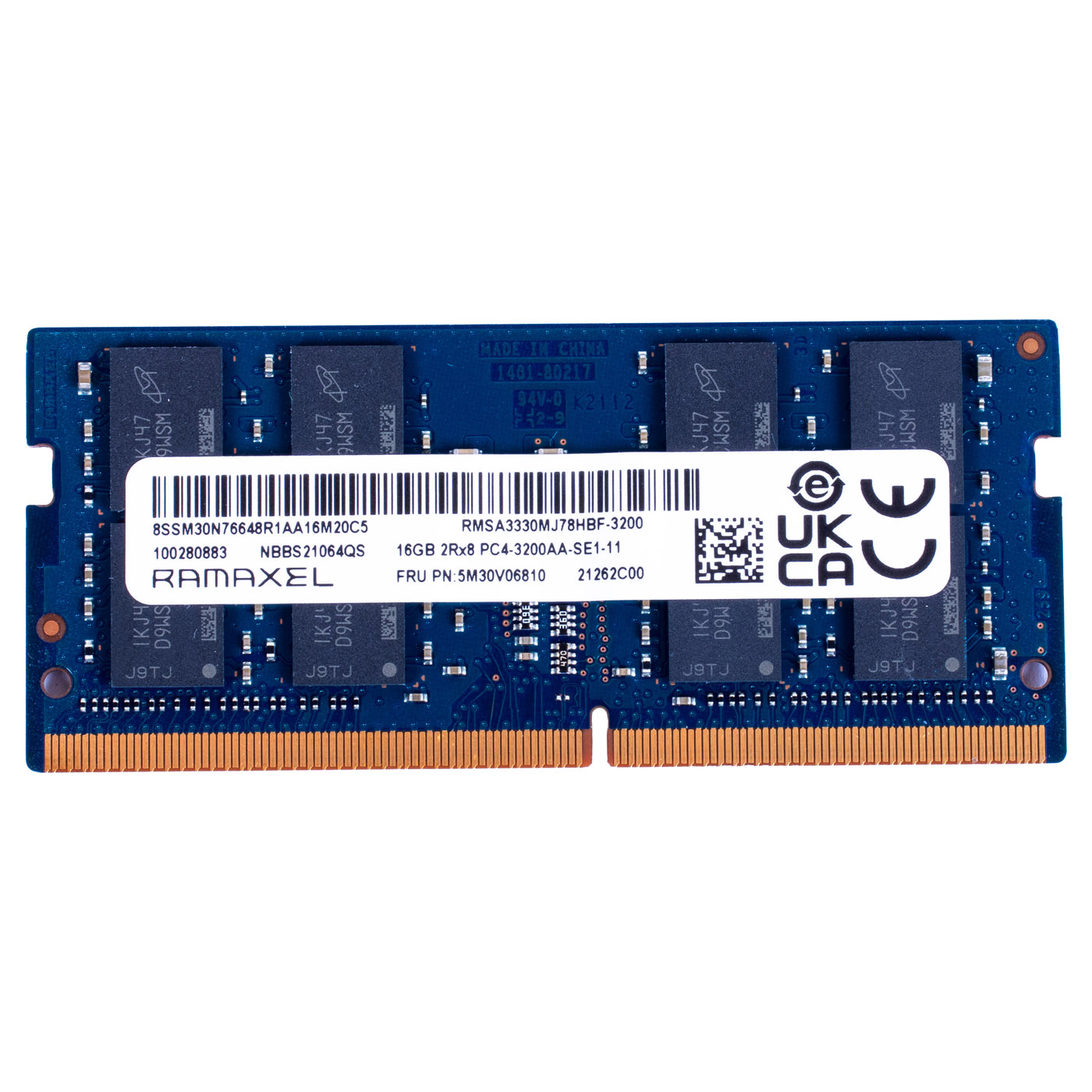

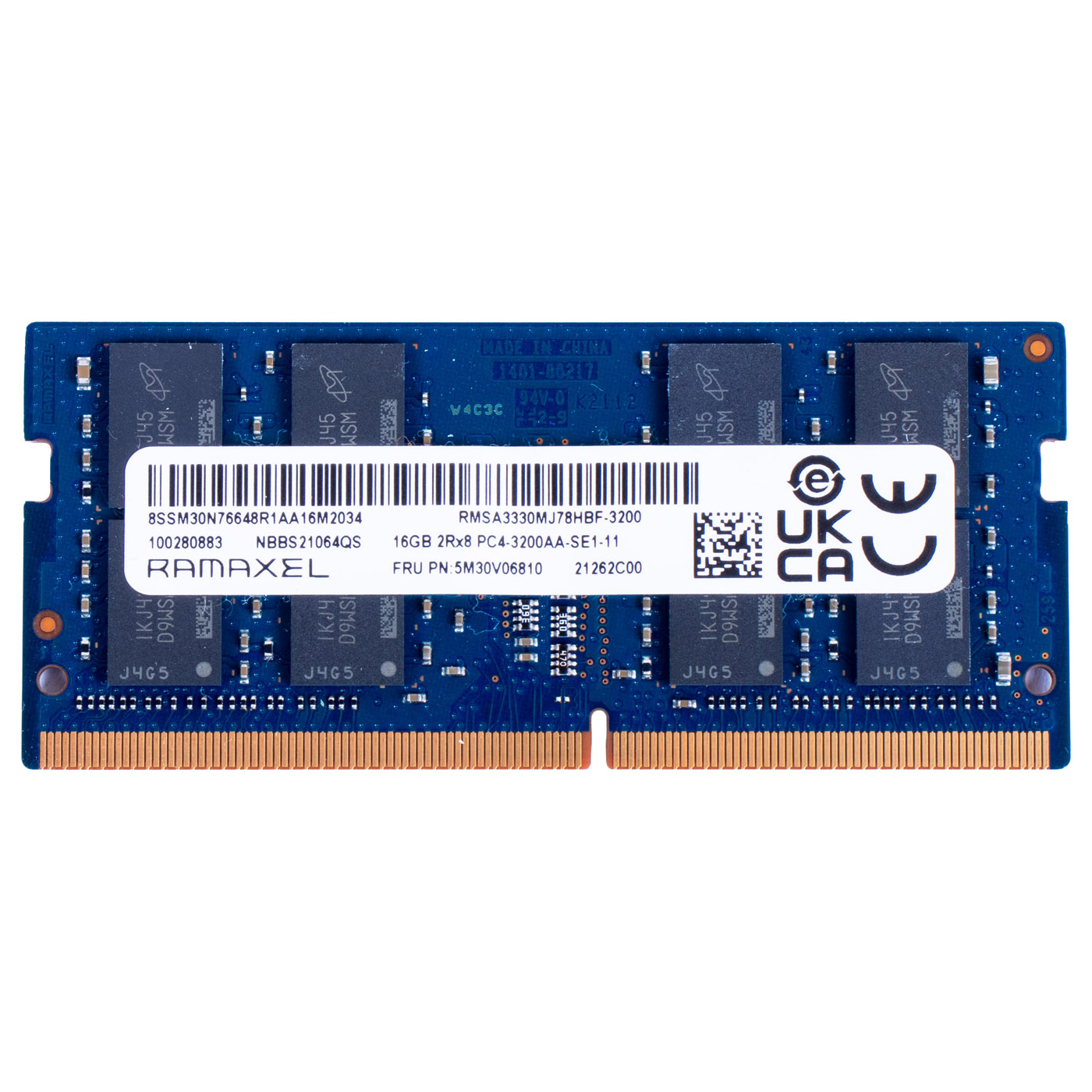

Label markings: 16GB 2Rx8 PC4-3200AA-SE1-11, SM30N76648

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - the same module Lenovo fits at the factory, so the BIOS and system recognise it without issues
🔹 16 GB of memory - a browser with many tabs, Office and a messenger run together without stutter when switching windows
🔹 DDR4-3200, dual rank - paired with a second module it enables dual-channel mode, which speeds up integrated graphics and work with large files
🔹 Wide compatibility - Lenovo assigns this part number to many laptop series with a DDR4 SO-DIMM slot

🔢 PART NUMBERS

FRU: 5M30V06810
Substitute numbers: RMSA3330MJ78HBF-3200, 5M30V06972, 5M30Z71709, 5M31K03115, 5M30Z71754, 5M31L87441
Label markings: 16GB 2Rx8 PC4-3200AA-SE1-11, SM30N76648
Laptop model: Lenovo laptops with a DDR4 SO-DIMM slot

❓ WHEN SHOULD YOU REPLACE OR ADD RAM?

• The laptop slows down with many browser tabs or several programs open
• Blue screens (BSOD) or random restarts point to a faulty RAM module
• The laptop beeps or shows no picture at power-on because of failed memory
• There isn't enough memory for graphics work, programming or virtual machines

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect power and all external devices
2. On laptops with a built-in battery, disable it in BIOS (Disable built-in battery option)
3. Remove the bottom cover or service door (on some models, e.g. ThinkPad P15 Gen 1, the second RAM slot is under the keyboard)
4. Spread the slot latches and remove the old module if you are replacing memory
5. Insert the new module at about 45° fully into the slot, with the notch aligned to the slot
6. Press the module down until the latches click into place
7. Refit the cover, power on and check in BIOS or Task Manager that 16 GB is shown
Replacement by a technical service or a person experienced in laptop repair is recommended.

🎯 PURPOSE

This module is intended for upgrading or replacing memory in Lenovo laptops with a DDR4 SO-DIMM slot. It helps when the laptop slows down in everyday use or when one of the modules has stopped working. The exact appearance and condition of the item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

This memory module has been carefully tested. We guarantee compatibility within FRU 5M30V06810 and 100% functionality of the part. If you experience any compatibility issues, we offer a hassle-free return within 14 days.
