🔧 Bottom Cover for Lenovo ThinkPad P15 Gen 1 (N19P DUM SIM version) 🔧

🖥️ ThinkPad P15 Gen 1 | Bottom Cover (D-cover) | Black | 5CB0Z69112

Genuine bottom cover (D-cover) designed for the Lenovo ThinkPad P15 Gen 1. Part sourced from a working device and tested - we guarantee 100% functionality. The cover is in very good condition. FRU number 5CB0Z69112 ensures full compatibility with the ThinkPad P15 Gen 1.

⚙️ PRODUCT OVERVIEW

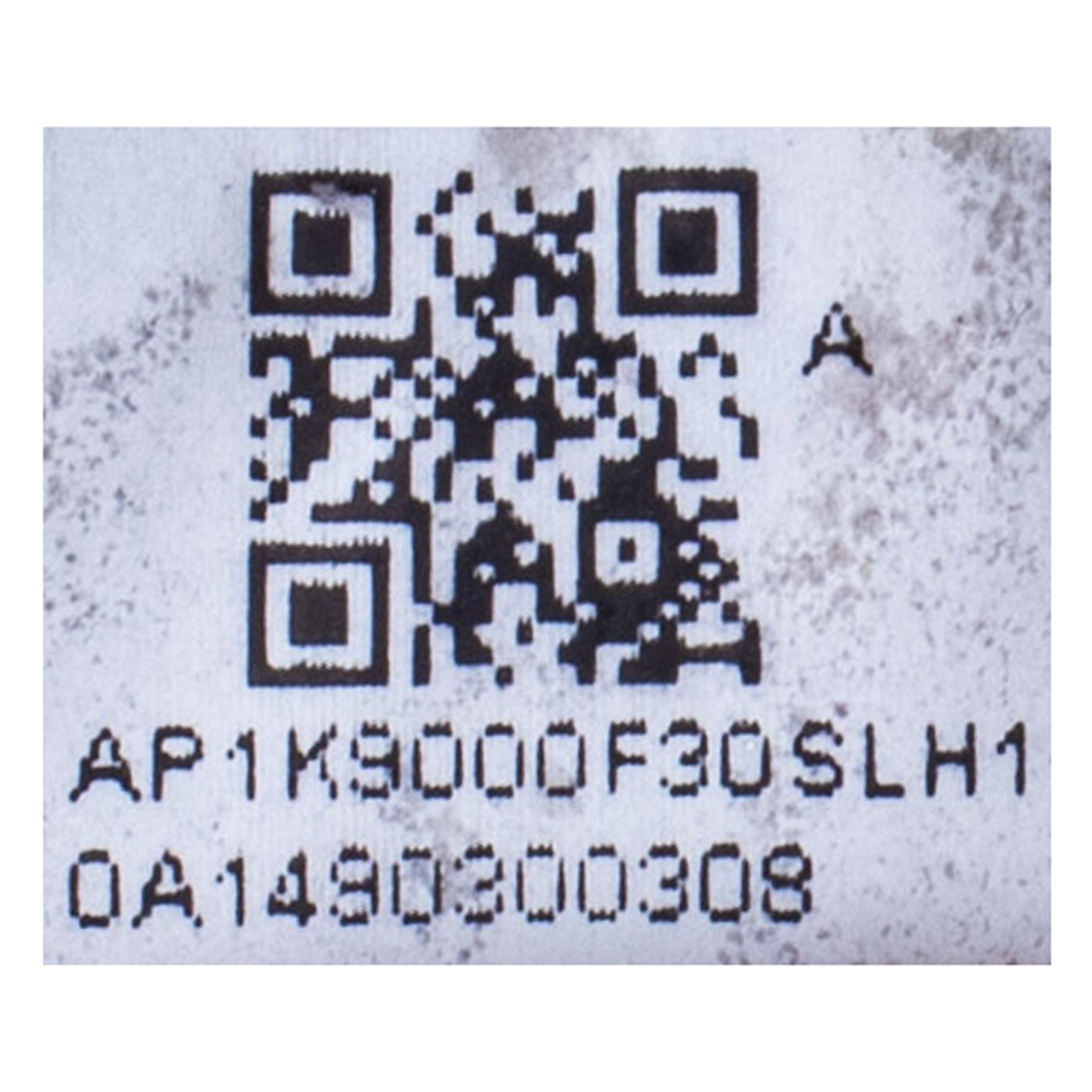

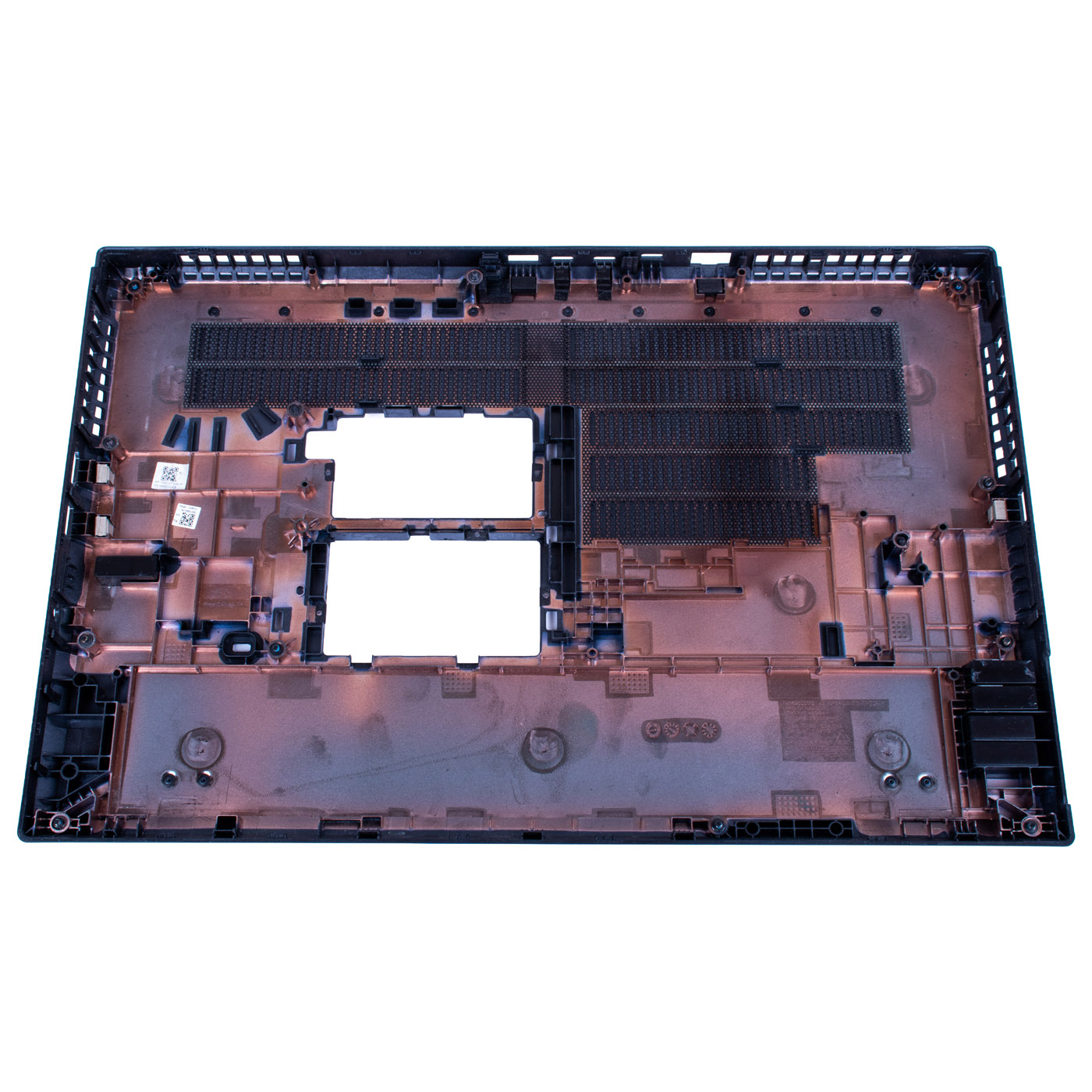

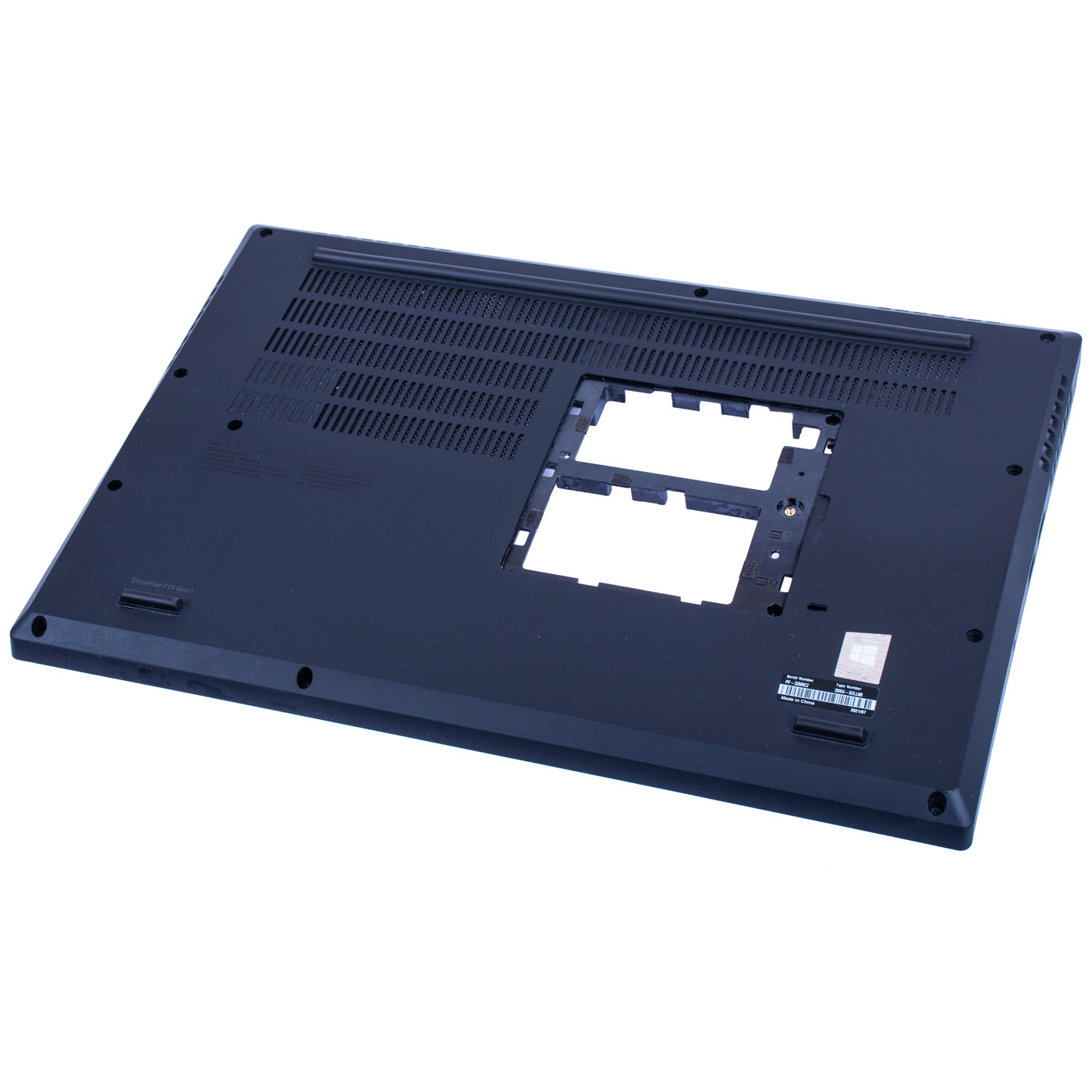

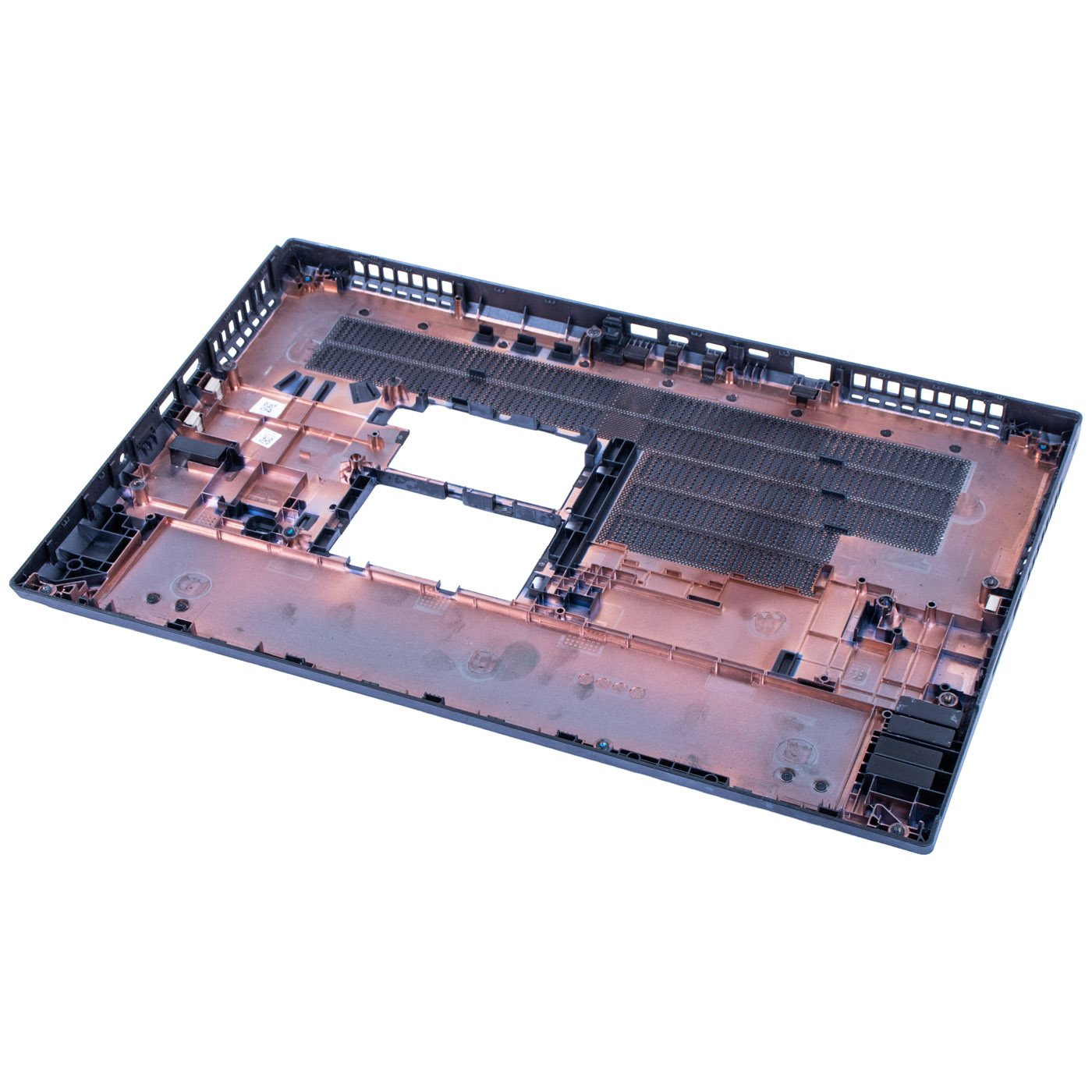

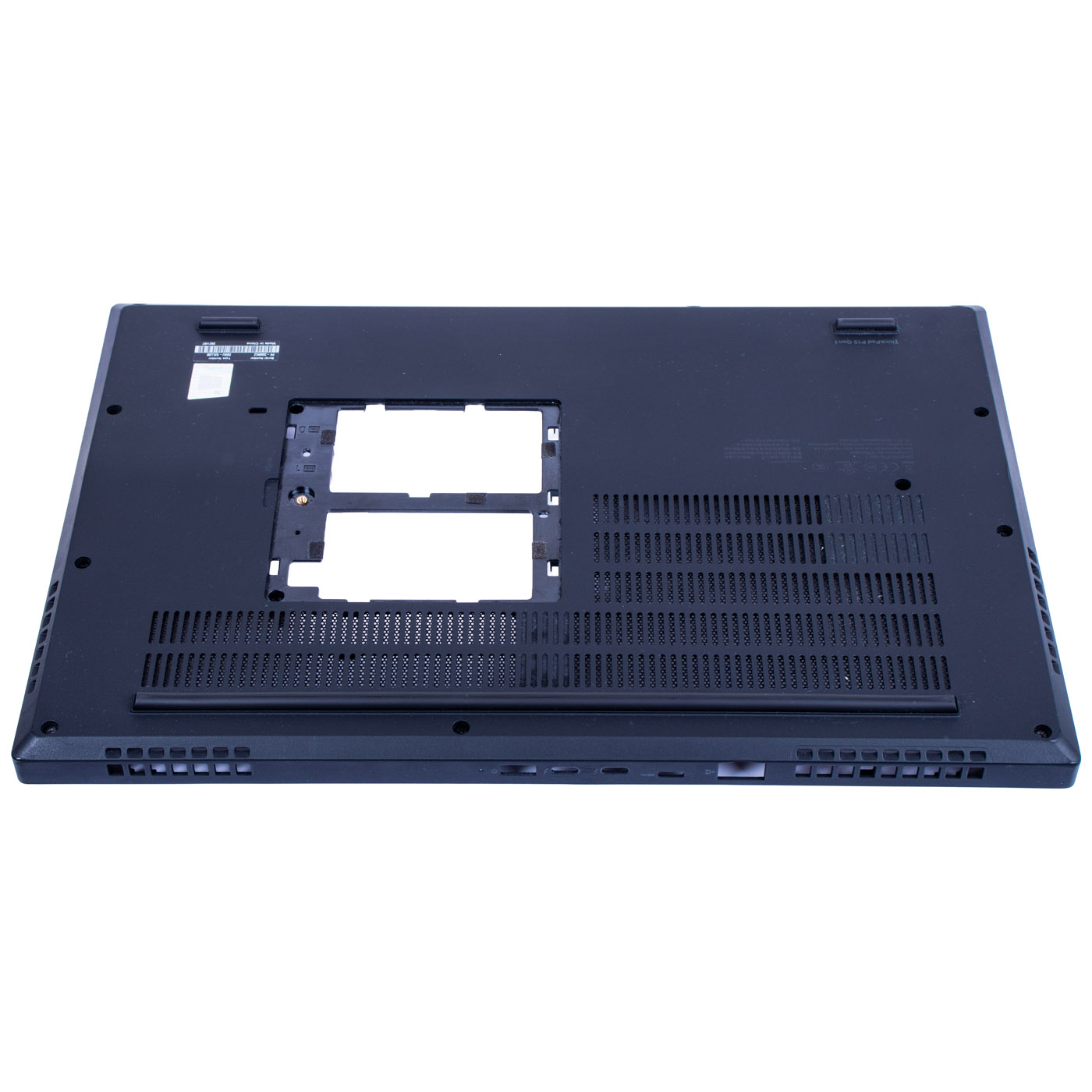

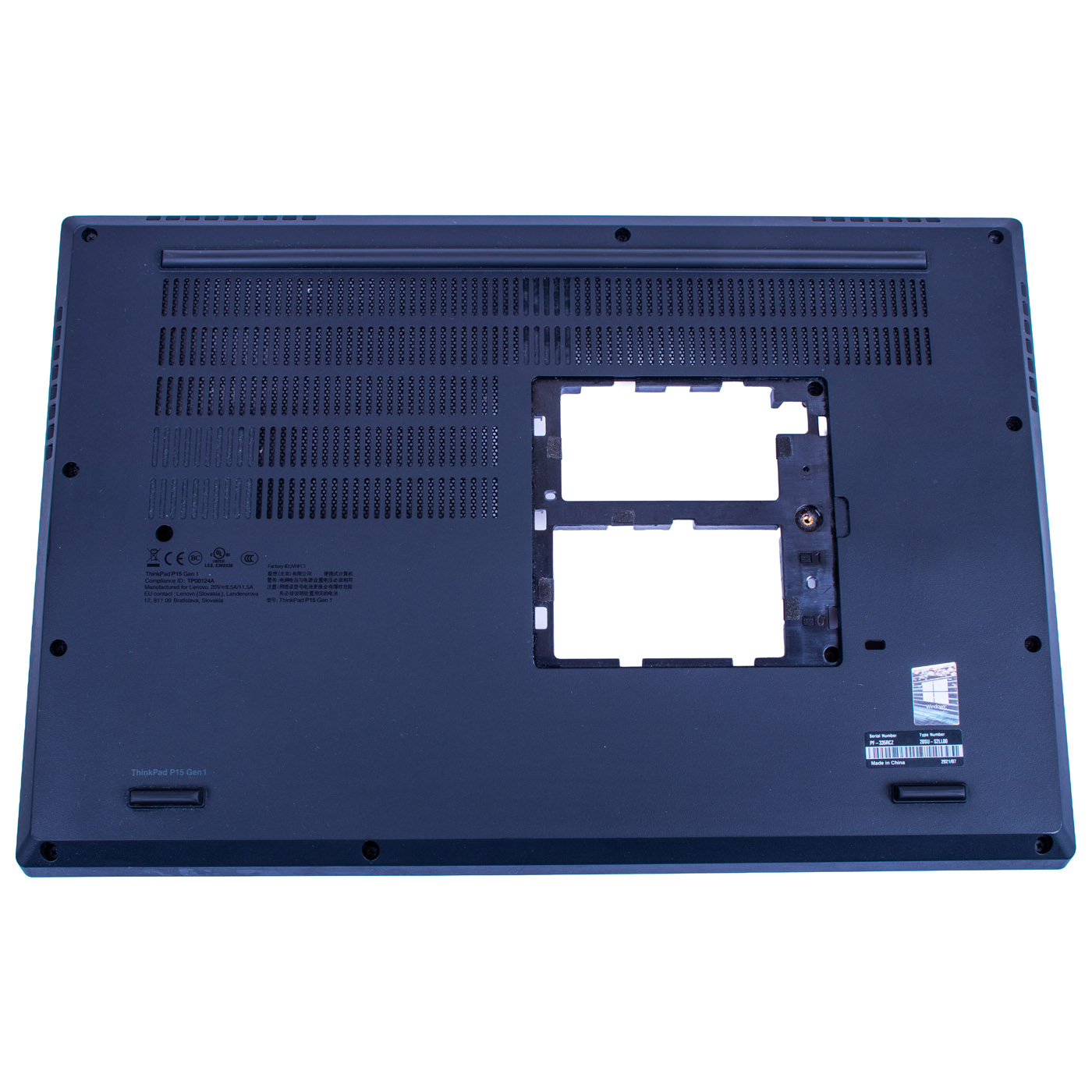

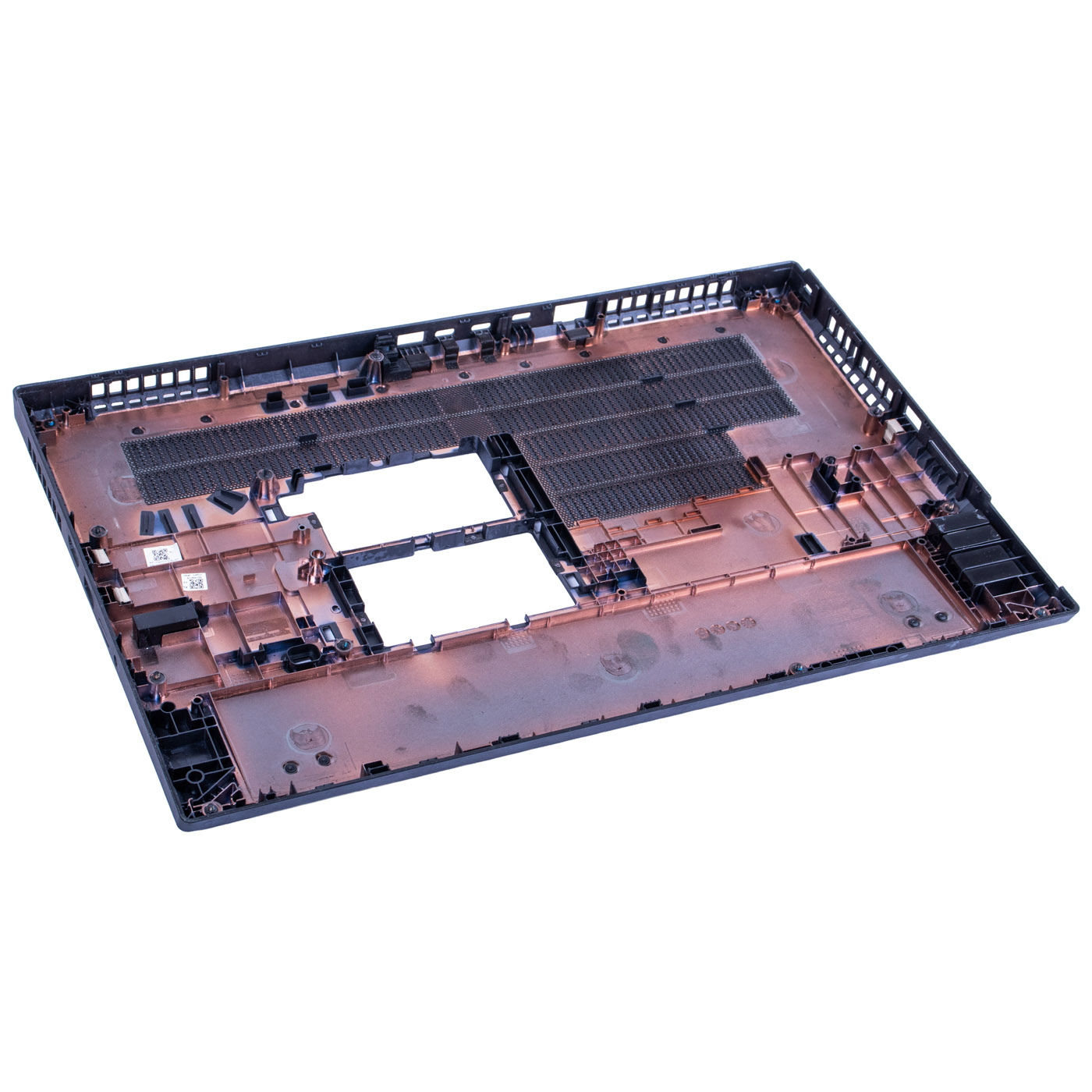

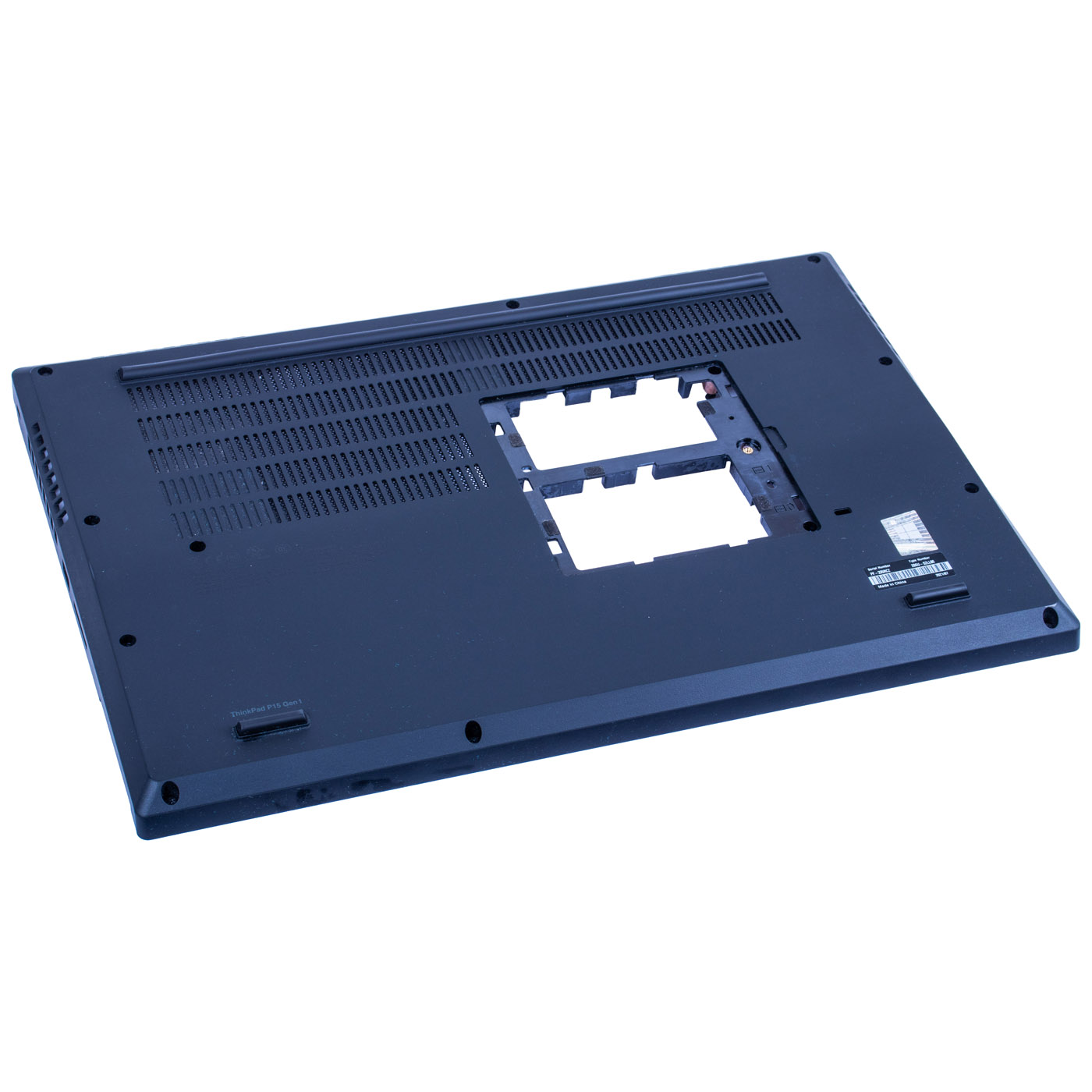

The black lower part of the laptop chassis, in the variant Lenovo designates P15_D_Cover_N19P_DUM_SIM_SUB_ASSY. It has factory ventilation openings under the cooling system, cut-outs for the rear and side ports, rubber feet, and an opening for the service door that gives access to the M.2 drives and RAM. The outside carries the "ThinkPad P15 Gen1" print and factory markings. The label inside shows the manufacturer part number AP1K9000F30SLH1.

📋 TECHNICAL SPECIFICATIONS

Part name: Bottom cover (D-cover)
Brand: Lenovo ThinkPad
Compatible model: ThinkPad P15 Gen 1 (20ST, 20SU)
Variant: N19P DUM SIM (Lenovo: P15_D_Cover_N19P_DUM_SIM_SUB_ASSY)
Screen size: 15.6"
Colour: Black
Condition: Used (pulled from a working unit, tested), very good condition
FRU: 5CB0Z69112
Substitute numbers: AP1K9000F30
Label markings: AP1K9000F30SLH1, SCB1A40721

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - screw holes, vents and port cut-outs are exactly where they should be, so everything goes together without adjusting
🔹 Factory ventilation openings - the workstation's cooling works as designed, without overheating under load
🔹 Service door opening - you can swap drives and RAM later without removing the whole cover
🔹 Very good condition - the laptop looks tidy after the swap, and the rubber feet keep it stable on the desk
🔹 Full compatibility - matched to the ThinkPad P15 Gen 1 under FRU 5CB0Z69112

🔢 PART NUMBERS

FRU: 5CB0Z69112
Substitute numbers: AP1K9000F30
Label markings: AP1K9000F30SLH1, SCB1A40721
Laptop model: Lenovo ThinkPad P15 Gen 1 (20ST, 20SU)

❓ WHEN SHOULD YOU REPLACE THE BOTTOM COVER?

• The cover is cracked or the screw mounts are broken, so the bottom sticks out
• Threaded inserts are torn out and screws no longer hold
• The bottom is scratched or damaged after a drop
• Rubber feet are detached or missing, so the laptop rocks on the desk

🔧 INSTALLATION PROCESS

Sequence according to the Lenovo Hardware Maintenance Manual (HMM) for the ThinkPad P15 Gen 1.
1. Turn off the laptop and disconnect power and all external devices
2. Disable the built-in battery in BIOS (Disable built-in battery option)
3. Remove the bottom door
4. Remove the bottom cover screws and lift off the cover, releasing the latches from the edge
5. Fit the new cover, make sure all latches are seated, and fasten the screws
6. Refit the bottom door
7. Connect the charger to wake the battery and power on the laptop
Replacement by a technical service or a person experienced in laptop repair is recommended.

🎯 PURPOSE

This cover is intended for repairing a ThinkPad P15 Gen 1 with a cracked or worn bottom or broken screw mounts. It restores a solid chassis and a tidy look. The exact appearance and condition of the item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

This cover has been carefully checked and matched to the Lenovo ThinkPad P15 Gen 1. We guarantee full compatibility within FRU 5CB0Z69112 and 100% functionality of the part. If you experience any compatibility issues, we offer a hassle-free return within 14 days.
