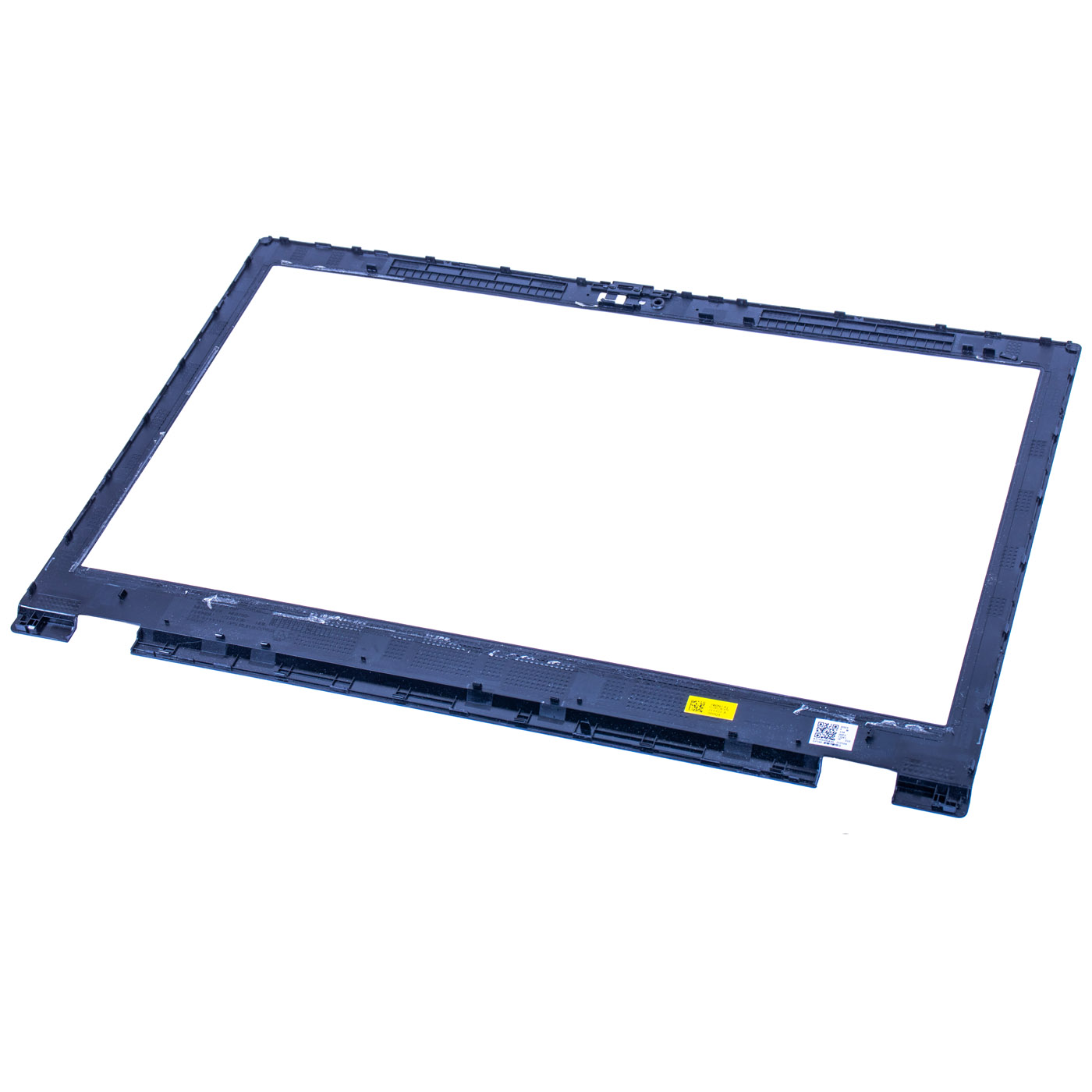

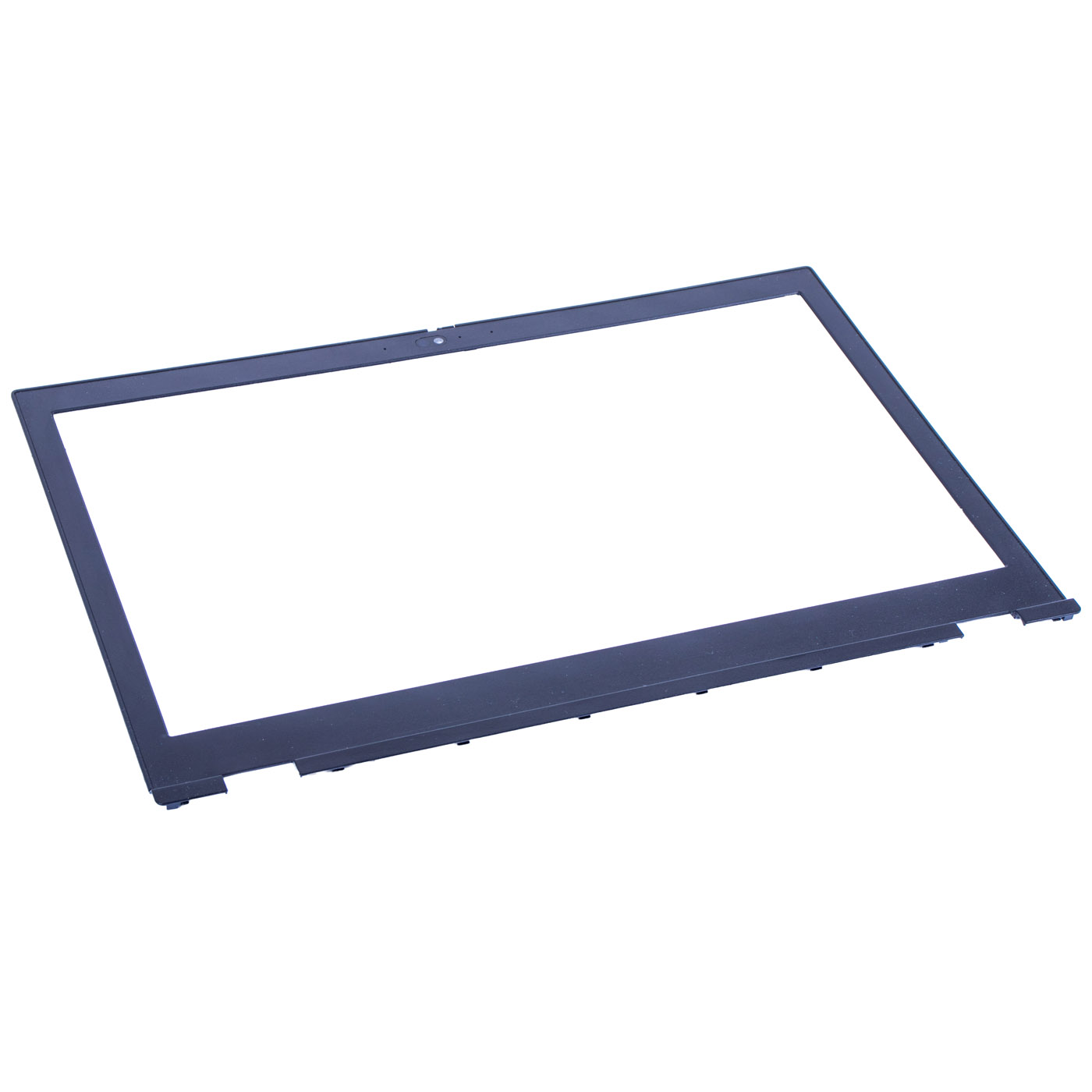

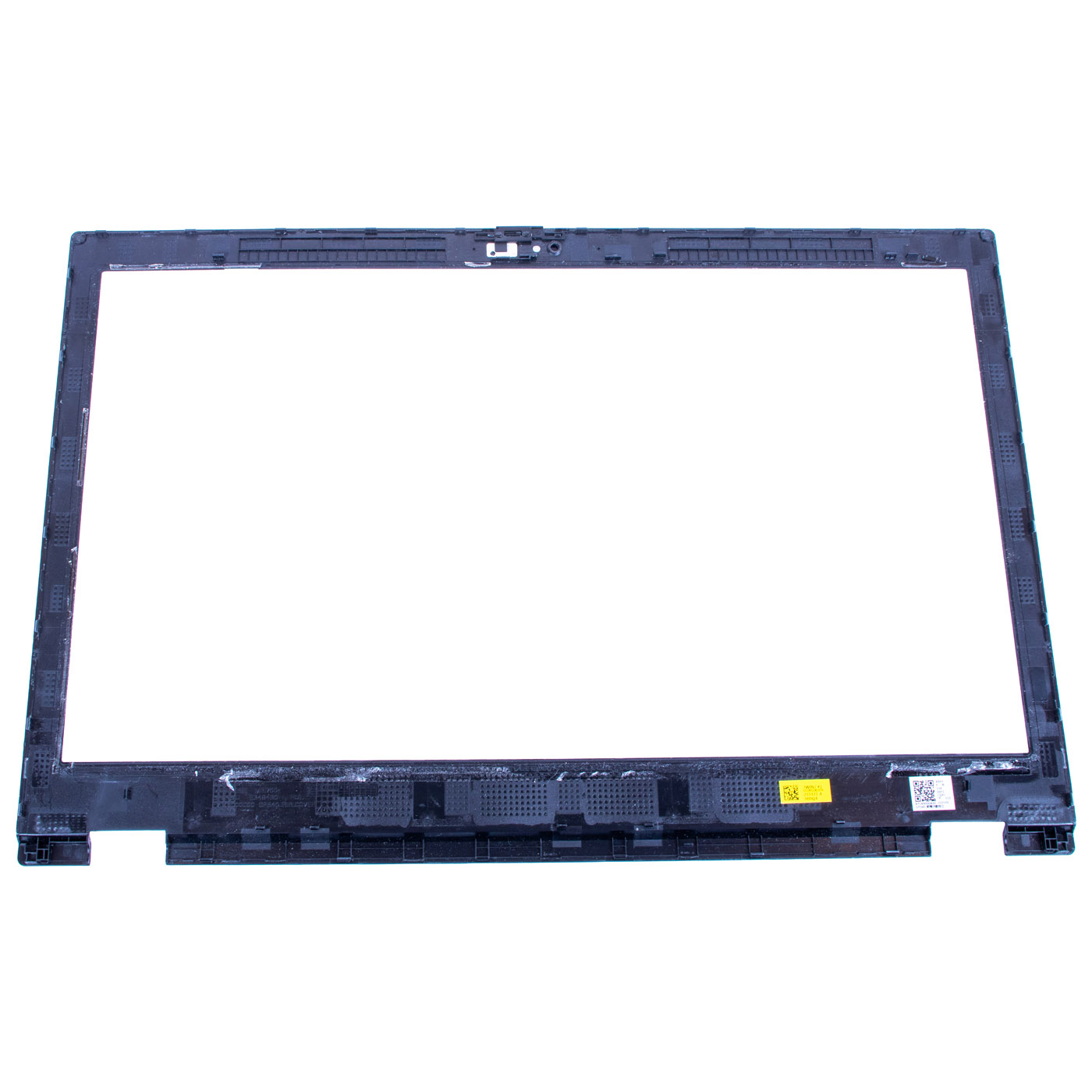

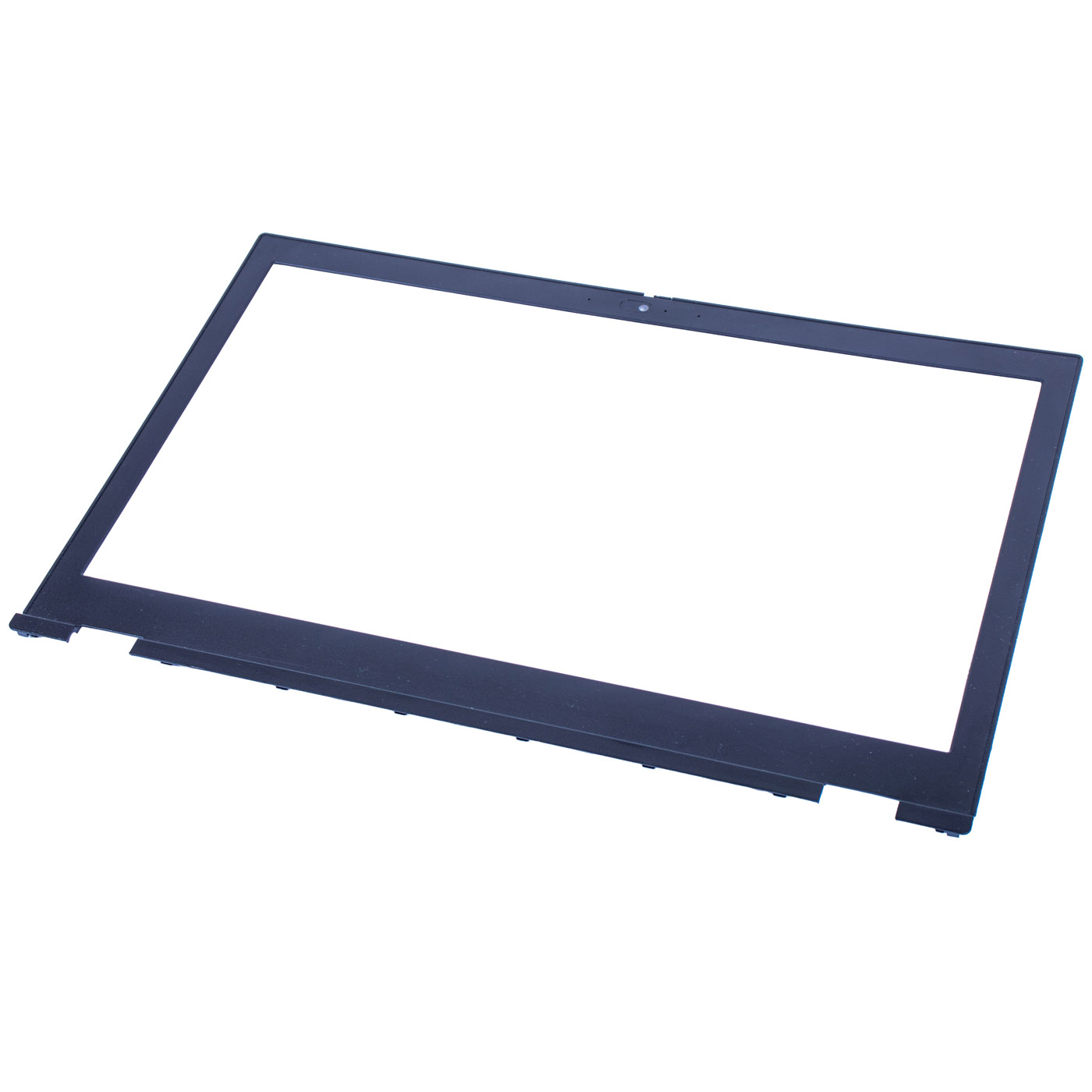

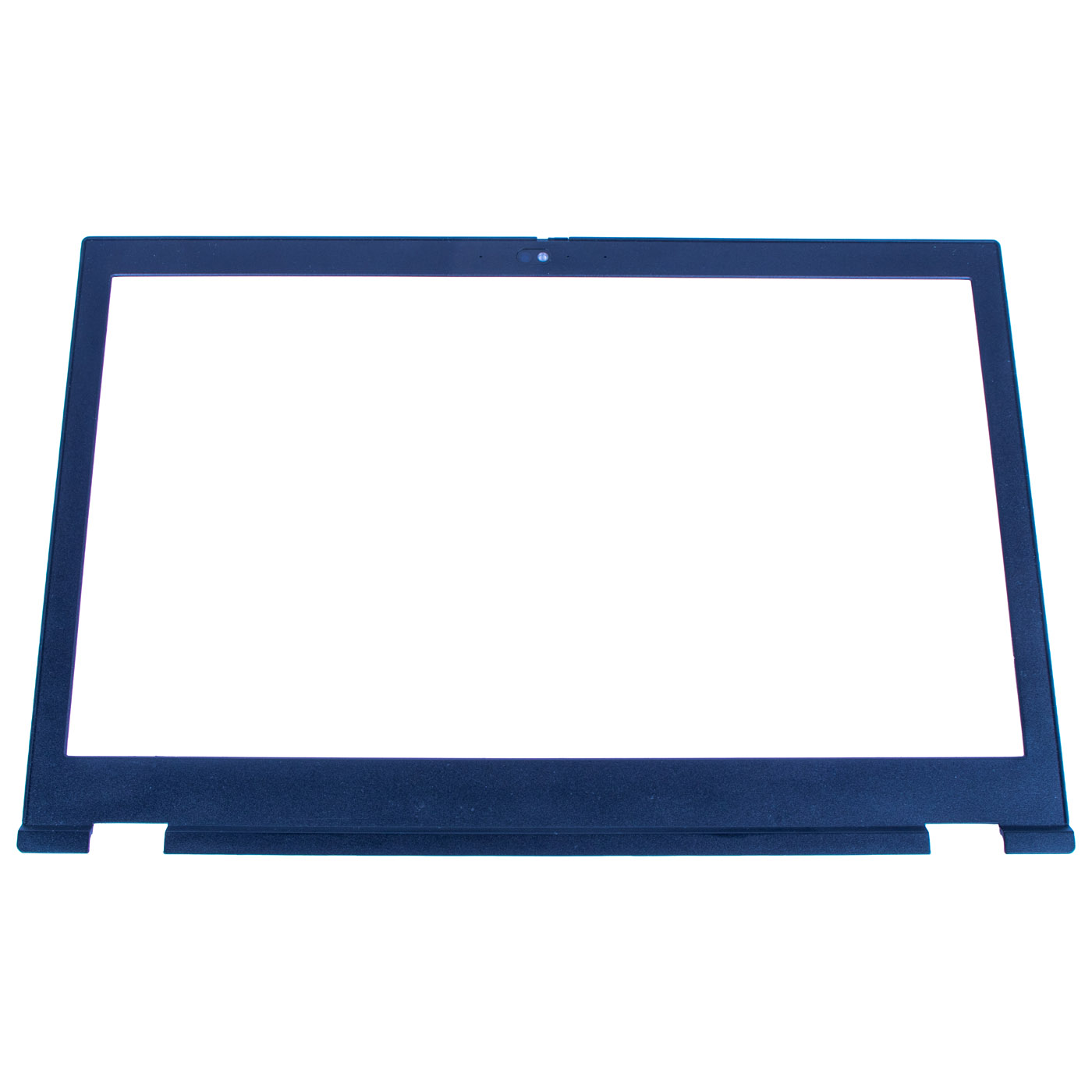

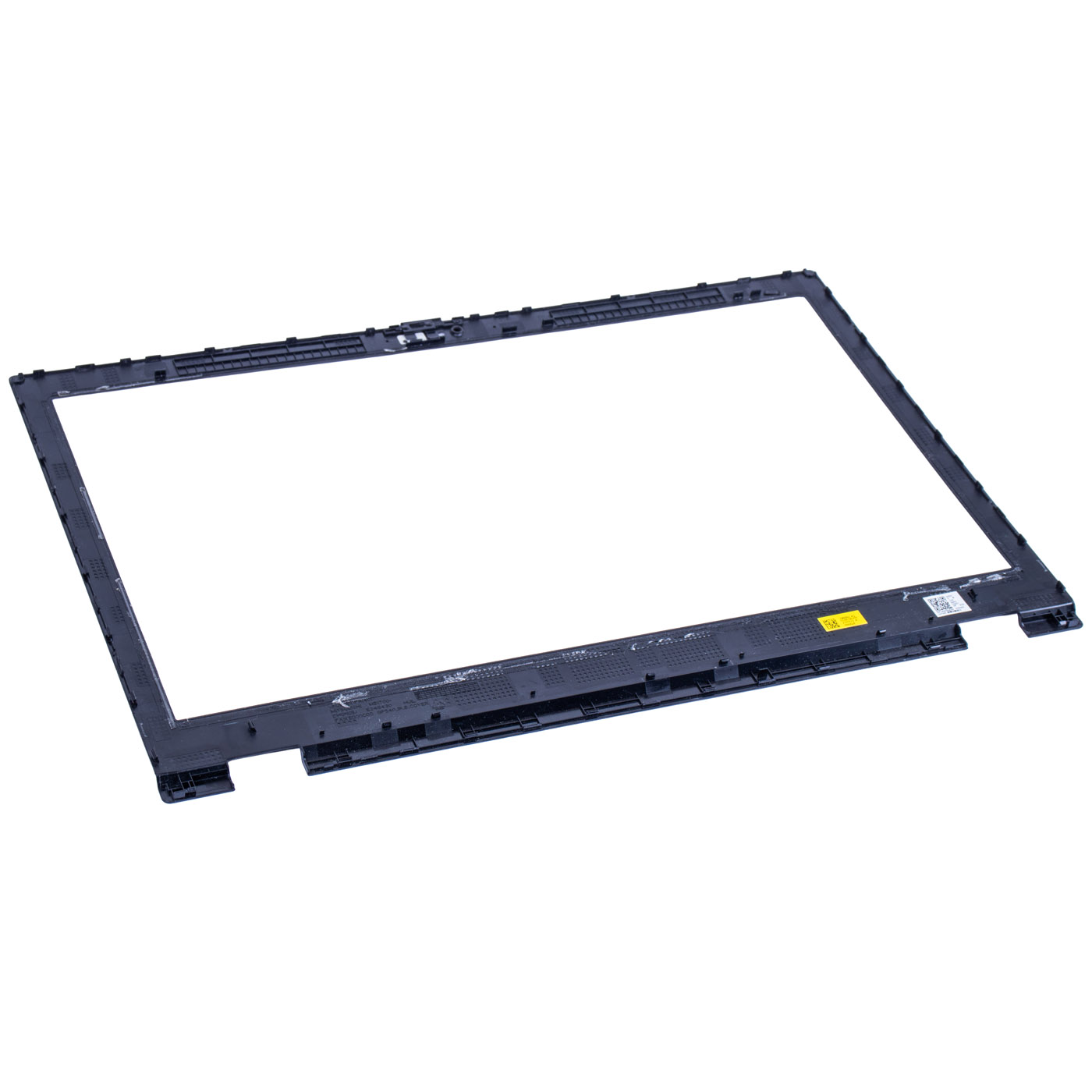

🔧 LCD Bezel for Lenovo ThinkPad P15 Gen 1 / Gen 2 (IR version) 🔧

🖥️ ThinkPad P15 Gen 1 · P15 Gen 2 | LCD Front Bezel IR | Black | 5B30Z38867

Genuine LCD front bezel in the IR camera version designed for the Lenovo ThinkPad P15 Gen 1 and P15 Gen 2. Part sourced from a working device and tested - we guarantee 100% functionality. FRU number 5B30Z38867 ensures full compatibility with the listed models.

⚙️ PRODUCT OVERVIEW

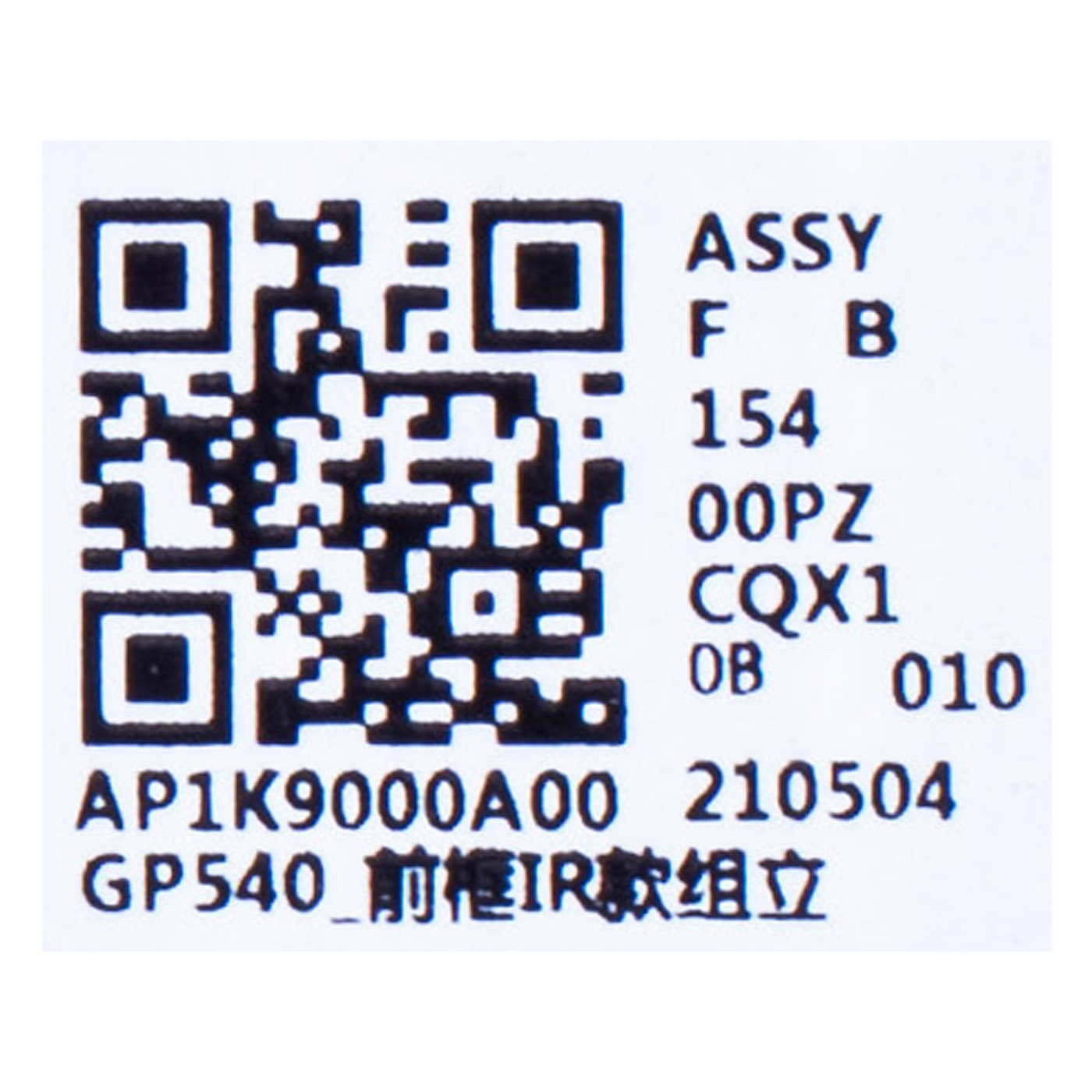

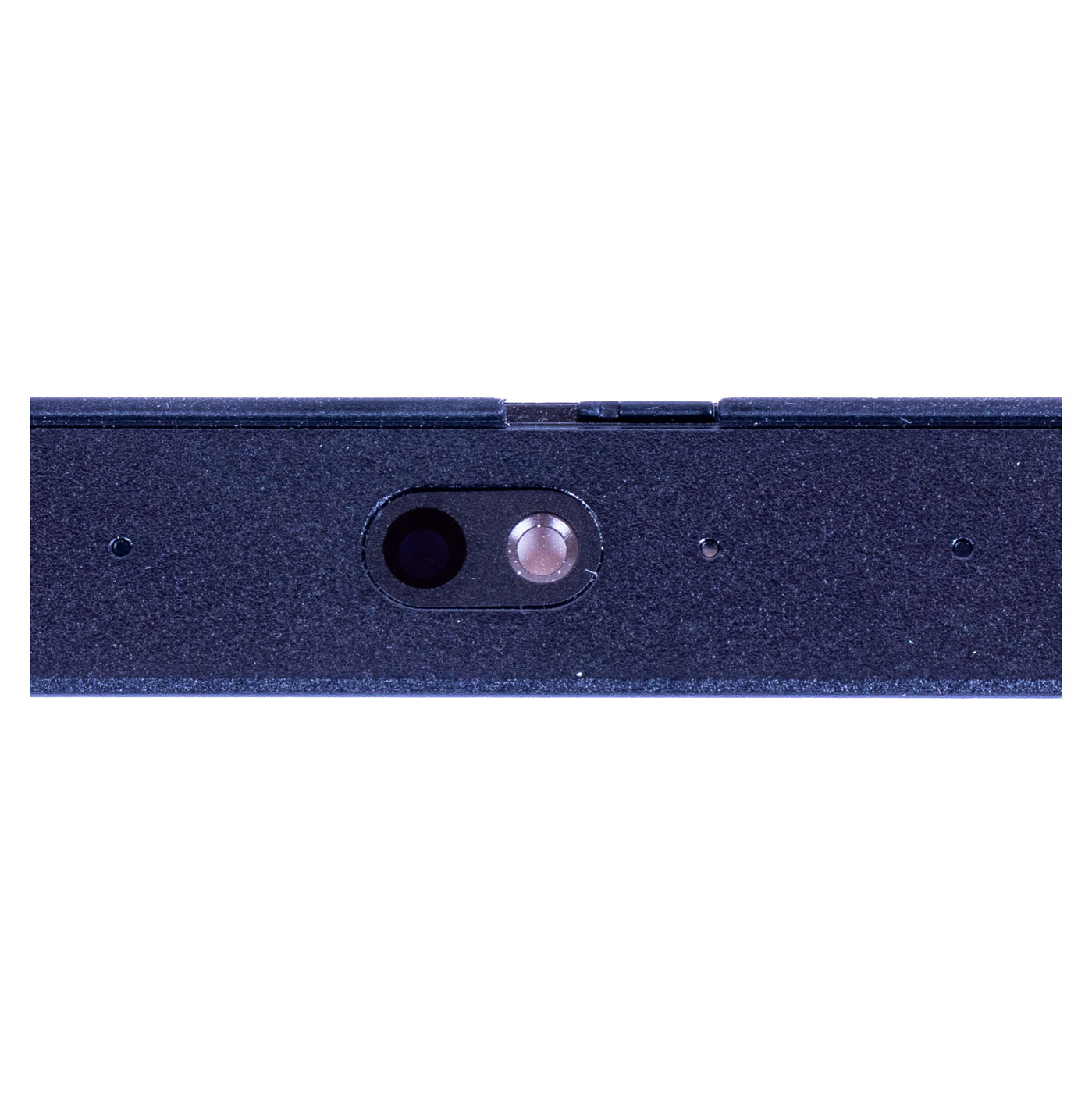

A black display bezel in the IR camera version (Lenovo: BEZEL P15_B_COVER_IR_SUB_ASSY). At the top it has a window for the HD and infrared cameras, microphone holes and the ThinkShutter camera cover slider. The IR camera supports Windows Hello face login. The bezel is held in place by latches. The label inside shows the manufacturer number AP1K9000A00 with the description "GP540 前框IR款组立", i.e. front bezel, IR version.

📋 TECHNICAL SPECIFICATIONS

Part name: LCD front bezel (B-cover)
Brand: Lenovo ThinkPad
Compatible models: ThinkPad P15 Gen 1 (20ST, 20SU), P15 Gen 2 (20YQ, 20YR)
Version: IR (window for HD + IR camera, ThinkShutter slider)
Screen size: 15.6"
Colour: Black
Condition: Used (pulled from a working unit, tested)
FRU: 5B30Z38867
Substitute numbers: AP1K9000A00
Label markings: AP1K9000A00, GP540

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - latches and cut-outs match exactly, so the bezel sits flush with the panel without gaps
🔹 IR version - the window is matched to the infrared camera, so Windows Hello face login works as from the factory
🔹 ThinkShutter slider - cover the camera with one move when you're not using it
🔹 Fits two generations - P15 Gen 1 and P15 Gen 2 according to Lenovo
🔹 Full compatibility - under FRU 5B30Z38867

🔢 PART NUMBERS

FRU: 5B30Z38867
Substitute numbers: AP1K9000A00
Label markings: AP1K9000A00, GP540
Laptop model: Lenovo ThinkPad P15 Gen 1, P15 Gen 2

❓ WHEN SHOULD YOU REPLACE THE LCD BEZEL?

• The bezel is cracked or its latches are broken, so it lifts away from the panel
• The ThinkShutter slider is stuck or broken off
• The bezel was damaged during a screen replacement
• The IR camera stopped recognising your face after a repair because of a poorly fitting bezel

🔧 INSTALLATION PROCESS

Sequence according to the Lenovo Hardware Maintenance Manual (HMM) for the ThinkPad P15 Gen 1 (non-touch version).
1. Turn off the laptop and disconnect power and all external devices
2. Disable the built-in battery in BIOS (Disable built-in battery option)
3. Remove the bottom door, keyboard, keyboard bezel, bottom cover and hinge caps
4. Remove the LCD unit (4 black M2.5 × 8 mm screws)
5. Pry the bezel up from the edge and release the latches one by one
6. Fit the new bezel and press around the edge until all latches click firmly into place
7. Reinstall the LCD unit (screws to 0.294 Nm) and reassemble in reverse order
8. Check the picture, camera, Windows Hello and the ThinkShutter
Replacement by a technical service or a person experienced in laptop repair is recommended.

🎯 PURPOSE

This bezel is intended for repairing ThinkPad P15 Gen 1 and Gen 2 laptops with the IR camera when the original bezel has cracked, lifts away or was damaged during a screen swap. It restores a tidy screen surround and full camera functionality. The exact appearance and condition of the item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

This bezel has been carefully checked and matched to the Lenovo ThinkPad P15 Gen 1 and P15 Gen 2. We guarantee full compatibility within FRU 5B30Z38867 and 100% functionality of the part. If you experience any compatibility issues, we offer a hassle-free return within 14 days.

📞 NEED HELP? CONTACT OUR EXPERTS!

Not sure whether your ThinkPad P15 has the IR or RGB version? Our specialists will be happy to assist you. Contact us!
📱 Phone: +48-601-415357
📧 Email: sklep@abcdeal.pl

🦁 ABCDEAL - Your Trusted Lenovo Parts Specialist

We have been specialising in delivering genuine Lenovo laptop parts for years. Our experience allows us to offer top-quality products that meet the expectations of even the most demanding customers. Trust the experts and restore your ThinkPad to full working order.

🎯 Choose professionals - invest in quality!

By choosing a genuine LCD bezel for the Lenovo ThinkPad P15 from our offer, you invest in a factory-look screen and a working IR camera. Benefit from ABCDEAL's expertise and bring your laptop back to full functionality.
