🔧 Fingerprint Reader Cable for Lenovo ThinkPad P15 Gen 1 / T15g Gen 1 🔧

🖥️ ThinkPad P15 Gen 1 / T15g Gen 1 | Fingerprint Reader FFC Cable | 5C10Z23875

Genuine FFC cable connecting the fingerprint reader to the system board for Lenovo ThinkPad P15 Gen 1 and ThinkPad T15g Gen 1 laptops. Part sourced from a working device and tested - we guarantee 100% functionality. FRU number 5C10Z23875 guarantees full compatibility with ThinkPad P15 Gen 1 and T15g Gen 1.

⚙️ PRODUCT CHARACTERISTICS

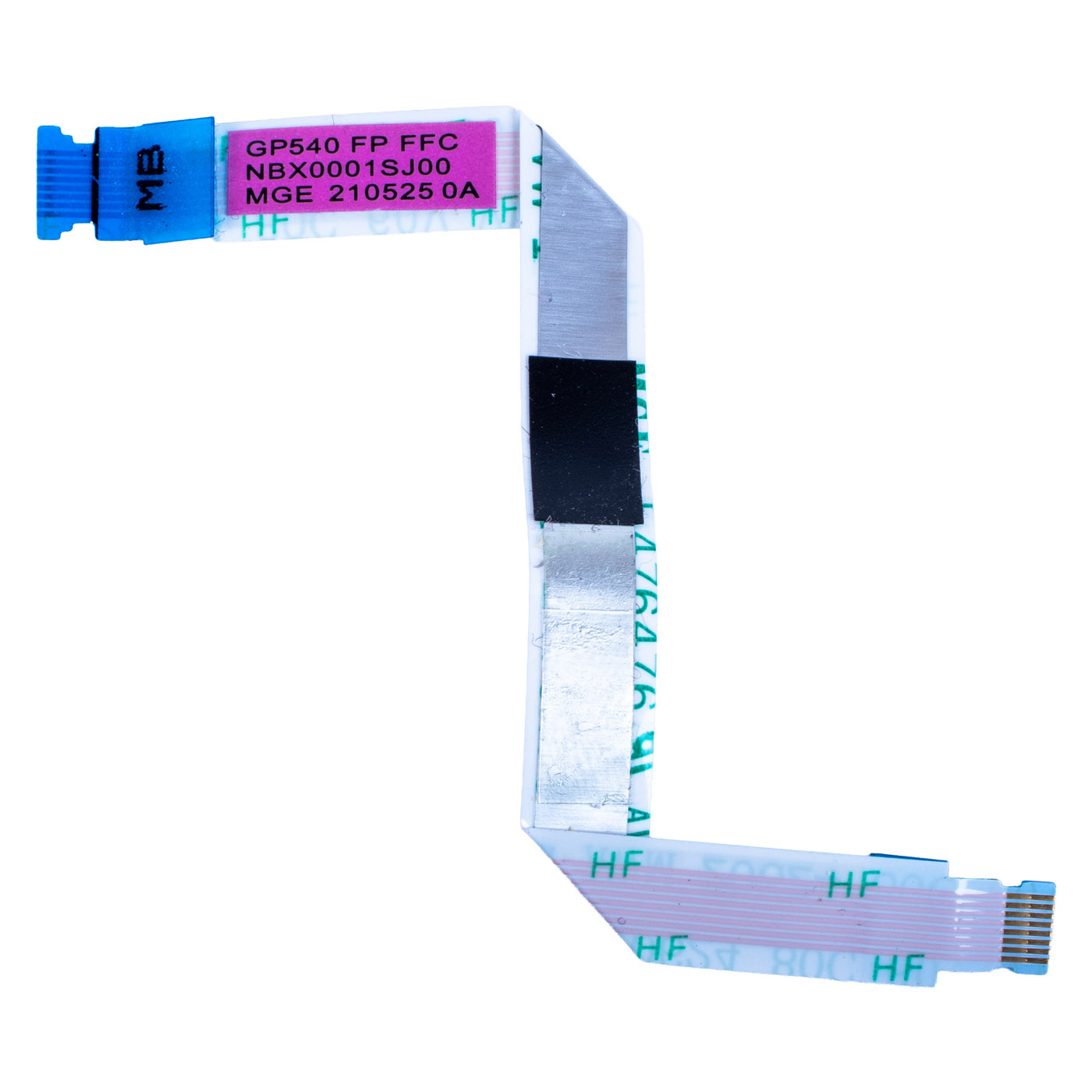

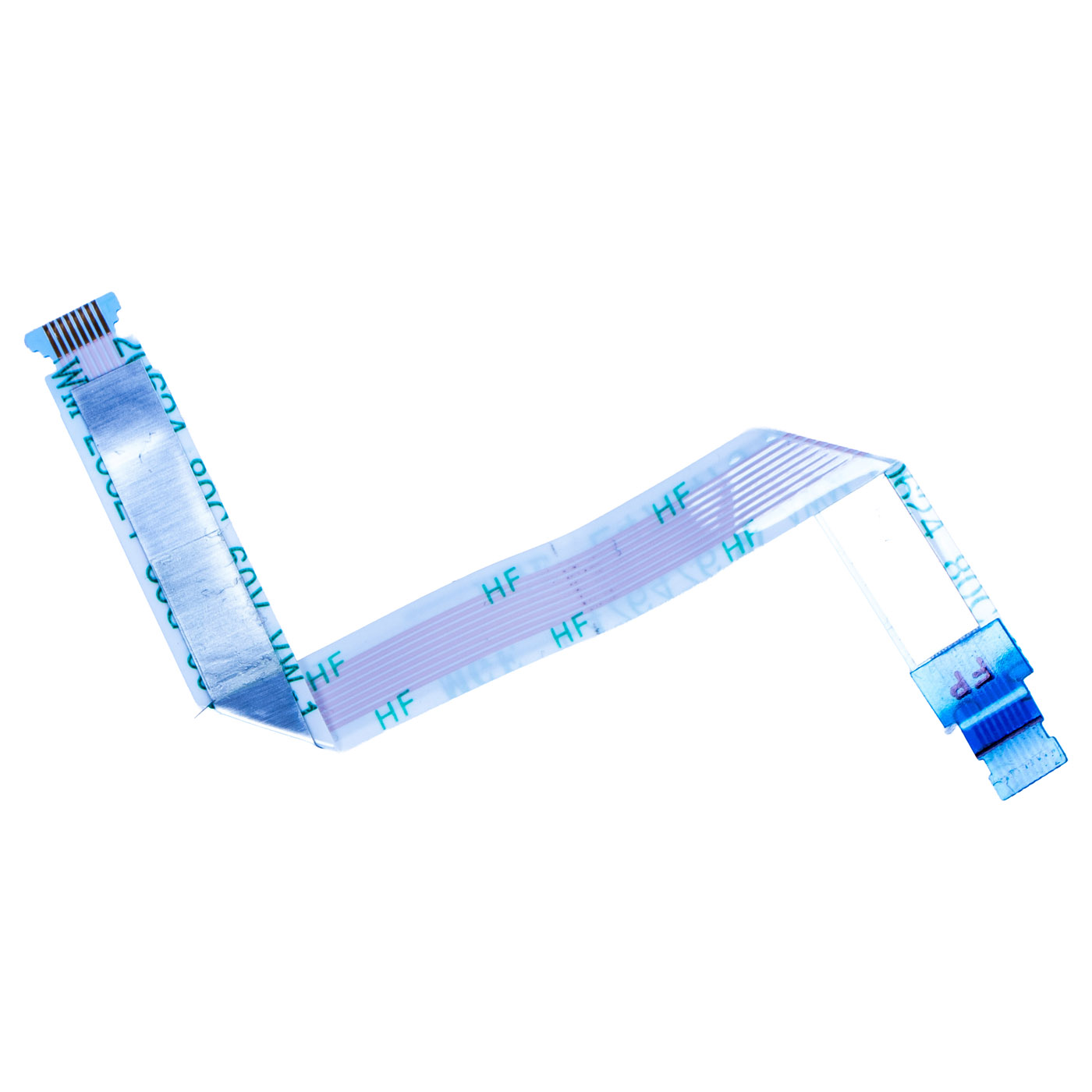

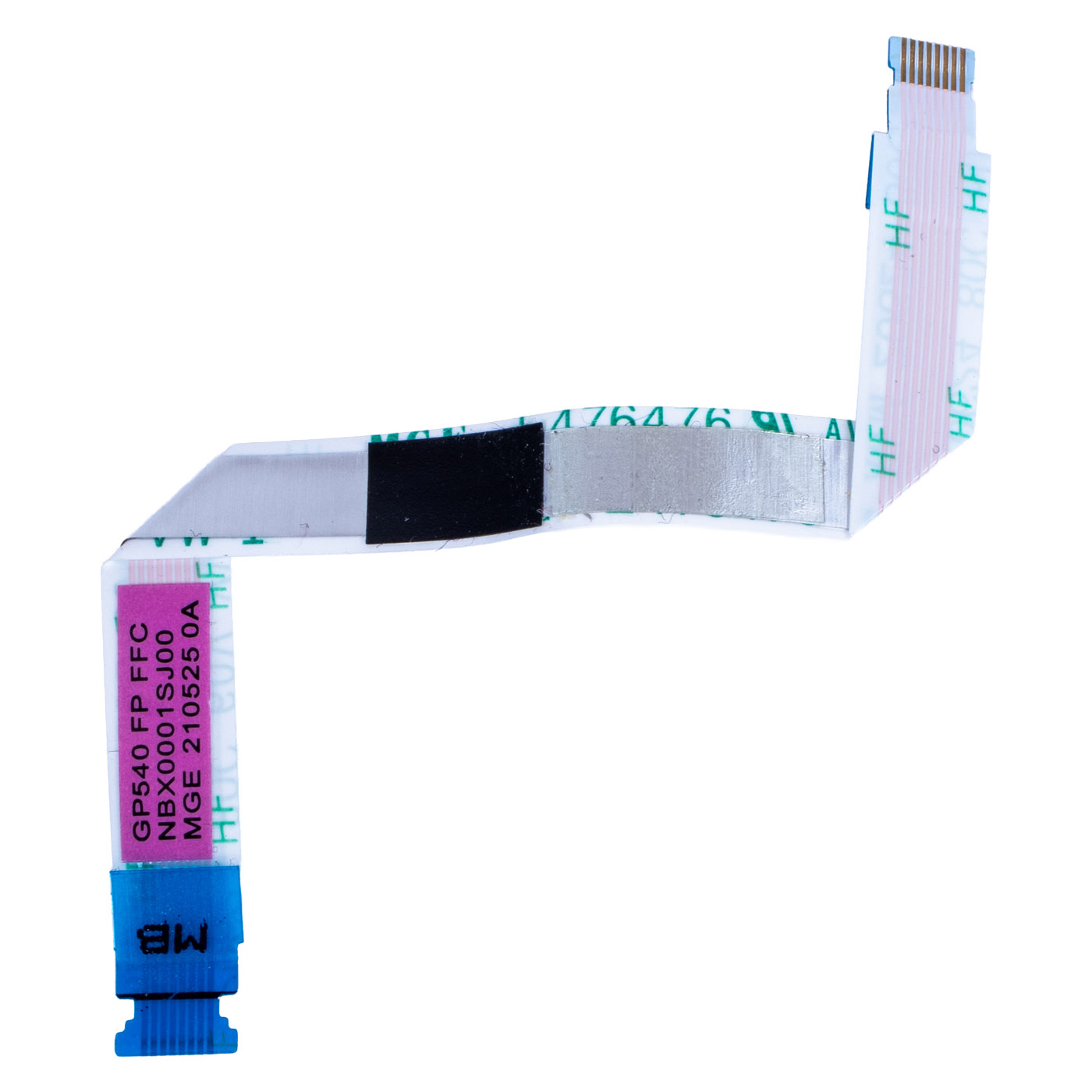

The cable is marked GP540 FP FFC (manufacturer part number NBX0001SJ00, made by MGE) and carries the signal from the fingerprint reader board to the laptop's system board. Both ends are factory labelled: MB (system board) and FP (fingerprint reader), so there is no risk of plugging it in the wrong way. The cable has factory stiffeners and shielding along its routing path. Lenovo part number: FRU 5C10Z23875.

📋 TECHNICAL SPECIFICATIONS

Part name: Fingerprint reader FFC cable
Brand: Lenovo ThinkPad
Compatible model: ThinkPad P15 Gen 1 (20ST, 20SU), ThinkPad T15g Gen 1 (20UR, 20US)
Markings on the part: GP540 FP FFC, NBX0001SJ00, MGE, rev. 0A, MB / FP ends
Condition: Used (removed from a working unit, tested)
Warranty: 6 months
FRU: 5C10Z23875
Substitute numbers: NBX0001SJ00

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - factory length and routing, so it sits exactly in its channel without bending or forcing
🔹 Restores fingerprint login - sign in to Windows with a single touch again instead of typing your password
🔹 Labelled MB and FP ends - you instantly know which end goes to the board and which to the reader
🔹 Tested and working - checked before listing, 100% functional
🔹 Full compatibility - matched to ThinkPad P15 Gen 1 and T15g Gen 1 under FRU 5C10Z23875

🔢 PART NUMBERS

FRU: 5C10Z23875
Substitute numbers: NBX0001SJ00
Markings on the part: GP540 FP FFC, MGE, rev. 0A
Laptop model: Lenovo ThinkPad P15 Gen 1, Lenovo ThinkPad T15g Gen 1

❓ WHEN SHOULD YOU REPLACE THE FINGERPRINT READER CABLE?

• Problem with an undetected reader - the reader is gone from Device Manager and Windows Hello says no fingerprint reader was found
• Problem with fingerprint login not working - the sensor does not react to your finger although it used to work
• Problem with a damaged cable - worn, creased or torn after a previous repair
• Problem with a delaminated connector end - the cable end came apart after a keyboard or palm rest replacement

🔧 INSTALLATION PROCESS

1. Turn off Windows Fast Startup, restart the laptop, press F1 and in ThinkPad Setup select Config → Power → Disable built-in battery. The laptop turns off, wait 3-5 minutes. Remove the nano-SIM card if installed
2. Unscrew and remove the bottom door
3. Remove the keyboard
4. Remove the keyboard bezel assembly (palm rest)
5. Disconnect the cable from the system board connector (MB end) and from the reader board (FP end), then carefully peel it off the chassis
6. Install the new cable: MB end to the system board, FP end to the reader board. Make sure both ends are firmly seated and the latches are closed
7. Reassemble in reverse order and connect the AC adapter, which re-enables the built-in battery
8. Boot the system and check the reader in Settings → Accounts → Sign-in options (Windows Hello)
Replacement by a technical service or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

This cable is intended for repairing Lenovo ThinkPad P15 Gen 1 and T15g Gen 1 laptops where the fingerprint reader stopped working because of the connecting cable. It is a cheaper and quicker fix than replacing the whole palm rest or the reader itself when the fault is in the connection. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered cable has been carefully checked and matched to Lenovo ThinkPad P15 Gen 1 and T15g Gen 1. We guarantee full compatibility within FRU number 5C10Z23875 and 100% functionality of the part. In case of any compatibility issues, we offer a hassle-free return within 14 days.
