🔧 Power Button Board with Cable for Lenovo ThinkPad P15 Gen 1 / T15g Gen 1 🔧

🖥️ ThinkPad P15 Gen 1 / T15g Gen 1 | Power button board with cable | 5C10Z23874

Genuine power button board with connecting cable for Lenovo ThinkPad P15 Gen 1 and ThinkPad T15g Gen 1 laptops. Part sourced from a working device and tested - we guarantee 100% functionality. FRU number 5C10Z23874 guarantees full compatibility with ThinkPad P15 Gen 1 and T15g Gen 1.

⚙️ PRODUCT CHARACTERISTICS

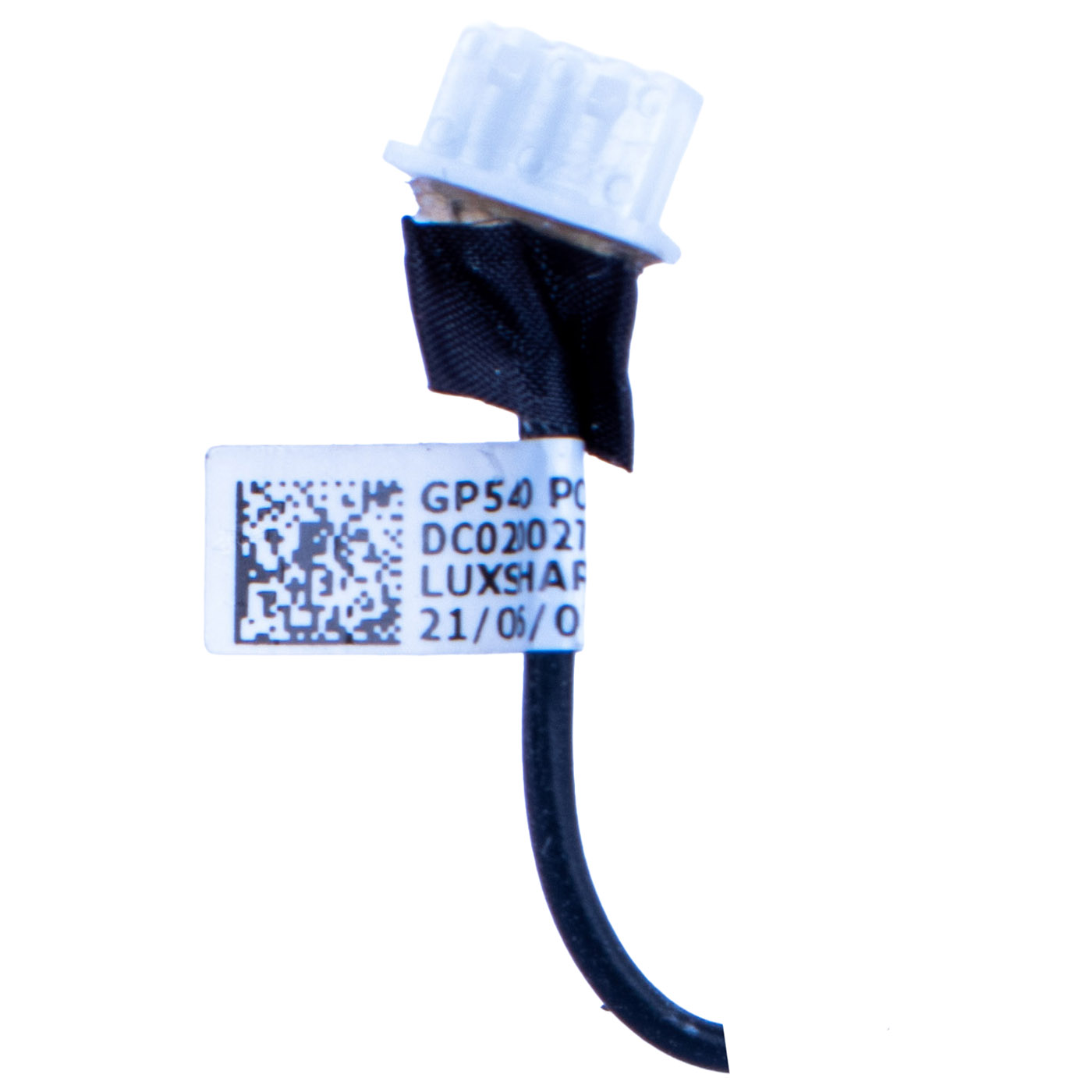

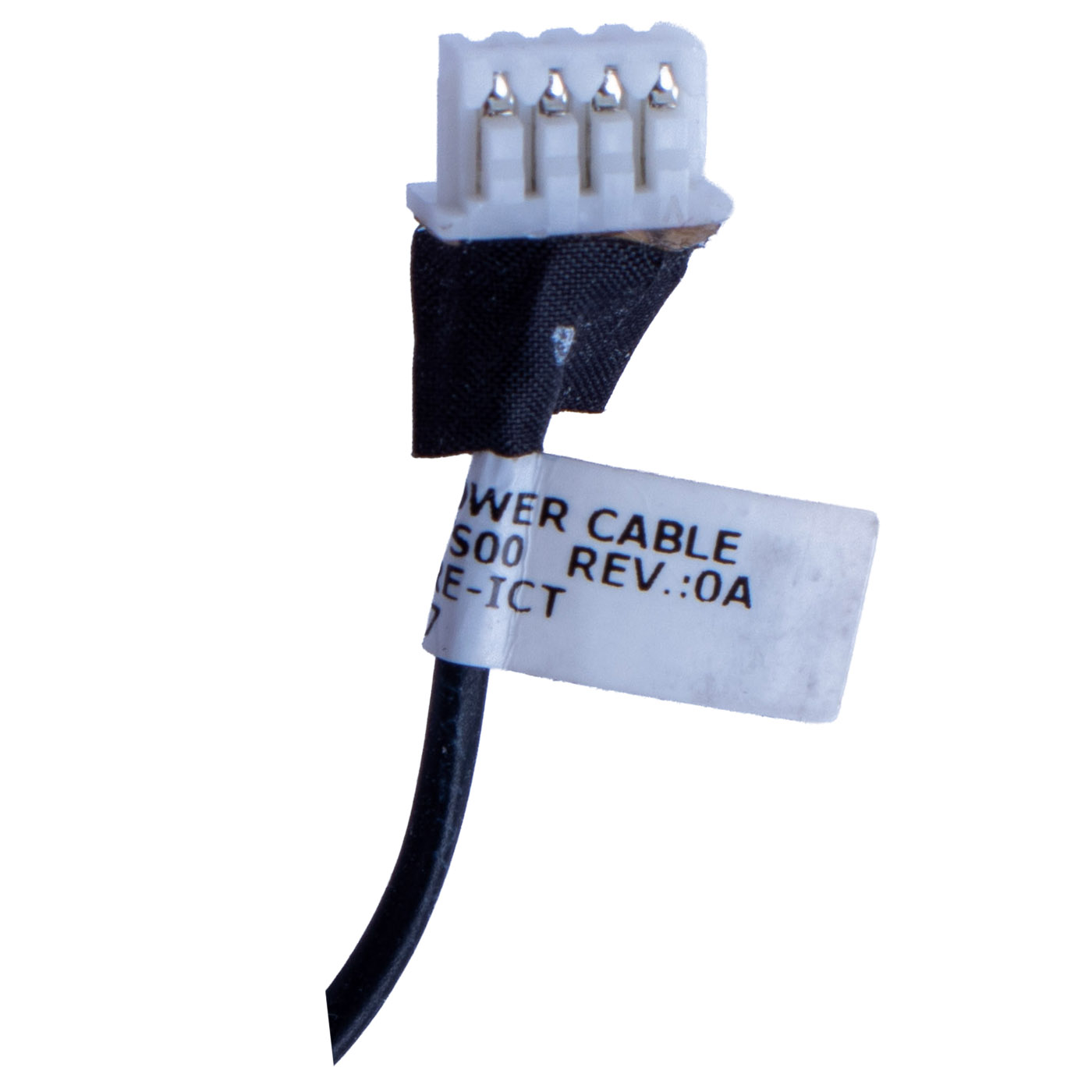

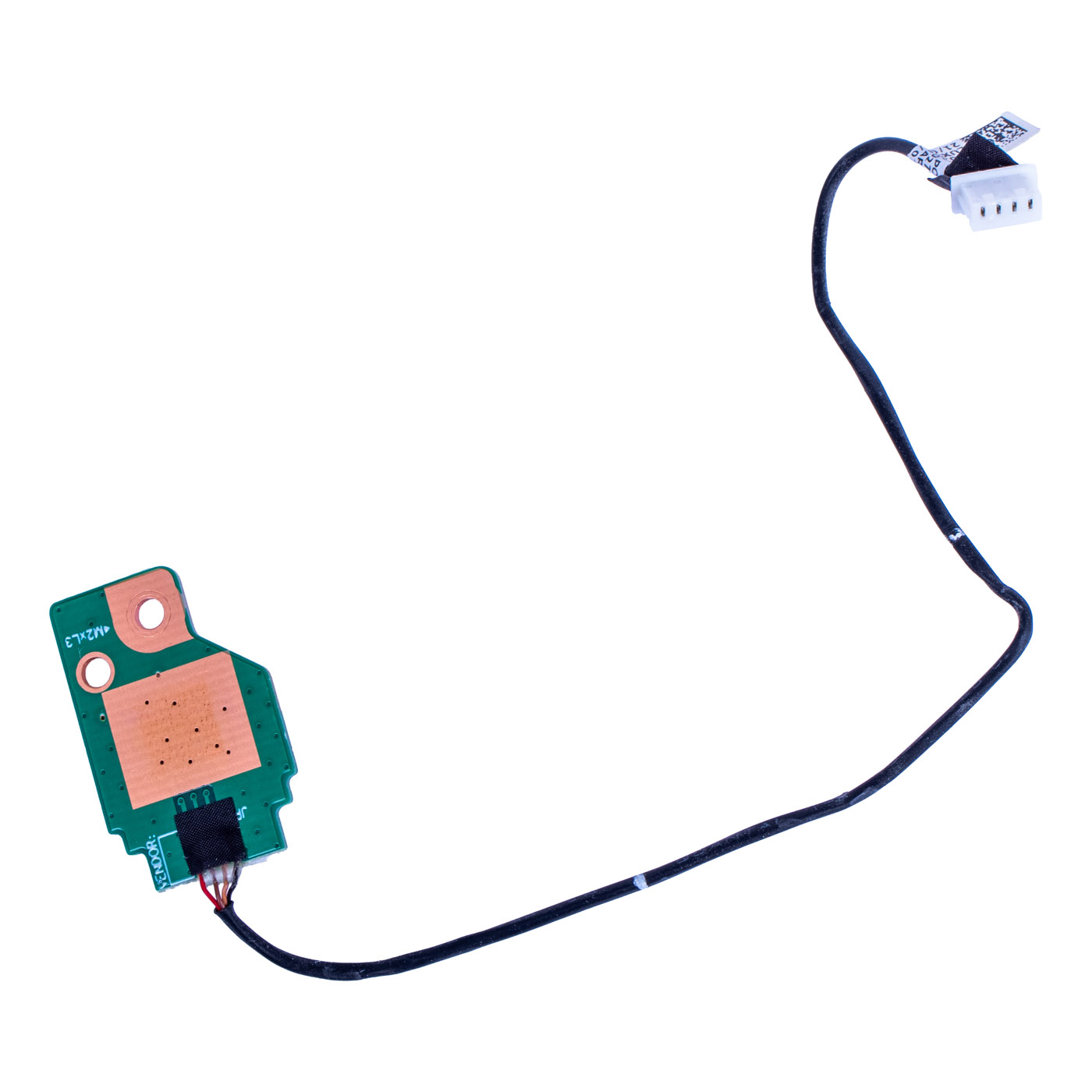

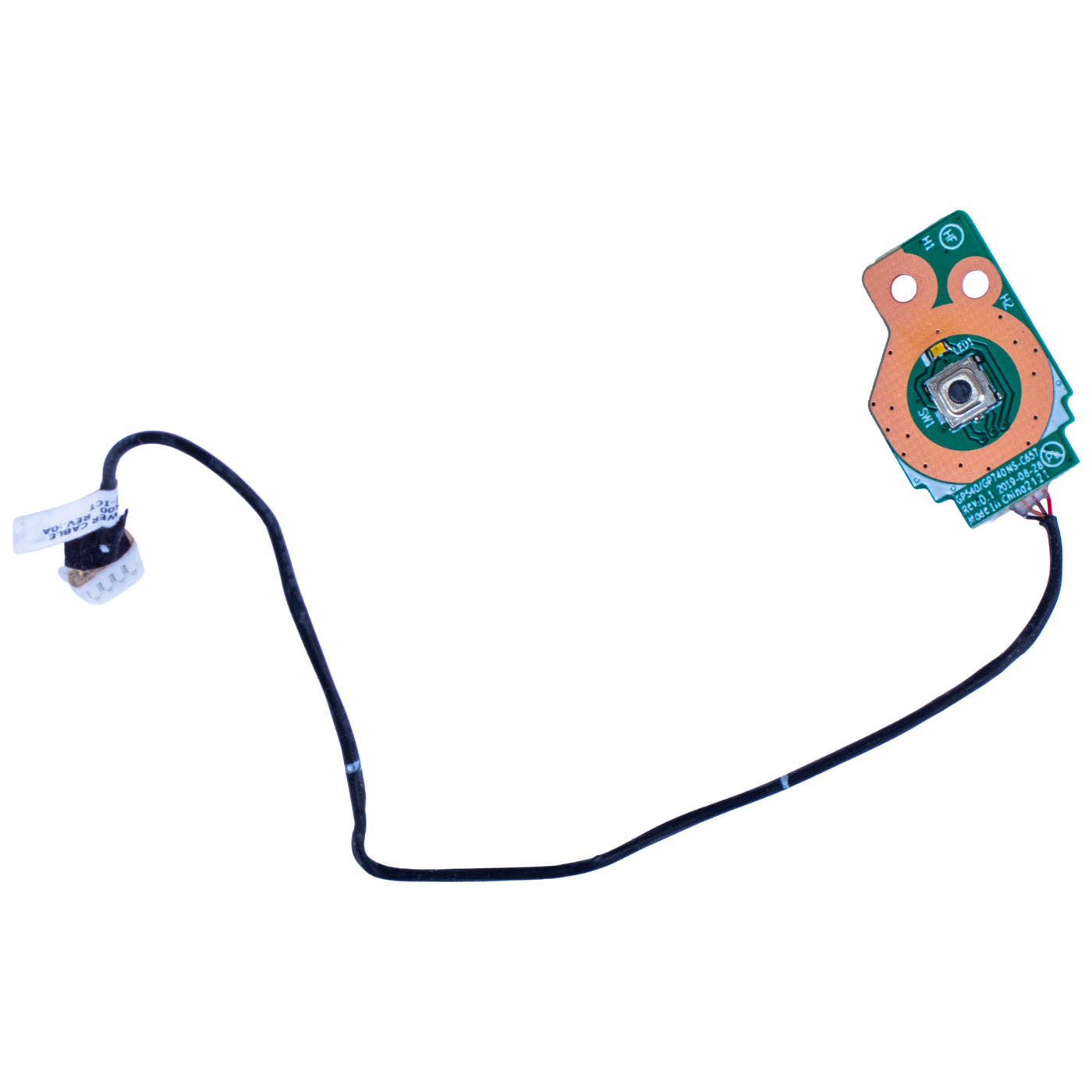

The set consists of the power button board (marked GP540/GP740 NS-C657, Rev 0.1) with the SW1 switch and LED1, plus the factory-attached cable ending in a 4-pin plug for the system board. The cable is made by Luxshare-ICT and labelled GP540 POWER CABLE, part number DC020027S00, REV 0A. The board has copper mounting pads and a hole for an M2 × 3 mm screw. Lenovo part number: FRU 5C10Z23874 (P15 POWER_BOARD_CABLE).

📋 TECHNICAL SPECIFICATIONS

Part name: Power button board with cable
Brand: Lenovo ThinkPad
Compatible model: ThinkPad P15 Gen 1 (20ST, 20SU), ThinkPad T15g Gen 1 (20UR, 20US)
Package contents: Power button board with cable and 4-pin plug
Markings on the part: GP540/GP740 NS-C657 Rev 0.1, GP540 POWER CABLE, DC020027S00, Luxshare-ICT, REV 0A
Condition: Used (removed from a working unit, tested)
Warranty: 6 months
FRU: 5C10Z23874
Substitute numbers: DC020027S00

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - factory board shape and cable length, everything fits in its place under the palm rest
🔹 Complete set: board and cable - you replace the whole power button path at once, no hunting for separate parts
🔹 Reliable power-on - one press and the laptop starts, no more pressing several times
🔹 Tested and working - checked before listing, 100% functional
🔹 Full compatibility - matched to ThinkPad P15 Gen 1 and T15g Gen 1 under FRU 5C10Z23874

🔢 PART NUMBERS

FRU: 5C10Z23874
Substitute numbers: DC020027S00
Markings on the part: GP540/GP740 NS-C657, GP540 POWER CABLE, REV 0A
Laptop model: Lenovo ThinkPad P15 Gen 1, Lenovo ThinkPad T15g Gen 1

❓ WHEN SHOULD YOU REPLACE THE POWER BUTTON BOARD?

• Problem with an unresponsive power button - you press power and the laptop does not start, even with a charged battery
• Problem with power-on only after several tries - the button has to be pressed repeatedly or held down hard
• Problem with a damaged button cable - broken or worn wire after a previous repair
• Problem with random shutdowns or restarts when touching the area around the button

🔧 INSTALLATION PROCESS

1. Turn off Windows Fast Startup, restart the laptop, press F1 and in ThinkPad Setup select Config → Power → Disable built-in battery. The laptop turns off, wait 3-5 minutes. Remove the nano-SIM card if installed
2. Unscrew and remove the bottom door
3. Remove the keyboard
4. Remove the keyboard bezel assembly (palm rest)
5. Disconnect the cable plug from the system board, remove the board screw (M2 × 3 mm, black) and take out the old board with cable
6. Fit the new board, tighten the screw to 0.181 Nm and route the cable along the factory path
7. Connect the plug to the system board and make sure it is firmly seated
8. Reassemble in reverse order, connect the AC adapter (re-enables the built-in battery) and test power-on with the button
Replacement by a technical service or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

This board is intended for repairing Lenovo ThinkPad P15 Gen 1 and T15g Gen 1 laptops where the power button stopped working or works intermittently. Replacing the board with cable is a cheaper fix than replacing the palm rest or system board when the fault is in the button. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered board has been carefully checked and matched to Lenovo ThinkPad P15 Gen 1 and T15g Gen 1. We guarantee full compatibility within FRU number 5C10Z23874 and 100% functionality of the part. In case of any compatibility issues, we offer a hassle-free return within 14 days.
