🔧 Internal Chassis Frame (C-frame) for Lenovo ThinkPad P15 Gen 1 / T15g Gen 1 🔧

🖥️ ThinkPad P15 Gen 1 / T15g Gen 1 | Internal system board frame C-frame | 5CB0Z69126

Genuine metal internal chassis frame (C-frame) for Lenovo ThinkPad P15 Gen 1 and ThinkPad T15g Gen 1 laptops. Part sourced from a working device and checked - we guarantee 100% functionality. FRU number 5CB0Z69126 guarantees full compatibility with ThinkPad P15 Gen 1 and T15g Gen 1.

⚙️ PRODUCT CHARACTERISTICS

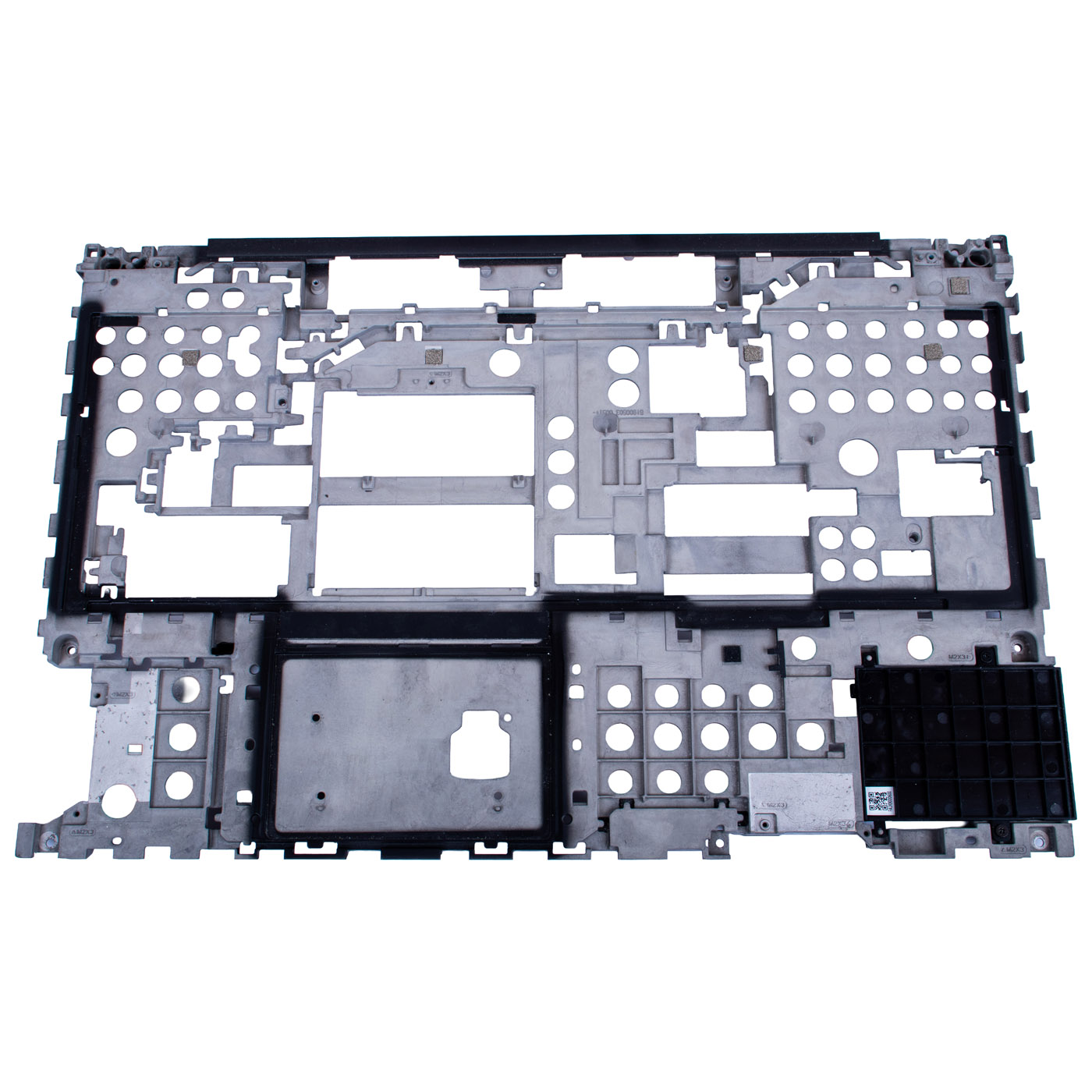

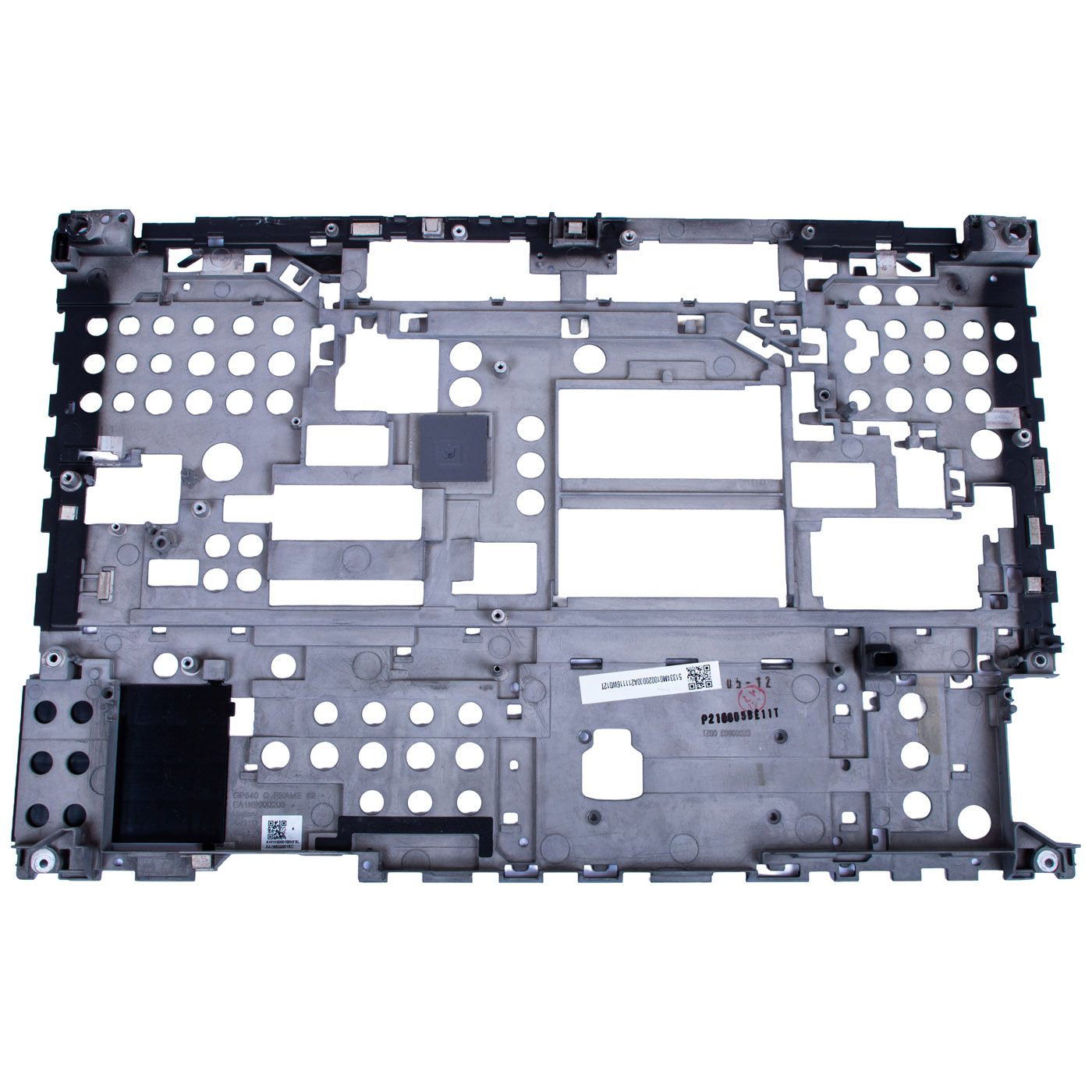

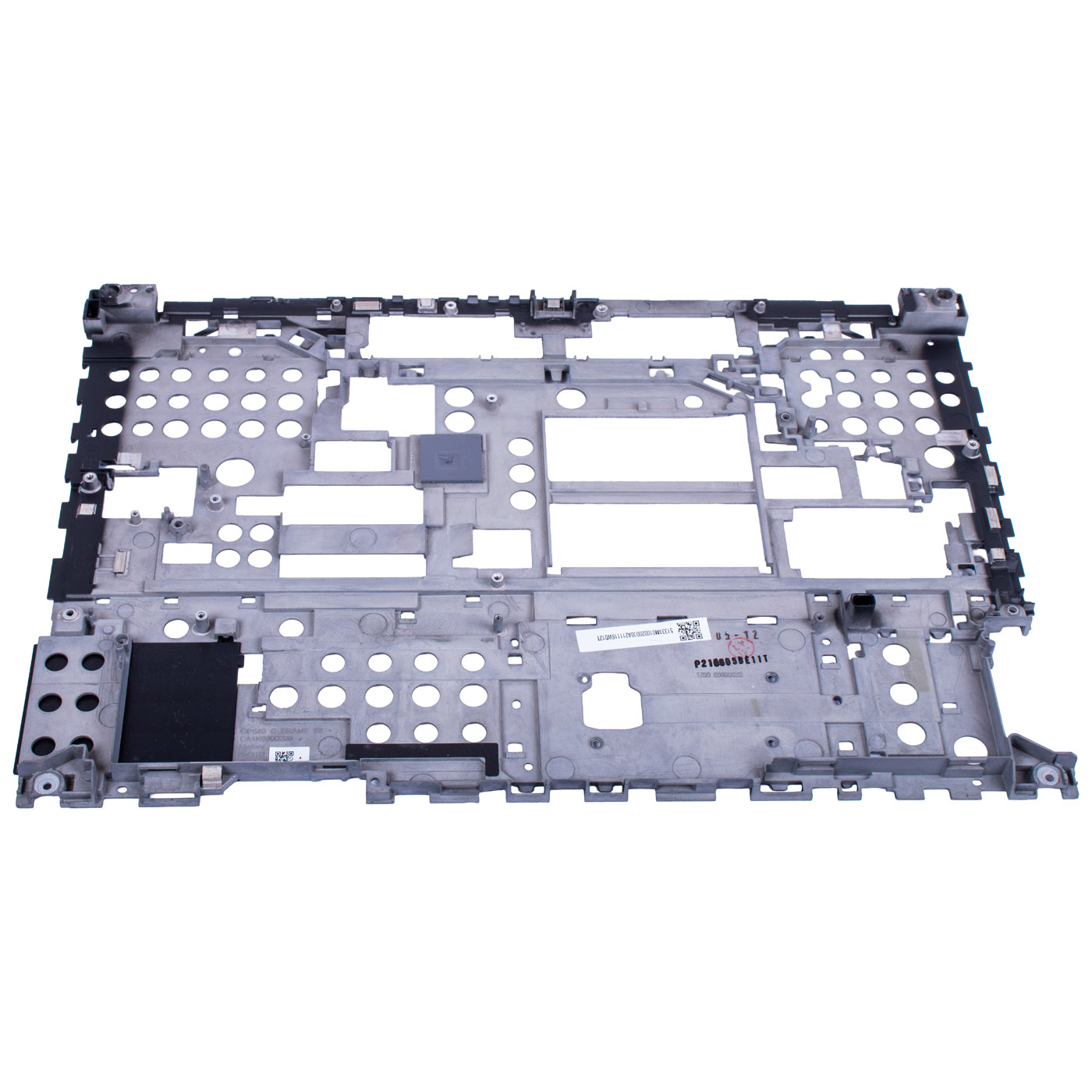

The frame is a metal casting that forms the laptop's skeleton under the palm rest: it stiffens the chassis and provides mounting points for the system board, GPU board, modules and keyboard. It has factory standoffs for M2 screws, lightening holes and black plastic spacers along the edges. The casting is marked GP540 C_FRAME #2 and the label shows AM1K9000100. In the Lenovo catalogue the part is listed as COVER, P15_C_FRAME_SUB_ASSY.

📋 TECHNICAL SPECIFICATIONS

Part name: Internal chassis frame (C-frame, system board frame)
Brand: Lenovo ThinkPad
Compatible model: ThinkPad P15 Gen 1 (20ST, 20SU), ThinkPad T15g Gen 1 (20UR, 20US)
Material: Metal casting with plastic elements

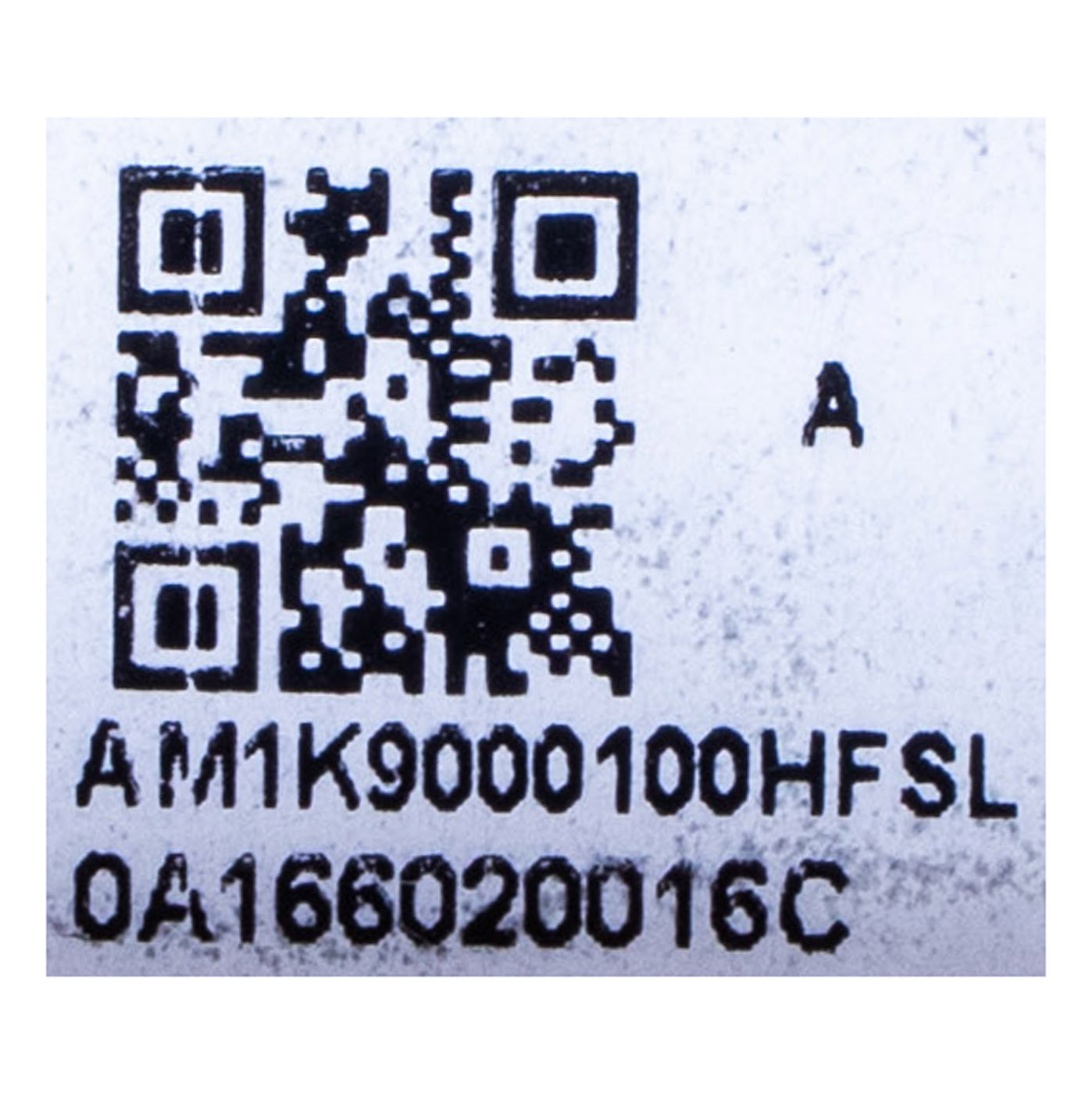

Markings on the part: GP540 C_FRAME #2, AM1K9000100
Condition: Used (removed from a working unit, checked)
Warranty: 6 months
FRU: 5CB0Z69126
Substitute numbers: AM1K9000100

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - factory standoff and hole spacing, the system board and modules screw in without adjustment
🔹 Rigid metal skeleton - the chassis does not flex when you lift the laptop by a corner and the keyboard does not bounce
🔹 Factory mounting standoffs - screws hold firmly with no risk of stripped threads
🔹 Checked before listing - complete frame, 100% functional
🔹 Full compatibility - matched to ThinkPad P15 Gen 1 and T15g Gen 1 under FRU 5CB0Z69126

🔢 PART NUMBERS

FRU: 5CB0Z69126
Substitute numbers: AM1K9000100
Markings on the part: GP540 C_FRAME #2
Laptop model: Lenovo ThinkPad P15 Gen 1, Lenovo ThinkPad T15g Gen 1

❓ WHEN SHOULD YOU REPLACE THE CHASSIS FRAME?

• Problem with a bent frame after a drop - the chassis is twisted and the laptop rocks on a flat desk
• Problem with a cracked frame near the hinges or in a corner
• Problem with broken mounting standoffs - system board or keyboard screws have nothing to hold on to
• Problem with a flexing keyboard or creaking chassis when lifting the laptop
• Problem with moving components to a new chassis after serious mechanical damage

🔧 INSTALLATION PROCESS

1. Turn off Windows Fast Startup, restart the laptop, press F1 and in ThinkPad Setup select Config → Power → Disable built-in battery. The laptop turns off, wait 3-5 minutes. Remove the nano-SIM card if installed
2. Remove the bottom door, the M.2 drive, memory modules, WLAN/WWAN cards and the keyboard
3. Remove the keyboard bezel assembly (palm rest), the bottom cover, the built-in battery and the coin-cell battery
4. Detach the LCD unit, remove the thermal fan assembly, GPU board, system board and the remaining boards and cables
5. Transfer all components to the new frame, tightening the M2 screws into the factory standoffs without excessive force
6. Reassemble in reverse order and connect the AC adapter, which re-enables the built-in battery
7. Start the laptop and check the keyboard, touchpad, ports and charging
Replacement by a technical service is recommended - it requires full disassembly of the laptop.

🎯 PURPOSE

This frame is intended for repairing Lenovo ThinkPad P15 Gen 1 and T15g Gen 1 laptops after a drop or mechanical damage, when the chassis skeleton is bent, cracked or has broken mounting points. It restores the factory rigidity and proper fit of the chassis. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered frame has been carefully checked and matched to Lenovo ThinkPad P15 Gen 1 and T15g Gen 1. We guarantee full compatibility within FRU number 5CB0Z69126 and 100% functionality of the part. In case of any compatibility issues, we offer a hassle-free return within 14 days.
