🔧 Touchpad Cable for Lenovo ThinkPad P15 / T15g Gen 1 and Gen 2 🔧

🖥️ ThinkPad P15 Gen 1 / Gen 2 / T15g Gen 1 / Gen 2 | Touchpad FFC cable | 5C10Z23876

Genuine FFC cable connecting the touchpad to the system board for Lenovo ThinkPad P15 Gen 1, P15 Gen 2, T15g Gen 1 and T15g Gen 2 laptops. Part sourced from a working device and tested - we guarantee 100% functionality. FRU number 5C10Z23876 guarantees full compatibility with the listed models.

⚙️ PRODUCT CHARACTERISTICS

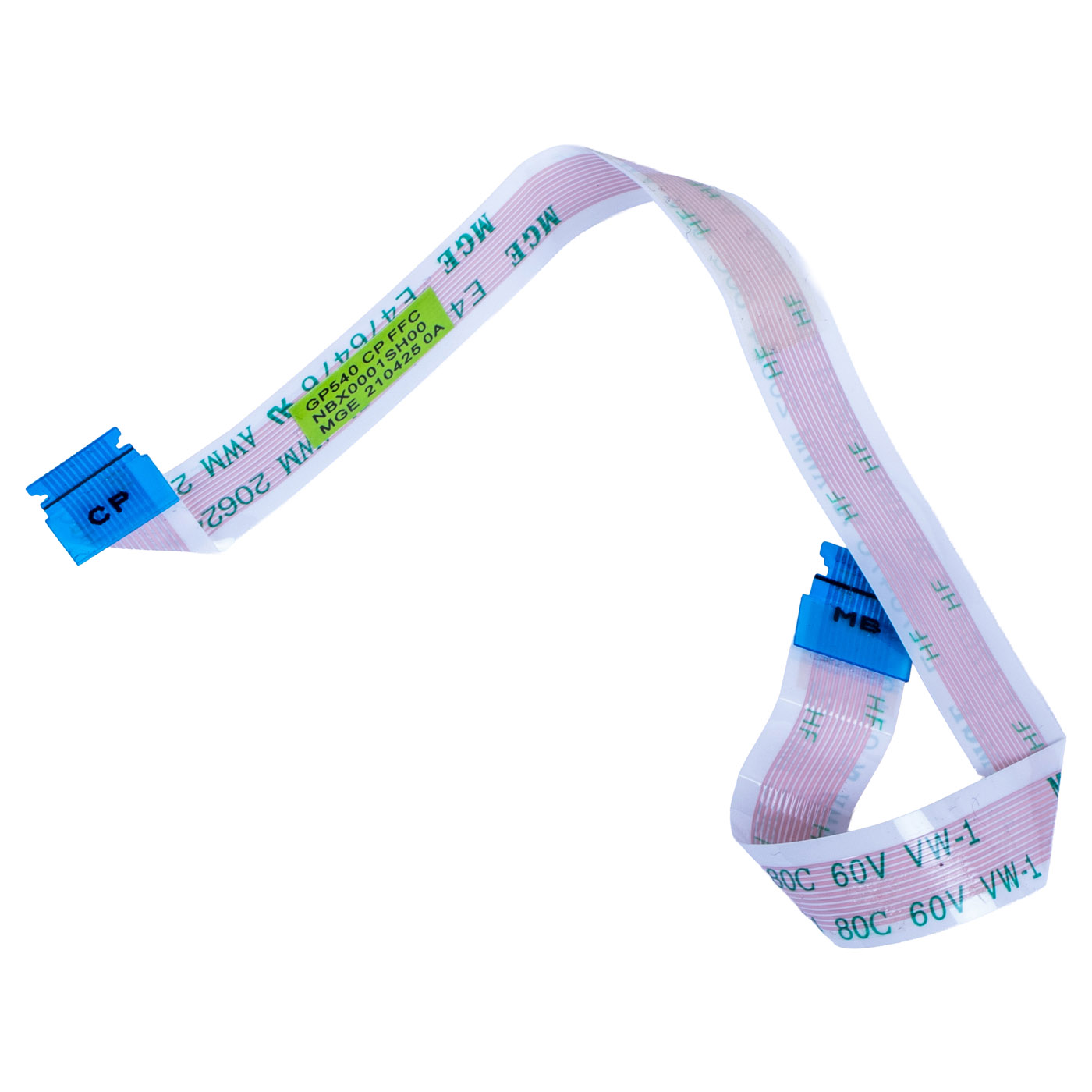

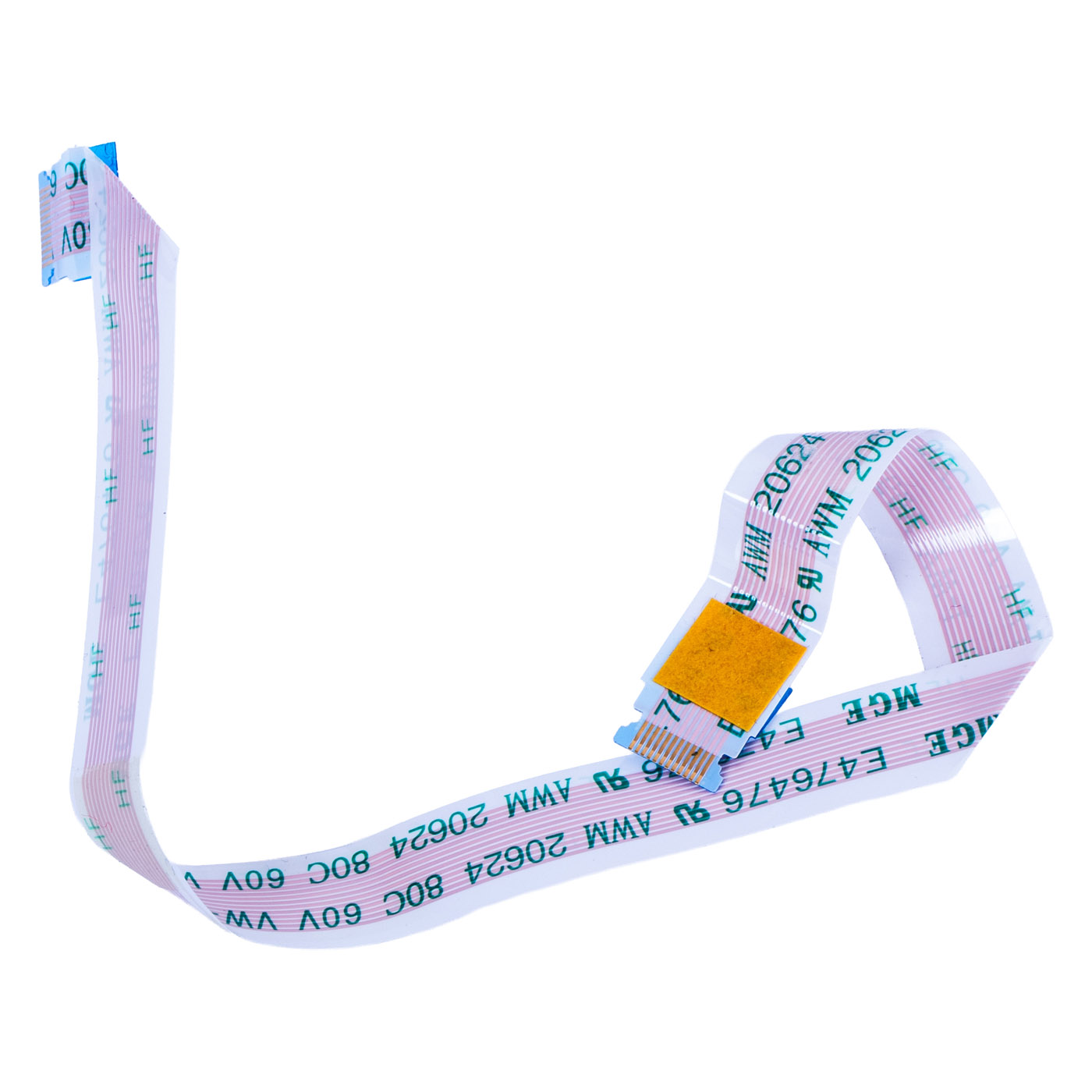

The cable is marked GP540 CP FFC (manufacturer part number NBX0001SH00, made by MGE) and carries the signal from the touchpad (ClickPad) to the system board. Both ends are factory labelled: CP (touchpad) and MB (system board), with blue stiffeners that make insertion into the connector easier. One section carries a factory insulating pad. In the Lenovo catalogue the cable is listed as FRU CABLE P15 TP FFC.

📋 TECHNICAL SPECIFICATIONS

Part name: Touchpad FFC cable (Trackpad cable)
Brand: Lenovo ThinkPad
Compatible models: ThinkPad P15 Gen 1 (20ST, 20SU), ThinkPad P15 Gen 2 (20YQ, 20YR), ThinkPad T15g Gen 1 (20UR, 20US), ThinkPad T15g Gen 2 (20YS, 20YT)

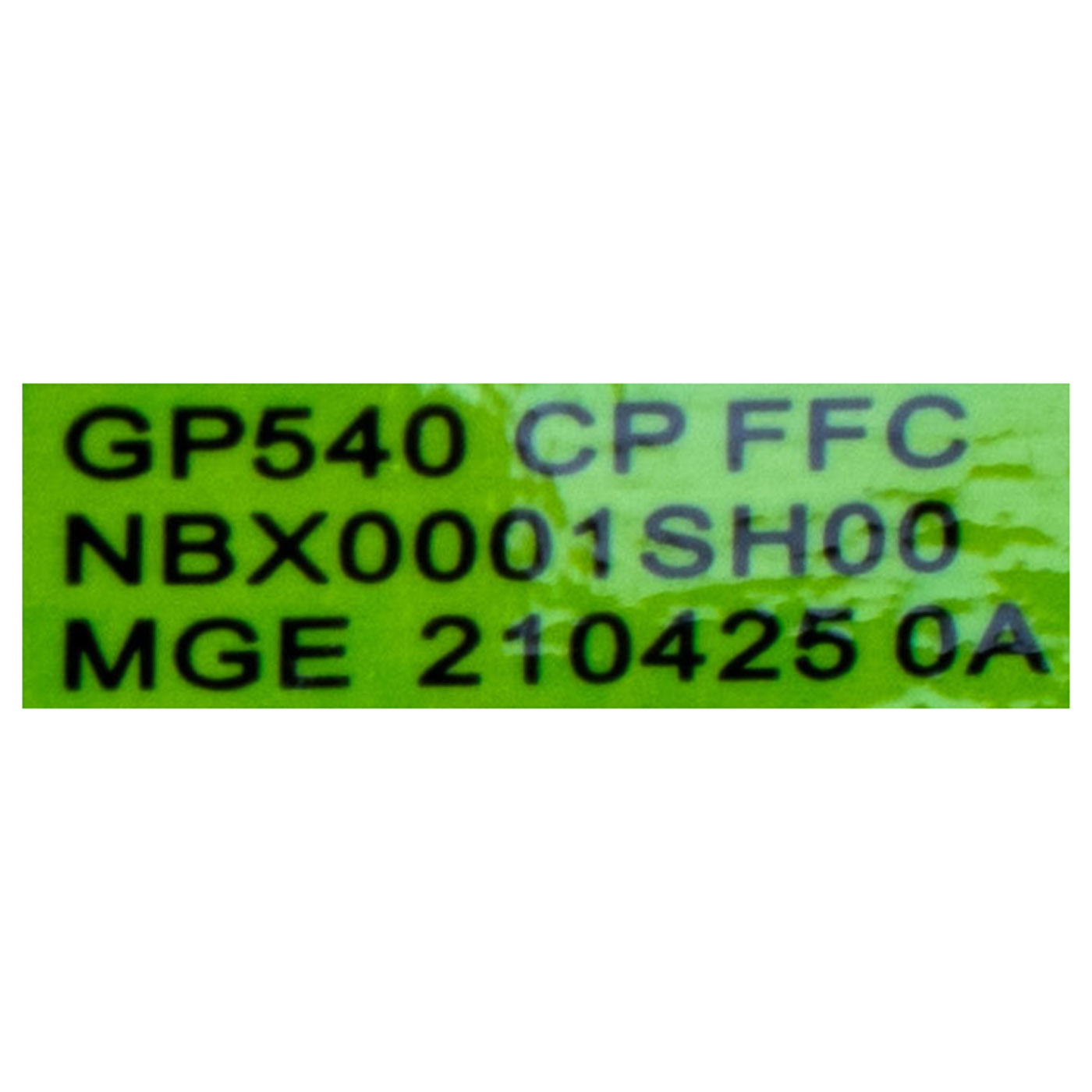

Markings on the part: GP540 CP FFC, NBX0001SH00, MGE, rev. 0A, CP / MB ends
Condition: Used (removed from a working unit, tested)
Warranty: 6 months
FRU: 5C10Z23876
Substitute numbers: NBX0001SH00

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - factory cable length and width, fits the touchpad and system board connectors exactly
🔹 Restores the touchpad - the cursor follows your finger again and the buttons click without delay
🔹 Labelled CP and MB ends - you instantly know which end goes to the touchpad and which to the board
🔹 One cable for two generations - the same FRU fits P15 and T15g Gen 1 and Gen 2
🔹 Tested and working - checked before listing, 100% functional

🔢 PART NUMBERS

FRU: 5C10Z23876
Substitute numbers: NBX0001SH00
Markings on the part: GP540 CP FFC, MGE, rev. 0A
Laptop model: Lenovo ThinkPad P15 Gen 1, P15 Gen 2, T15g Gen 1, T15g Gen 2

❓ WHEN SHOULD YOU REPLACE THE TOUCHPAD CABLE?

• Problem with a dead touchpad - the cursor does not move, although a USB mouse works fine
• Problem with unresponsive touchpad buttons - clicks do not register or work only now and then
• Problem with a touchpad that disappears from Device Manager or Windows settings
• Problem with a damaged cable - creased, worn or torn end after a previous repair

🔧 INSTALLATION PROCESS

1. Turn off Windows Fast Startup, restart the laptop, press F1 and in ThinkPad Setup select Config → Power → Disable built-in battery. The laptop turns off, wait 3-5 minutes. Remove the nano-SIM card if installed
2. Unscrew and remove the bottom door
3. Remove the bottom cover
4. Remove the built-in battery
5. Disconnect the cable from the touchpad connector (CP end) and from the system board (MB end) by opening the connector latches
6. Insert the new cable: CP end to the touchpad, MB end to the system board, and close the latches
7. Reassemble in reverse order and connect the AC adapter, which re-enables the built-in battery
8. Boot the system and check cursor movement and the touchpad buttons
Replacement by a technical service or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

This cable is intended for repairing Lenovo ThinkPad P15 Gen 1, P15 Gen 2, T15g Gen 1 and T15g Gen 2 laptops where the touchpad stopped working because of the connecting cable. It is a quick and inexpensive fix compared with replacing the whole touchpad or palm rest. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered cable has been carefully checked and matched to the listed Lenovo ThinkPad models. We guarantee full compatibility within FRU number 5C10Z23876 and 100% functionality of the part. In case of any compatibility issues, we offer a hassle-free return within 14 days.

📞 NEED HELP? CONTACT OUR EXPERTS!

Do you have questions about the compatibility of the touchpad cable with your ThinkPad P15 or T15g? Our specialists will be happy to assist you. Contact us!
📱 Phone: +48-601-415357
📧 Email: sklep@abcdeal.pl

🦁 ABCDEAL - Your Trusted Lenovo Parts Specialist

We have been specialising in delivering genuine Lenovo laptop parts for years. Our experience allows us to offer top quality products that meet the expectations of even the most demanding customers. Trust the experts and restore your ThinkPad P15 or T15g to full functionality.

🎯 Choose professionals - invest in high quality!

By choosing a genuine touchpad cable for Lenovo ThinkPad P15 / T15g from our offer, you invest in reliability and precise control of your laptop without an extra mouse. Take advantage of ABCDEAL's expertise and bring your laptop back to full working order.
