🔧 Hinge Caps for Lenovo ThinkPad P15 / T15g Gen 1 and Gen 2 (non-touch) 🔧

🖥️ ThinkPad P15 Gen 1 / Gen 2 / T15g Gen 1 / Gen 2 | Hinge covers left + right | non-touch version | 5CB0Z69124

Genuine set of metal display hinge caps (covers) - left and right for Lenovo ThinkPad P15 Gen 1, P15 Gen 2, T15g Gen 1 and T15g Gen 2 laptops with a non-touch display. Part sourced from a working device and checked - we guarantee 100% functionality. FRU number 5CB0Z69124 guarantees full compatibility with the listed models.

⚙️ PRODUCT CHARACTERISTICS

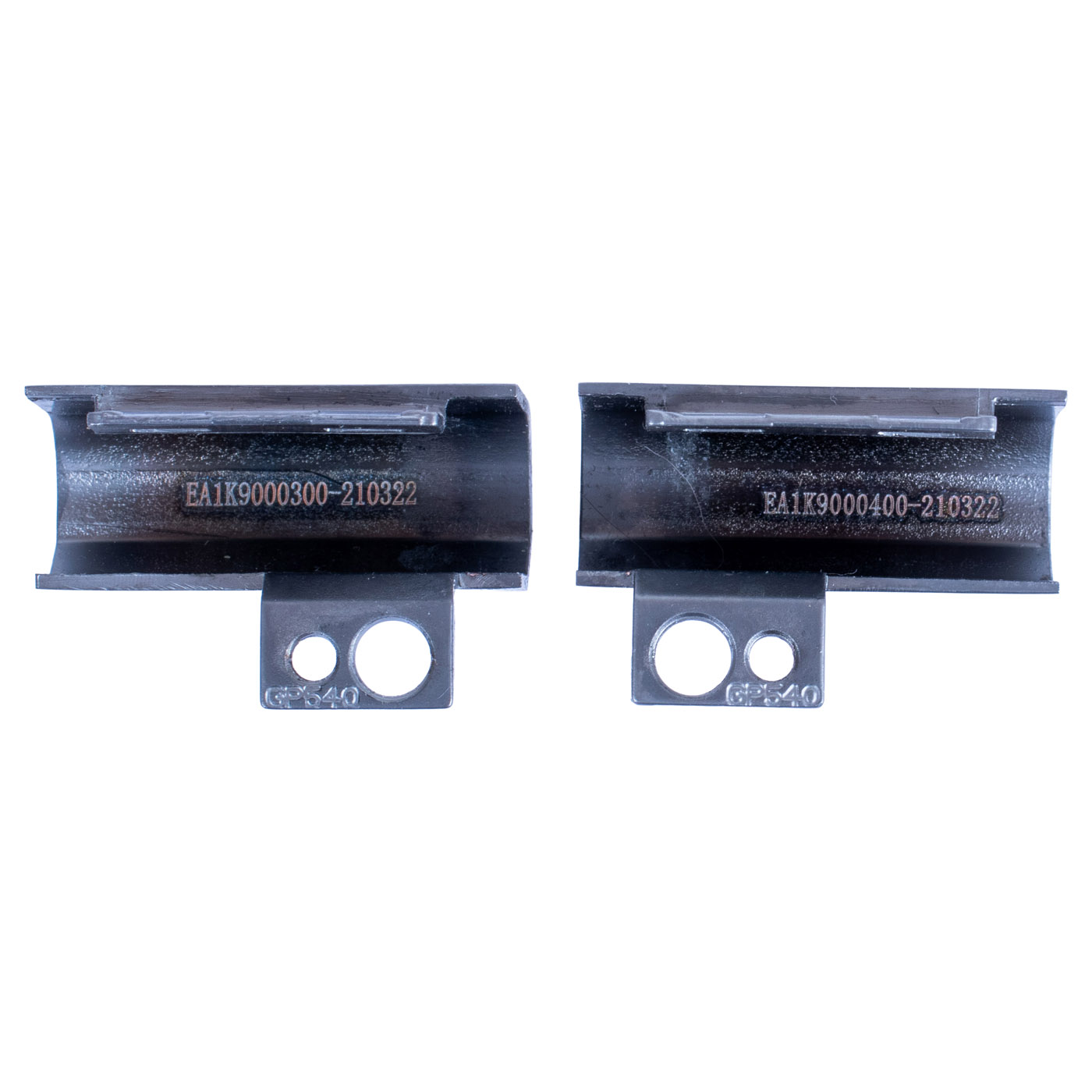

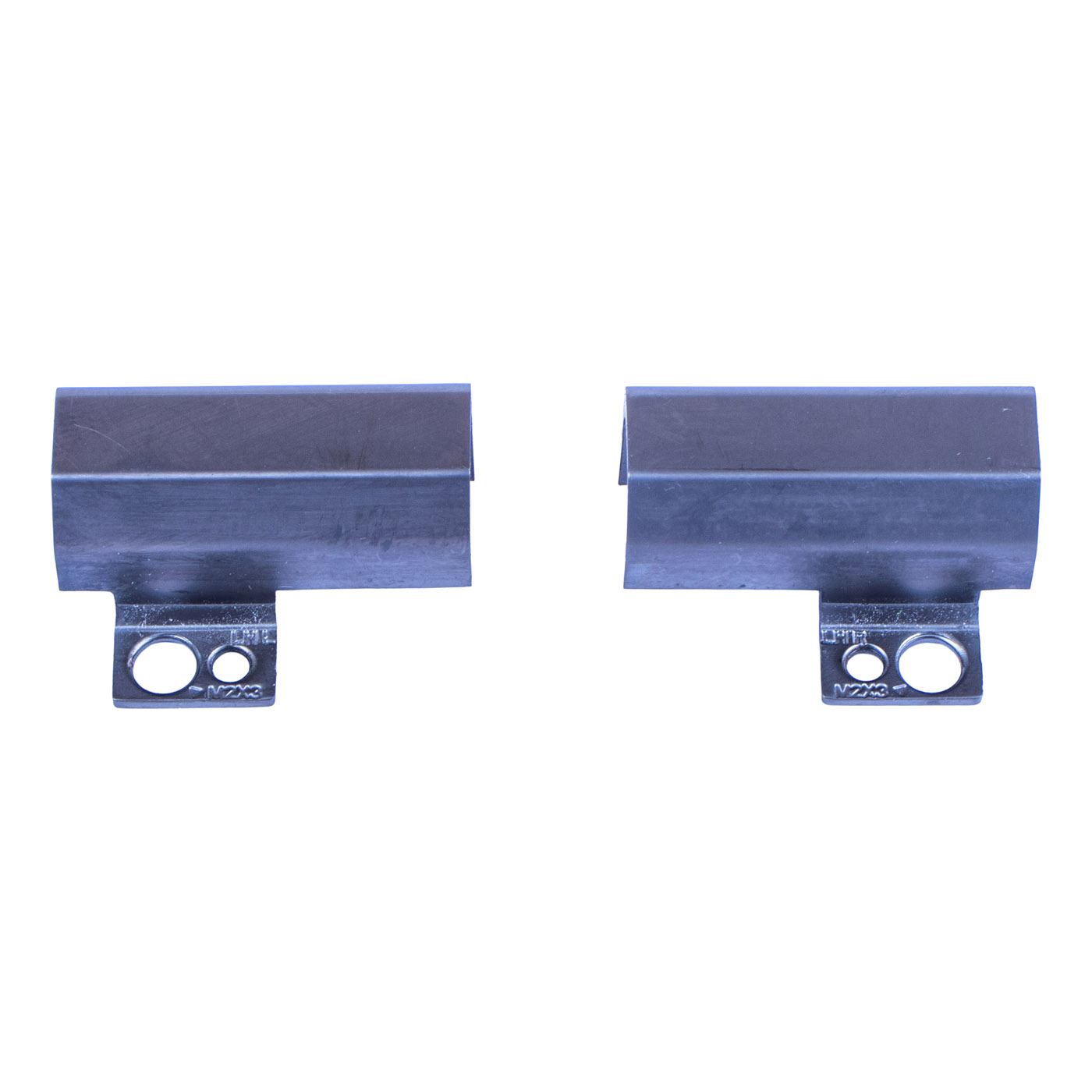

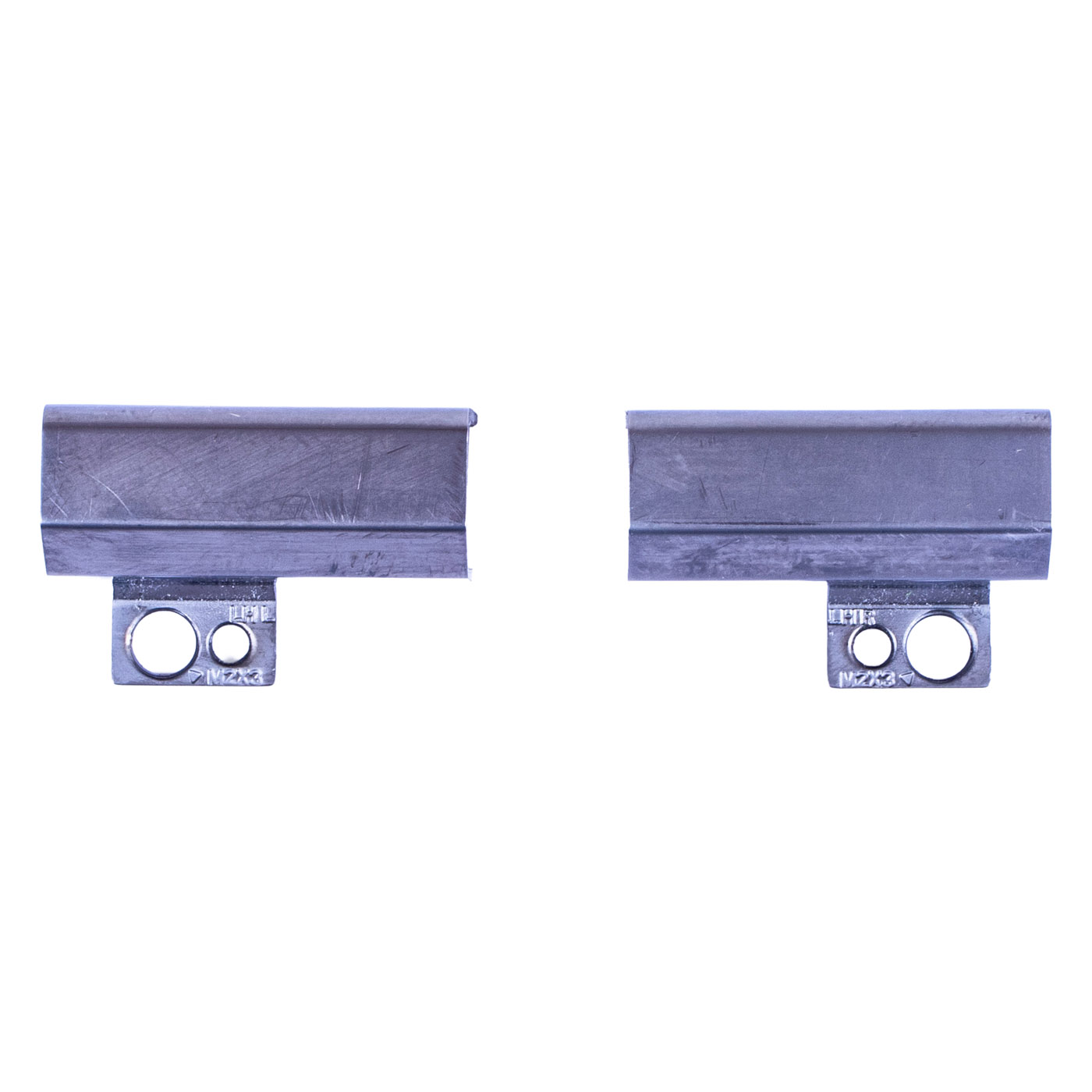

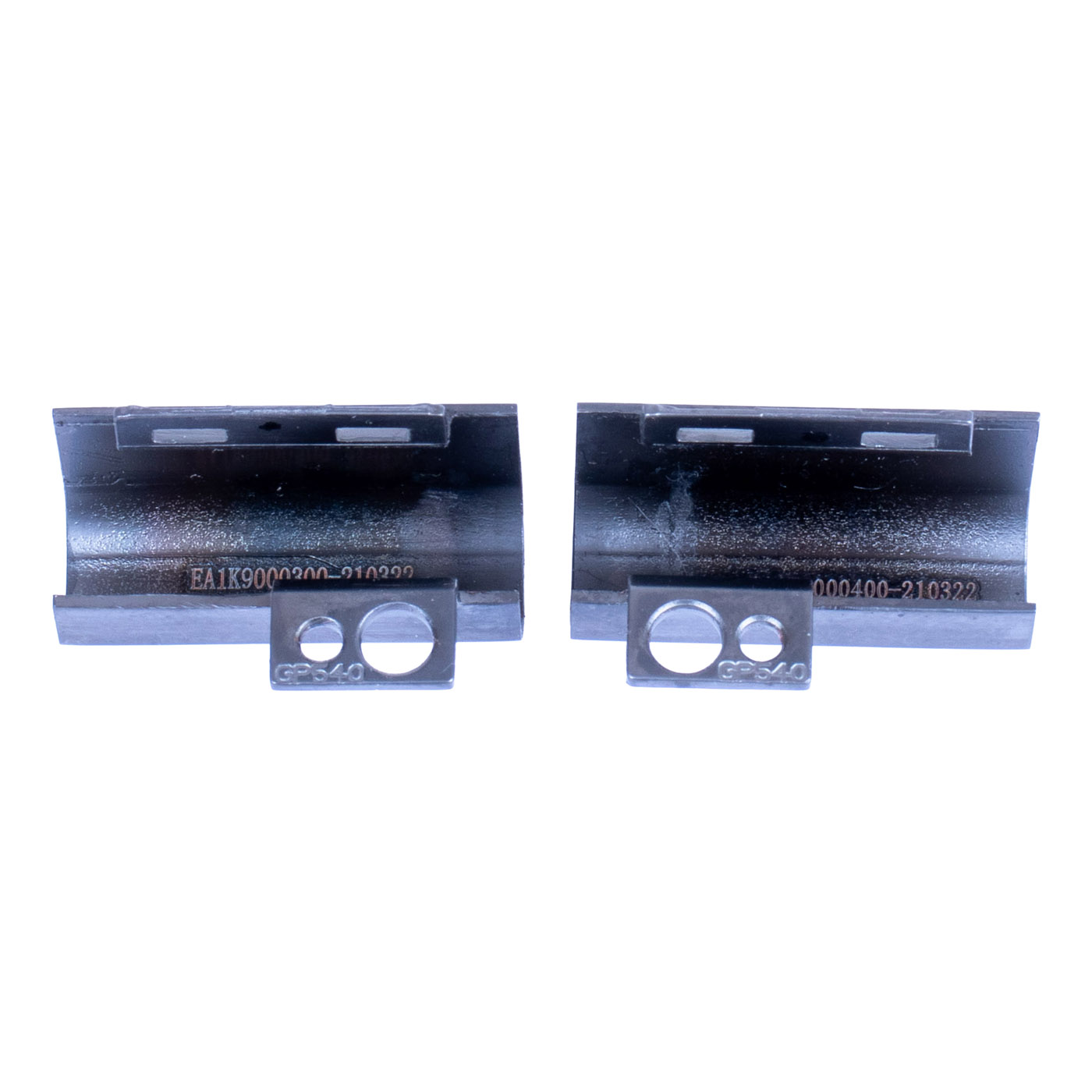

The set consists of two metal caps that cover the display hinges along the rear edge of the laptop. Each cap has a mounting tab with a hole for an M2 × 3 mm screw and a locating pin. The tabs are embossed with GP540 and M2X3, and the undersides are printed with EA1K9000300 (left) and EA1K9000400 (right). In the Lenovo catalogue the set is listed as COVER P15 ASSY ME KITS HINGE CAP N/TS, the version for non-touch displays.

📋 TECHNICAL SPECIFICATIONS

Part name: Display hinge caps, left + right set
Brand: Lenovo ThinkPad
Compatible models: ThinkPad P15 Gen 1 (20ST, 20SU), ThinkPad P15 Gen 2 (20YQ, 20YR), ThinkPad T15g Gen 1 (20UR, 20US), ThinkPad T15g Gen 2 (20YS, 20YT)
Version: For non-touch display (N/TS)
Material: Metal
Package contents: Left cap and right cap
Markings on the part: EA1K9000300, EA1K9000400, GP540, M2X3
Condition: Used (removed from a working unit, checked)
Warranty: 6 months
FRU: 5CB0Z69124
Substitute numbers: EA1K9000300 (left), EA1K9000400 (right)

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - factory shape and hole spacing, the caps sit flush against the hinges and chassis
🔹 Left + right set - you replace both covers at once, so both sides of the laptop match
🔹 Protect the hinges - dust and debris stay out of the hinge mechanism
🔹 Clean rear edge - after replacement the hinges are covered again, with no gaps or protruding parts
🔹 One set for two generations - the same FRU fits P15 and T15g Gen 1 and Gen 2

🔢 PART NUMBERS

FRU: 5CB0Z69124
Substitute numbers: EA1K9000300 (left), EA1K9000400 (right)
Markings on the part: GP540, M2X3
Laptop model: Lenovo ThinkPad P15 Gen 1, P15 Gen 2, T15g Gen 1, T15g Gen 2

❓ WHEN SHOULD YOU REPLACE THE HINGE CAPS?

• Problem with a missing cap - after a previous repair the hinge is exposed at the back
• Problem with a bent cap that sticks out and rubs when opening the display
• Problem with scratched or dented covers after the laptop was dropped
• Problem with a loose cap that rattles or does not stay in place

🔧 INSTALLATION PROCESS

1. Turn off Windows Fast Startup, restart the laptop, press F1 and in ThinkPad Setup select Config → Power → Disable built-in battery. The laptop turns off, wait 3-5 minutes. Remove the nano-SIM card if installed
2. Remove the bottom door
3. Remove the keyboard
4. Remove the keyboard bezel assembly (palm rest)
5. Remove the bottom cover
6. Remove the 2 cap screws (M2 × 3 mm, black) and take off the old caps
7. Fit the new caps (left and right on their correct sides) and tighten the screws to 0.294 Nm
8. Reassemble in reverse order and connect the AC adapter, which re-enables the built-in battery
Replacement by a technical service or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

These caps are intended for Lenovo ThinkPad P15 Gen 1, P15 Gen 2, T15g Gen 1 and T15g Gen 2 laptops with a non-touch display where the hinge covers are missing, bent or scratched. Replacement restores the factory look of the rear edge and protects the hinges. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered caps have been carefully checked and matched to the listed Lenovo ThinkPad models. We guarantee full compatibility within FRU number 5CB0Z69124 and 100% functionality of the part. In case of any compatibility issues, we offer a hassle-free return within 14 days.

📞 NEED HELP? CONTACT OUR EXPERTS!

Do you have questions about the compatibility of the hinge caps with your ThinkPad P15 or T15g? Our specialists will be happy to assist you. Contact us!
📱 Phone: +48-601-415357
📧 Email: sklep@abcdeal.pl

🦁 ABCDEAL - Your Trusted Lenovo Parts Specialist

We have been specialising in delivering genuine Lenovo laptop parts for years. Our experience allows us to offer top quality products that meet the expectations of even the most demanding customers. Trust the experts and restore your ThinkPad P15 or T15g to full functionality.

🎯 Choose professionals - invest in high quality!

By choosing genuine hinge caps for Lenovo ThinkPad P15 / T15g from our offer, you invest in reliability and the factory look of your laptop. Take advantage of ABCDEAL's expertise and bring your laptop back to full working order.
