🔧 Display Hinges for Lenovo ThinkPad P15 / T15g Gen 1 and Gen 2 (non-touch) 🔧

🖥️ ThinkPad P15 Gen 1 / Gen 2 / T15g Gen 1 / Gen 2 | Hinges left + right with brackets | non-touch version | 5H50W13753

Genuine set of display hinges - left and right, with long brackets holding the LCD panel for Lenovo ThinkPad P15 Gen 1, P15 Gen 2, T15g Gen 1 and T15g Gen 2 laptops with a non-touch display. Part sourced from a working device and checked - we guarantee 100% functionality. FRU number 5H50W13753 guarantees full compatibility with the listed models.

⚙️ PRODUCT CHARACTERISTICS

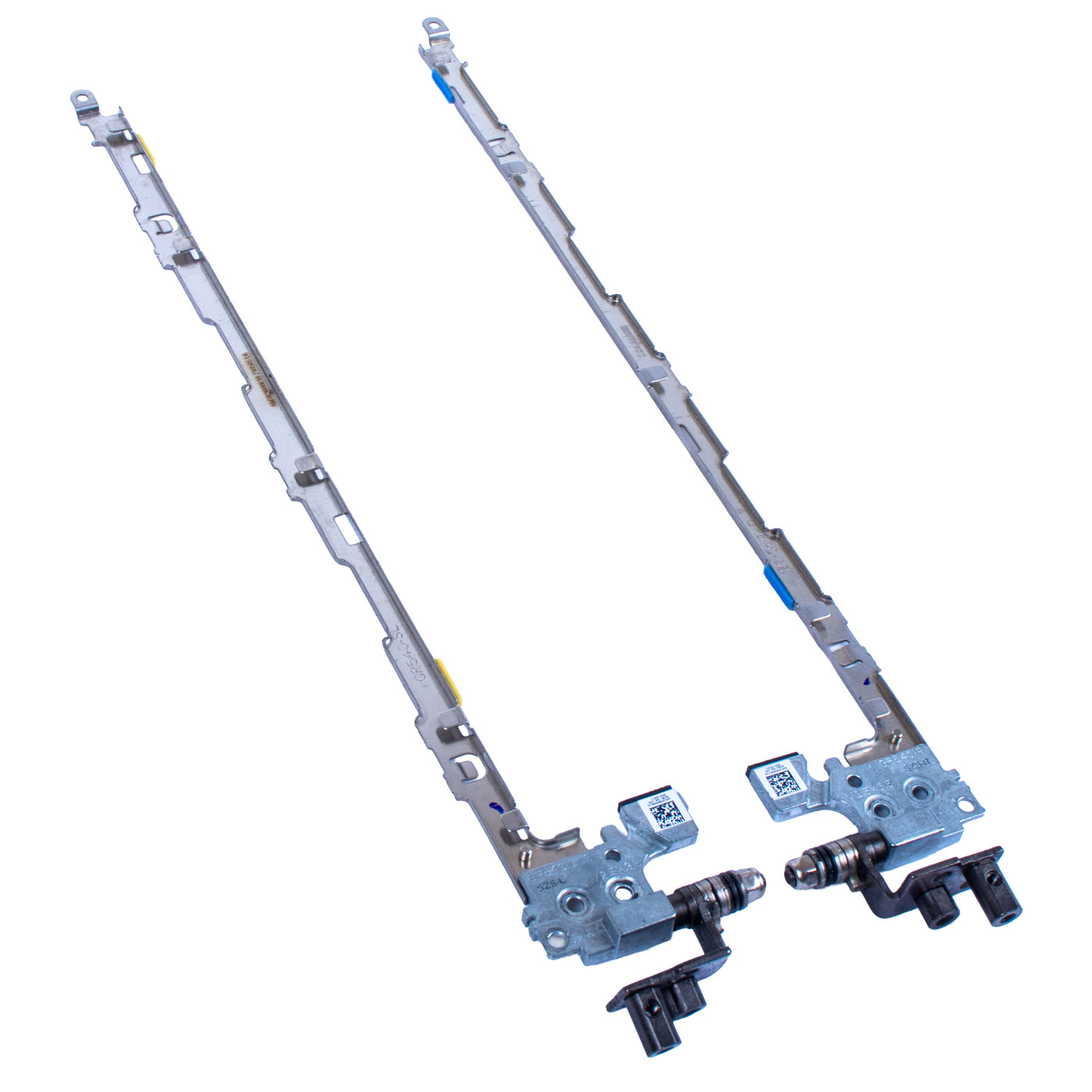

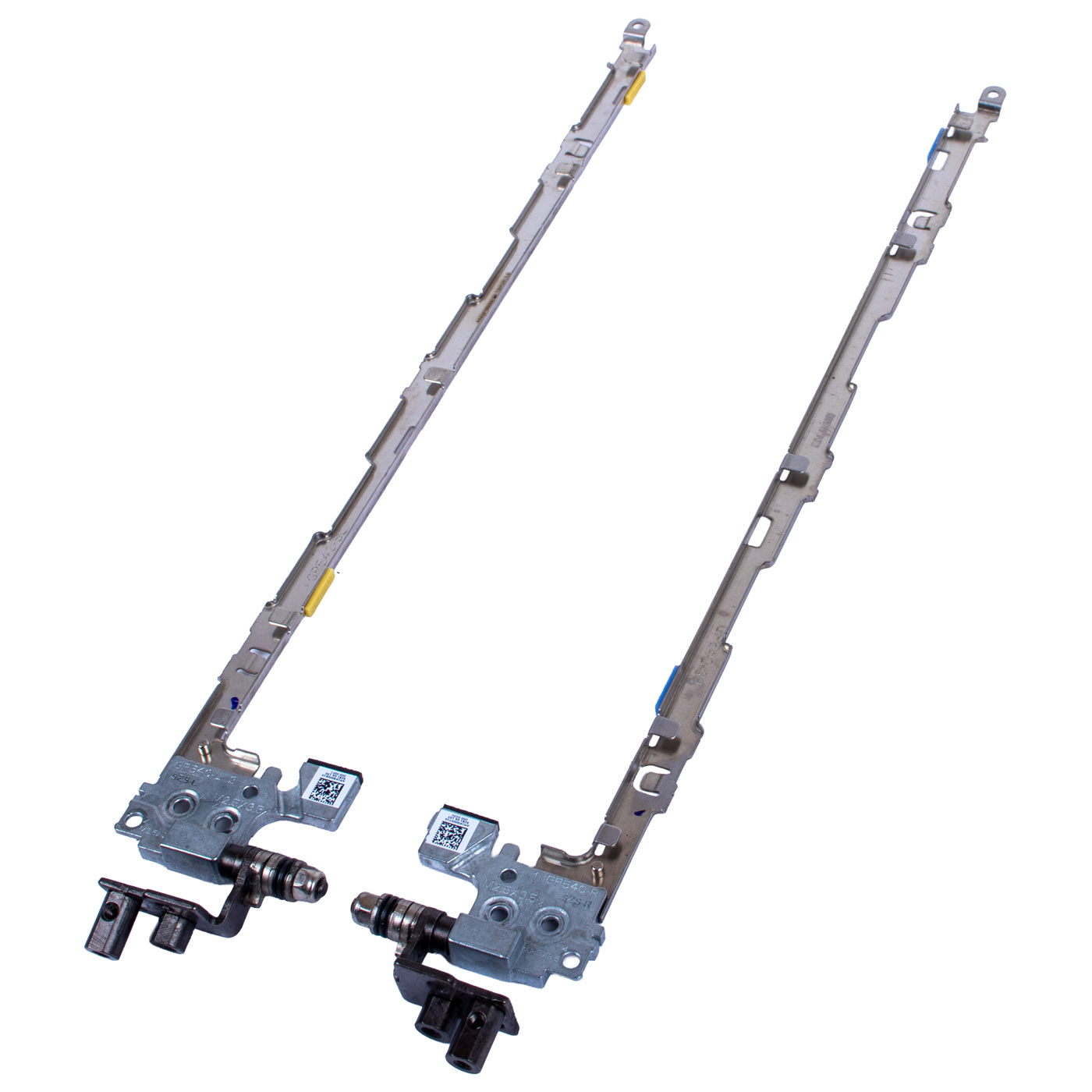

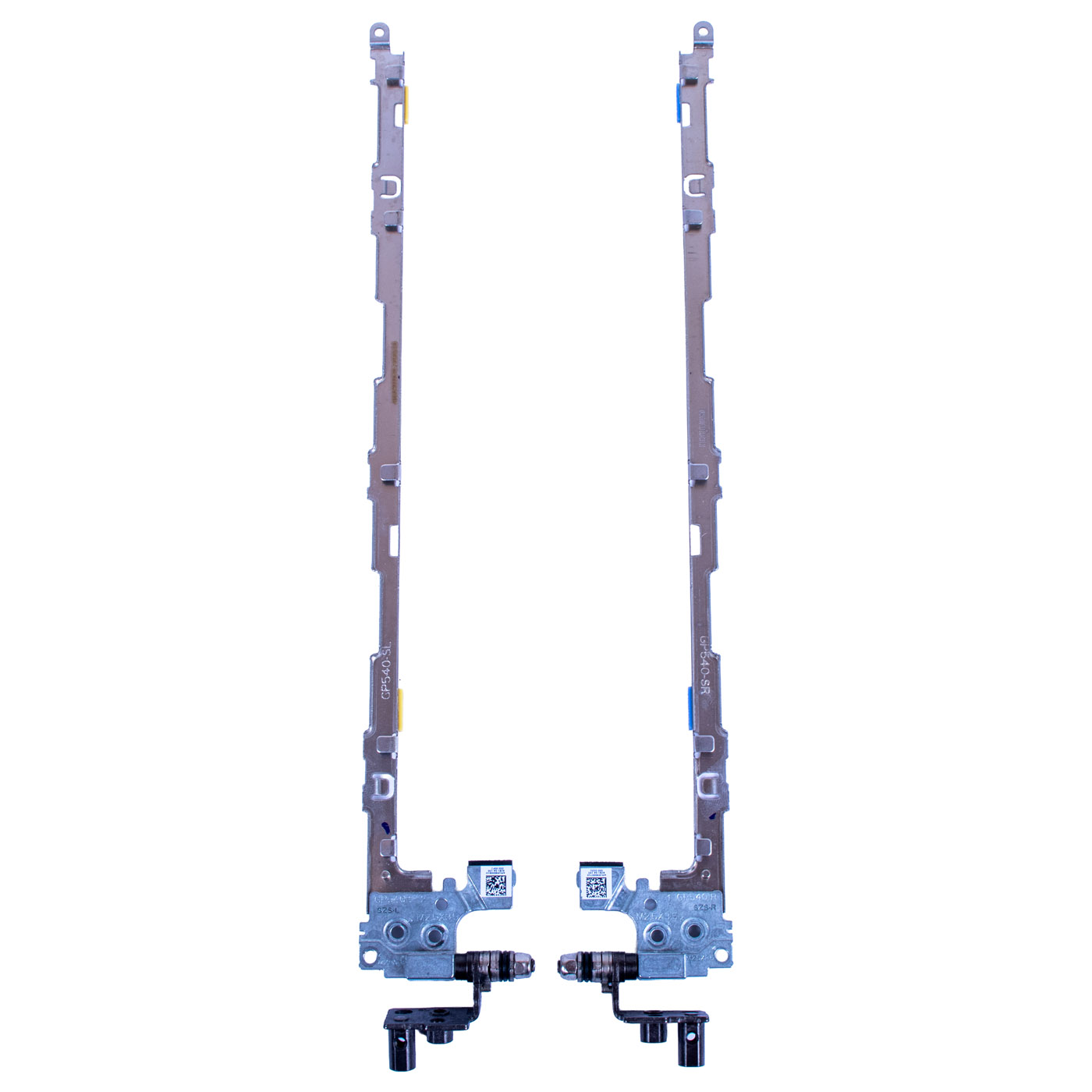

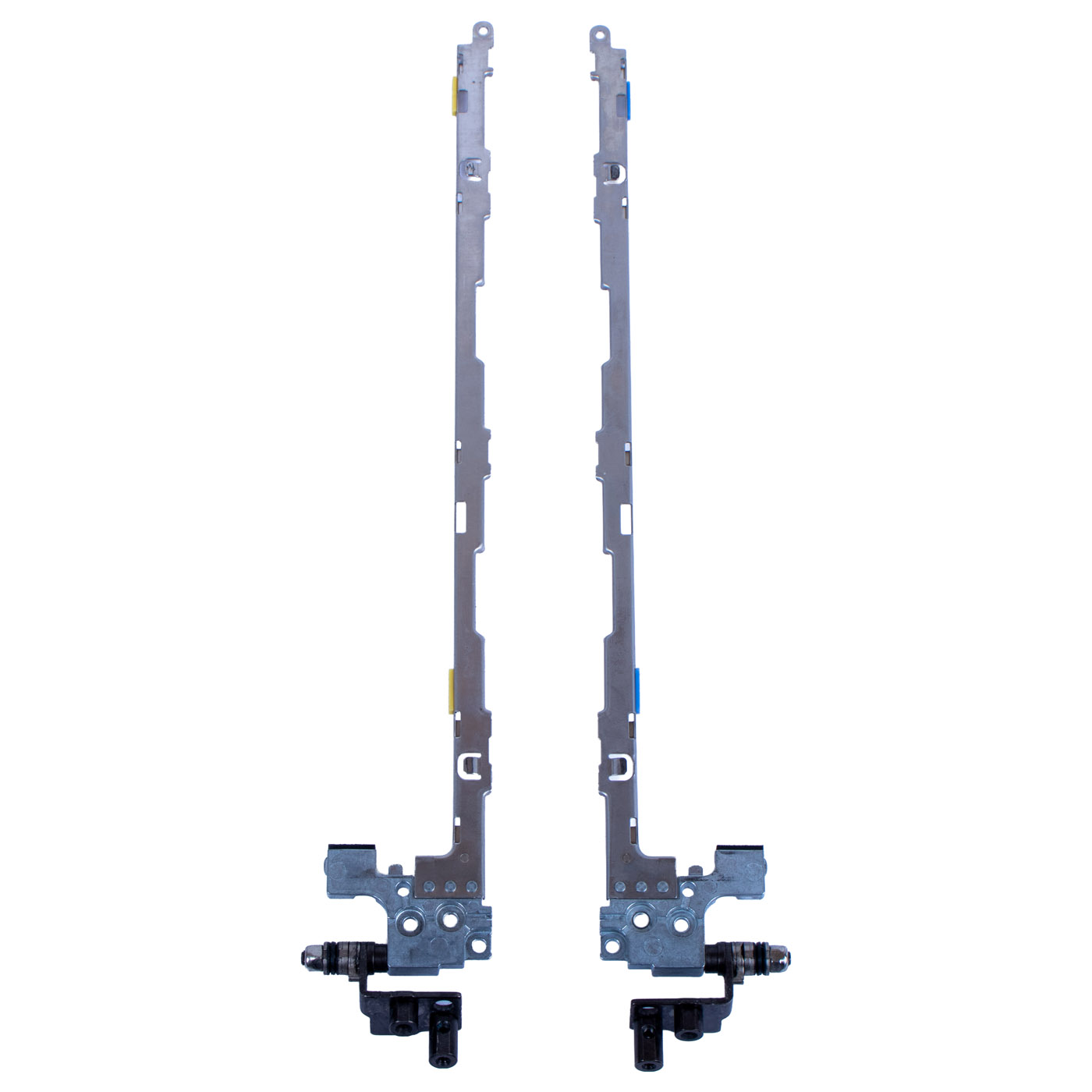

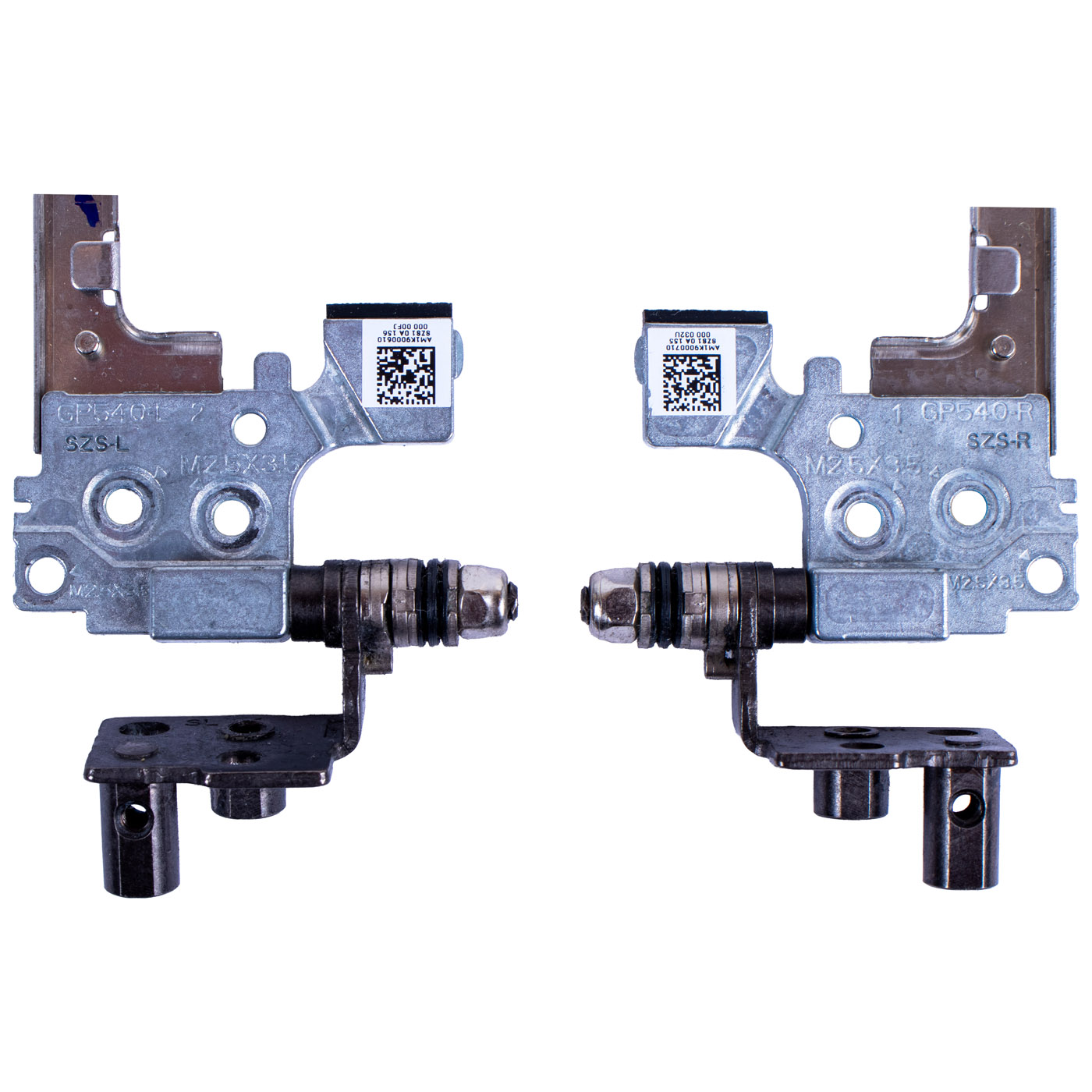

The set consists of a left and a right hinge, each with a metal bracket running along the side of the display. The SZS-made hinges have steel shafts with adjustable friction that hold the screen in any position, plus colour markers that make it easy to tell the sides apart (yellow - left, blue - right). The hinges are embossed with GP540-L / GP540-R, SZS-L / SZS-R and the screw size M2.5X3.5, and the labels carry AM1K9000610 (left) and AM1K9000710 (right). In the Lenovo catalogue the set is listed as HINGE P15 ASSY ME KITS HINGE, the version for non-touch displays.

📋 TECHNICAL SPECIFICATIONS

Part name: Display hinge assembly, left + right set
Brand: Lenovo ThinkPad
Compatible models: ThinkPad P15 Gen 1 (20ST, 20SU), ThinkPad P15 Gen 2 (20YQ, 20YR), ThinkPad T15g Gen 1 (20UR, 20US), ThinkPad T15g Gen 2 (20YS, 20YT)
Version: For non-touch display
Package contents: Left hinge and right hinge with brackets
Markings on the part: GP540-L, GP540-R, GP540-SL, GP540-SR, SZS-L, SZS-R, AM1K9000610, AM1K9000710, M2.5X3.5
Condition: Used (removed from a working unit, checked)
Warranty: 6 months
FRU: 5H50W13753
Substitute numbers: AM1K9000610 (left), AM1K9000710 (right)

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - factory hole spacing and bracket length, the display sits exactly in place
🔹 Screen stays in any position - the display does not drop on its own or wobble while you type
🔹 Left + right set - both hinges have the same resistance, so the screen opens evenly
🔹 Marked sides - L/R embossing and colour markers rule out mistakes during installation
🔹 One set for two generations - the same FRU fits P15 and T15g Gen 1 and Gen 2

🔢 PART NUMBERS

FRU: 5H50W13753
Substitute numbers: AM1K9000610 (left), AM1K9000710 (right)
Markings on the part: GP540-L, GP540-R, SZS-L, SZS-R
Laptop model: Lenovo ThinkPad P15 Gen 1, P15 Gen 2, T15g Gen 1, T15g Gen 2

❓ WHEN SHOULD YOU REPLACE THE DISPLAY HINGES?

• Problem with a drooping screen - the display does not hold its position and closes or tilts back on its own
• Problem with loose hinges - the screen wobbles with every keystroke
• Problem with a stiff, creaking hinge that is hard to open
• Problem with a cracked or torn-out hinge mount after the laptop was dropped
• Problem with a display bezel coming apart because of misaligned hinges

🔧 INSTALLATION PROCESS

1. Turn off Windows Fast Startup, restart the laptop, press F1 and in ThinkPad Setup select Config → Power → Disable built-in battery. The laptop turns off, wait 3-5 minutes. Remove the nano-SIM card if installed
2. Remove the bottom door, the keyboard and the keyboard bezel assembly (palm rest)
3. Remove the bottom cover and the hinge caps
4. Disconnect the display and antenna cables, remove the 4 screws securing the hinges to the base (M2.5 × 8 mm, black) and take off the LCD unit
5. Remove the display bezel, take out the LCD panel and unscrew the old hinges from the display housing
6. Fit the new hinges (left on the side marked L, right on the side marked R) with M2.5 × 3.5 mm screws
7. Reassemble the display and the laptop in reverse order, tightening the hinges to the base to 0.294 Nm and routing the cables without tension
8. Connect the AC adapter, which re-enables the built-in battery, and check that the screen opens smoothly
Replacement by a technical service or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

These hinges are intended for repairing Lenovo ThinkPad P15 Gen 1, P15 Gen 2, T15g Gen 1 and T15g Gen 2 laptops with a non-touch display where the screen droops, wobbles or a hinge was damaged in a drop. Replacement restores stable display operation and protects the chassis from further cracks. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered hinges have been carefully checked and matched to the listed Lenovo ThinkPad models. We guarantee full compatibility within FRU number 5H50W13753 and 100% functionality of the part. In case of any compatibility issues, we offer a hassle-free return within 14 days.

📞 NEED HELP? CONTACT OUR EXPERTS!

Do you have questions about the compatibility of the hinges with your ThinkPad P15 or T15g? Our specialists will be happy to assist you. Contact us!
📱 Phone: +48-601-415357
📧 Email: sklep@abcdeal.pl

🦁 ABCDEAL - Your Trusted Lenovo Parts Specialist

We have been specialising in delivering genuine Lenovo laptop parts for years. Our experience allows us to offer top quality products that meet the expectations of even the most demanding customers. Trust the experts and restore your ThinkPad P15 or T15g to full functionality.

🎯 Choose professionals - invest in high quality!

By choosing genuine display hinges for Lenovo ThinkPad P15 / T15g from our offer, you invest in reliability and a stable screen for years. Take advantage of ABCDEAL's expertise and bring your laptop back to full working order.
