🔧 I/O Board Cable (USB) for Lenovo ThinkPad P15 Gen 1 / T15g Gen 1 🔧

🖥️ ThinkPad P15 Gen 1 / T15g Gen 1 | FPC cable system board - I/O board | 5C10Z23866

Genuine FPC cable connecting the system board to the I/O board (USB board) for Lenovo ThinkPad P15 Gen 1 and ThinkPad T15g Gen 1 laptops. Part sourced from a working device and tested - we guarantee 100% functionality. FRU number 5C10Z23866 guarantees full compatibility with ThinkPad P15 Gen 1 and T15g Gen 1.

⚙️ PRODUCT CHARACTERISTICS

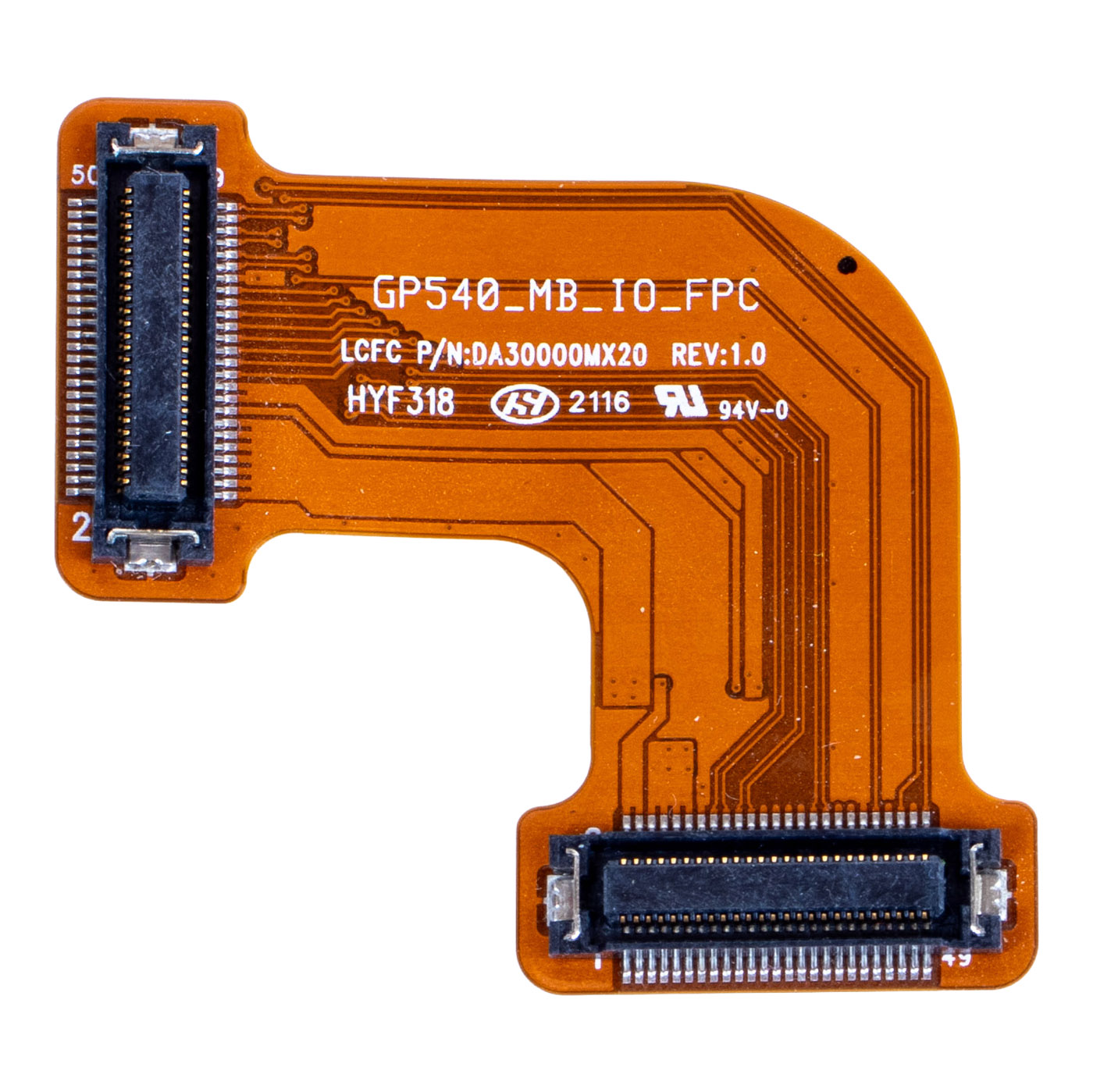

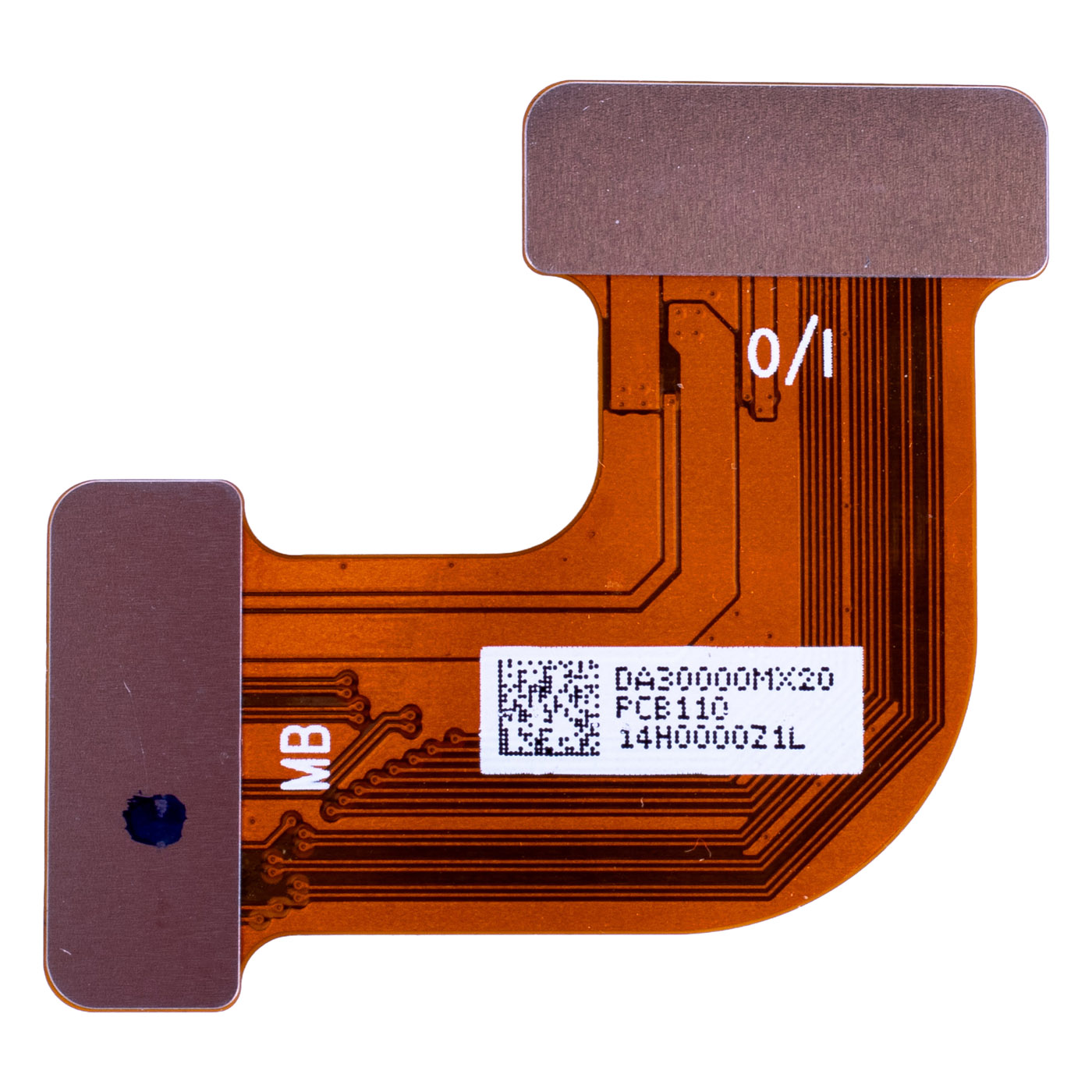

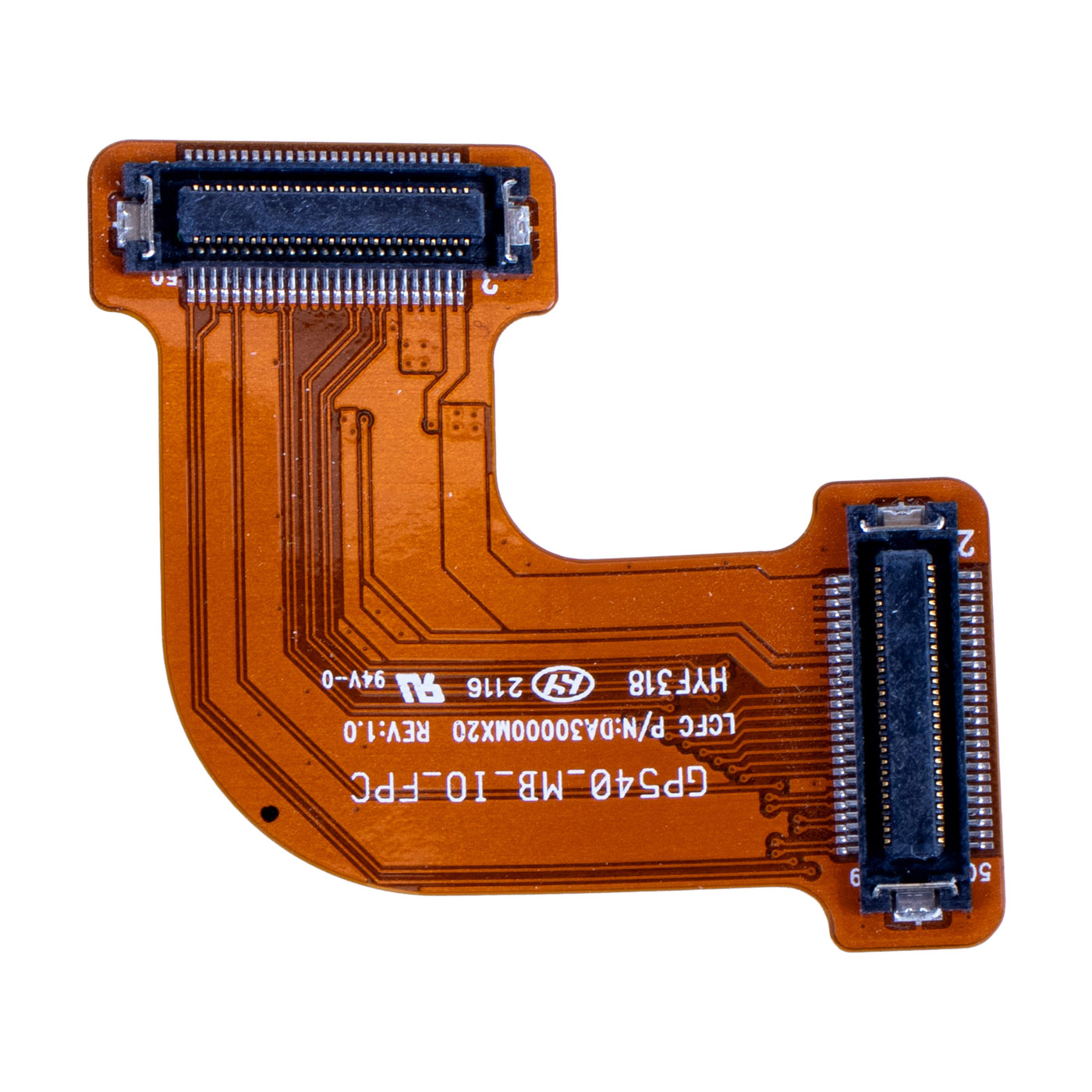

The L-shaped cable has 50-pin board-to-board connectors at both ends. The ends are labelled on the back: MB (system board) and I/O (I/O board). The connectors are backed with metal stiffeners that make it easier to press them in evenly. The cable is printed with GP540_MB_IO_FPC and LCFC P/N DA30000MX20 REV 1.0, and the label repeats DA30000MX20. In the Lenovo catalogue the cable is listed as FRU CABLE P15_MB_IO_FPC.

📋 TECHNICAL SPECIFICATIONS

Part name: I/O board cable (FPC)
Brand: Lenovo ThinkPad
Compatible model: ThinkPad P15 Gen 1 (20ST, 20SU), ThinkPad T15g Gen 1 (20UR, 20US)
Connectors: 2 × 50-pin board-to-board, MB / I/O ends
Markings on the part: GP540_MB_IO_FPC, LCFC P/N DA30000MX20 REV 1.0, HYF318
Condition: Used (removed from a working unit, tested)
Warranty: 6 months
FRU: 5C10Z23866
Substitute numbers: DA30000MX20

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - factory cable shape and length, the connectors line up exactly with the system board and I/O board sockets
🔹 Restores the ports - flash drives, mice and external drives are detected straight away again
🔹 Labelled MB and I/O ends - you instantly know which end goes where
🔹 Easy access - replacement after removing the bottom door and bottom cover, no system board removal
🔹 Tested and working - checked before listing, 100% functional

🔢 PART NUMBERS

FRU: 5C10Z23866
Substitute numbers: DA30000MX20
Markings on the part: GP540_MB_IO_FPC, REV 1.0
Laptop model: Lenovo ThinkPad P15 Gen 1, Lenovo ThinkPad T15g Gen 1

❓ WHEN SHOULD YOU REPLACE THE I/O BOARD CABLE?

• Problem with dead USB ports on the I/O board - connected devices are not detected
• Problem with ports that work intermittently and disconnect devices when the laptop is touched
• Problem with a damaged cable - worn, cracked or torn connector after a previous repair
• Problem with a non-working I/O board after a liquid spill, when the board is fine but the connection failed

🔧 INSTALLATION PROCESS

1. Turn off Windows Fast Startup, restart the laptop, press F1 and in ThinkPad Setup select Config → Power → Disable built-in battery. The laptop turns off, wait 3-5 minutes. Remove the nano-SIM card if installed
2. Unscrew and remove the bottom door
3. Remove the bottom cover
4. Disconnect the cable from the system board (MB end) and from the I/O board (I/O end) by lifting the connectors straight up
5. Fit the new cable: MB end to the system board, I/O end to the I/O board, pressing the connectors down evenly until they click
6. Reassemble in reverse order and connect the AC adapter, which re-enables the built-in battery
7. Boot the system and check the ports on the I/O board
Replacement by a technical service or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

This cable is intended for repairing Lenovo ThinkPad P15 Gen 1 and T15g Gen 1 laptops where the ports on the I/O board stopped working because of the connecting cable. It is a quick and inexpensive fix compared with replacing the I/O board or the system board. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered cable has been carefully checked and matched to Lenovo ThinkPad P15 Gen 1 and T15g Gen 1. We guarantee full compatibility within FRU number 5C10Z23866 and 100% functionality of the part. In case of any compatibility issues, we offer a hassle-free return within 14 days.
