🔧 Palmrest with Keyboard for Lenovo ThinkPad X1 Carbon Gen 9 🔧

🖥️ ThinkPad X1 Carbon Gen 9 | Palmrest with keyboard (C-Cover) | Nordic, backlit, Deep Black, WWAN | FRU 5M11C53287

Complete palmrest with a backlit Nordic keyboard designed for the Lenovo ThinkPad X1 Carbon Gen 9 (Type 20XW, 20XX), WWAN version. Part sourced from a working device and tested - we guarantee 100% functionality. FRU number 5M11C53287 ensures full compatibility with the X1 Carbon Gen 9.

⚙️ PRODUCT DESCRIPTION

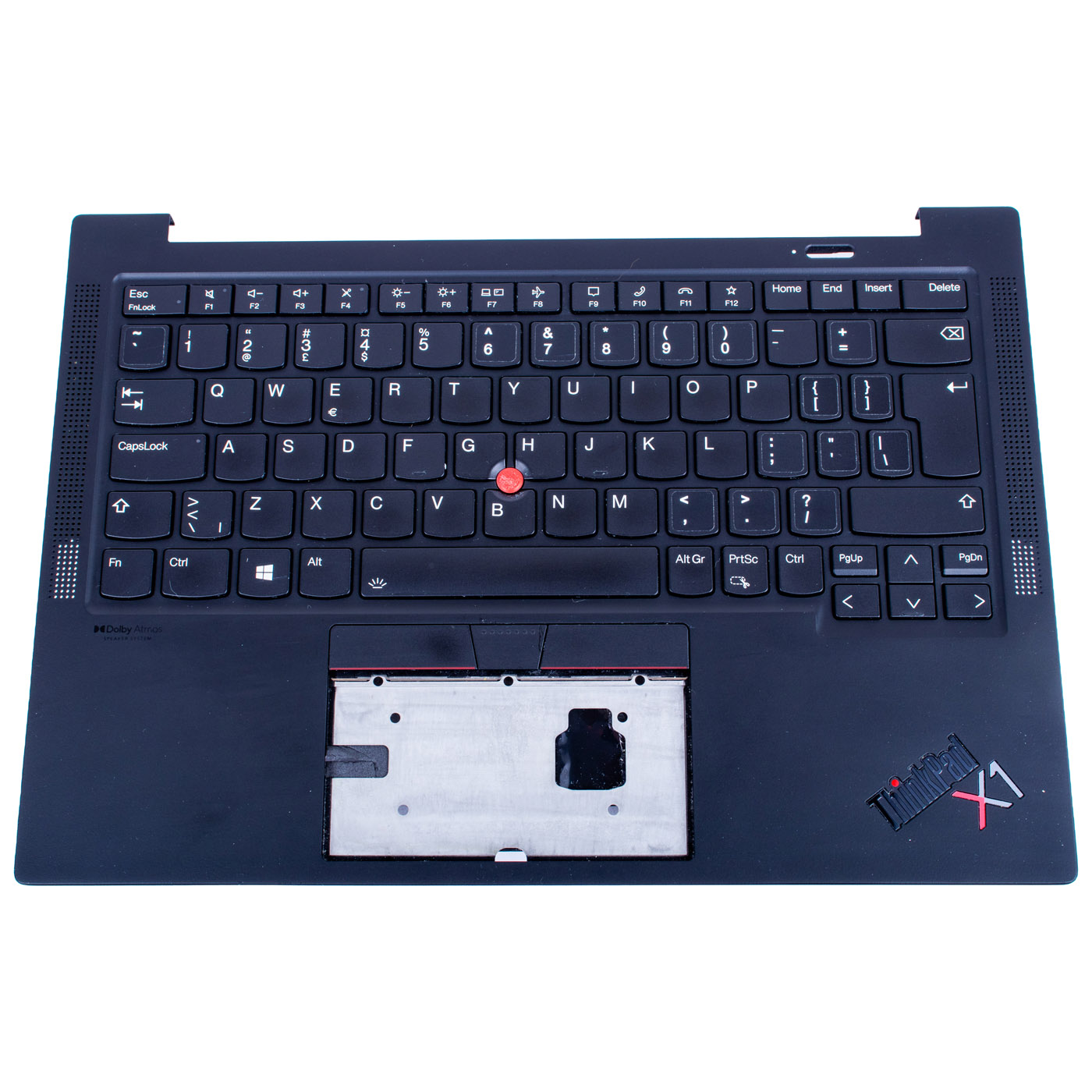

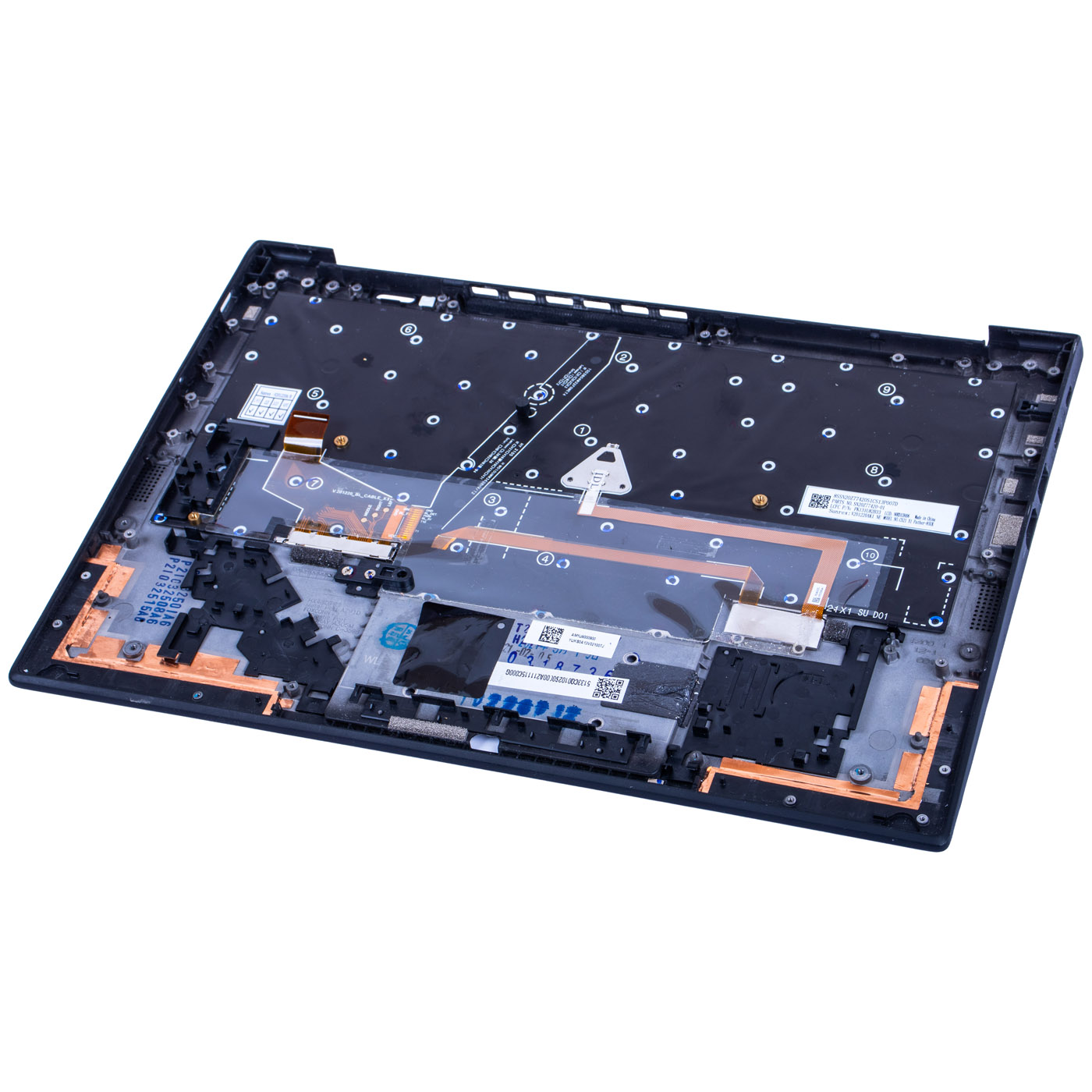

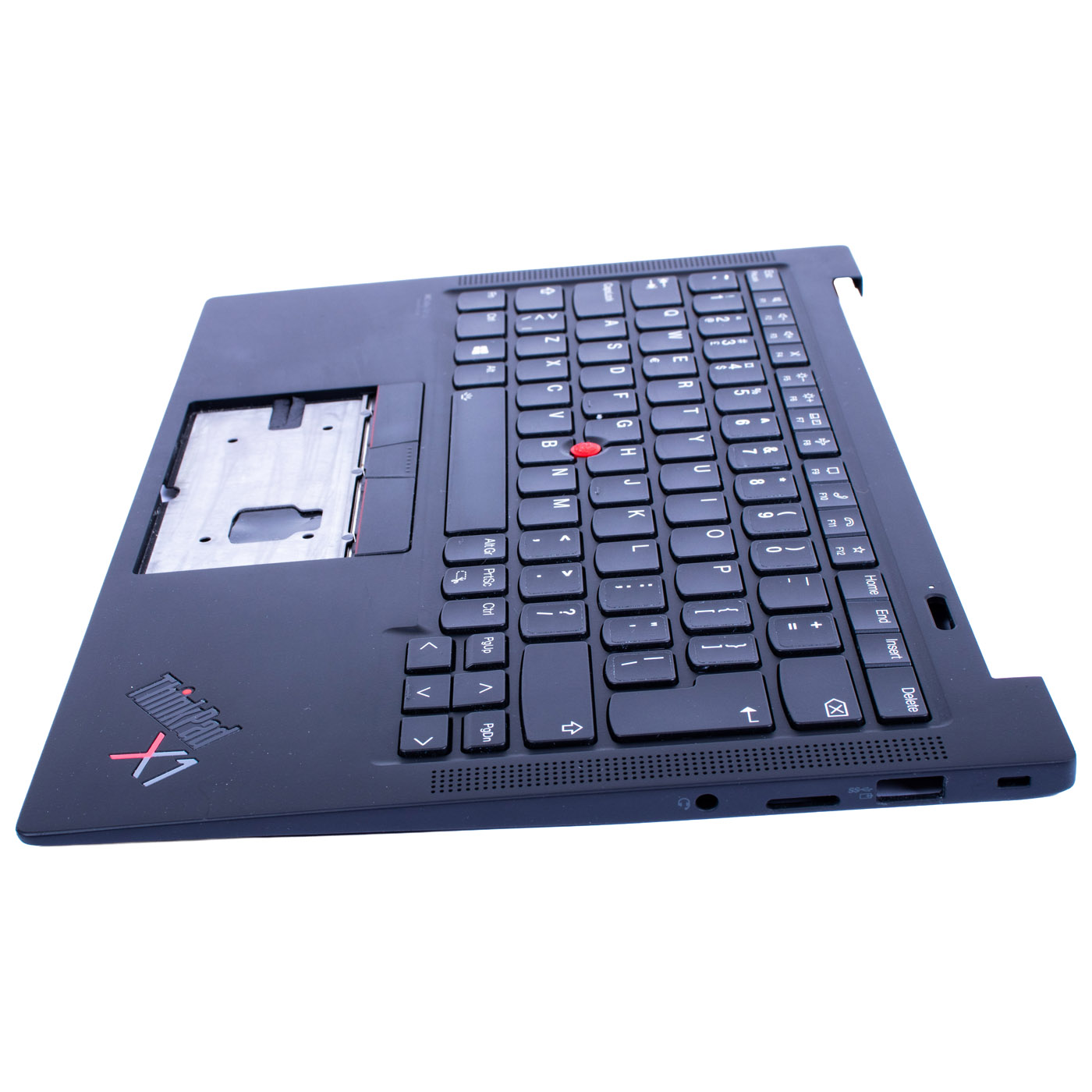

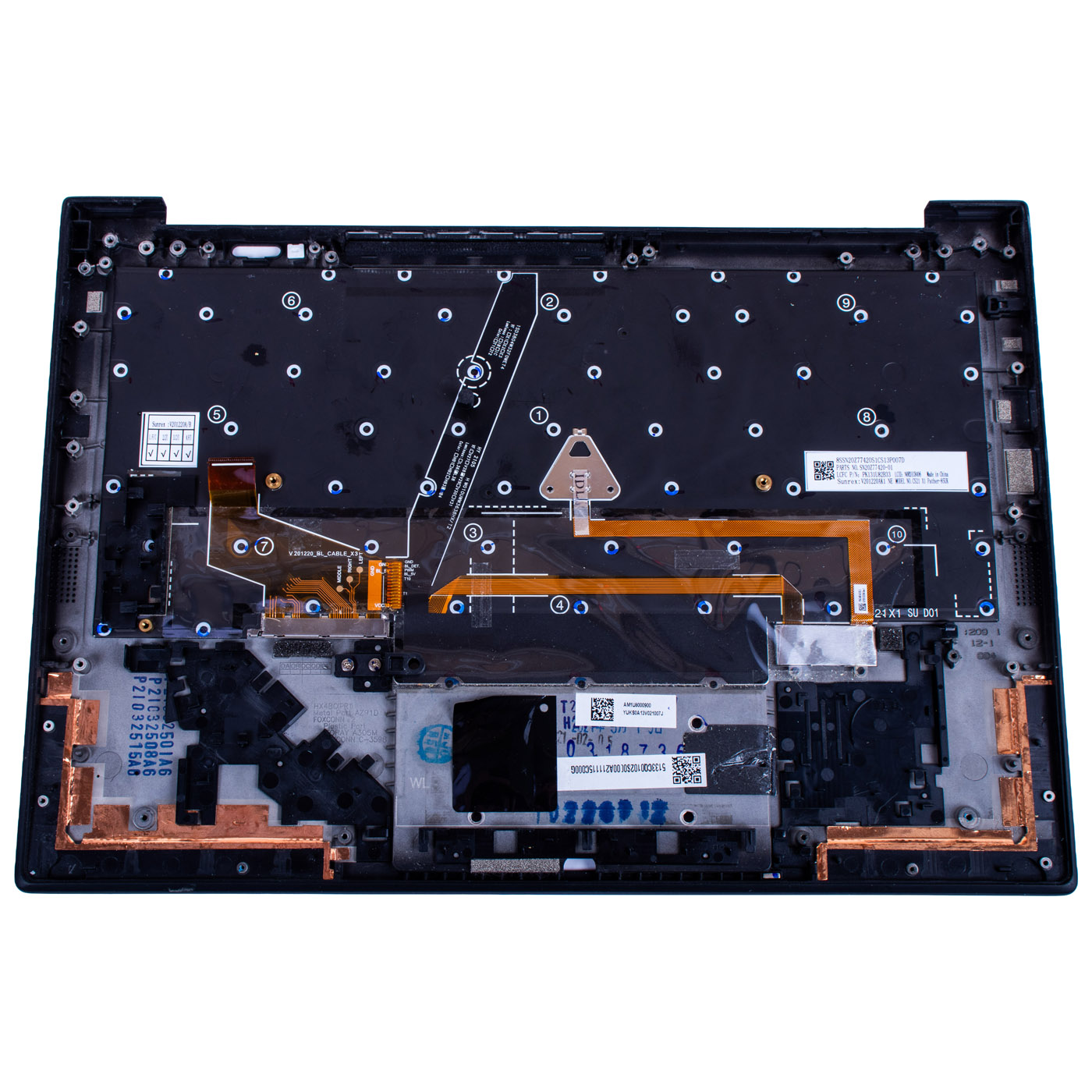

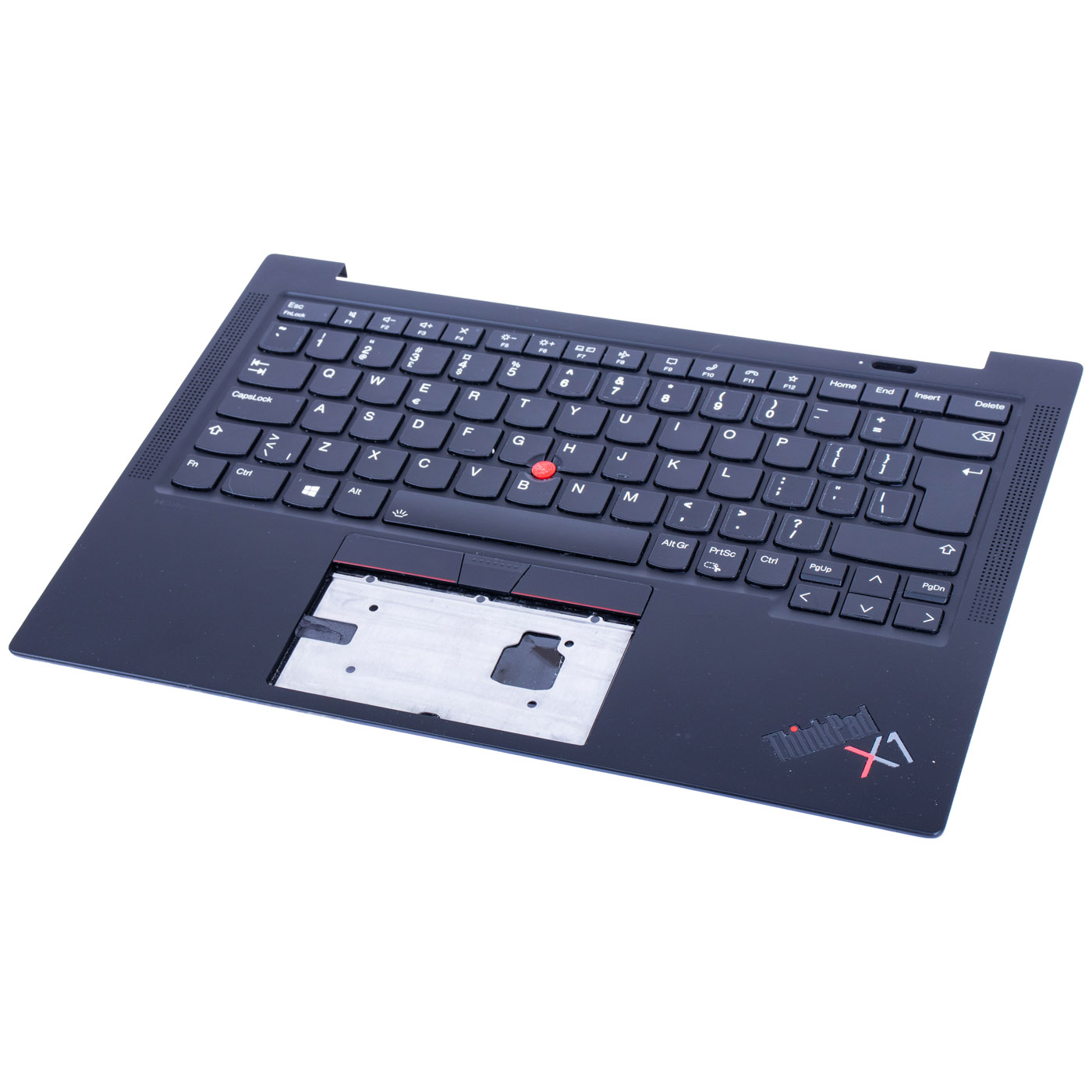

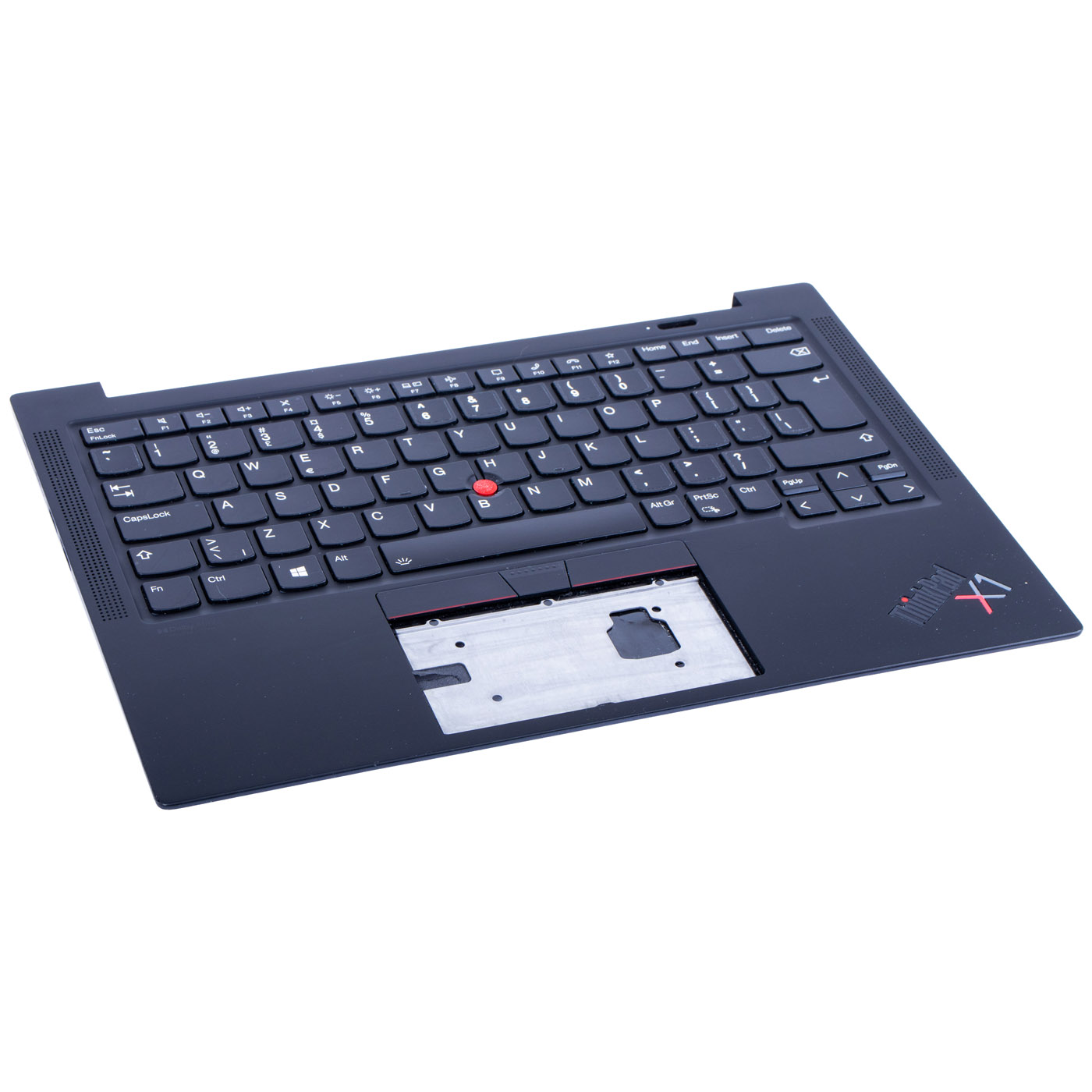

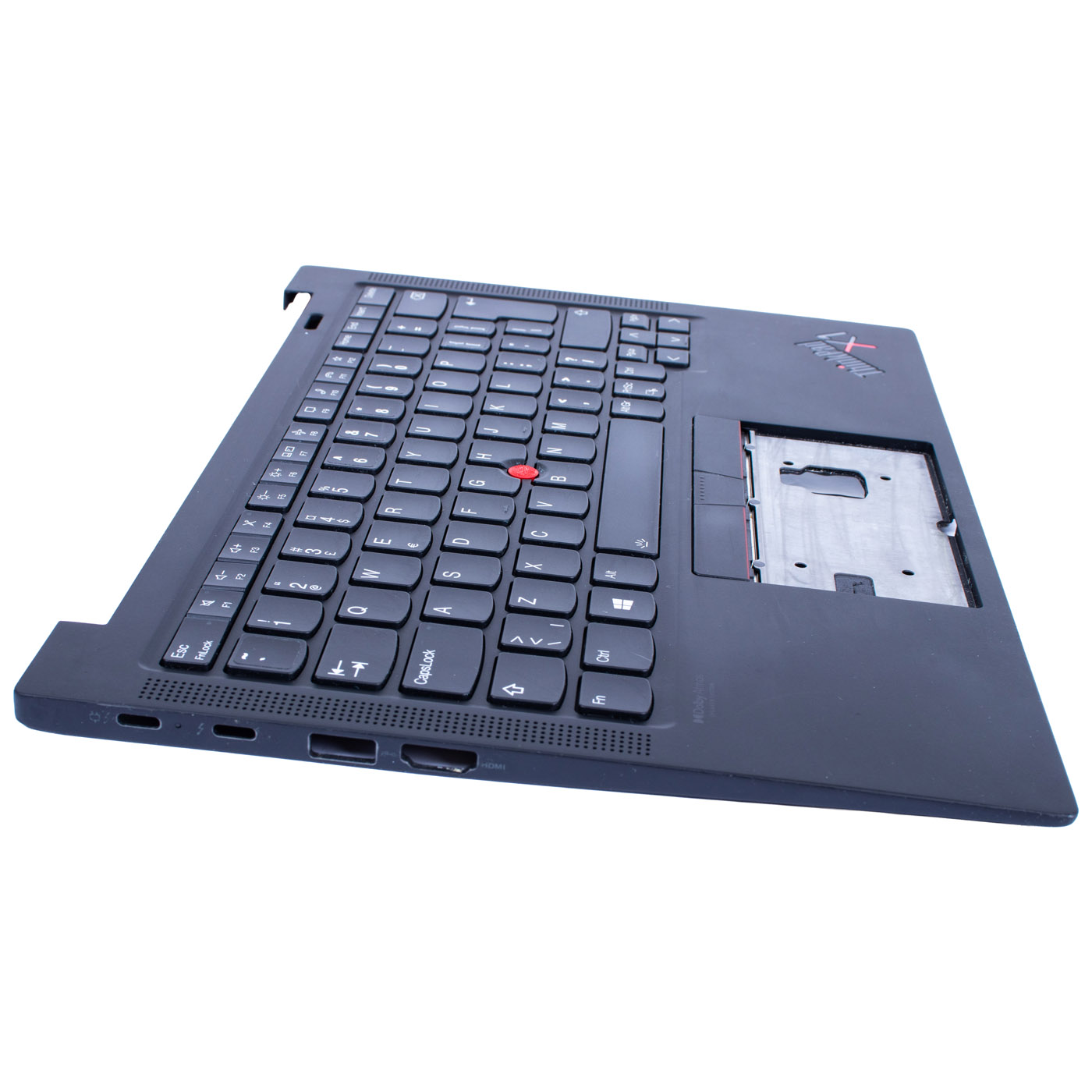

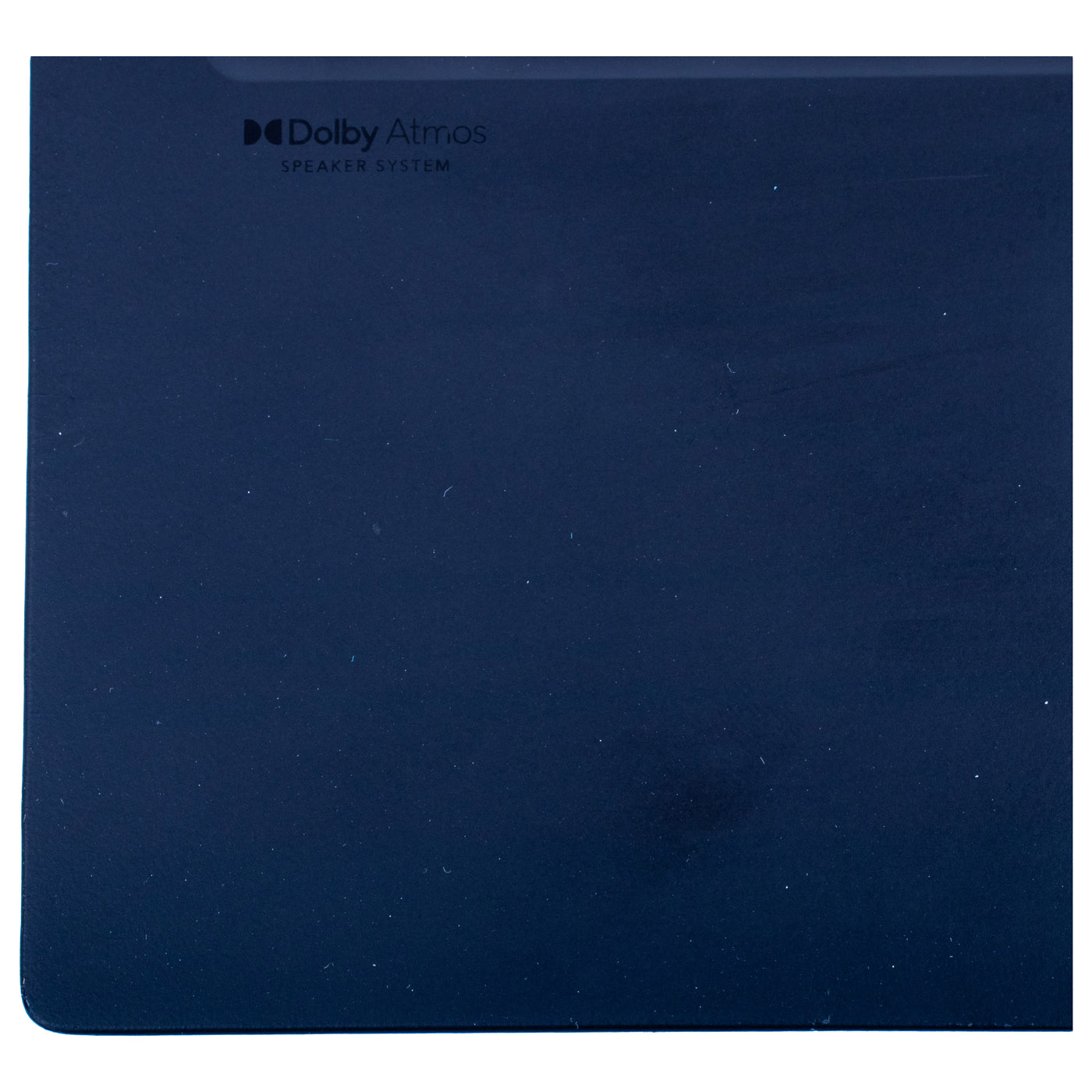

Deep Black palmrest (C-Cover) with a factory-fitted backlit keyboard, TrackPoint and TrackPoint buttons, made for laptops equipped with a WWAN modem. The keyboard has a Nordic layout (ISO, vertical Enter key), and several special-character keys carry Polish-layout stickers. The cover features the Dolby Atmos Speaker System print, and its edges have cut-outs for the side ports: Thunderbolt/USB-C, USB-A, HDMI and the headphone jack. The part is in very good cosmetic and technical condition.

📋 TECHNICAL SPECIFICATIONS

Part name: Palmrest with keyboard (C-Cover with keyboard)
Brand: Lenovo ThinkPad
Compatible model: ThinkPad X1 Carbon Gen 9 (Type 20XW, 20XX)

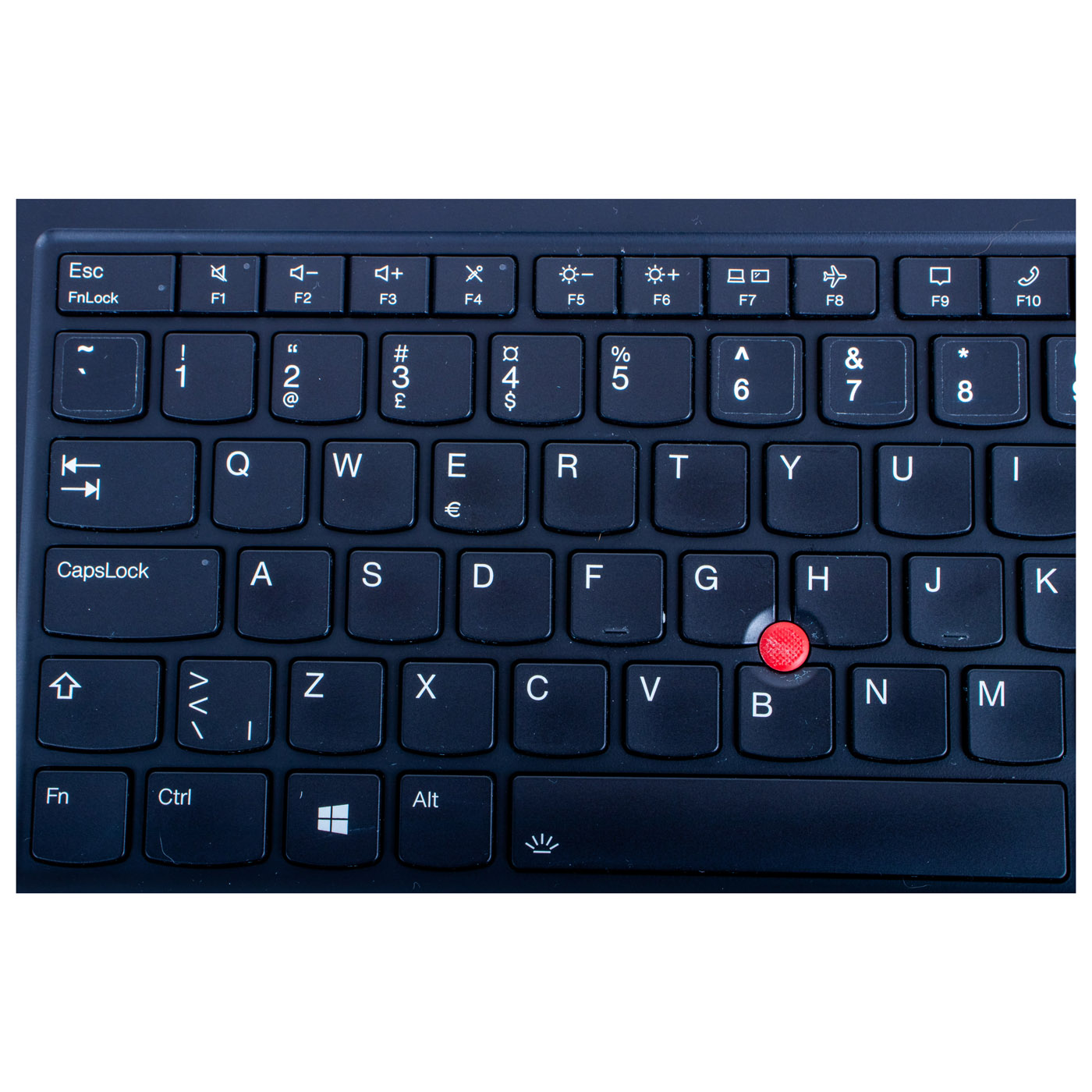

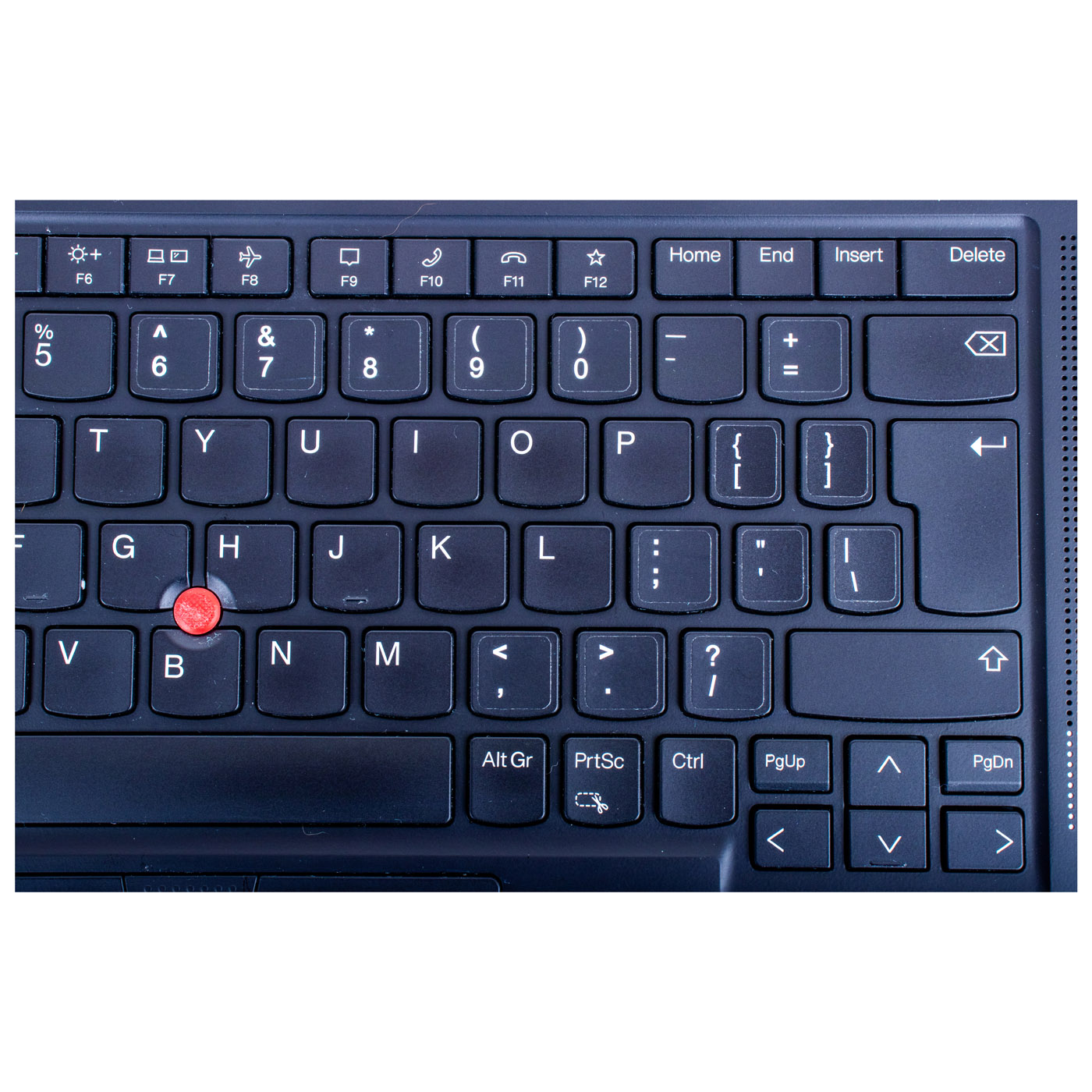

Keyboard layout: Nordic (ISO, vertical Enter), several keys with Polish-layout stickers
Backlight: Yes
Colour: Deep Black
Version: WWAN
Condition: Used (removed from a working unit, very good condition, tested)
FRU: 5M11C53287

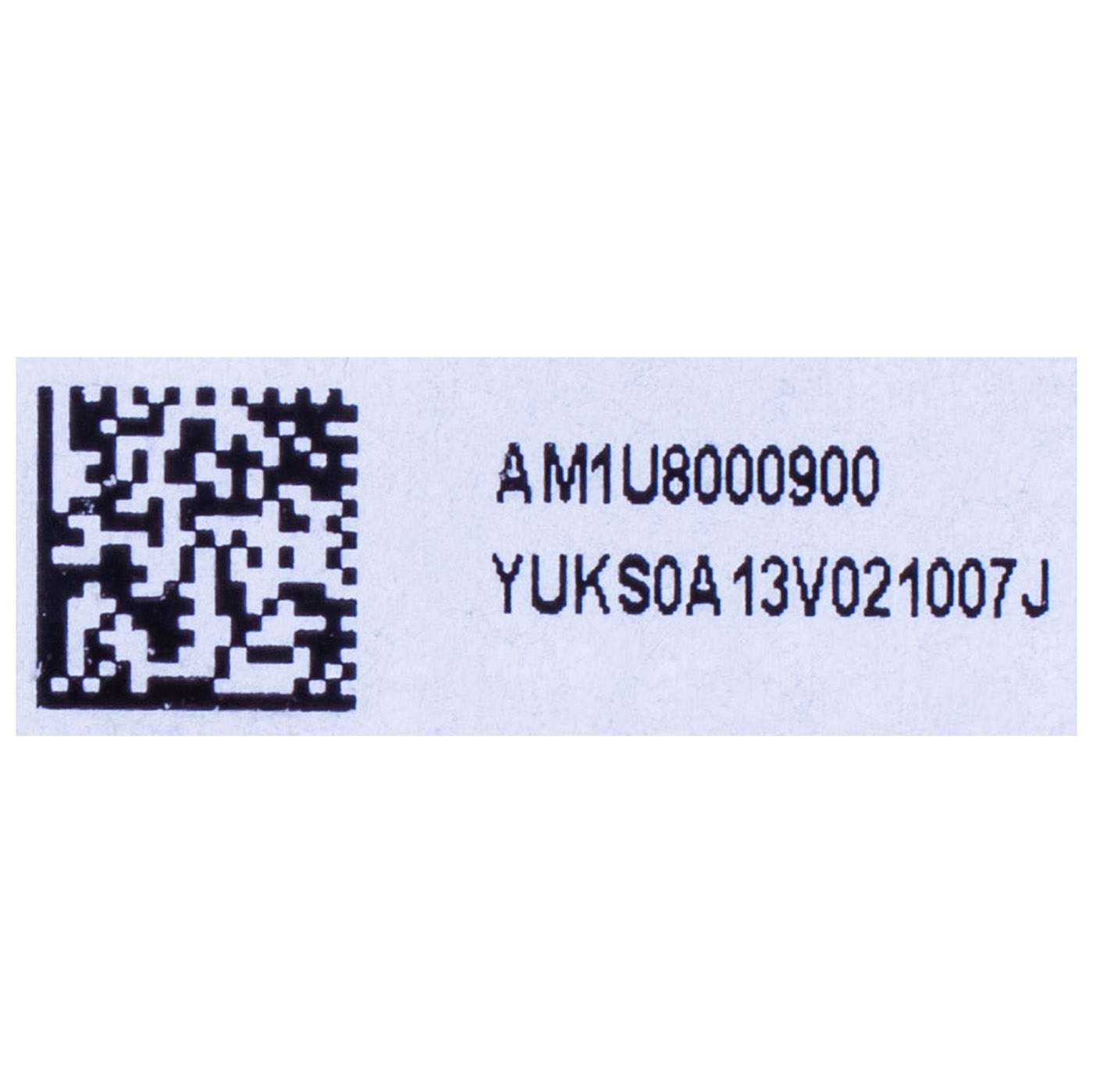

Substitute numbers: 5M11C53359, AM1U8000900
Lenovo description: C-Cover with keyboard, Nordic, Deep Black, Backlight, WWAN, UK

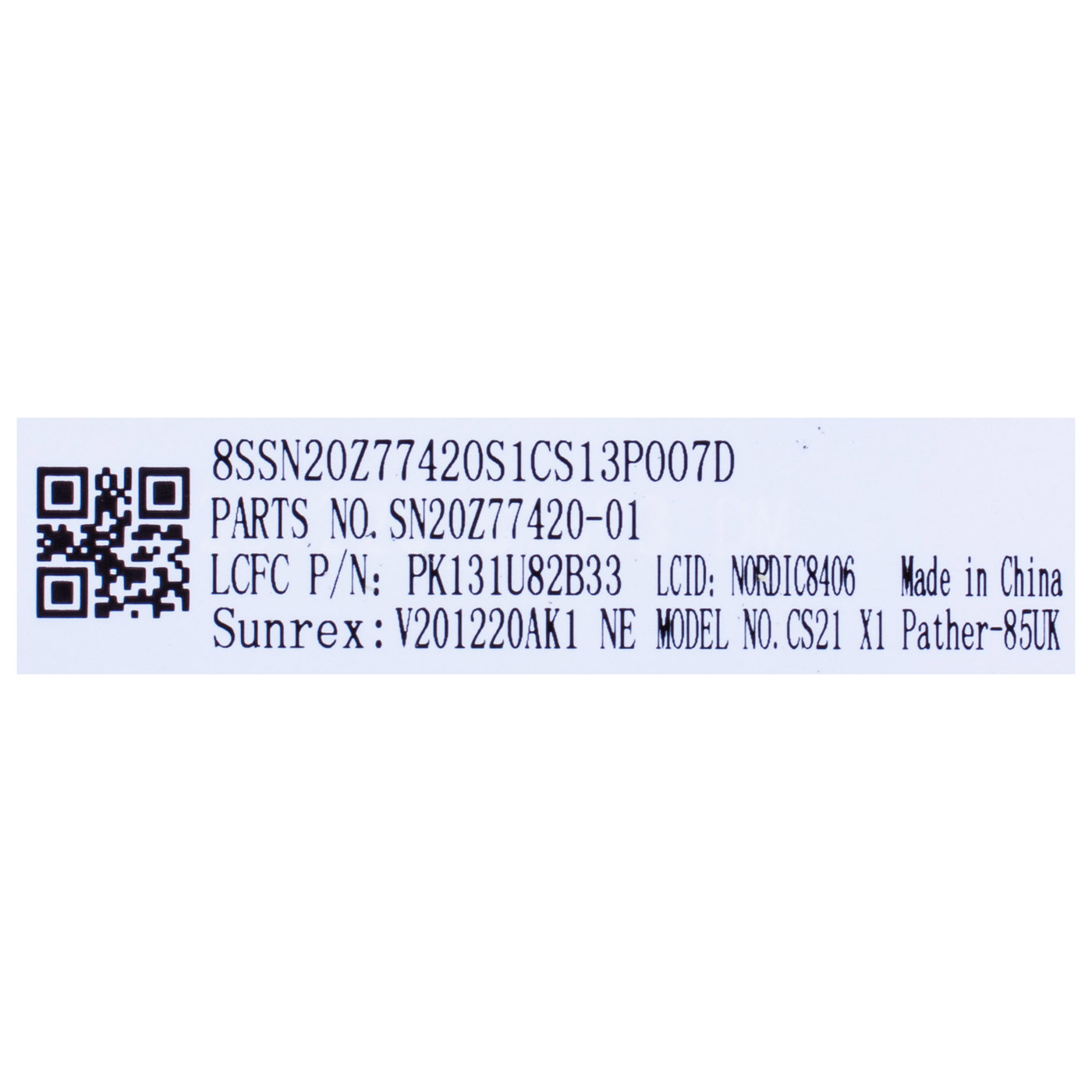

Part markings: Parts No. SN20Z77420-01, LCFC P/N PK131U82B33, LCID NORDIC8406, Sunrex V201220AK1 NE, Model No. CS21 X1 Pather-85UK

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - perfect fit and reliability
🔹 Backlit keyboard - type on an evening train or in a dark room without hunting for keys

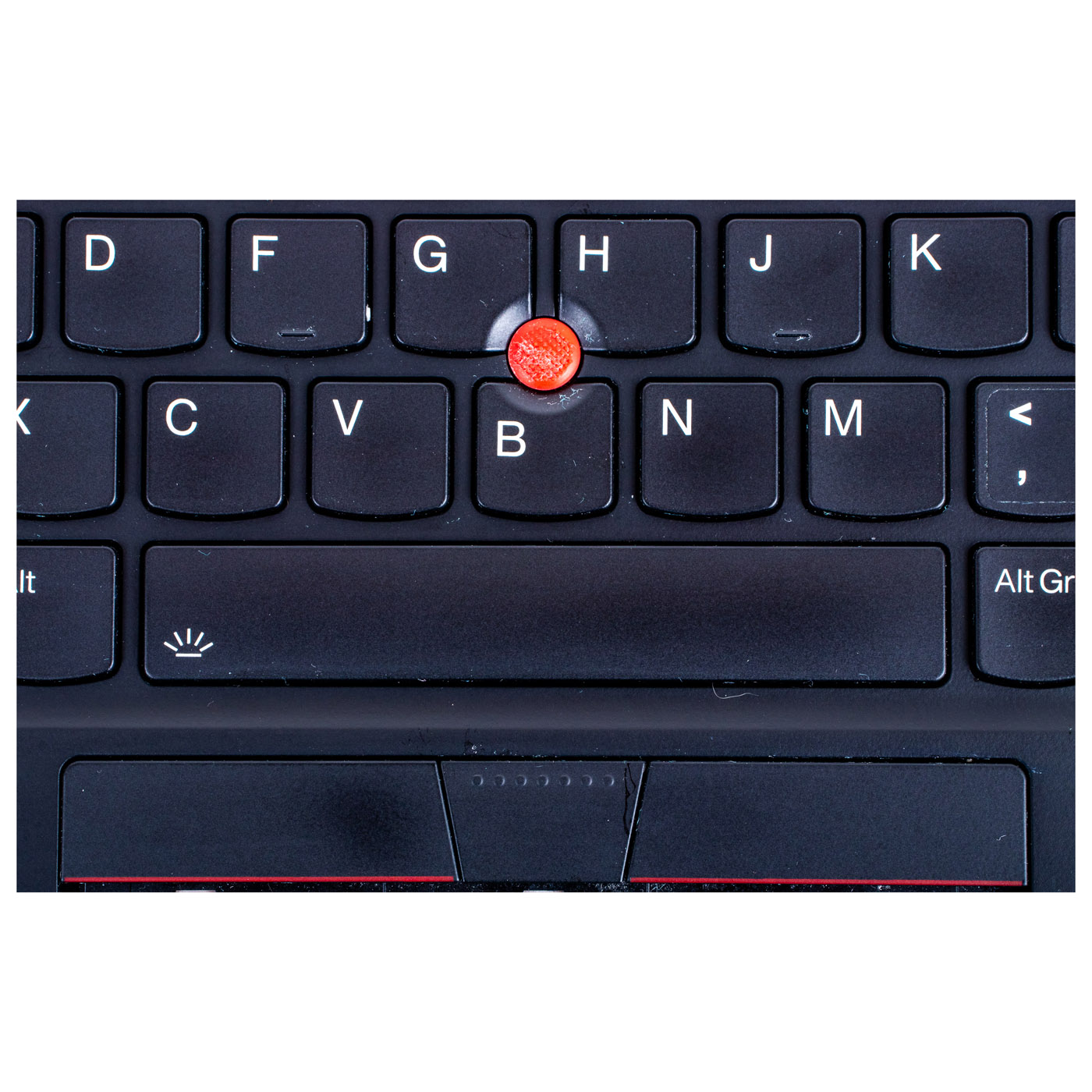

🔹 TrackPoint and its buttons in place - move the cursor without taking your hands off the keyboard, just like on the original laptop
🔹 Polish-layout stickers - special characters are labelled as in the Polish layout, so you hit them right the first time
🔹 WWAN version - fits units with an LTE/5G modem
🔹 Full compatibility - matched to the X1 Carbon Gen 9 under FRU 5M11C53287

🔢 PART NUMBERS

FRU: 5M11C53287
Substitute numbers: 5M11C53359, AM1U8000900
Part markings: SN20Z77420-01, PK131U82B33, NORDIC8406, V201220AK1 NE, CS21 X1 Pather-85UK
Laptop model: Lenovo ThinkPad X1 Carbon Gen 9 (20XW, 20XX)

❓ WHEN SHOULD THE PALMREST WITH KEYBOARD BE REPLACED?

• Keys that don't respond on the first press or type letters twice
• Liquid spilled on the keyboard, leaving keys dead or sticky
• Keyboard backlight that no longer lights up
• TrackPoint drifting so the cursor moves on its own
• Cracked or scratched cover around the keyboard

🔧 INSTALLATION PROCESS

1. Power off the laptop and disconnect the power supply and all external devices
2. Remove the screws securing the bottom cover and carefully take it off
3. Disconnect the battery from the system board

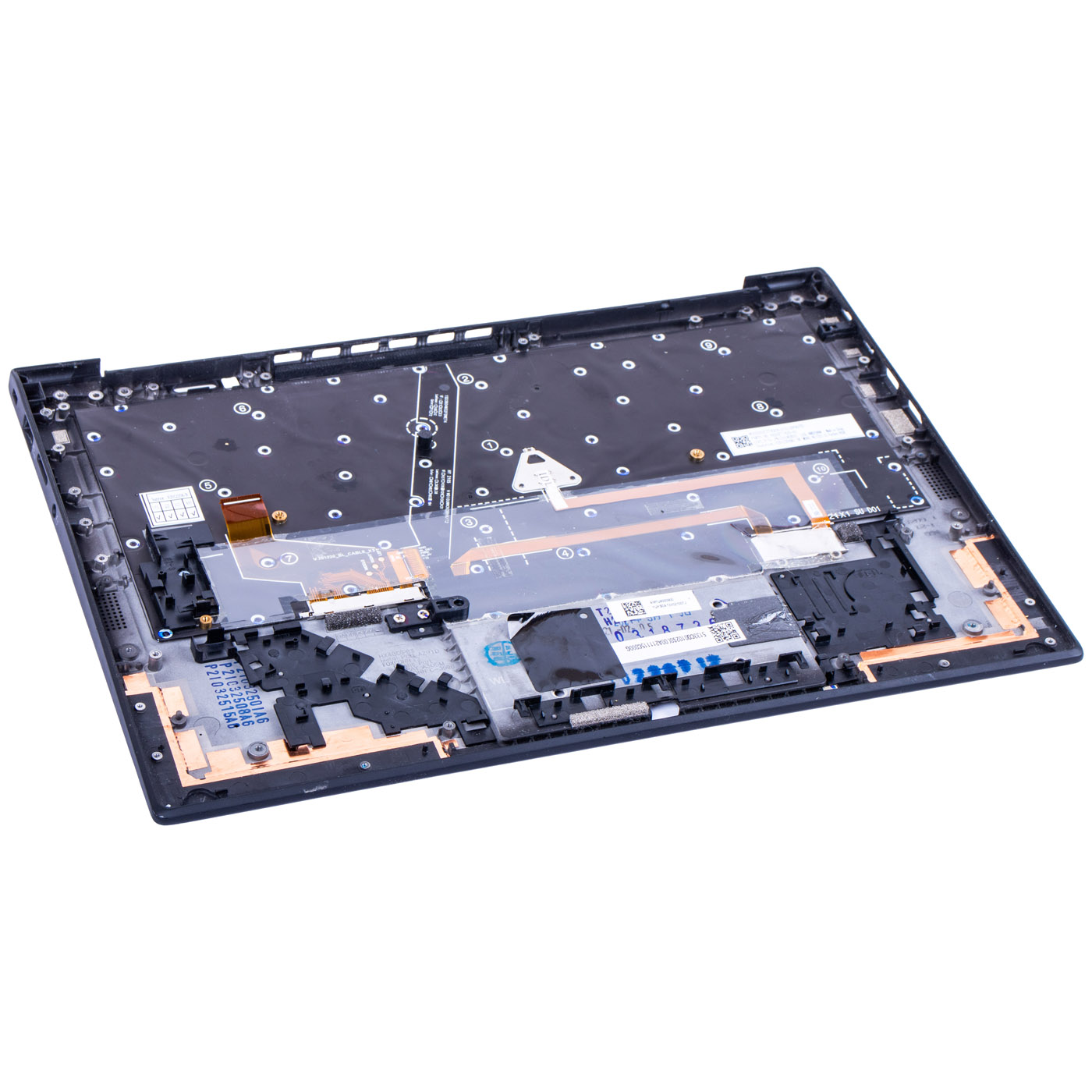

4. The palmrest is the laptop's main structural frame: transfer all components mounted in the old one (including the system board with the cooling assembly, battery, speakers, touchpad and display assembly)
5. Connect the keyboard and backlight cables to the system board
6. Refit the bottom cover, connect power, start the laptop and test all keys, the backlight and the TrackPoint
Installation by a technician or a person experienced in laptop repairs is recommended.

🎯 INTENDED USE

For users and repair shops who want to restore a fully working keyboard or replace a damaged cover in a ThinkPad X1 Carbon Gen 9 WWAN version. You get a working backlit keyboard and TrackPoint in one part, without replacing the keyboard separately. The exact appearance and condition of the item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The palmrest with keyboard on offer has been carefully checked and matched to the Lenovo ThinkPad X1 Carbon Gen 9. We guarantee full compatibility for FRU 5M11C53287 and 100% functionality. If any compatibility issue occurs, we offer a hassle-free return within 14 days.
