🔧 Battery for Lenovo IdeaPad L340-17IRH Gaming 🔧

🖥️ Model L18C3PF1 | 45 Wh | FRU 5B10T04976 | Li-ion 3-cell

Genuine Lenovo internal battery (model L18C3PF1) designed for the Lenovo IdeaPad L340-17IRH Gaming. Part sourced from a working device and tested - we guarantee 100% functionality. FRU number 5B10T04976 ensures full compatibility with the IdeaPad L340-17IRH.

⚙️ PRODUCT DESCRIPTION

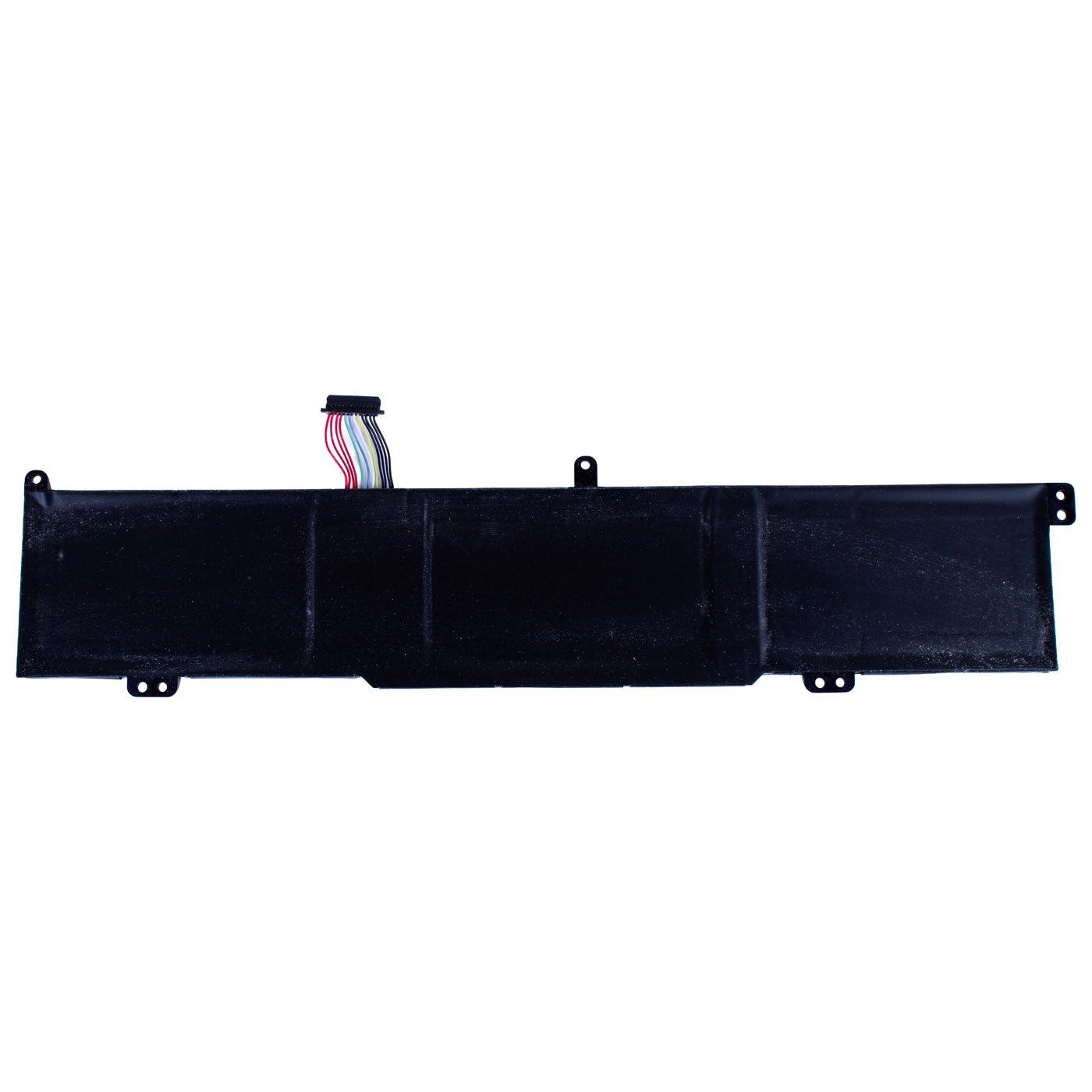

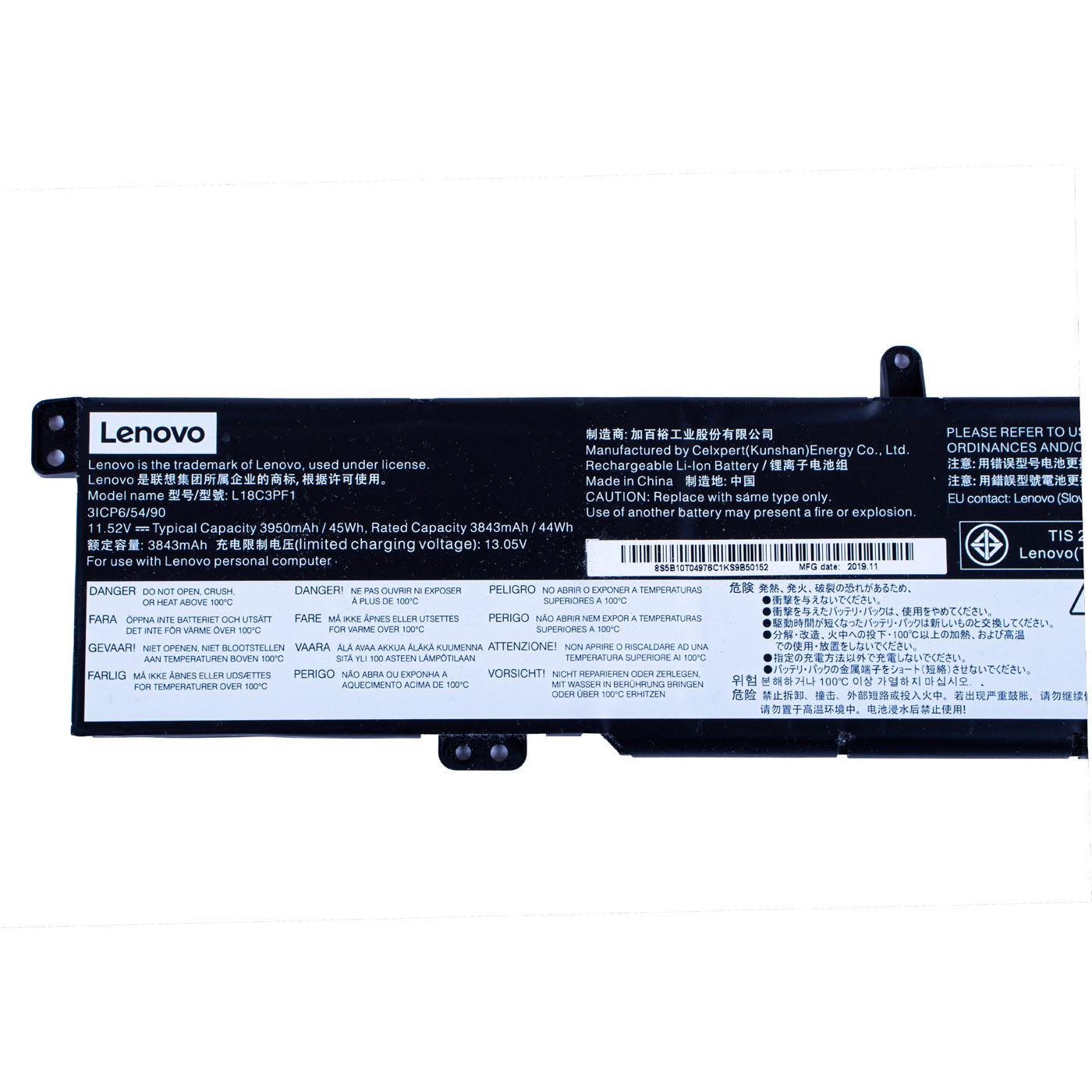

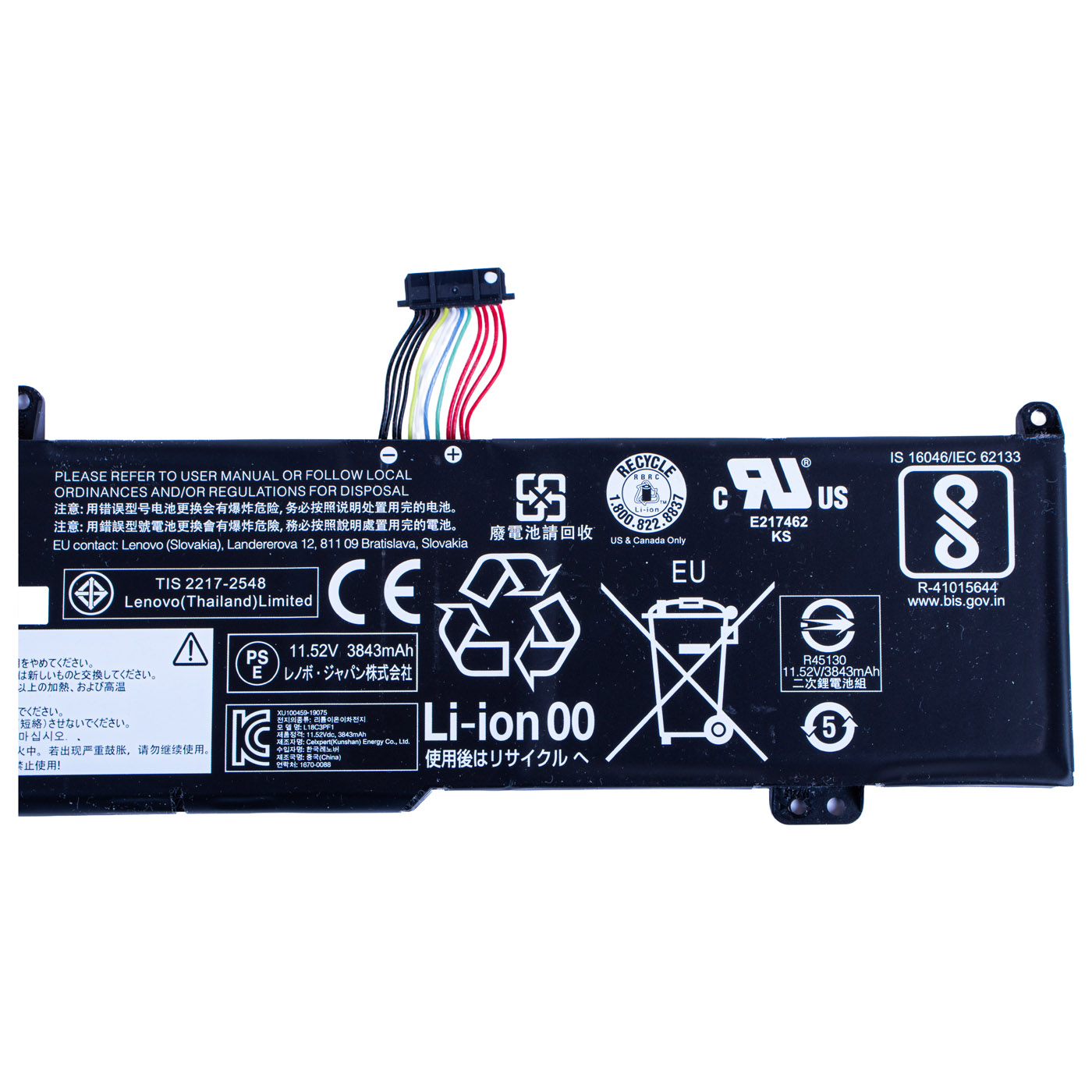

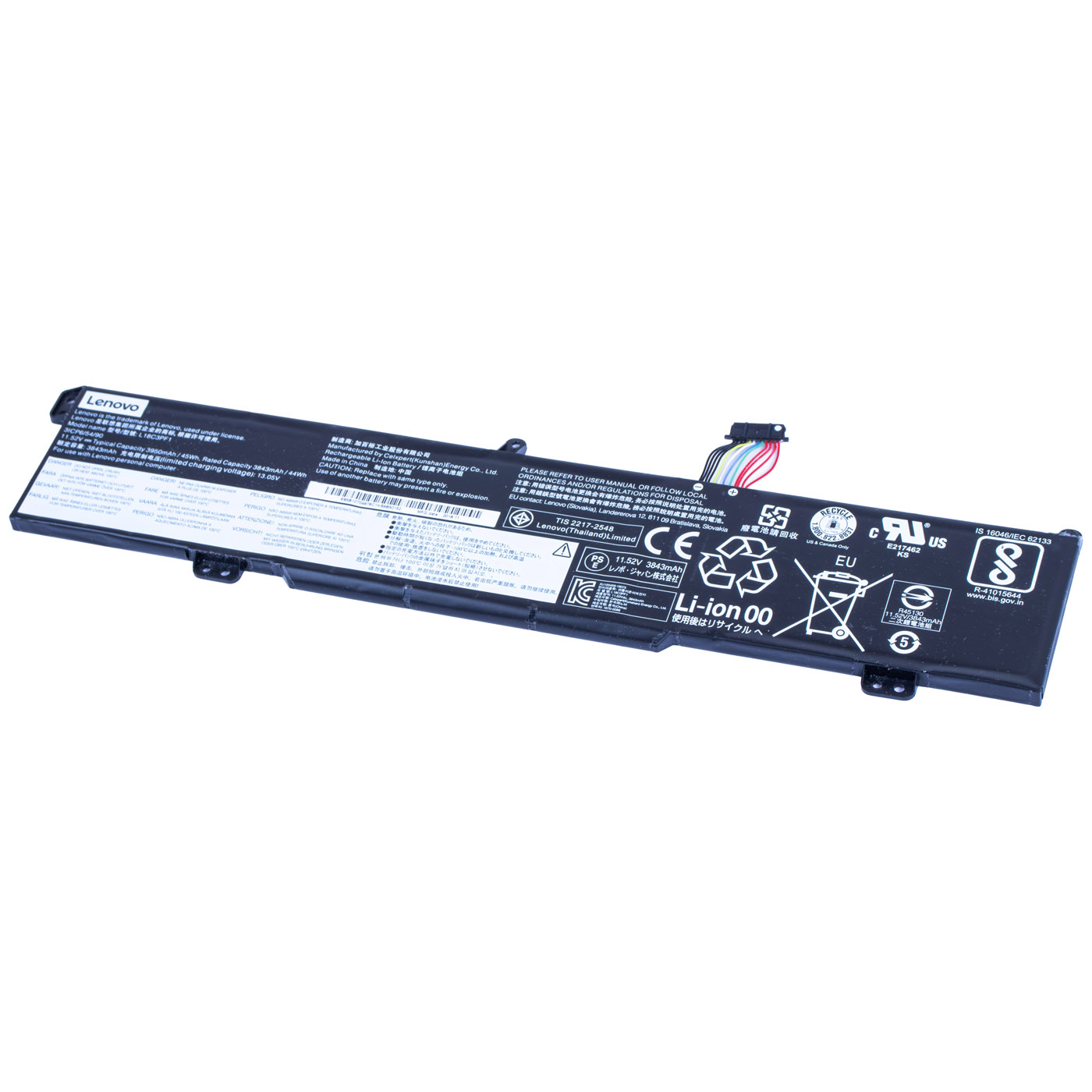

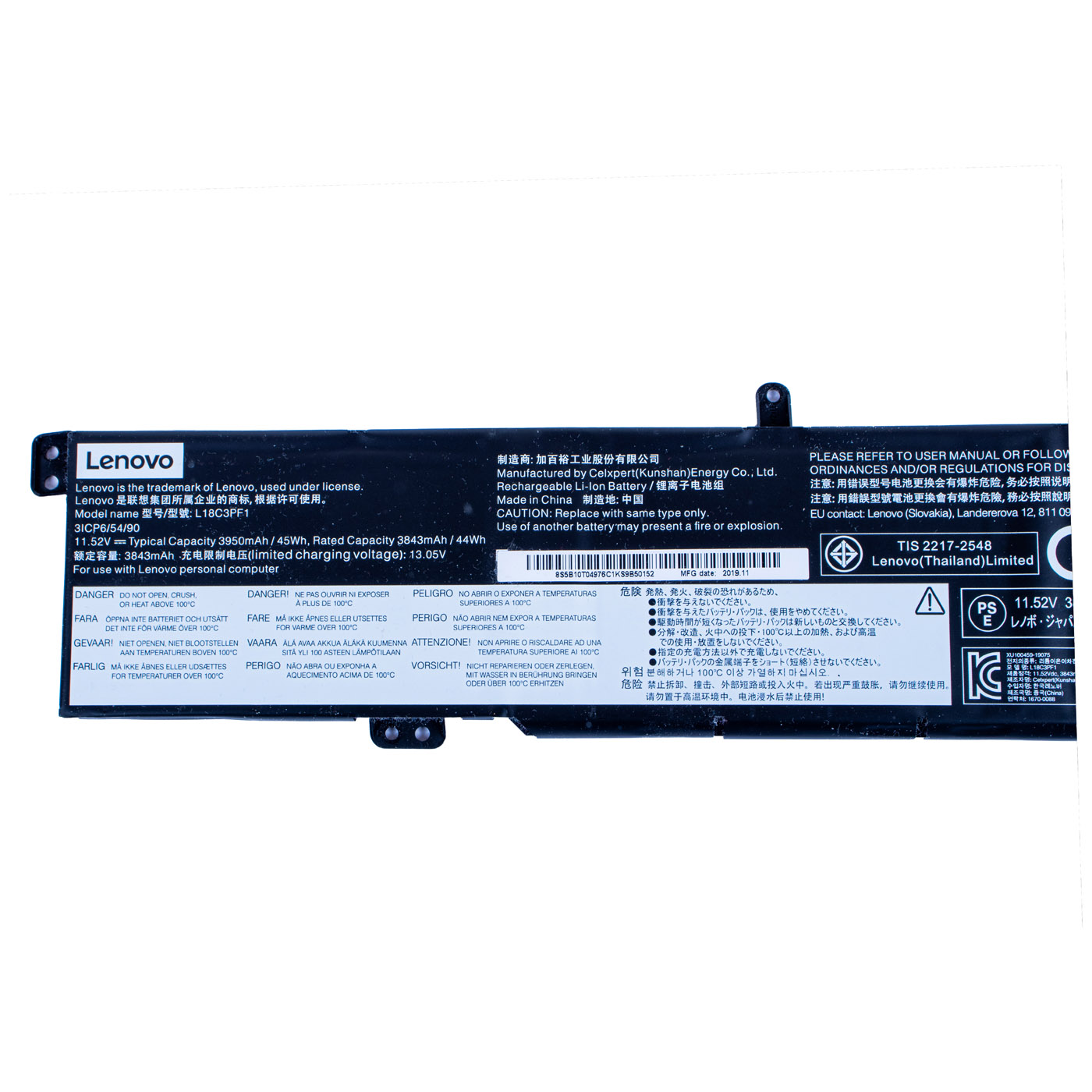

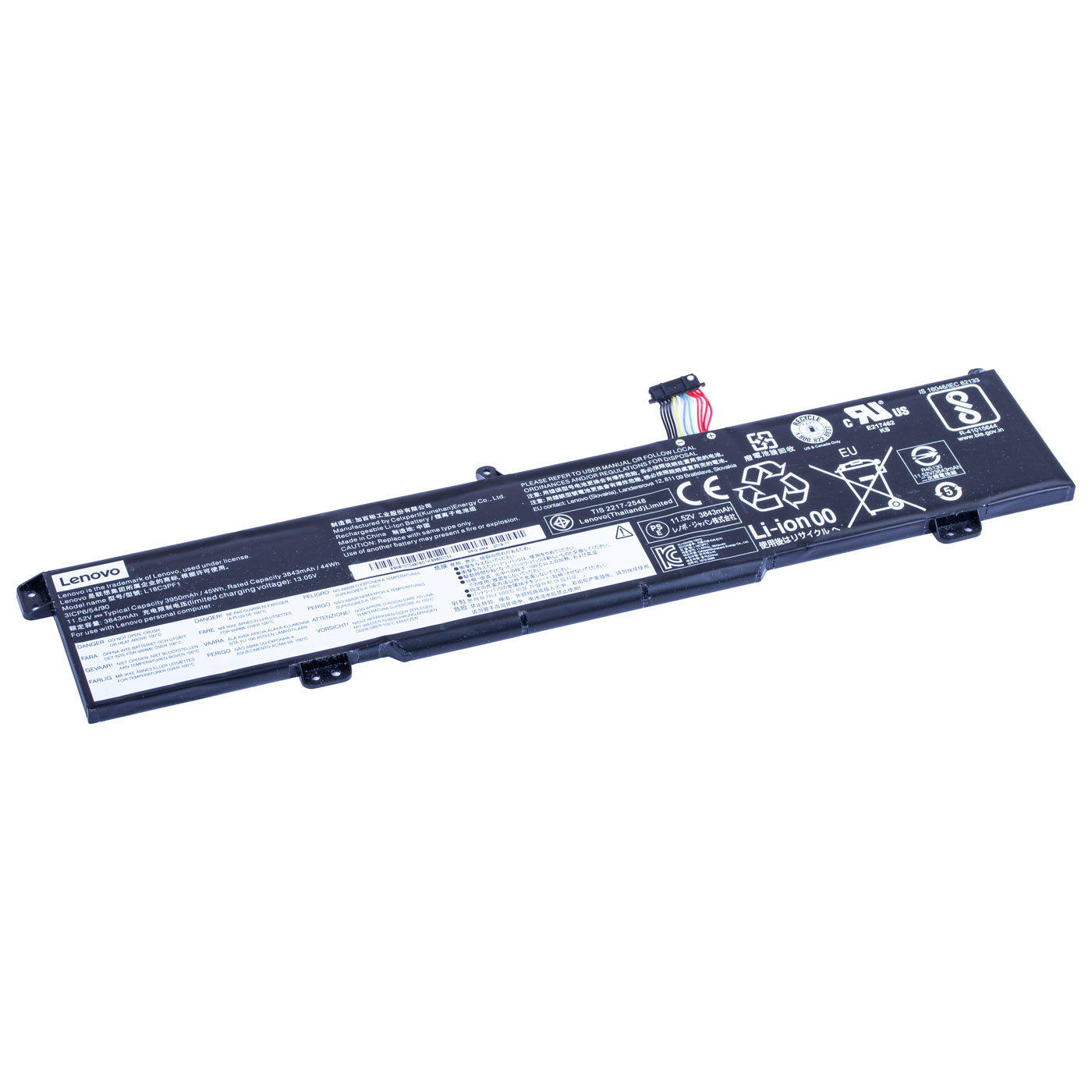

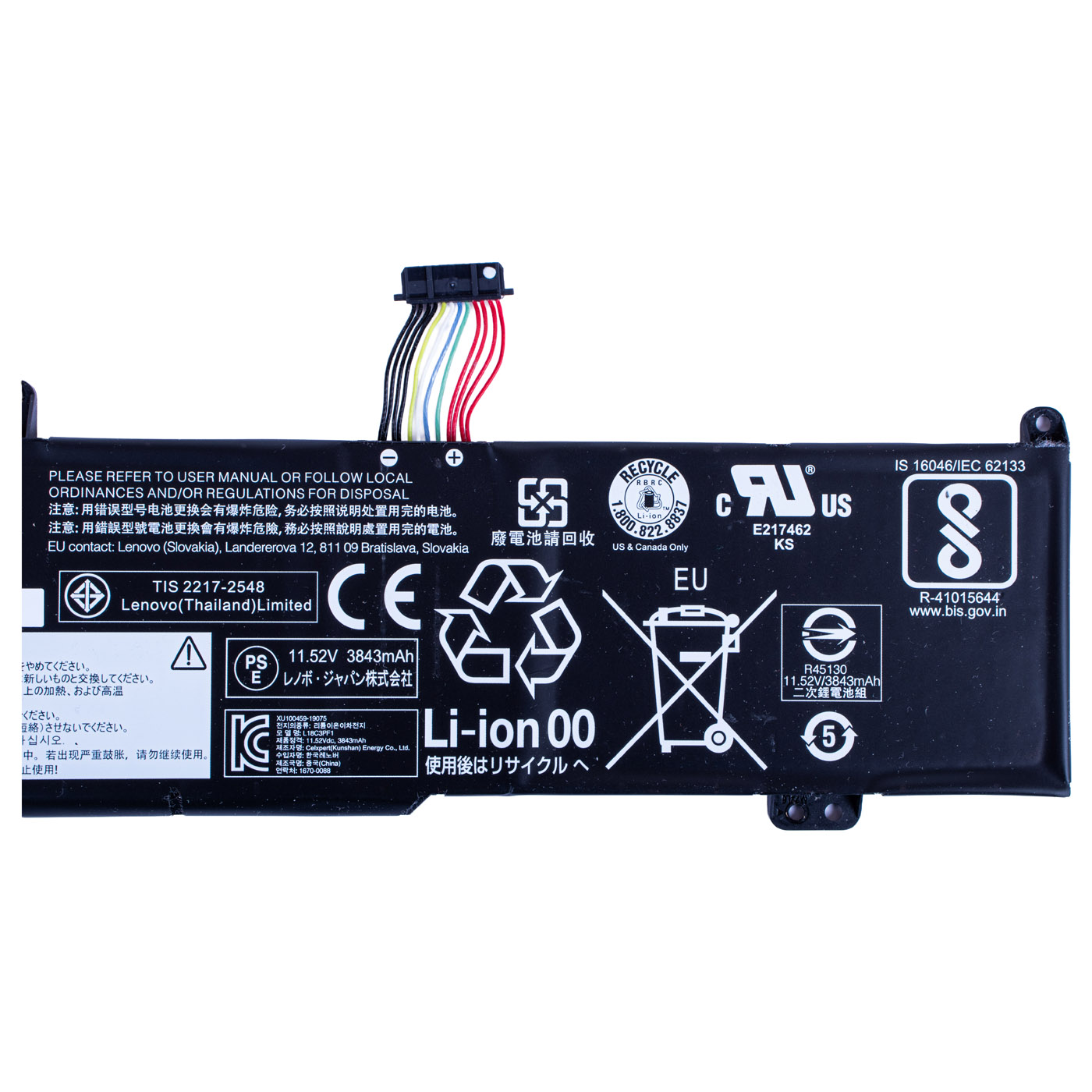

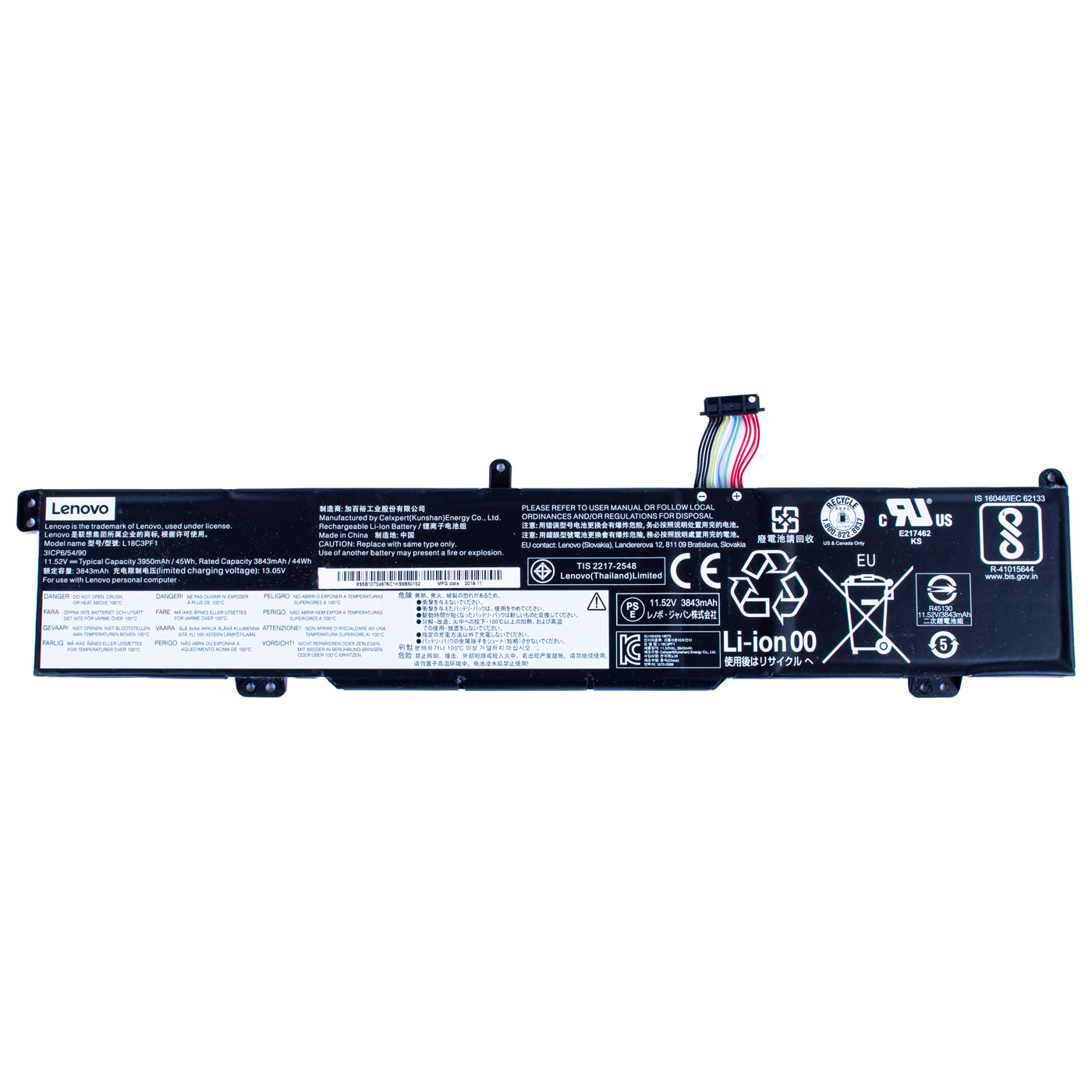

3-cell lithium-ion battery (3ICP6/54/90), manufactured by Celxpert (Kunshan) Energy for Lenovo. Voltage 11.52 V, design capacity 45 Wh, with a lead ending in a plug for the system board. This unit has 1573 charge cycles and retains 71% of its original capacity (32.37 Wh), as confirmed by a diagnostic software reading. The battery works properly and charges fully.

📋 TECHNICAL SPECIFICATIONS

Part name: Internal battery
Brand: Lenovo IdeaPad
Compatible model: IdeaPad L340-17IRH Gaming
Cell manufacturer: Celxpert (Kunshan) Energy Co., Ltd.
Battery model: L18C3PF1
Voltage: 11.52 V
Typical capacity: 45 Wh / 3950 mAh
Rated capacity: 44 Wh / 3843 mAh
Limited charging voltage: 13.05 V
Chemistry: Li-ion, 3-cell (3ICP6/54/90)
Production date: November 2019
Condition: Used (removed from a working unit, tested), 71% of original capacity
FRU: 5B10T04976
Substitute numbers: 5B10W67336, 5B10W67350, 5B10T04975
Lenovo description: CP/A L18C3PF1 11.52V45Wh3cell

📊 TECHNICAL CONDITION

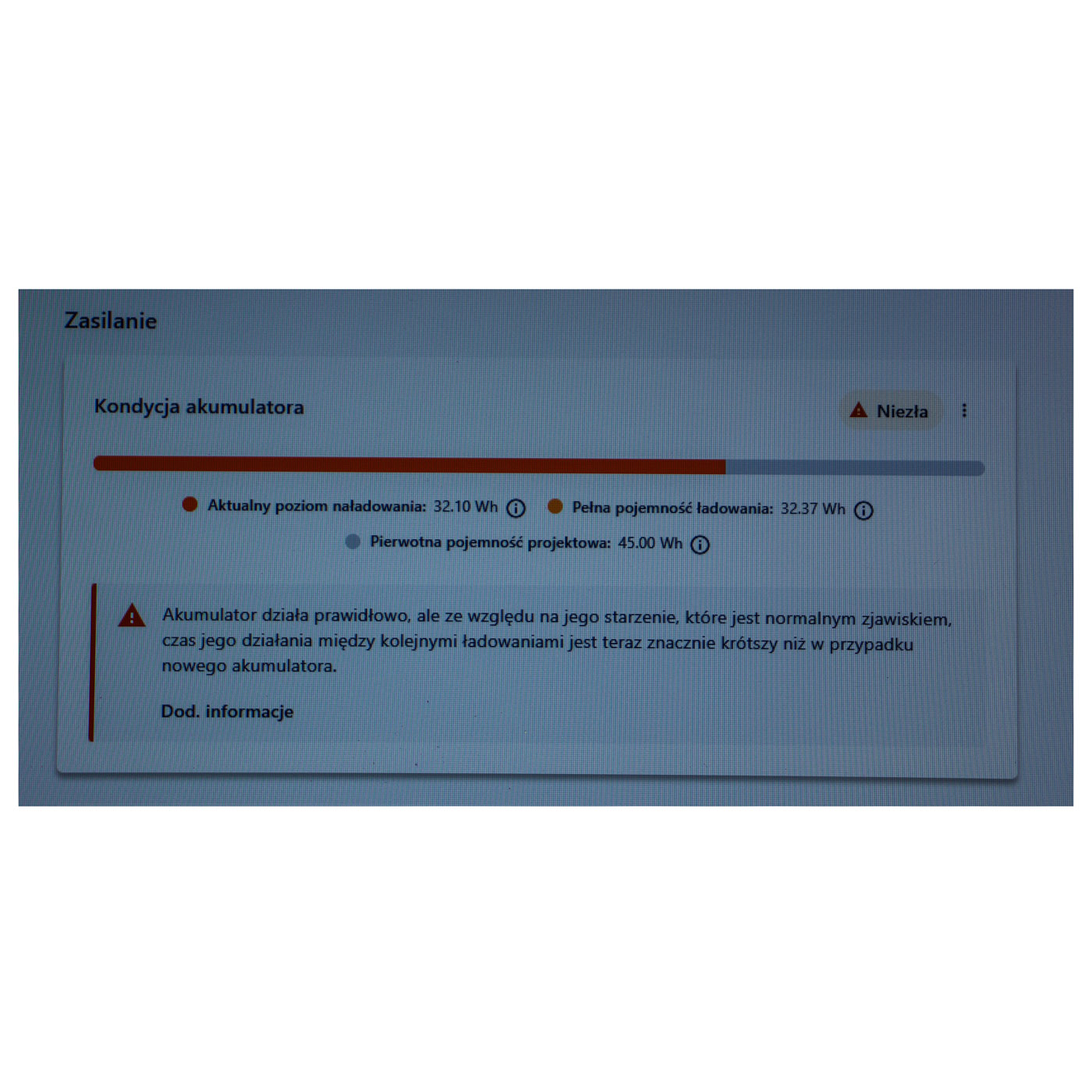

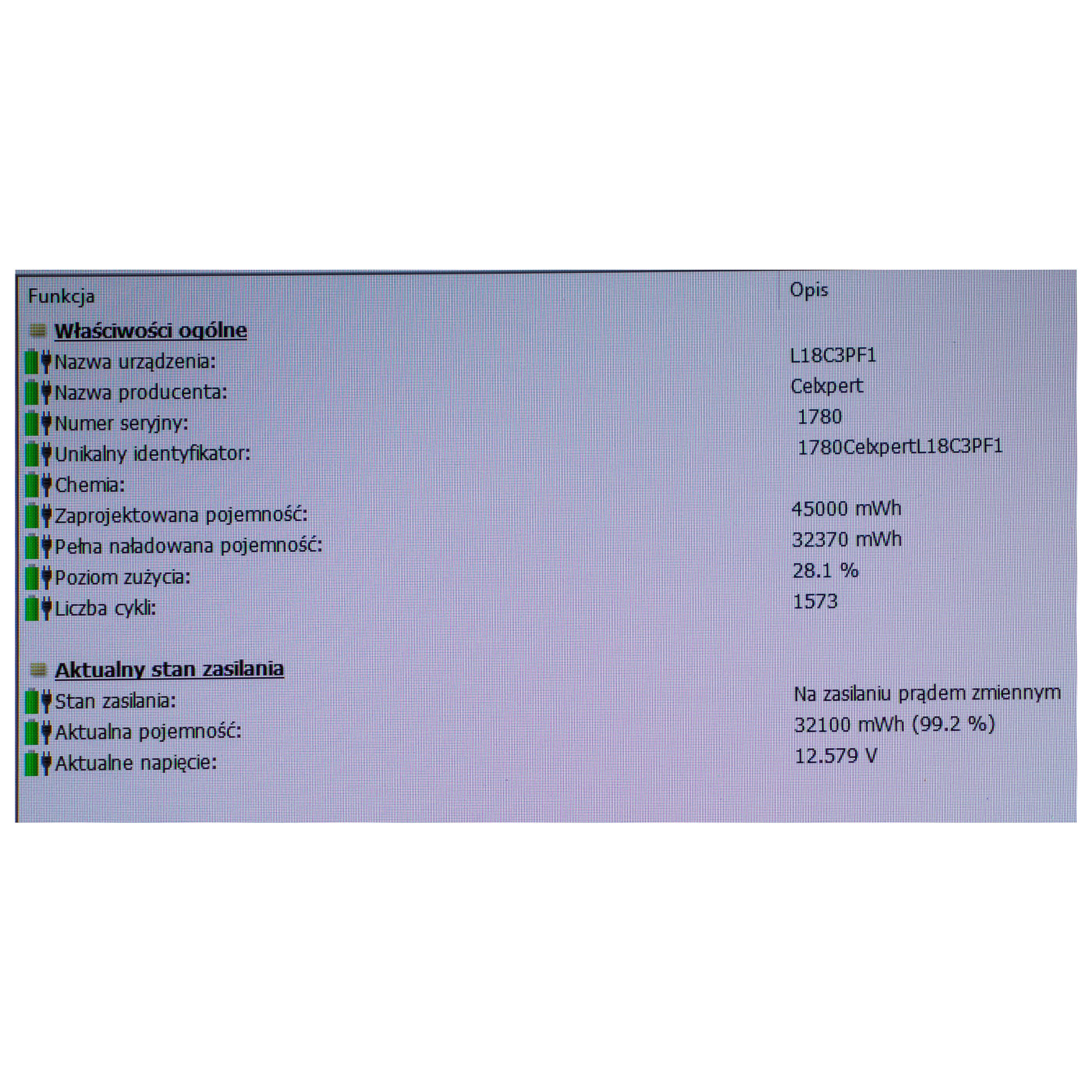

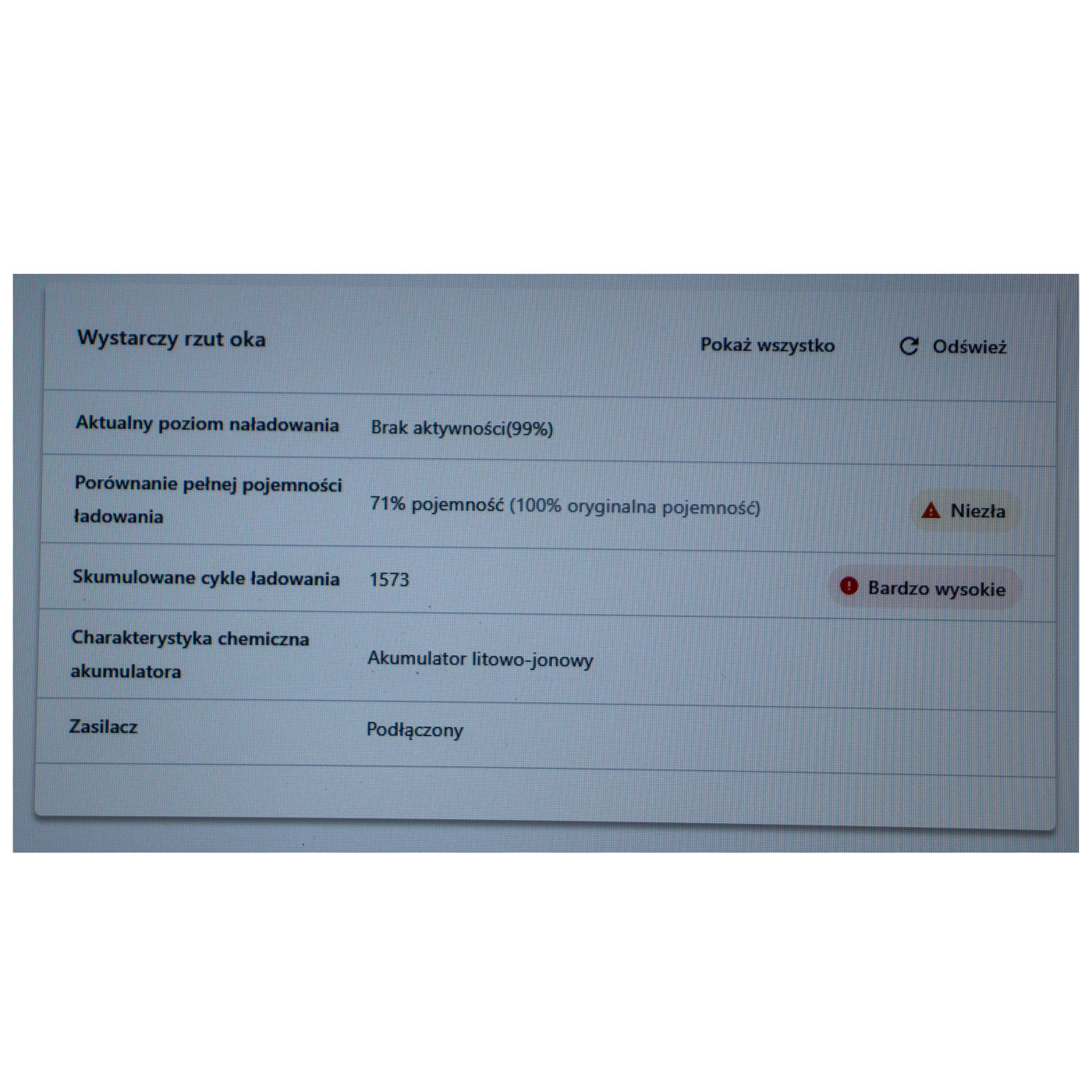

The battery has been checked with diagnostic software:
• full charge capacity: 32.37 Wh (32370 mWh)
• design capacity: 45.00 Wh (45000 mWh)
• health: 71% of original capacity (wear level 28.1%)
• charge cycles: 1573
• charge during test: 99.2% (32.10 Wh), voltage 12.579 V

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - perfect fit and reliability
🔹 Real condition stated up front - 71% capacity and 1573 cycles come from an actual reading, not a seller's claim, so you know exactly what you are buying
🔹 Charges fully and holds charge - the laptop works unplugged again, e.g. when moving between rooms or during a short meeting
🔹 Cost-effective solution - much cheaper than a new battery when the current one doesn't hold at all or the laptop dies when unplugged
🔹 Full compatibility - matched to the IdeaPad L340-17IRH under FRU 5B10T04976

🔢 PART NUMBERS

FRU: 5B10T04976
Substitute numbers: 5B10W67336, 5B10W67350, 5B10T04975 (L18M3PF1)
Battery model: L18C3PF1
Laptop model: Lenovo IdeaPad L340-17IRH Gaming

❓ WHEN SHOULD THE BATTERY BE REPLACED?

• The laptop dies as soon as you unplug the charger
• The charge level jumps, e.g. from 40% straight to 10%, and then the laptop shuts down
• The system shows "plugged in, not charging" or doesn't detect the battery at all
• Lenovo Vantage or Windows warns that the battery needs replacing
• A swollen battery lifts the touchpad or the bottom cover

🔧 INSTALLATION PROCESS

1. Power off the laptop and disconnect the power supply and all external devices
2. Remove the screws securing the bottom cover and carefully take it off
3. Unplug the battery from the system board
4. Remove the battery screws and take out the old battery
5. Insert the new battery, screw it in and plug it into the system board
6. Refit the bottom cover
7. Connect the charger, start the laptop and check that the battery is detected and charging
Installation by a technician or a person experienced in laptop repairs is recommended.

🎯 INTENDED USE

For users and repair shops who want an affordable way to restore unplugged use of a Lenovo IdeaPad L340-17IRH Gaming. A good choice when the current battery doesn't hold a charge or the laptop shuts down as soon as the charger is unplugged. The exact appearance and condition of the item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The battery on offer has been carefully checked and matched to the Lenovo IdeaPad L340-17IRH Gaming. We guarantee full compatibility for FRU 5B10T04976 and 100% functionality. If any compatibility issue occurs, we offer a hassle-free return within 14 days.
