🔧 WiFi + Bluetooth Card Realtek RTL8821CE for Lenovo IdeaPad L340 / S145 / V145 🔧

🖥️ IdeaPad L340 / S145 / V145 / 330 | M.2 2230 WiFi card | Wi-Fi 5 + Bluetooth 4.2 | 01AX710

Genuine Lenovo Realtek RTL8821CE wireless card (Wi-Fi 5 802.11ac, Bluetooth 4.2) in M.2 2230 form factor designed for Lenovo IdeaPad, V-series and IdeaCentre computers. Part sourced from a working device (IdeaPad L340-17IRH Gaming) and tested - we guarantee 100% functionality. FRU number 01AX710 guarantees full compatibility with the 52 Lenovo machine types listed below.

⚙️ PRODUCT CHARACTERISTICS

The 01AX710 card (Lenovo: Wireless, CMB, CBT, 8821CE) is a combo module that combines dual-band Wi-Fi 5 (2.4 GHz and 5 GHz) with Bluetooth 4.2 on a single Realtek RTL8821CE chip. It works in a 1x1 configuration with a maximum link rate of up to 433 Mbps. It fits an M.2 2230 slot (A+E key); Wi-Fi uses PCIe and Bluetooth uses USB. It has two MHF4 antenna connectors marked MAIN and AUX.

📋 TECHNICAL SPECIFICATIONS

Part name: WiFi + Bluetooth card (combo module)
Brand: Lenovo IdeaPad / Lenovo V / IdeaCentre
Chipset: Realtek RTL8821CE
Standard: Wi-Fi 5 (802.11a/b/g/n/ac), dual band 2.4 GHz + 5 GHz, 1x1
Maximum link rate: 433 Mbps
Bluetooth: 4.2
Form factor: M.2 2230, A+E key
Antenna connectors: 2x MHF4 (MAIN, AUX)
Compatible models: IdeaPad L340-15API / L340-17API, S145, V145, S540, 330, 330S, 130, V130, V14/V15-IWL, IdeaCentre A340, AIO 520/730S (full list below)
Removed from: Lenovo IdeaPad L340-17IRH Gaming
Condition: Used (removed from a working device, tested)
FRU: 01AX710
Substitute numbers: 01AX763, 01AX764, 01AX718, 01AX731, 01AX709, 02HK703, 00JT475, 00JT497

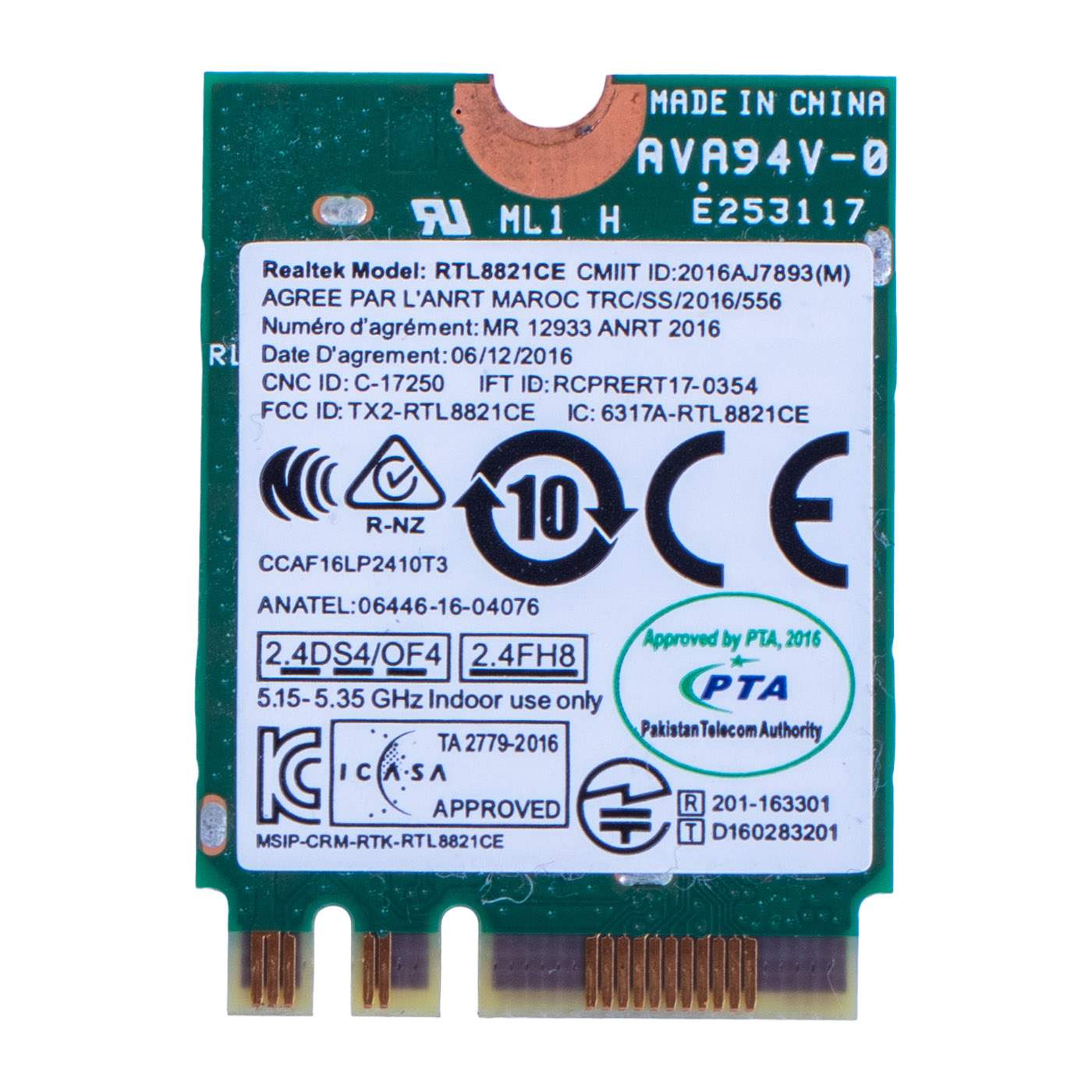

Part markings: RTL8821CE, FCC ID: TX2-RTL8821CE, SW10K97462

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - the same module Lenovo installs at the factory, so drivers from Lenovo Vantage and Windows Update install without any hassle
🔹 Dual band 2.4 and 5 GHz - on 5 GHz you avoid your neighbours' crowded channels, so video calls and streaming stop stuttering
🔹 Wi-Fi and Bluetooth on one card - one replacement brings back both your internet and pairing with headphones, mouse or phone
🔹 Wide compatibility - 52 Lenovo machine types, from IdeaPad L340 and S145 to IdeaCentre A340 All-in-One computers
🔹 Full compatibility - matched under FRU number 01AX710

🔢 PART NUMBERS

FRU: 01AX710
Substitute numbers: 01AX763, 01AX764 (Realtek 8821CE), 01AX718, 01AX731, 01AX709 (Qualcomm NFA435A), 02HK703 (Realtek 8822CE), 00JT475, 00JT497 (Intel 3165)
Part markings: RTL8821CE, FCC ID: TX2-RTL8821CE, SW10K97462
Compatible models according to Lenovo:
IdeaPad 520-15IKB (81BF), 720-15IKB (81C7), 330-15ARR (81D2), 330 Touch-15ARR (81D3), 330-14AST (81D5), 330-15AST (81D6), 330-17AST (81D7), 530S-15IKB (81EV), 330-15ICN (81EY), 330S-14AST (81F8), 330S-15AST (81F9), 330S-15ARR (81FB), 130-14AST (81H4), S130-11IGM (81J1), S130-14IGM (81J2), 130S-11IGM (81KT), 130S-14IGM (81KU), L340-15API (81LW), L340-15API Touch (81LX), L340-17API (81LY), S145-14IWL (81MU), S145-15IWL (81MV), S145-14IGM (81MW, 81SB), S145-15IGM (81MX, 81WT), S145-15AST (81N3), S145-14AST (81ST), S540-15IWL (81NE, 81Q1), S540-14API (81NH)
Lenovo V130-15IGM (81HL), V130-14IGM (81HM), V145-14AST (81MS), V145-15AST (81MT), V155-15API (81V5), V14-IWL (81YB), V15-IWL (81YE)
IdeaCentre 310S-08ASR (90G9), 720-18APR (90HY), 510A-15ARR (90J0), Legion T530-28APR (90JY)
IdeaCentre AIO 520-24AST (F0D3), AIO 330-20IGM (F0D7), AIO 520-24ARR (F0DN), AIO 730S-24IKB (F0DX, F0DY), A340-24ICB (F0E6), A340-24IGM (F0E7), A340-24IWL (F0E8), A340-22ICB (F0E9), A340-22IGM (F0EA), A340-22IWL (F0EB), A340-22AST (F0EQ), A340-24ICK (F0ER), A340-22ICK (F0ES)

❓ WHEN SHOULD YOU REPLACE THE WIFI CARD?

• Problem with a faulty WiFi card - the laptop does not see any networks and the card is missing from Device Manager or shows a yellow exclamation mark
• Problem with constant disconnections - Wi-Fi drops every few minutes even though the router is close by
• Problem with Bluetooth not working - headphones and mouse will not pair, or the Bluetooth toggle has disappeared from the system
• Problem with no 5 GHz networks - the laptop only sees 2.4 GHz networks and the connection is slow
• Problem with slow Wi-Fi from an old card - you want full link speed back with a genuine Lenovo card

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power and all external devices
2. Remove the screws securing the bottom cover and carefully take it off
3. Disconnect the battery from the motherboard
4. Gently disconnect both antenna cables from the MHF4 connectors of the old card by lifting them straight up
5. Remove the screw securing the card and slide it out of the M.2 slot at an angle
6. Insert the new 01AX710 card into the M.2 slot at about 30°, press it down and secure it with the screw
7. Connect the antenna cables: main cable to MAIN (1), auxiliary cable to AUX (2), pressing straight down until they snap in
8. Reconnect the battery, refit the bottom cover and tighten the screws
9. Start the laptop, install the Realtek driver (Lenovo Vantage or Windows Update) and check both Wi-Fi and Bluetooth
Replacement by a technical service or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

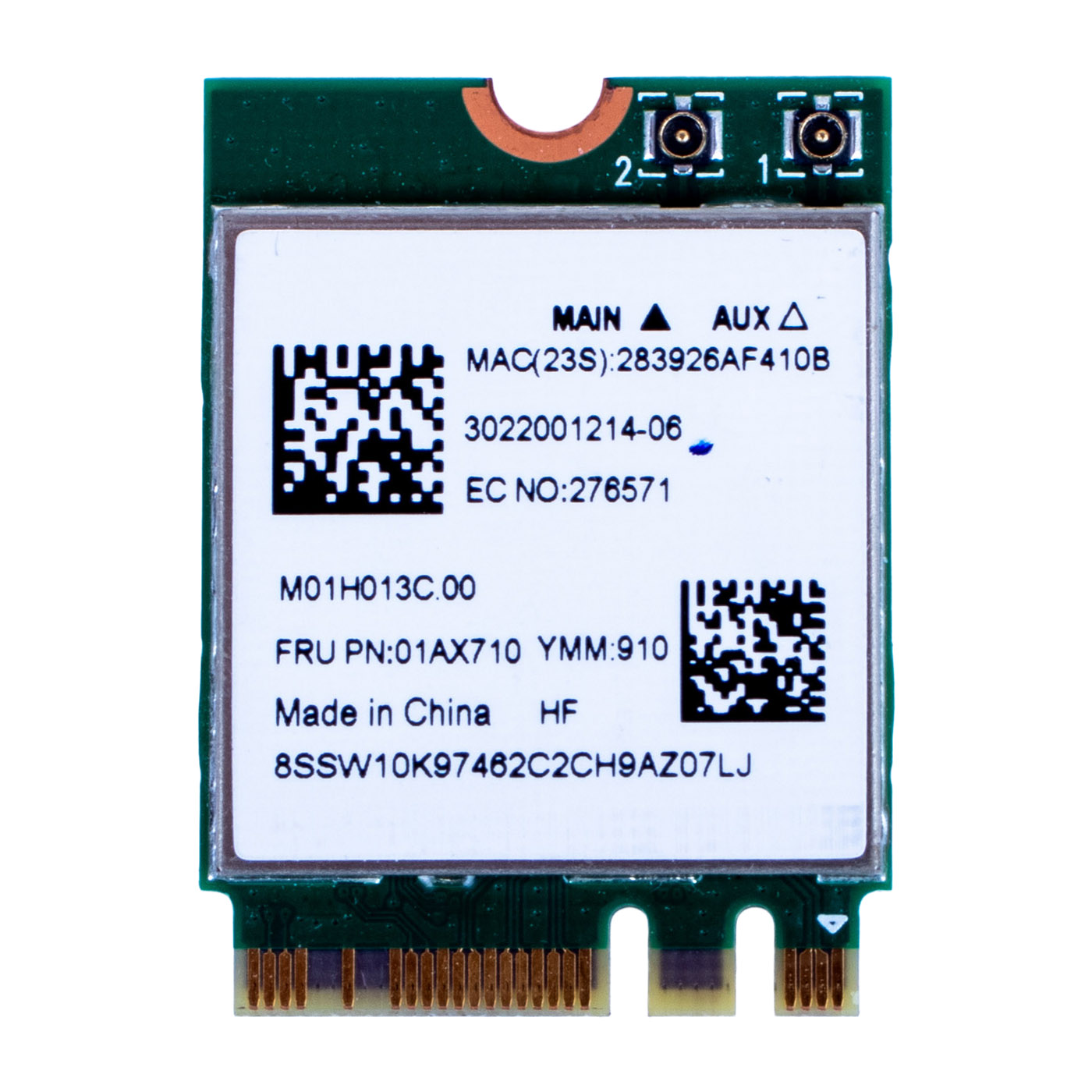

This card is intended for owners of IdeaPad, Lenovo V and IdeaCentre computers with Wi-Fi or Bluetooth problems who want to restore connectivity with a genuine Lenovo part instead of an unknown replacement. It is also a good way to get a stable 5 GHz connection back. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered WiFi card has been carefully checked and matched to the Lenovo models listed in this description. We guarantee full compatibility with FRU number 01AX710 and 100% functionality of the part. If you experience any compatibility issues, we offer a hassle-free return within 14 days.
