🔧 Lenovo 45W 20V AC Adapter for ThinkPad and IdeaPad Laptops, Rectangular Tip 🔧

🖥️ ThinkPad T440 T450 T460 T470 X240 X250 X260 X270 | 45W slim tip AC adapter | 01FR035

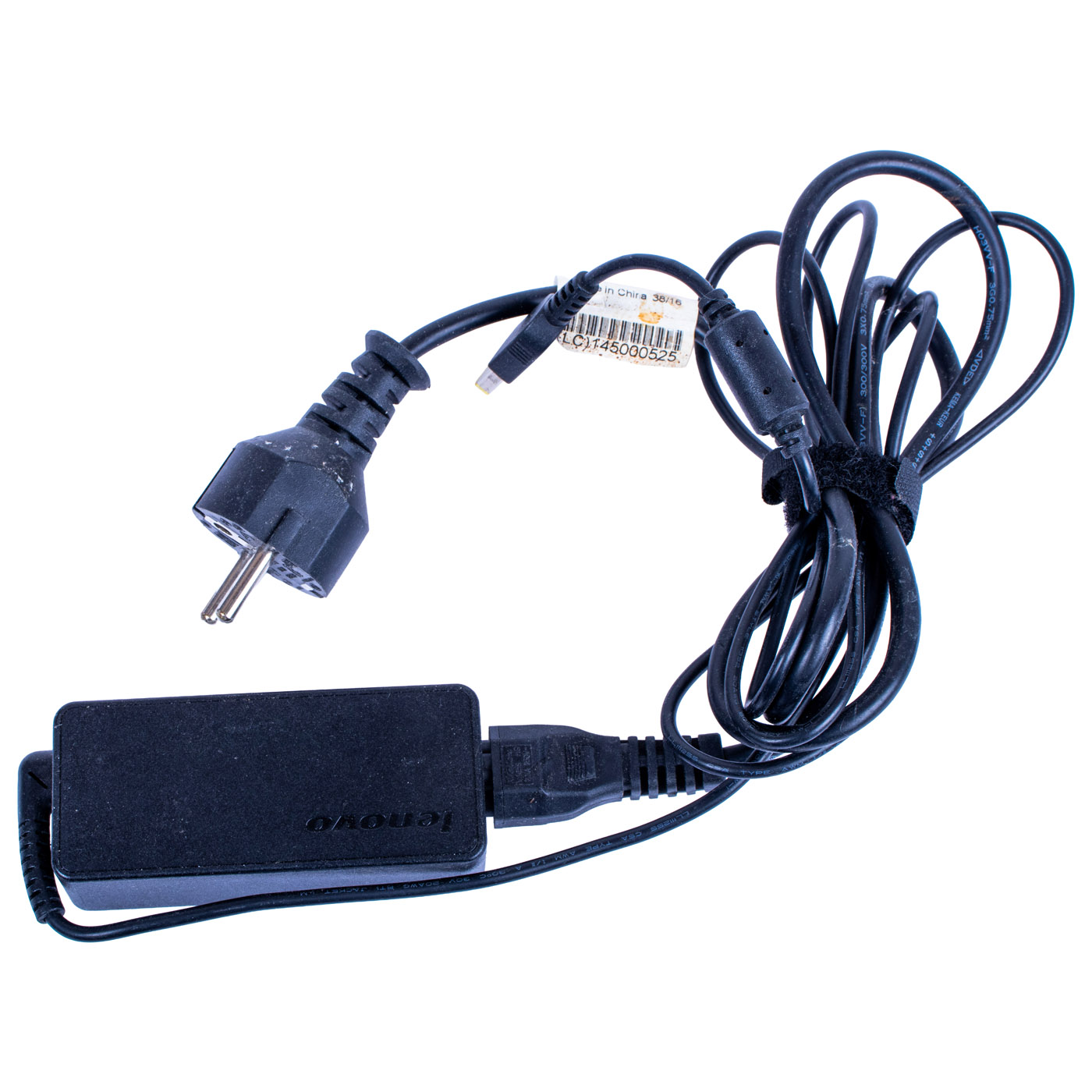

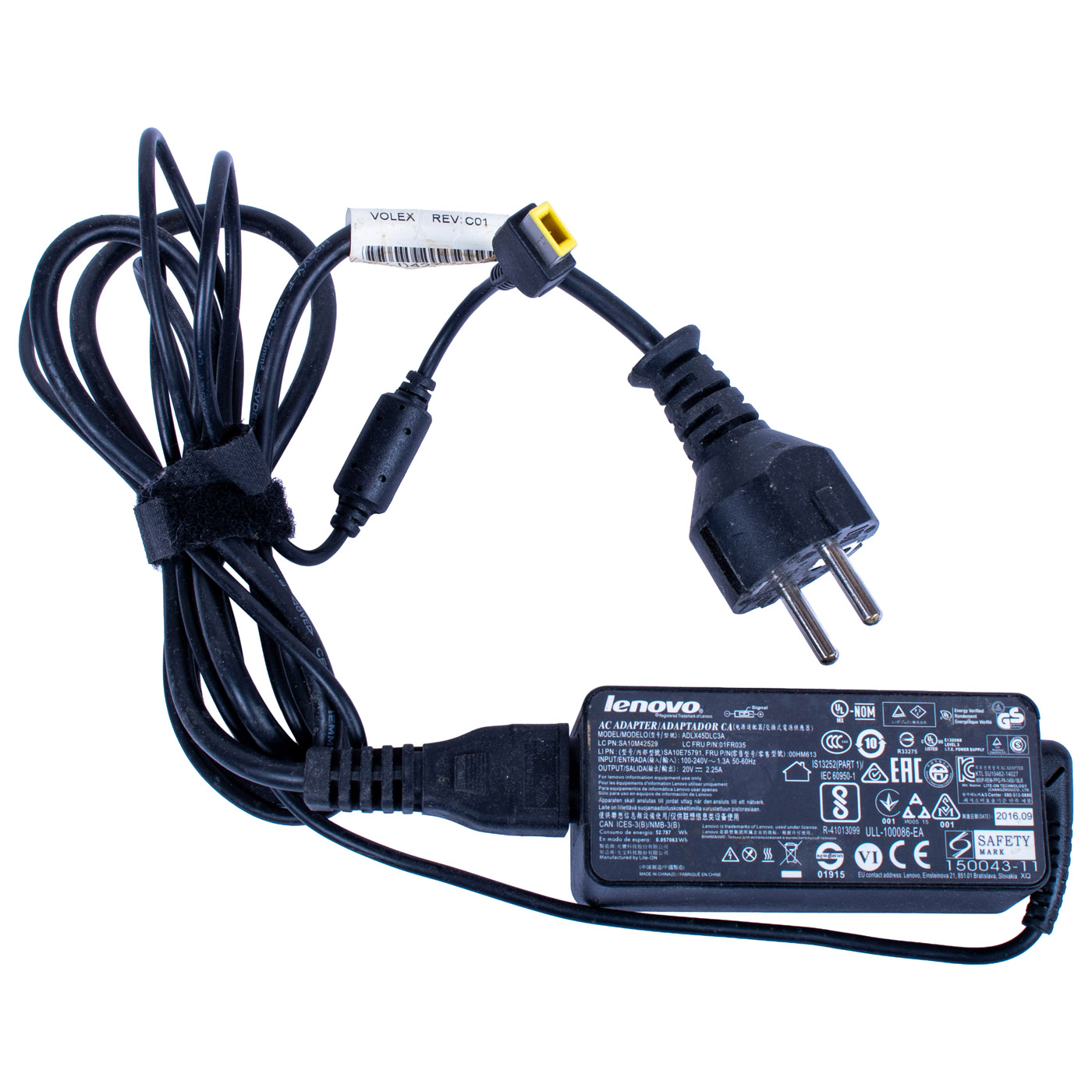

Genuine Lenovo 45W (20V, 2.25A) AC adapter with a rectangular slim tip connector, model ADLX45DLC3A manufactured by Lite-On. Used adapter, tested and 100% functional. Lenovo assigns FRU 01FR035 and its substitutes to several hundred ThinkPad, IdeaPad, Yoga, Flex and V-series models with a rectangular power jack.

⚙️ PRODUCT CHARACTERISTICS

45W AC/DC power adapter with 20V output at 2.25A and a yellow rectangular slim tip. It works on any 100-240V 50/60Hz mains, so it is also suitable for travel abroad. The label carries LC FRU 01FR035, FRU 00HM613, LC PN SA10M42529 and LI PN SA10E75791. Supplied with a power cord with a European plug, connected to the adapter by a three-pin socket.

📋 TECHNICAL DATA

Part name: 45W AC/DC power adapter
Brand: Lenovo
Adapter model: ADLX45DLC3A (Lite-On)
Power: 45W
Output: 20V, 2.25A
Input: 100-240V, 1.3A, 50-60Hz
Connector: rectangular slim tip (yellow)
Power cord socket: three-pin (3-pin)
Package contents: adapter + power cord with European plug
Condition: Used, tested, 100% functional
Warranty: 6 months
FRU: 01FR035
Cross reference numbers: 01FR038, 01FR047, 01FR053, 00HM613, 00HM611, 00HM615, 00HM618, 00HM624, 00HM630, 00HM659, 45N0290, 45N0294, 45N0298, 45N0490, 45N0491, 45N0492, 5A10H03910, 5A10H03911, 5A10H03912, 5A10J46687, 5A10J75117, 5A10K02213, 36200245, 36200246, 36200247, 36200602, 36200606, 36200610

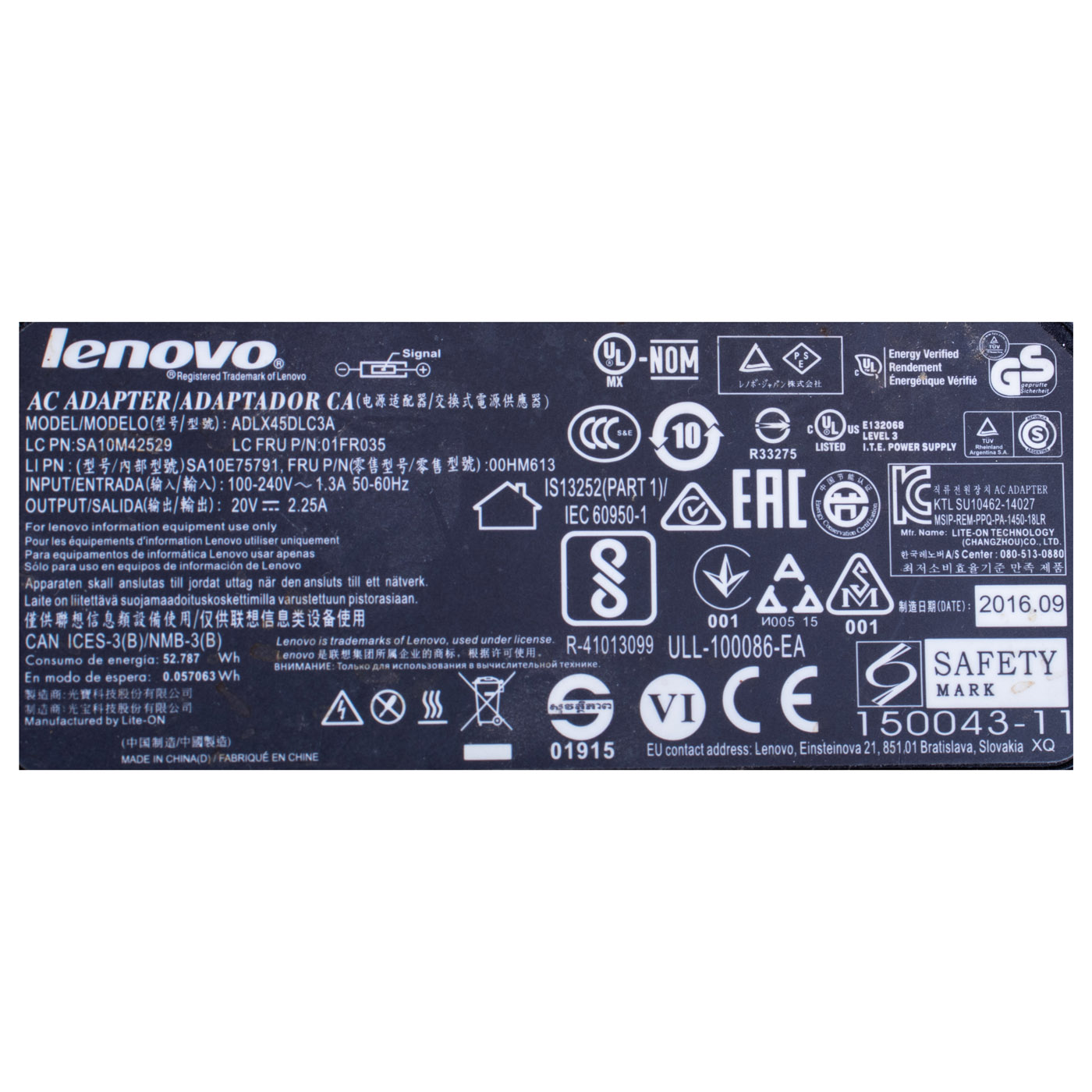

Label markings: ADLX45DLC3A, LC PN SA10M42529, LI PN SA10E75791, FRU 00HM613, Lite-On

💻 COMPATIBLE MODELS

Lenovo ThinkPad:
• X240, X240s, X230s, X250, X260, X270
• T440*, T440s*, T450, T450s, T460, T460s, T470, T470s, T560, T570
• L450, L460, L470, L560
• E450*, E455*, E460*, E465*, E470, E475, E550*, E555*, E560*, E565*, E575
• X1 Carbon 2nd Gen, X1 Carbon 3rd Gen, X1 Carbon 4th Gen, X1 Yoga 1st Gen
• Yoga 260, Yoga 370, Yoga 460, ThinkPad Yoga 14
• ThinkPad 13, 13 Gen 2, 11e, 11e 3rd Gen, 11e 4th Gen, Yoga 11e, 11e Chromebook, A275, A475, Helix
* integrated graphics versions (Lenovo shipped discrete graphics versions with a 65W adapter)

Lenovo IdeaPad, Yoga, Flex, G, B, E, V, Z, U, S series:
• IdeaPad 300-14IBR, 300-14ISK, 300-15IBR, 300-15ISK, 300-17ISK, 300S-11IBR, 300S-14ISK
• IdeaPad 305-14IBD, 305-15ABM, 305-15IBD, 305-15IBY, 305-15IHW, 500-14ISK, 500-15ACZ, 500-15ISK, 500S-13ISK, 500S-14ISK
• Yoga 300-11IBR, 300-11IBY, Yoga 500-14ACL, 500-14IBD, 500-14IHW, 500-14ISK, 500-15IBD, 500-15IHW, 500-15ISK, Yoga 11s
• Flex 2-14, Flex 2 Pro-15, Flex 3-1120, 3-1130, 3-1470, 3-1480, 3-1570, 3-1580
• G40-30, G40-45, G40-70, G40-80, G41-35, G50-30, G50-45, G50-80, G51-35, G70-35, G70-70, G70-80
• B40-30, B40-70, B40-80, B41-30, B41-35, B41-80, B50-80, B51-30, B51-35, B51-80, B70-80, B71-80
• E31-70, E31-80, E40-30, E40-70, E40-80, E41-80, E50-70, E50-80, E51-80, Edge 15, Edge 2-1580
• V110-14AST, V110-14IAP, V110-15AST, V110-15IAP, V110-15IKB, V110-15ISK, V130-14IGM, V130-14IKB, V130-15IGM, V130-15IKB
• V310-14IKB, V310-14ISK, V310-15IKB, V310-15ISK, V330-14ARR, V330-14IKB, V330-14ISK, V330-15IKB, V330-15ISK, V510-14IKB, V510-15IKB, V730-13
• Z41-70, Z50-75, Z51-70, Z70-80, U31-70, U41-70, S21e-20, S41-70, S210

List based on Lenovo Parts Lookup (FRU 01FR035 and substitutes) and the PSREF specifications of each model.

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo adapter - the laptop recognises it correctly, with no unknown adapter warnings
🔹 One adapter for many laptops - the same slim tip fits ThinkPad, IdeaPad and Yoga models from 2013-2018, so a home or office with several Lenovo laptops needs only one charger type
🔹 Compact and light - fits in a laptop bag pocket, no heavy brick to carry
🔹 Wide 100-240V input range - works in Poland and abroad, only a plug adapter is needed
🔹 Tested before shipping - used adapter, tested, with a 6-month warranty
⚠️ Laptops shipped with a 65W adapter (e.g. T450s, T460s, X1 Carbon in higher configurations) run on 45W, but charge more slowly and may draw from the battery under full load.

🔢 PART NUMBERS

FRU: 01FR035
Cross reference numbers: 01FR038, 01FR047, 01FR053, 00HM613, 00HM611, 00HM615, 00HM618, 00HM624, 00HM630, 00HM659, 45N0290, 45N0294, 45N0298, 45N0490, 45N0491, 45N0492, 5A10H03910, 5A10H03911, 5A10H03912, 5A10J46687, 5A10J75117, 5A10K02213, 36200245, 36200246, 36200247, 36200602, 36200606, 36200610
Adapter model: ADLX45DLC3A (equivalent models: ADLX45NDC3A, ADLX45NCC3A, ADLX45NLC3A, ADLX45NAC3A)
Label markings: ADLX45DLC3A, LC PN SA10M42529, LI PN SA10E75791, FRU 00HM613, Lite-On

❓ WHEN SHOULD YOU REPLACE THE AC ADAPTER?

• Problem with battery charging - the adapter is plugged in, but the charge level stays the same or drops
• Problem with intermittent power - the laptop keeps switching between battery and charging, especially when the cable moves
• Problem with a damaged cable or tip - frayed insulation, bent connector, loose fit in the jack
• Problem with an overheating or whining adapter during use
• Problem with a missing adapter - lost, left at work, or a second one needed for home or travel

🔧 CONNECTION

1. Connect the power cord to the three-pin socket on the adapter
2. Plug the cord into a 100-240V mains outlet
3. Connect the rectangular slim tip to the laptop power jack (the tip fits either way up)
4. Check that the charging LED lights up and the system shows the battery charging
No drivers or configuration are required.

🎯 PURPOSE

An adapter to replace a worn or lost charger, as a second adapter for home or office, or a spare for travel. It fits Lenovo laptops with a rectangular power jack for which the manufacturer specifies a 45W adapter. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered adapter has been tested and matched by FRU 01FR035 and its substitutes from the Lenovo database. We guarantee full compatibility with the listed models and 100% functionality. The adapter comes with a 6-month warranty, and if there is any compatibility issue we offer a hassle-free return within 14 days.

📞 NEED HELP? CONTACT OUR EXPERTS!

Not sure whether this adapter fits your laptop? Send us the model or MTM number from the sticker on the bottom of your laptop and we will check it in the Lenovo database. Contact us!
📱 Phone: +48-601-415357
📧 Email: sklep@abcdeal.pl

🦁 ABCDEAL - Your Trusted Lenovo Parts Specialist

We have been specialising in delivering genuine Lenovo laptop parts for years. Our experience allows us to offer top quality products that meet the expectations of even the most demanding customers. Trust the experts and restore your laptop to full working order.

🎯 Choose professionals - invest in quality!

By choosing a genuine Lenovo 45W adapter from our offer, you get safe, stable charging instead of a cheap uncertified replacement. Benefit from the experience of ABCDEAL specialists.
