🔧 Memory Module Bracket for Lenovo ThinkPad P15 Gen 1 / T15g Gen 1 🔧

🖥️ ThinkPad P15 Gen 1 / T15g Gen 1 | Under-keyboard RAM bracket (DDR bracket) | EC1K9000200

Genuine metal bracket covering the memory module under the keyboard for Lenovo ThinkPad P15 Gen 1 and ThinkPad T15g Gen 1 laptops. Part sourced from a working device and tested - we guarantee 100% functionality. Part number EC1K9000200 guarantees full compatibility with ThinkPad P15 Gen 1 and T15g Gen 1.

⚙️ PRODUCT CHARACTERISTICS

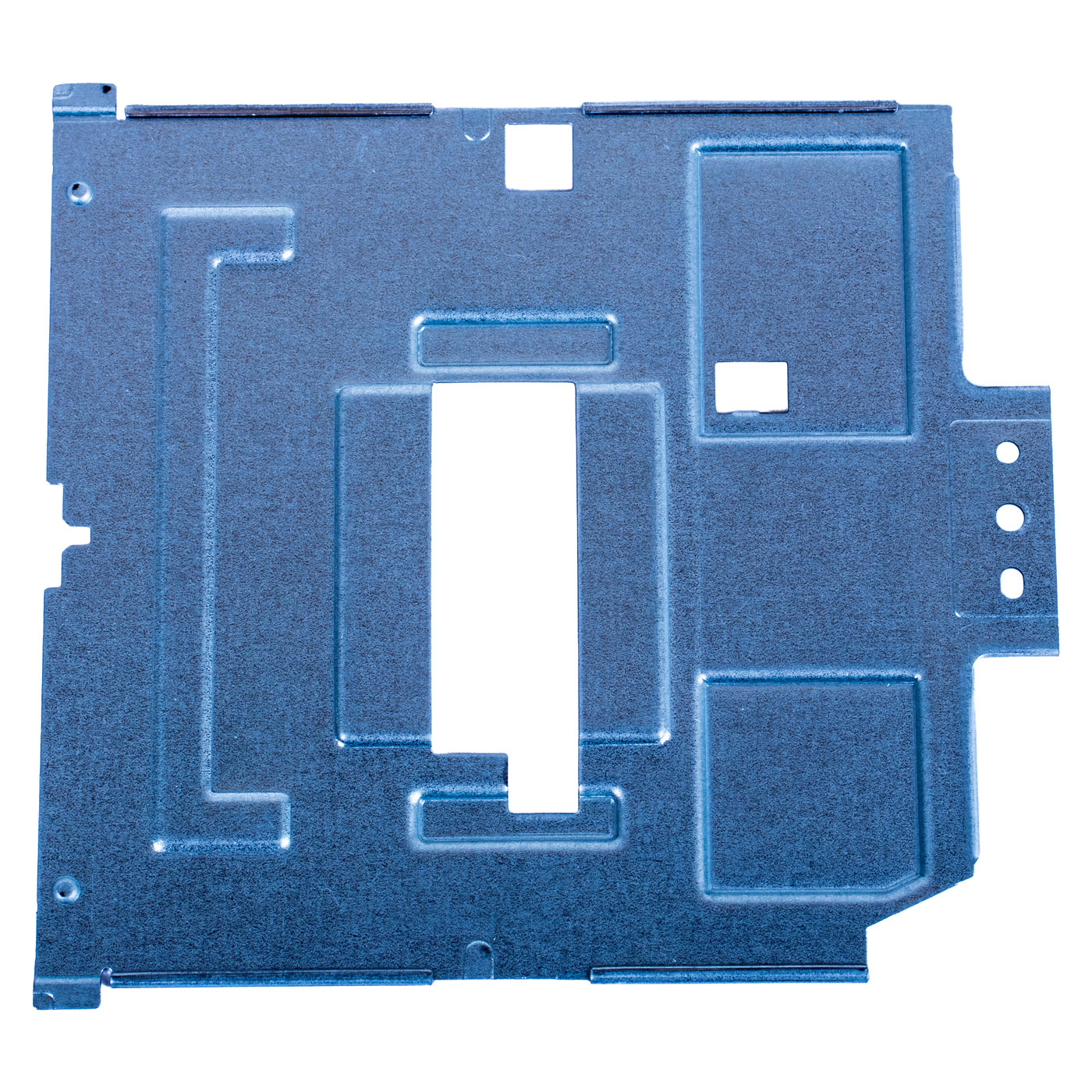

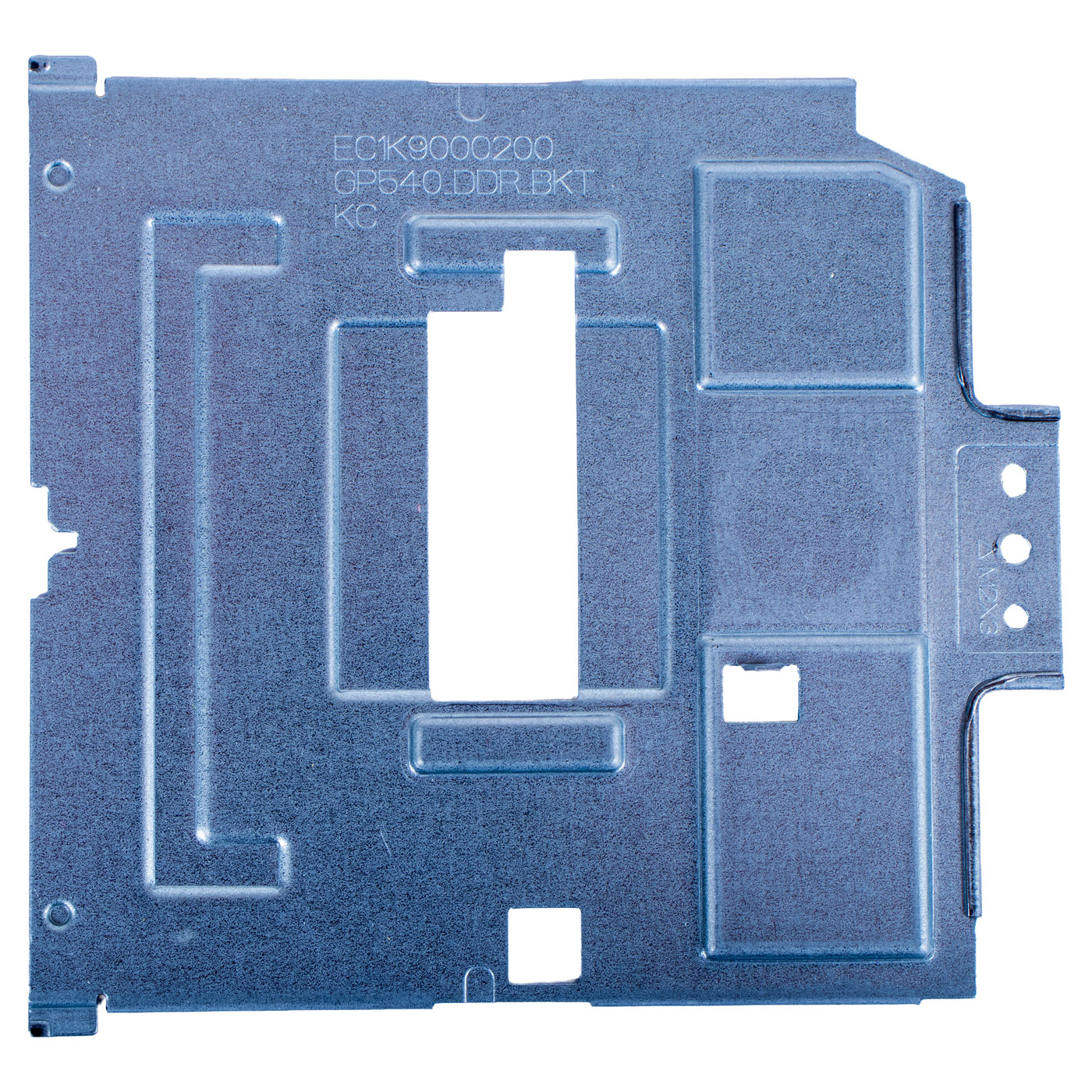

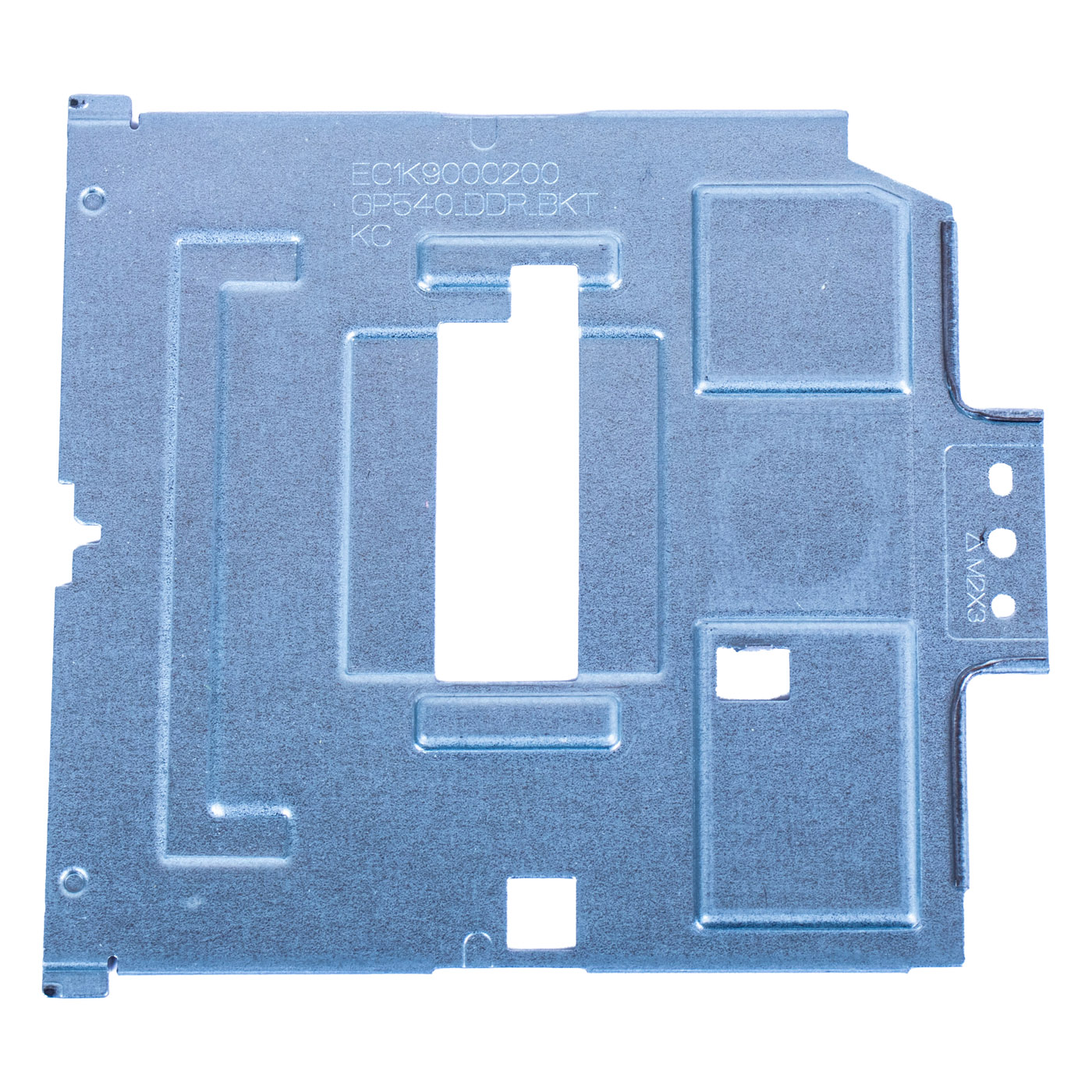

The bracket covers the memory slot located under the keyboard (in ThinkPad P15 Gen 1 and T15g Gen 1 some memory slots sit under the keyboard and some under the bottom door). It is made of sheet steel with factory stiffening ribs and mounting cut-outs. The plate is embossed with EC1K9000200 and GP540_DDR_BKT, and the mounting tab is marked M2X3 for the screw size. In the Lenovo service manual the part is listed as Memory module bracket.

📋 TECHNICAL SPECIFICATIONS

Part name: Memory module bracket (under keyboard)
Brand: Lenovo ThinkPad
Compatible model: ThinkPad P15 Gen 1 (20ST, 20SU), ThinkPad T15g Gen 1 (20UR, 20US)
Material: Sheet steel
Mounting: 1 × M2 × 3 mm screw

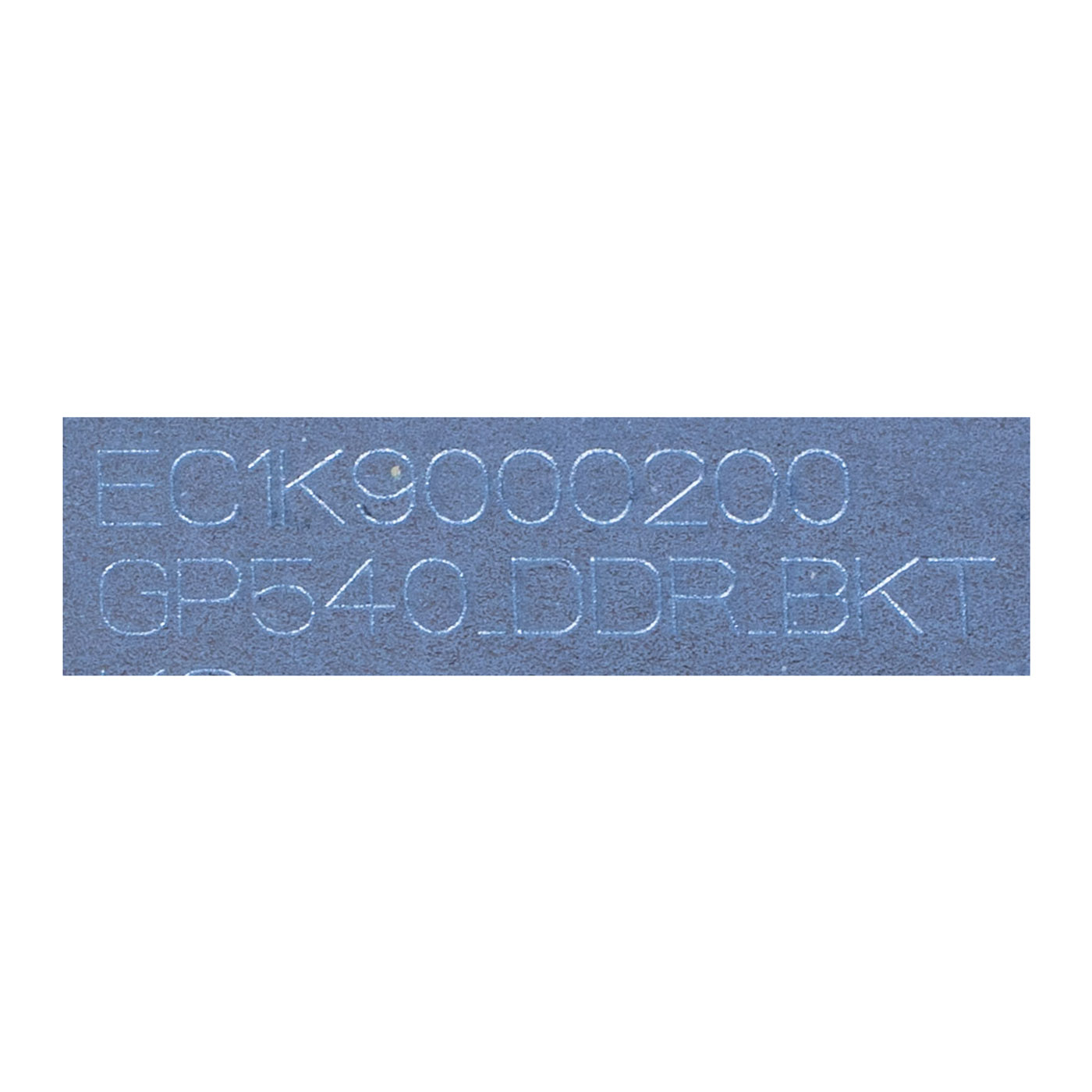

Markings on the part: EC1K9000200, GP540_DDR_BKT, KC, M2X3
Condition: Used (removed from a working unit, tested)
Warranty: 6 months
FRU: EC1K9000200

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - factory shape and cut-outs, the bracket sits exactly on its mounting points
🔹 Rigid ribbed steel - the bracket does not flex, so the keyboard above it lies flat
🔹 Factory protection for the RAM module - the memory under the keyboard is covered just like in a new laptop
🔹 Single-screw mounting - replacement takes a few minutes once the keyboard is out
🔹 Full compatibility - matched to ThinkPad P15 Gen 1 and T15g Gen 1 (GP540 platform)

🔢 PART NUMBERS

FRU: EC1K9000200
Markings on the part: GP540_DDR_BKT, KC
Laptop model: Lenovo ThinkPad P15 Gen 1, Lenovo ThinkPad T15g Gen 1

❓ WHEN SHOULD YOU REPLACE THE MEMORY MODULE BRACKET?

• Problem with a missing bracket - it got lost during a memory upgrade or the laptop came without it
• Problem with a bent bracket - the plate does not sit flat and the keyboard above it is uneven
• Problem with a broken mounting tab - the screw has nothing to hold on to
• Problem with completing a laptop after repair - original internal parts are missing

🔧 INSTALLATION PROCESS

1. Turn off Windows Fast Startup, restart the laptop, press F1 and in ThinkPad Setup select Config → Power → Disable built-in battery. The laptop turns off, wait 3-5 minutes. Remove the nano-SIM card if installed
2. Unscrew and remove the bottom door
3. Remove the keyboard
4. Remove the bracket screw (M2 × 3 mm, black) and take off the old bracket
5. Make sure the memory module is firmly seated in its slot
6. Fit the new bracket and tighten the screw to 0.181 Nm (1.85 kgf-cm) without excessive force
7. Reassemble in reverse order and connect the AC adapter, which re-enables the built-in battery
Replacement by a technical service or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

This bracket is intended for users and repair shops working on ThinkPad P15 Gen 1 and T15g Gen 1 laptops that lack the original under-keyboard memory bracket after a RAM upgrade or repair, or where it is bent. Replacing it restores the laptop's factory internal completeness. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered bracket has been carefully checked and matched to Lenovo ThinkPad P15 Gen 1 and T15g Gen 1. We guarantee full compatibility within part number EC1K9000200 and 100% functionality of the part. In case of any compatibility issues, we offer a hassle-free return within 14 days.
