🔧 Intel AX201 vPro WiFi Module for Lenovo ThinkPad P15 / P17 / T15g / L13 🔧

🖥️ ThinkPad P15 Gen 1 / P17 Gen 1 / T15g Gen 1 / L13 Gen 1 | Wi-Fi 6 + Bluetooth 5.0 M.2 CNVi card | 01AX797

Genuine Intel Wi-Fi 6 AX201 vPro (AX201NGW) network card with Bluetooth 5.0 for Lenovo ThinkPad P15 Gen 1, P17 Gen 1, T15g Gen 1, L13 Gen 1 and L13 Yoga Gen 1 laptops, as well as ThinkStation P340 and Legion T7 workstations. Part sourced from a working device (ThinkPad P15 Gen 1) and tested - we guarantee 100% functionality. FRU number 01AX797 guarantees full compatibility with the listed models.

⚙️ PRODUCT CHARACTERISTICS

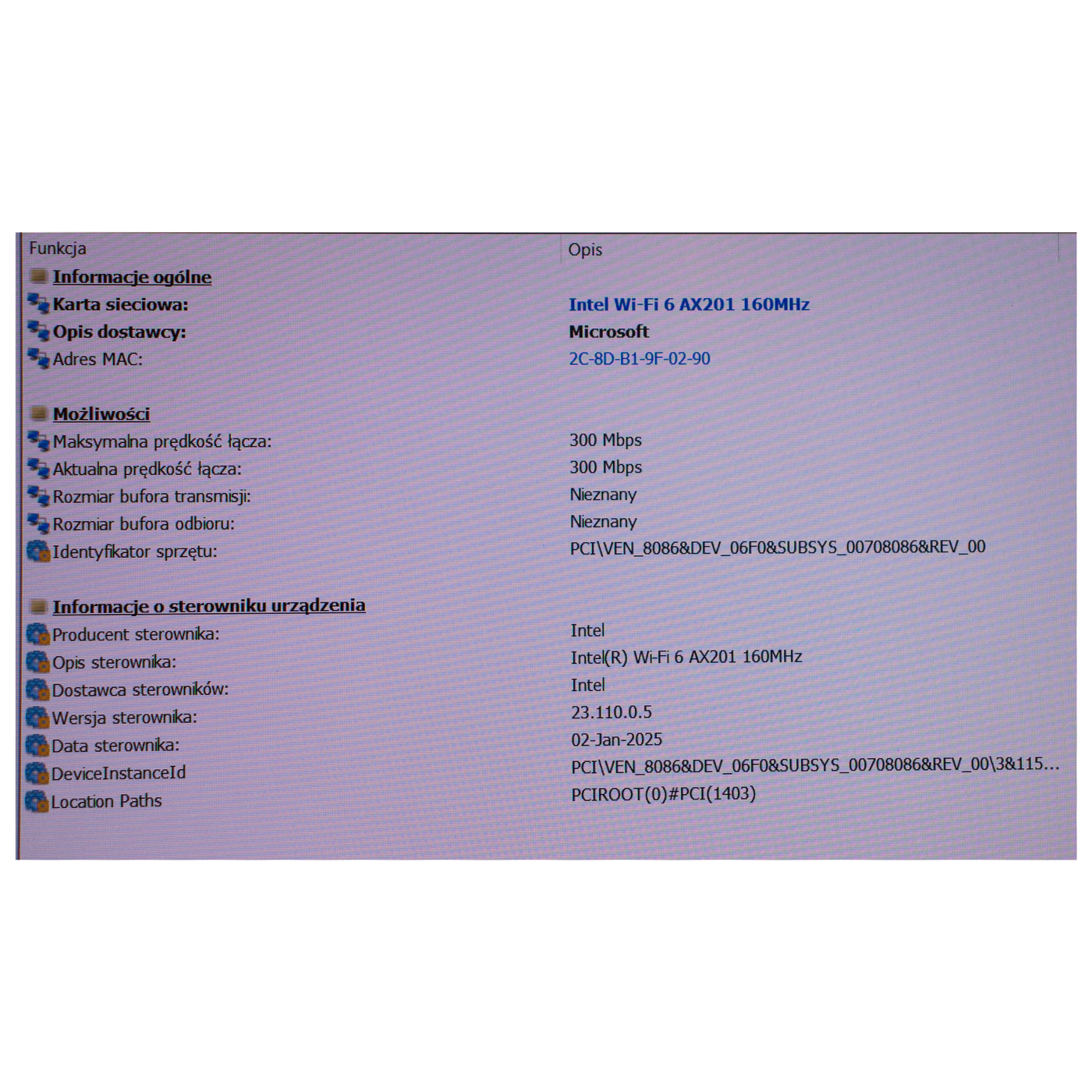

The Intel AX201NGW (Harrison Peak) is a dual-band 2x2 Wi-Fi 6 (802.11ax) card with 160 MHz channel support and integrated Bluetooth 5.0. It works on the 2.4 GHz and 5 GHz bands and reaches up to 2.4 Gbps under good conditions. The card uses the M.2 E-key form factor and Intel CNVi architecture, and the vPro version supports Intel vPro remote management features. The module has been tested in Windows: detected as Intel Wi-Fi 6 AX201 160MHz with a current Intel driver.

📋 TECHNICAL SPECIFICATIONS

Part name: WiFi + Bluetooth module (WLAN card)
Brand: Lenovo / Intel
Card model: Intel Wi-Fi 6 AX201 vPro (AX201NGW)
Standard: Wi-Fi 6 (802.11ax), 2x2, 160 MHz channels, 2.4 GHz and 5 GHz
Bluetooth: 5.0
Interface: M.2, E key, CNVi
Antenna connectors: 2 (MAIN 2, AUX 1)
Compatible models: ThinkPad P15 Gen 1 (20ST, 20SU), ThinkPad P17 Gen 1 (20SN, 20SQ), ThinkPad T15g Gen 1 (20UR, 20US), ThinkPad L13 Gen 1 (20R3, 20R4), ThinkPad L13 Yoga Gen 1 (20R5, 20R6), ThinkStation P340 and P340 Tiny, Legion T7-34IMZ5

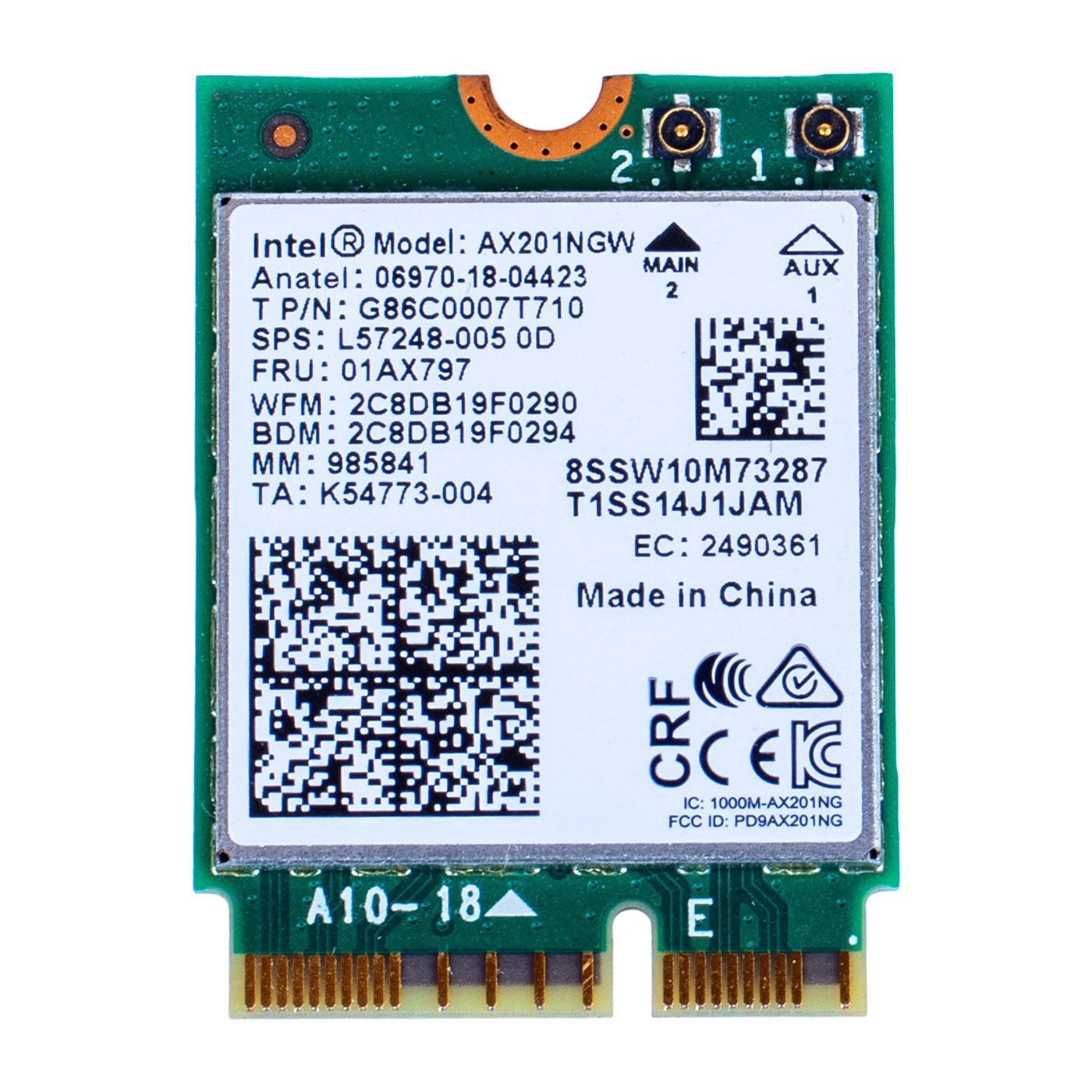

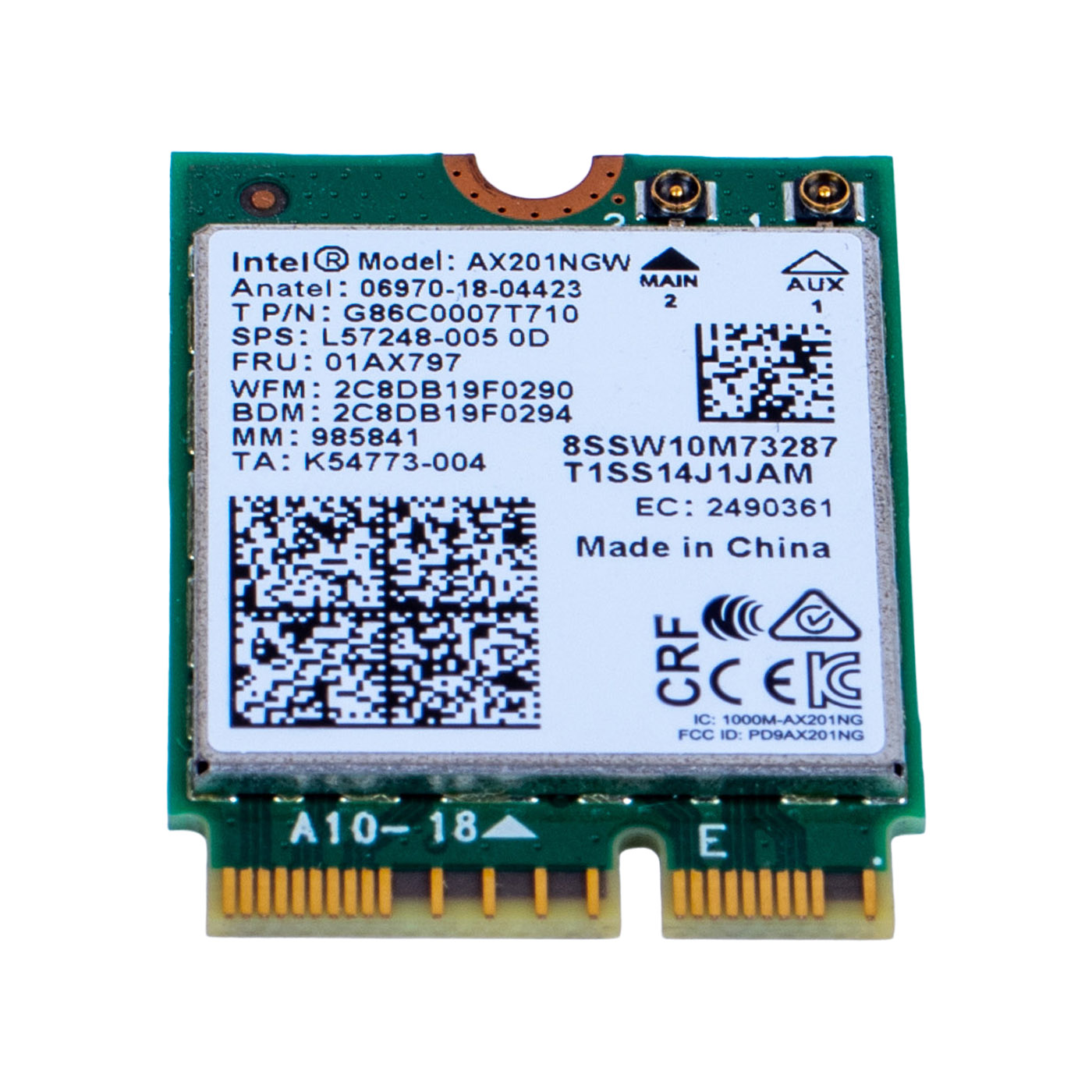

Markings on the part: AX201NGW, FRU 01AX797, SW10M73287, SPS L57248-005, T P/N G86C0007T710, MM 985841
Condition: Used (removed from a working unit, tested)
Warranty: 6 months
FRU: 01AX797
Substitute numbers: 5W10V25764

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - on Lenovo's own compatibility list, so the laptop accepts it without BIOS whitelist issues
🔹 Wi-Fi 6 with 160 MHz channels - with a Wi-Fi 6 router, large files and updates download several times faster than on older cards
🔹 Bluetooth 5.0 built in - headphones, mouse and wireless keyboard connect reliably without an extra USB dongle
🔹 Intel vPro - remote management support for business fleets
🔹 Tested in the system - verified working on the Intel driver, 100% functional
⚠️ CNVi module - works with system boards that support Intel CNVi, including the listed Lenovo models

🔢 PART NUMBERS

FRU: 01AX797
Substitute numbers: 5W10V25764
Markings on the part: AX201NGW, SW10M73287, L57248-005, G86C0007T710, MM 985841
Laptop model: Lenovo ThinkPad P15 Gen 1, P17 Gen 1, T15g Gen 1, L13 Gen 1, L13 Yoga Gen 1

❓ WHEN SHOULD YOU REPLACE THE WIFI MODULE?

• Problem with an undetected network card - no Wi-Fi adapter in Device Manager, the network icon only shows Ethernet
• Problem with a dropping connection - Wi-Fi disconnects every few minutes, video calls freeze
• Problem with Bluetooth not working - headphones and mouse no longer pair, Bluetooth is gone from settings
• Problem with a damaged card after liquid spill or power surge - the laptop sees no networks
• Problem with slow speeds - you want to replace an older card with Wi-Fi 6 and 160 MHz channels

🔧 INSTALLATION PROCESS

1. Turn off Windows Fast Startup, restart the laptop, press F1 and in ThinkPad Setup select Config → Power → Disable built-in battery. The laptop turns off, wait 3-5 minutes. Remove the nano-SIM card if installed
2. Unscrew and remove the bottom door
3. Remove the keyboard (in ThinkPad P15 Gen 1 and T15g Gen 1 the WLAN card sits under the keyboard)
4. Disconnect the antenna cables, remove the retaining screw (M2 × 3 mm, black) and pull the old card out of the M.2 slot
5. Insert the new card at an angle into the M.2 slot, press it down and tighten the screw to 0.181 Nm
6. Connect the antenna cables: gray to the MAIN (2) connector, black to the AUX (1) connector
7. Reassemble in reverse order and connect the AC adapter, which re-enables the built-in battery
8. Boot the system, install the Intel Wi-Fi and Bluetooth drivers and check the network connection
Replacement by a technical service or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

This module is intended for repairing or replacing the network card in Lenovo ThinkPad P15 Gen 1, P17 Gen 1, T15g Gen 1, L13 Gen 1 and L13 Yoga Gen 1 laptops, as well as ThinkStation P340 and Legion T7-34IMZ5 workstations. It restores fast Wi-Fi 6 and Bluetooth without resorting to replacements of unknown origin. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered module has been carefully checked and matched to the listed Lenovo models. We guarantee full compatibility within FRU number 01AX797 and 100% functionality of the part. In case of any compatibility issues, we offer a hassle-free return within 14 days.
