🔧 Cooling Module with Heatsink for Lenovo ThinkPad P15 Gen 1 N19P 🔧

🖥️ ThinkPad P15 Gen 1 | Cooling module | 15.6" | N19P | 5H40X89384

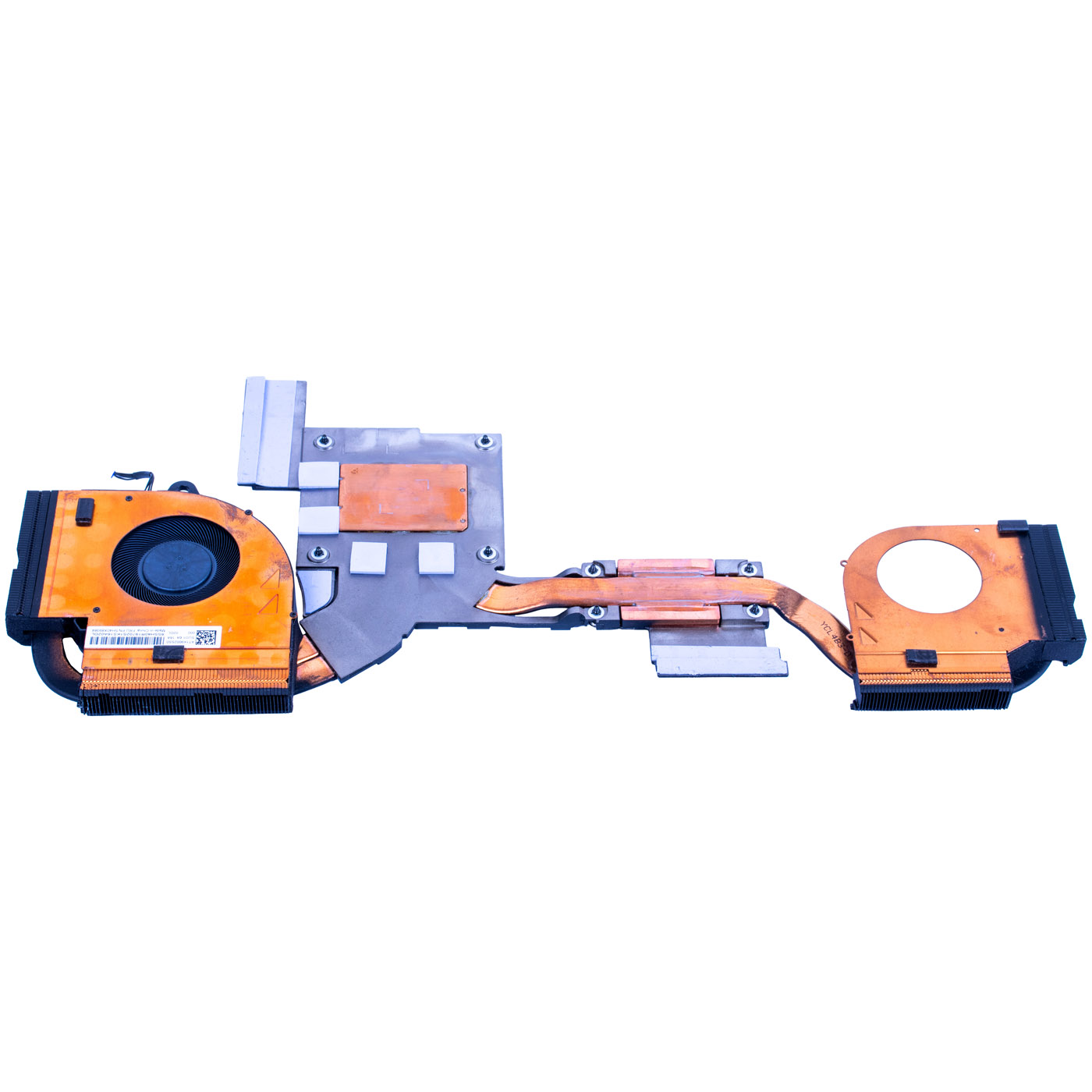

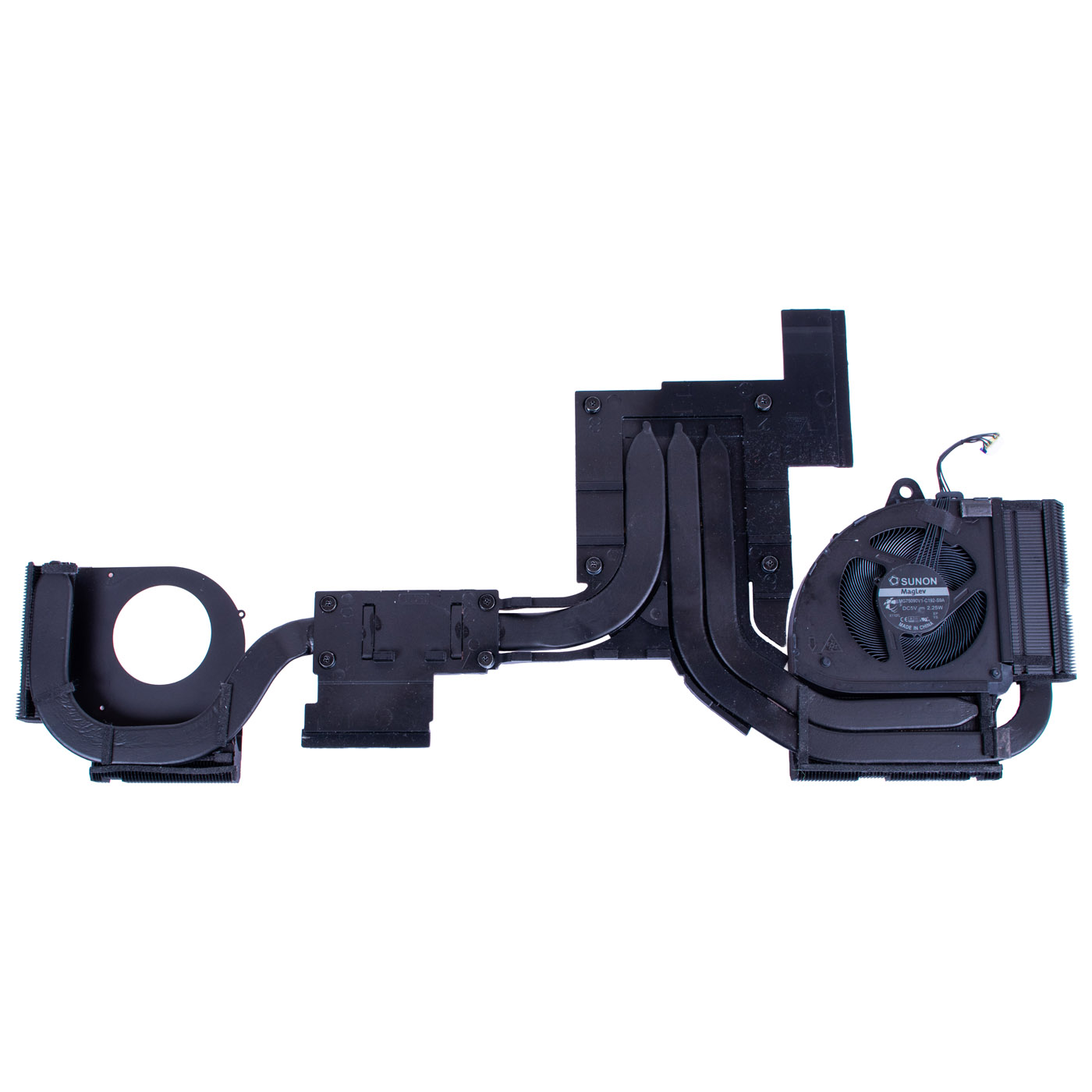

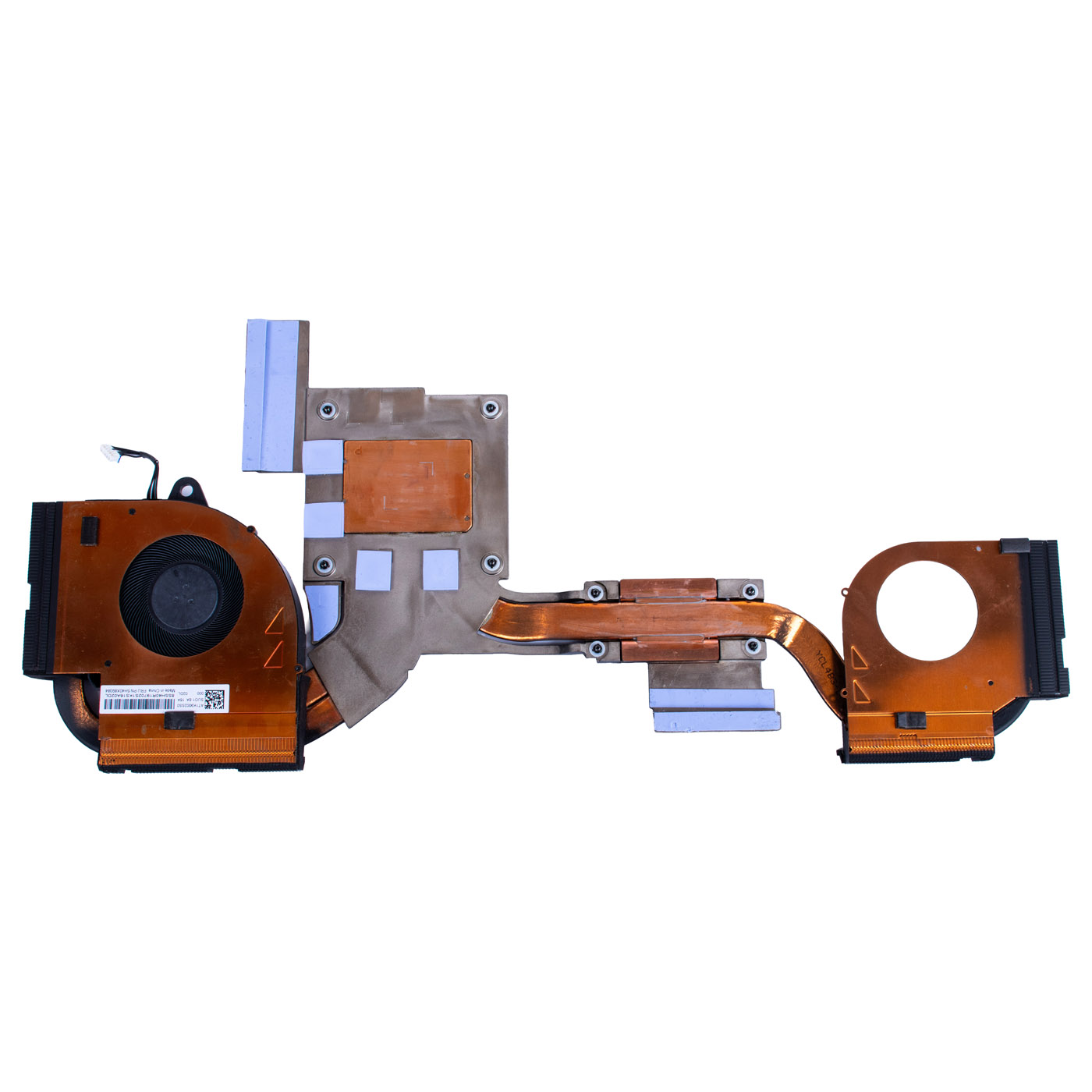

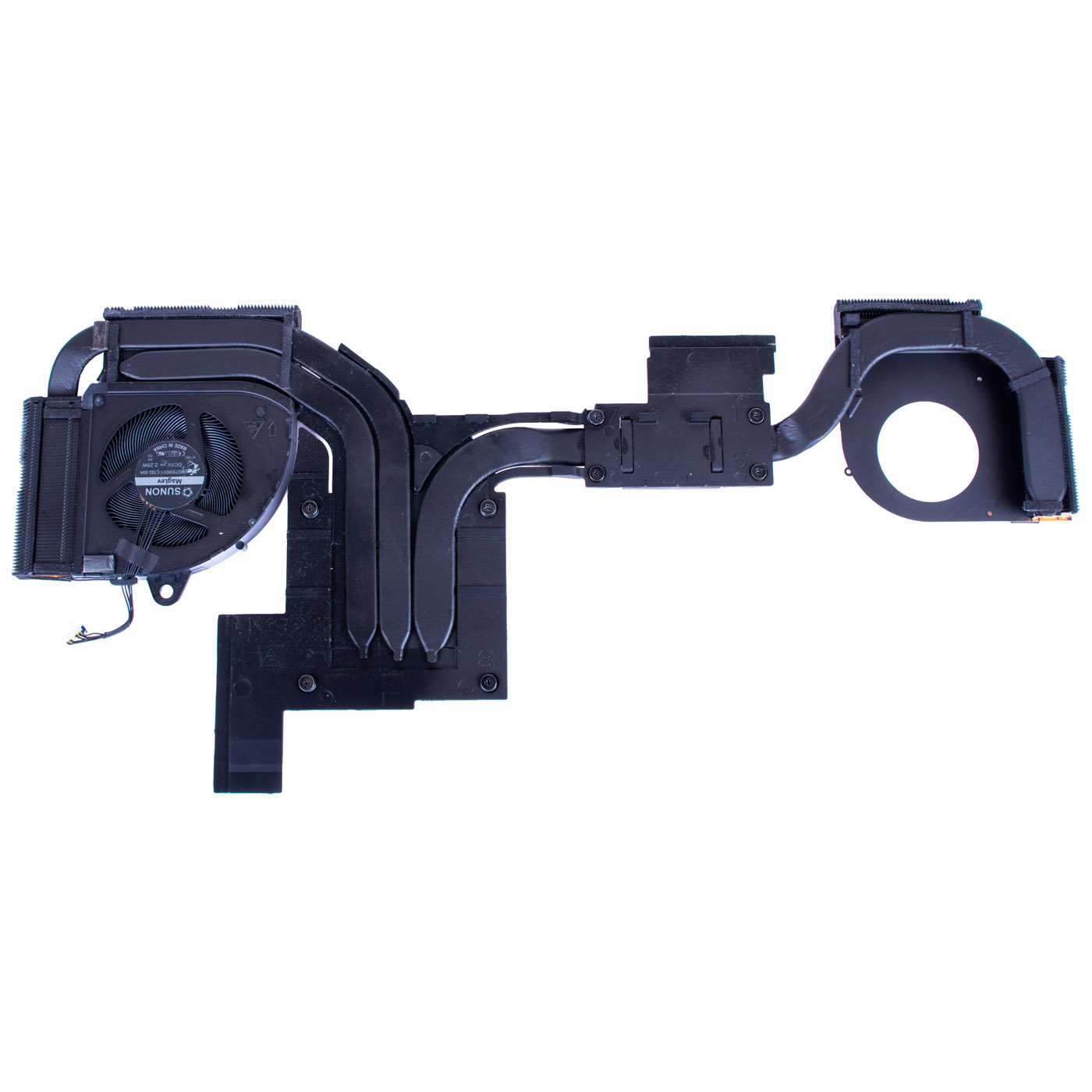

Genuine Lenovo cooling module with copper heatsink, heat pipes and one fan designed for the Lenovo ThinkPad P15 Gen 1 with N19P graphics (NVIDIA Quadro T1000 / T2000). Part sourced from a working device and tested - we guarantee 100% functionality. FRU number 5H40X89384 ensures full compatibility with the ThinkPad P15 Gen 1 N19P. Note: the set includes one fan - the second fan is not included, as shown in the photos.

⚙️ PRODUCT OVERVIEW

Genuine cooling module for the Lenovo ThinkPad P15 Gen 1, N19P version (NVIDIA Quadro T1000 or T2000 graphics). The set consists of a copper heatsink with heat pipes, thermal pads and one Sunon MagLev MG75090V1-C192-S9A fan (5V, 2.25W). The second fan is not included. If your current second fan works, you can transfer it to this heatsink. FRU number 5H40X89384 is printed on the heatsink label.

📋 TECHNICAL SPECIFICATIONS

Part name: Cooling module (heatsink + 1 fan)
Brand: Lenovo ThinkPad
Compatible model: ThinkPad P15 Gen 1 N19P (NVIDIA Quadro T1000 / T2000)
Screen size: 15.6"

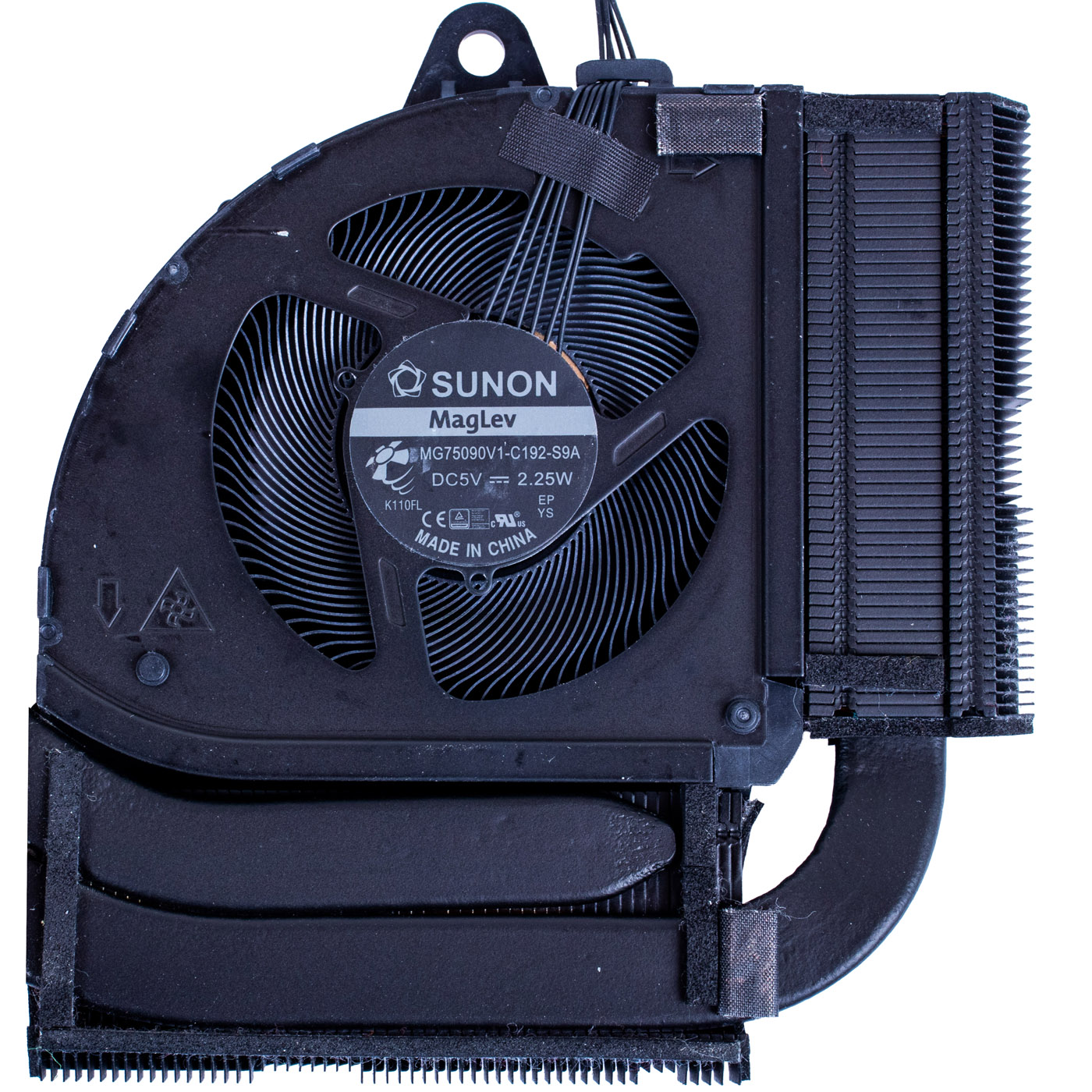

Fan: Sunon MagLev MG75090V1-C192-S9A, 5V, 2.25W
Package contents: heatsink with heat pipes and thermal pads + 1 fan (second fan not included)
Condition: Used (removed from a working device, tested)
FRU: 5H40X89384
Substitute part numbers: 5H40X89382, AT1K9002SS0, AT1K9002DT0

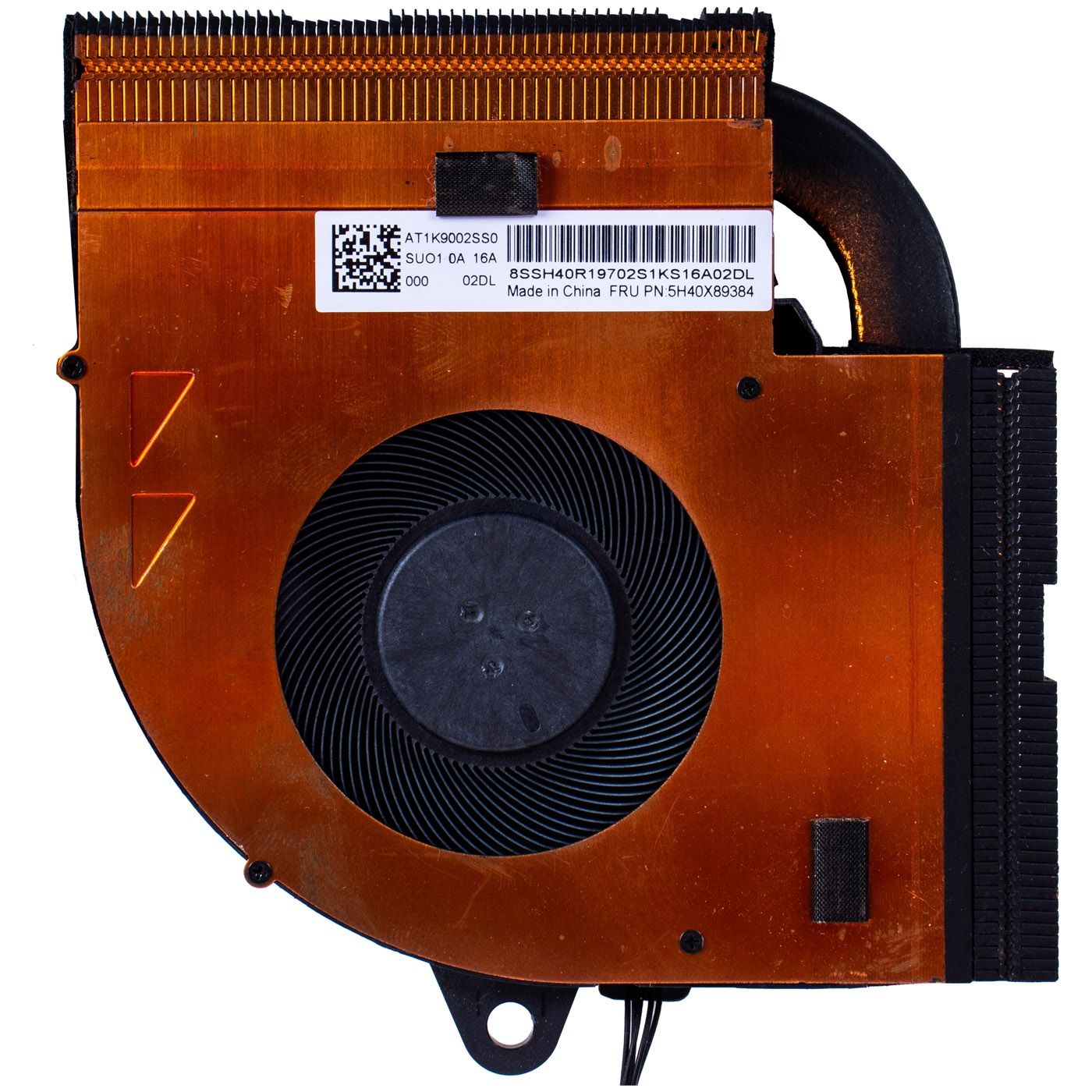

Label markings: AT1K9002SS0, 8SSH40R19702S1KS16A02DL

🌟 KEY BENEFITS

🔹 Genuine Lenovo part - mounting holes and contact points match the board, the heatsink presses evenly on the CPU and GPU with no modifications
🔹 Copper heatsink with heat pipes - heat moves away from the CPU and GPU quickly, so the laptop does not slow down during long rendering or calculations
🔹 Sunon MagLev fan - the magnetic bearing runs quietly and smoothly, without the grinding typical of worn fans
🔹 Tested used part - genuine Lenovo quality at a lower price than a new module
🔹 Full compatibility - matched to ThinkPad P15 Gen 1 N19P under FRU number 5H40X89384
⚠️ Package contents: heatsink + 1 fan - the second fan is not included (see photos)
⚠️ N19P version - for laptops with NVIDIA Quadro T1000 or T2000 graphics. Versions with RTX graphics (N19E) use a different cooling module

🔢 PART NUMBERS

FRU: 5H40X89384
Substitute part numbers: 5H40X89382, AT1K9002SS0, AT1K9002DT0
Label markings: AT1K9002SS0, 8SSH40R19702S1KS16A02DL
Laptop model: Lenovo ThinkPad P15 Gen 1 N19P

❓ WHEN SHOULD YOU REPLACE THE COOLING MODULE?

• Problem with overheating - the laptop shuts down on its own or slows down noticeably under load
• Problem with a noisy fan - clicking, grinding or humming sounds
• Problem with a fan that spins irregularly or does not start at all
• Problem with high CPU or GPU temperature warnings
• Problem with a damaged heatsink or heat pipes after a previous repair

🔧 INSTALLATION

1. Turn off the laptop and disconnect the power supply and all external devices
2. Remove the screws securing the bottom cover and carefully take it off
3. Disconnect the battery from the motherboard
4. Disconnect the fan connectors from the motherboard
5. Loosen the heatsink screws in reverse order of the numbers marked on the heatsink
6. Carefully remove the old cooling module
7. If your current second fan works, transfer it to the new heatsink
8. Clean the old thermal paste off the CPU and GPU and check the thermal pads
9. Apply fresh thermal paste to the CPU and GPU
10. Install the cooling module - tighten the heatsink screws alternately following the marked order
11. Connect the fan connectors to the motherboard
12. Reconnect the battery, refit the bottom cover and tighten the screws
13. Start the laptop and check the temperatures in diagnostic software
Replacement by a service technician or a person experienced in laptop repairs is recommended.

🎯 INTENDED USE

Cooling module for Lenovo ThinkPad P15 Gen 1 mobile workstations with N19P graphics (Quadro T1000 / T2000). It removes heat from the CPU and GPU during demanding work - 3D rendering, engineering calculations and data analysis. The set includes the heatsink and one fan - the second fan is not included. The exact appearance and condition of the item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

This cooling module has been carefully tested and matched to the Lenovo ThinkPad P15 Gen 1 N19P. We guarantee full compatibility within FRU number 5H40X89384 and 100% functionality of the part. If you experience any compatibility issues, we offer a hassle-free return within 14 days.
