🔧 CPU/GPU Cooling Assembly for Lenovo Legion Slim 5 16 IRX8 🔧

🖥️ Legion Slim 5 16 IRX8 | Fans + Heatsink | 12V | 5H40S20918

Genuine cooling assembly dedicated for the Lenovo Legion Slim 5 16 IRX8 laptop. Brand new part marked with FRU number 5H40S20918. FRU number 5H40S20918 guarantees full compatibility with the Legion Slim 5 16 IRX8 model.

⚙️ PRODUCT CHARACTERISTICS

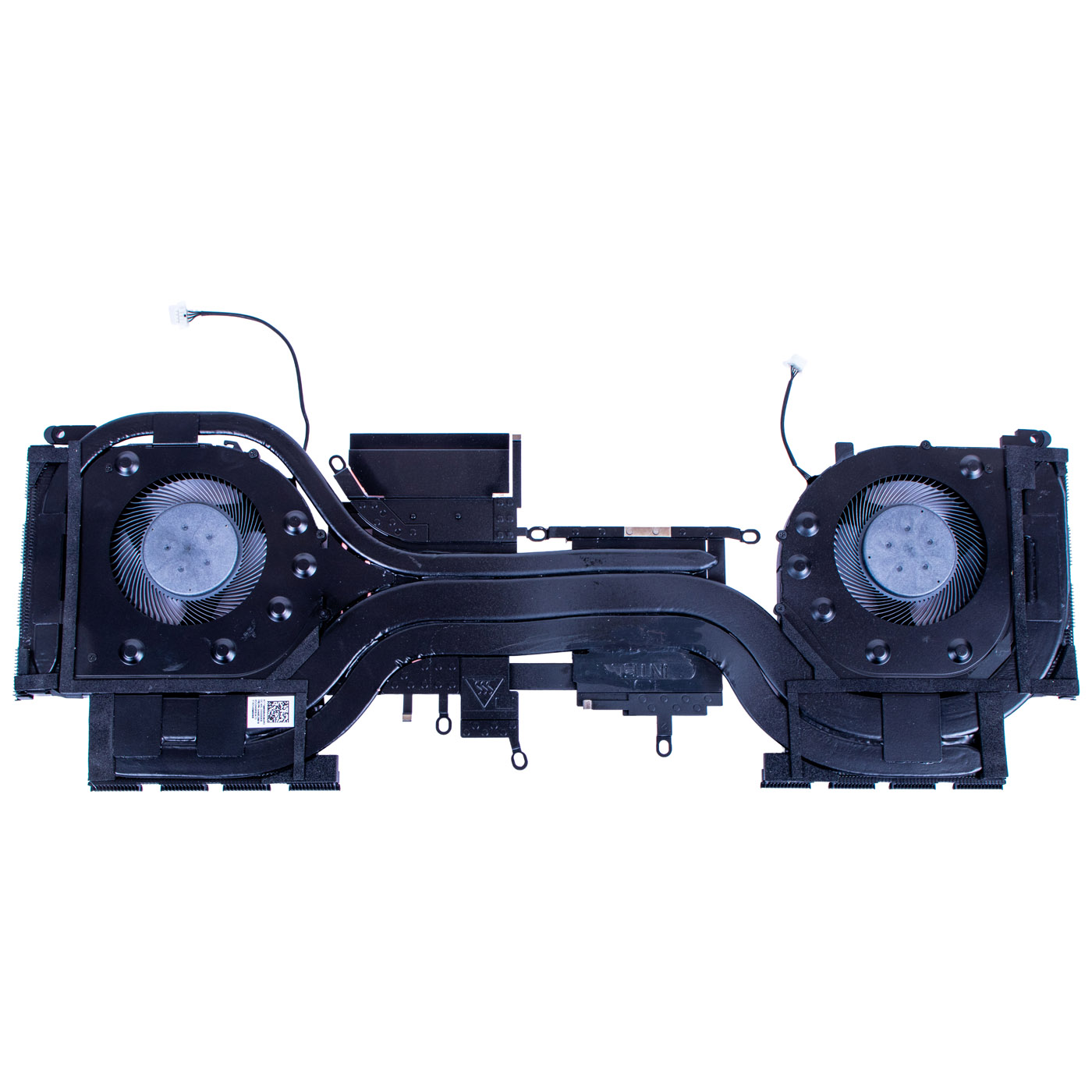

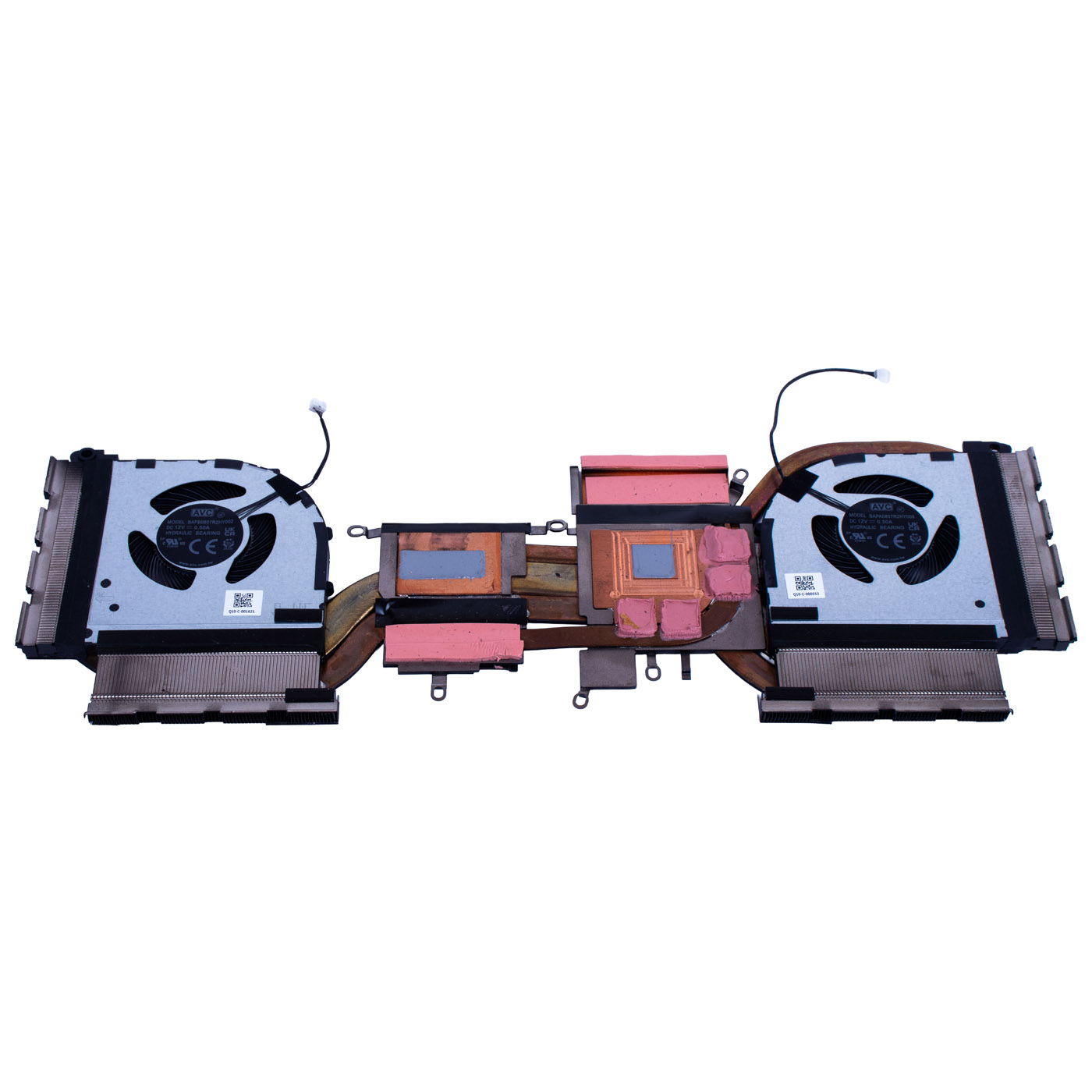

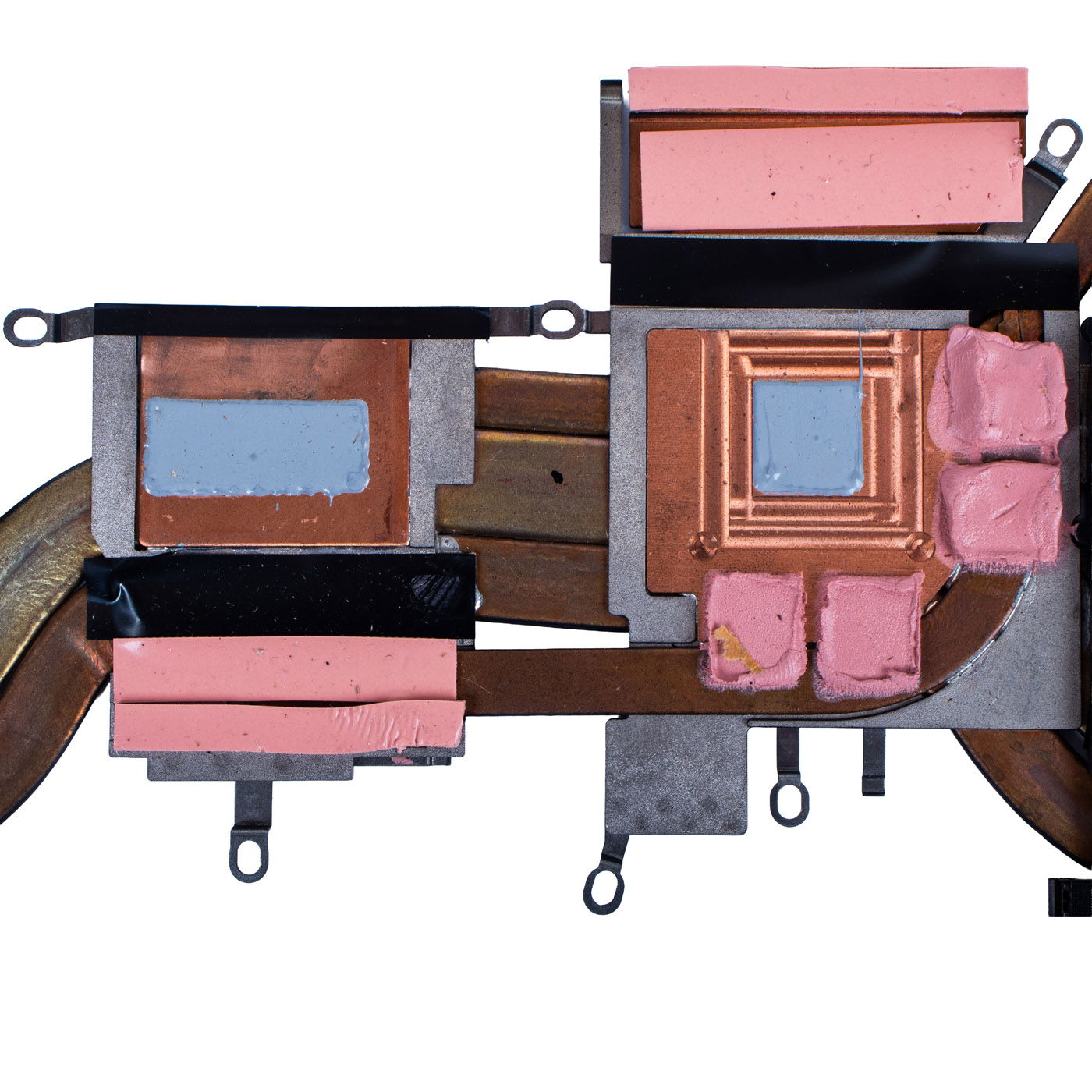

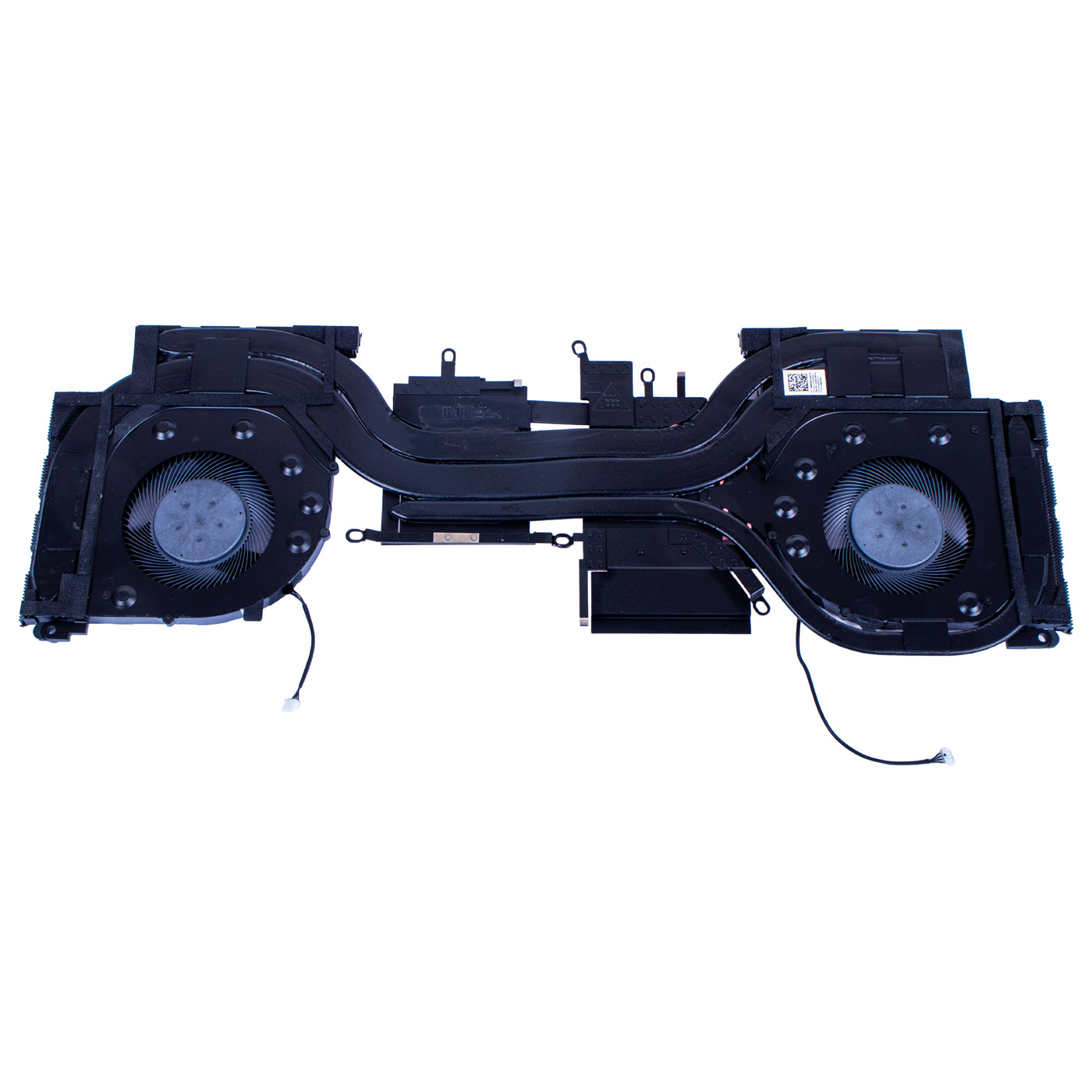

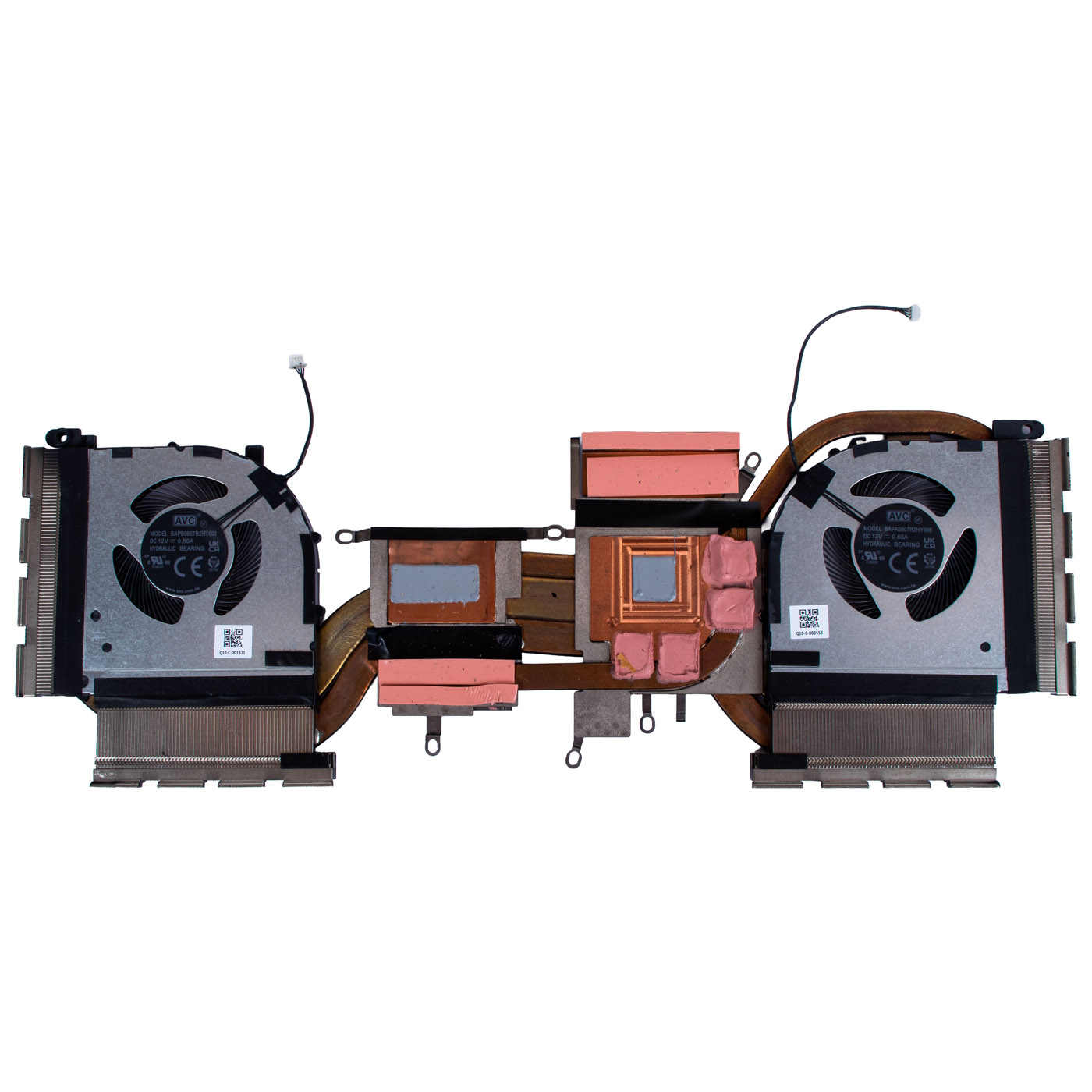

Complete cooling assembly featuring two fans (CPU and GPU) connected by a shared heatsink with a copper heatpipe system. The heatsink comes with factory-applied thermal pads at the contact points with the chips. The AVC brand fans (hydraulic bearing) run on 12V power.

📋 TECHNICAL DATA

Part name: Cooling assembly (fans + heatsink)
Brand: Lenovo Legion
Compatible model: Legion Slim 5 16 IRX8
Number of fans: 2 (CPU + GPU)

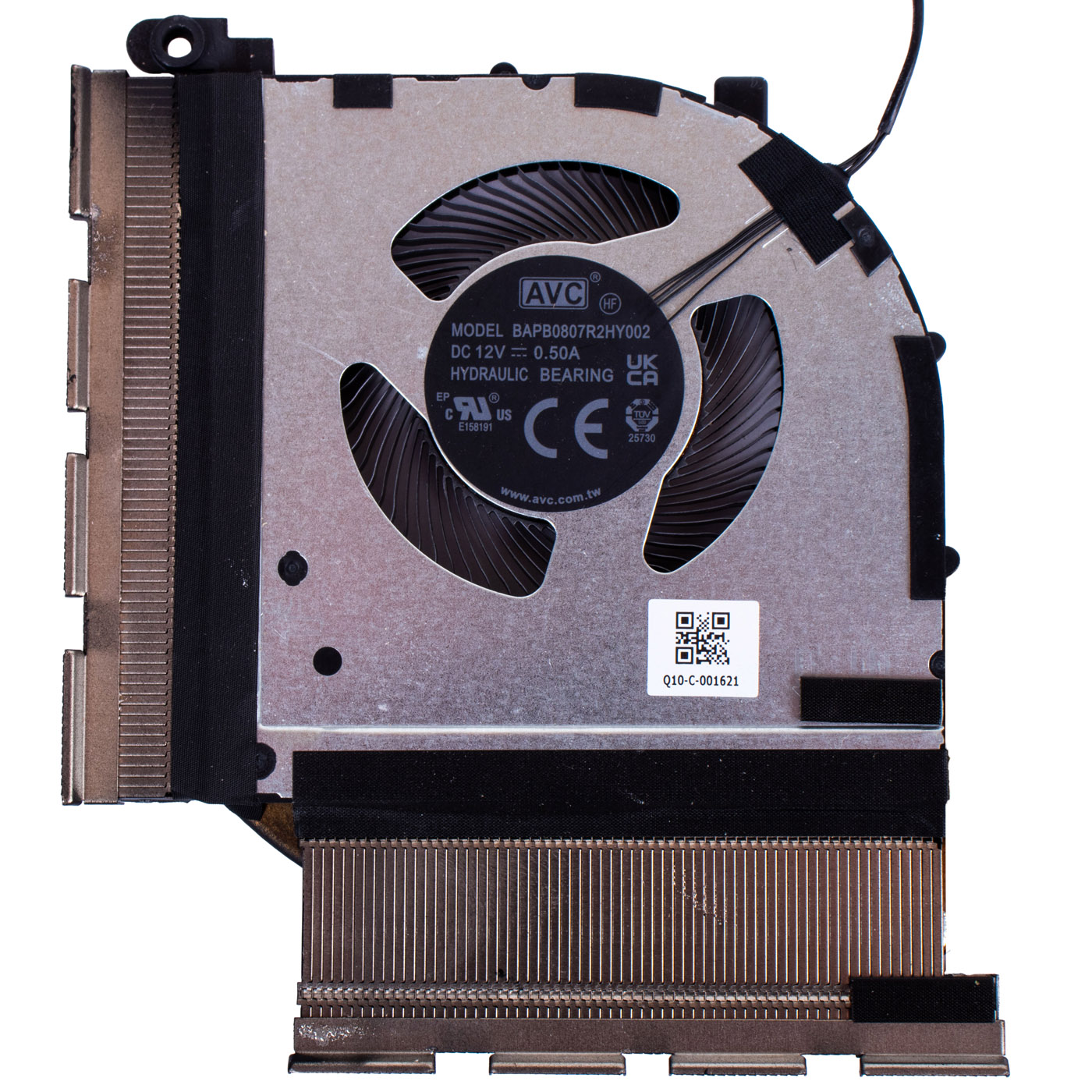

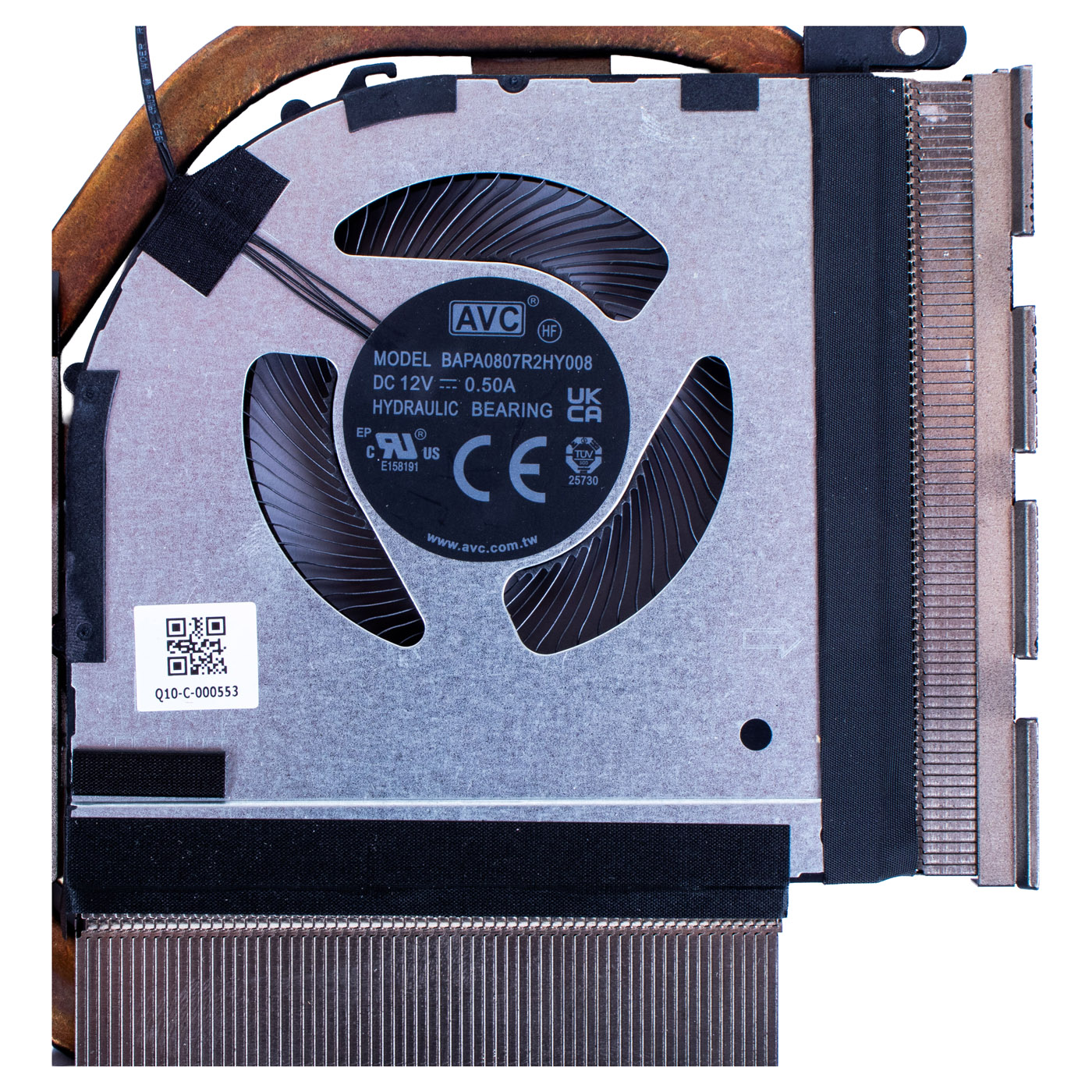

Fan manufacturer: AVC (hydraulic bearing)
Fan power rating: 12V / 0.5A
Condition: New
FRU: 5H40S20918
Alternative part numbers: 5H40S20919, 5H40S20917, SH40R83473, AT75M008VK0

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - guaranteed perfect fit and reliability, no extra fitting work needed
🔹 Factory-applied thermal pads - ready to install, no need to buy and apply extra thermal paste/pads
🔹 Complete two-fan assembly - replace the entire CPU and GPU cooling system in one go
🔹 Full compatibility - matched to the Legion Slim 5 16 IRX8 under FRU number 5H40S20918

🔢 PART NUMBERS

FRU: 5H40S20918
Alternative part numbers: 5H40S20919, 5H40S20917, SH40R83473, AT75M008VK0
Laptop model: Lenovo Legion Slim 5 16 IRX8

❓ WHEN SHOULD YOU REPLACE THE COOLING ASSEMBLY?

• The laptop runs loudly with fans spinning at high speed even under light load
• CPU/GPU temperatures rise quickly and the laptop overheats, causing performance throttling under load
• A fan makes unusual noises (rattling, grinding) during operation
• A fan does not spin at all despite the laptop being under load
• The laptop shuts down unexpectedly under load due to overheating

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect power and all external devices
2. Remove the screws securing the bottom cover and carefully take it off
3. Disconnect the battery from the motherboard
4. Disconnect the fan cables from the motherboard connectors
5. Remove the screws securing the heatsink and fans, then take out the old cooling assembly
6. Install the new assembly, tighten the screws in the order recommended by Lenovo and connect the fan cables
7. Reattach the bottom cover, reconnect the battery and boot the laptop, checking that both fans run correctly and monitoring temperatures
We recommend replacement by a technical service or a person experienced in laptop repairs.

🎯 PURPOSE

This cooling assembly is intended to replace a damaged, noisy or inefficient cooling system in Lenovo Legion Slim 5 16 IRX8 laptops. Suitable both for service repairs and self-installation by users experienced with laptop disassembly.
