🔧 Lenovo ThinkPad 90W 20V AC Adapter with 7.9 mm Round Tip 🔧

🖥️ ThinkPad T410 T420 T430 T520 T530 X220 X230 | 90W round tip AC adapter | 42T4435

Genuine Lenovo 90W (20V, 4.5A) AC adapter with a 7.9 x 5.5 mm round tip, model 42T4434 (Delta). Used adapter, tested and 100% functional. FRU 42T4435 and its substitutes fit ThinkPads with a round power jack from 2006-2013: T, X, R, L, Edge, Z series and W500.

⚙️ PRODUCT CHARACTERISTICS

90W AC/DC power adapter with 20V output at 4.5A. 7.9 x 5.5 mm round tip with a centre pin that lets the laptop detect the adapter wattage. It works on any 100-240V 50/60Hz mains, so it is also suitable for travel abroad. The label carries MODEL 42T4434, FRU P/N 42T4435, REV C. Supplied with a power cord with a two-pin European plug.

📋 TECHNICAL DATA

Part name: 90W AC/DC power adapter
Brand: Lenovo ThinkPad
Adapter model: 42T4434 (Delta)
Power: 90W
Output: 20V, 4.5A
Input: 100-240V, 1.5A, 50-60Hz
Connector: 7.9 x 5.5 mm round tip with centre pin
Power cord socket: two-pin (2-pin)
Package contents: adapter + power cord with European plug
Condition: Used, tested, 100% functional
Warranty: 6 months
FRU: 42T4435
Cross reference numbers: 42T4434, 42T4427, 42T4431, 42T4439, 42T5000, 42T5277, 42T5295, 45N0198, 45N0202, 45N0210, 45N0304, 45N0308, 45N0312, 45N0484, 45N0506, 45N0507, 92P1106, 92P1110, 92P1114, 93P5026

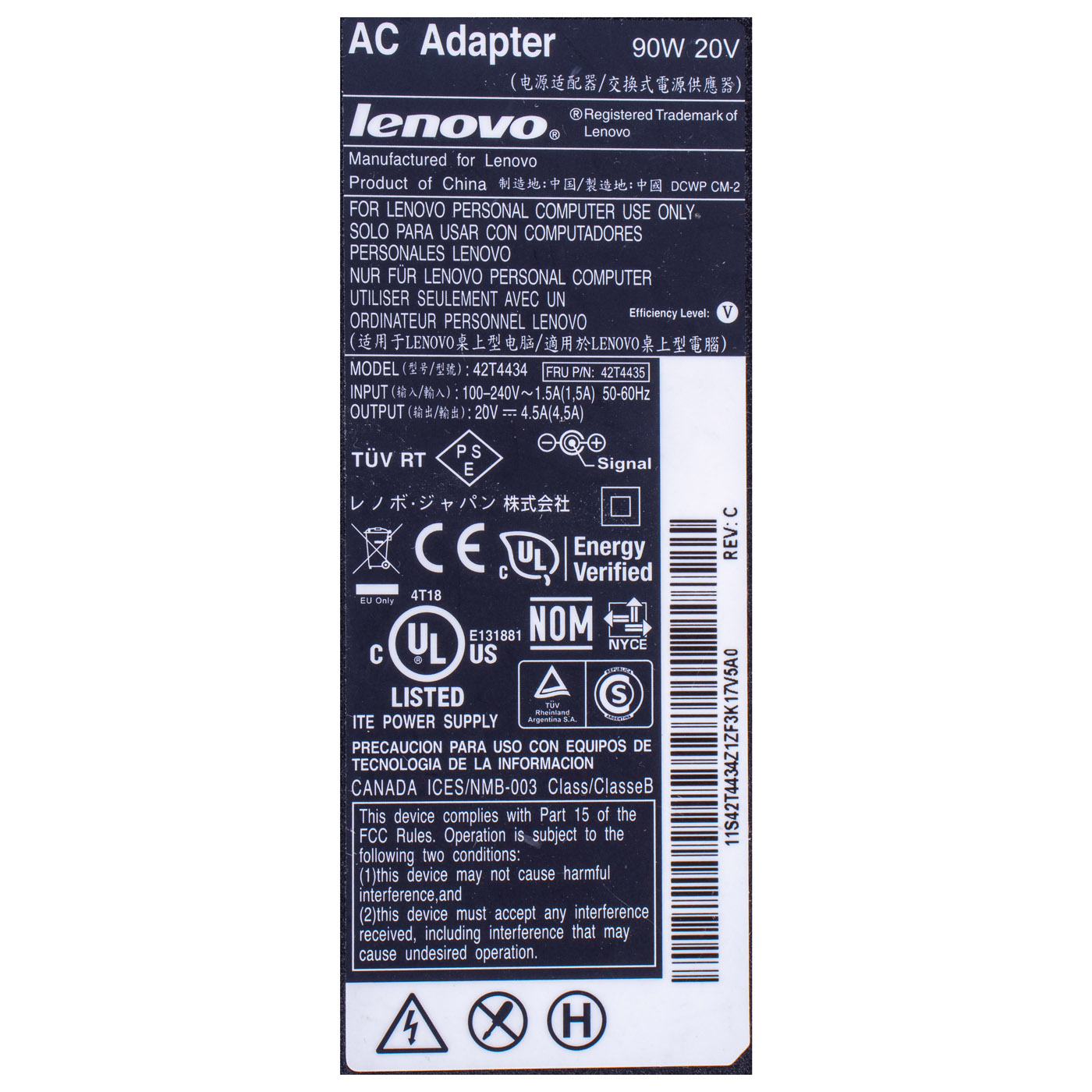

Label markings: MODEL 42T4434, FRU P/N 42T4435, REV C, DCWP CM-2

💻 COMPATIBLE MODELS

Lenovo ThinkPad:
• T60, T60p, T61, T61p, T400, T400s, T410, T410i, T410s, T410si, T420, T420i, T420s, T420si, T430, T430i, T430s, T430u
• T500, T510, T510i, T520, T520i, T530, T530i
• X60, X60s, X60 Tablet, X61, X61s, X61 Tablet, X200, X200s, X200 Tablet, X201, X201i, X201s, X201 Tablet
• X220, X220i, X220 Tablet, X220i Tablet, X230, X230 Tablet, X300, X301
• X100e, X120e, X130e, X131e
• R60, R60e, R61, R61e, R61i, R400, R500
• L412, L420, L421, L430, L512, L520, L530
• Edge E330, E420s, E430, E435, E445, E530, E530c, E535, E545, S430, Twist S230u
• Z60m, Z60t, Z61e, Z61m, Z61p, Z61t, W500

Workstations shipped with a 135-230W adapter: W510, W520, W530, W700 - they run on 90W, but charge the battery more slowly and may reduce performance under full load.

List based on Lenovo Parts Lookup (FRU 42T4435 and substitutes) and archived PSREF specifications.

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo adapter - the laptop correctly detects 90W, with no insufficient adapter warnings
🔹 Full 90W - models with a faster CPU or discrete graphics (e.g. T420, T520, T530) charge quickly even while working, with no CPU throttling
🔹 One adapter for many ThinkPad series - the same tip fits T60, T400, T420, X220, X230, L520 or Edge, so an office with several laptops needs only one charger type
🔹 Wide 100-240V input range - works in Poland and abroad
🔹 Tested before shipping - used adapter, tested, with a 6-month warranty

🔢 PART NUMBERS

FRU: 42T4435
Cross reference numbers: 42T4434, 42T4427, 42T4431, 42T4439, 42T5000, 42T5277, 42T5295, 45N0198, 45N0202, 45N0210, 45N0304, 45N0308, 45N0312, 45N0484, 45N0506, 45N0507, 92P1106, 92P1110, 92P1114, 93P5026
Label markings: MODEL 42T4434, FRU P/N 42T4435, REV C, DCWP CM-2

❓ WHEN SHOULD YOU REPLACE THE AC ADAPTER?

• Problem with battery charging - the adapter is plugged in, but the charge level stays the same or drops
• Problem with intermittent power - the laptop switches to battery when the cable or tip moves
• Problem with a damaged cable or tip - frayed insulation, loose fit in the jack, bent pin
• Problem with an insufficient wattage warning after connecting a weaker 65W charger
• Problem with a missing adapter - lost, left at work, or a second one needed for home

🔧 CONNECTION

1. Connect the power cord to the socket on the adapter
2. Plug the cord into a 100-240V mains outlet
3. Insert the round tip into the laptop power jack
4. Check that the charging LED lights up and the system shows the battery charging
No drivers or configuration are required.

🎯 PURPOSE

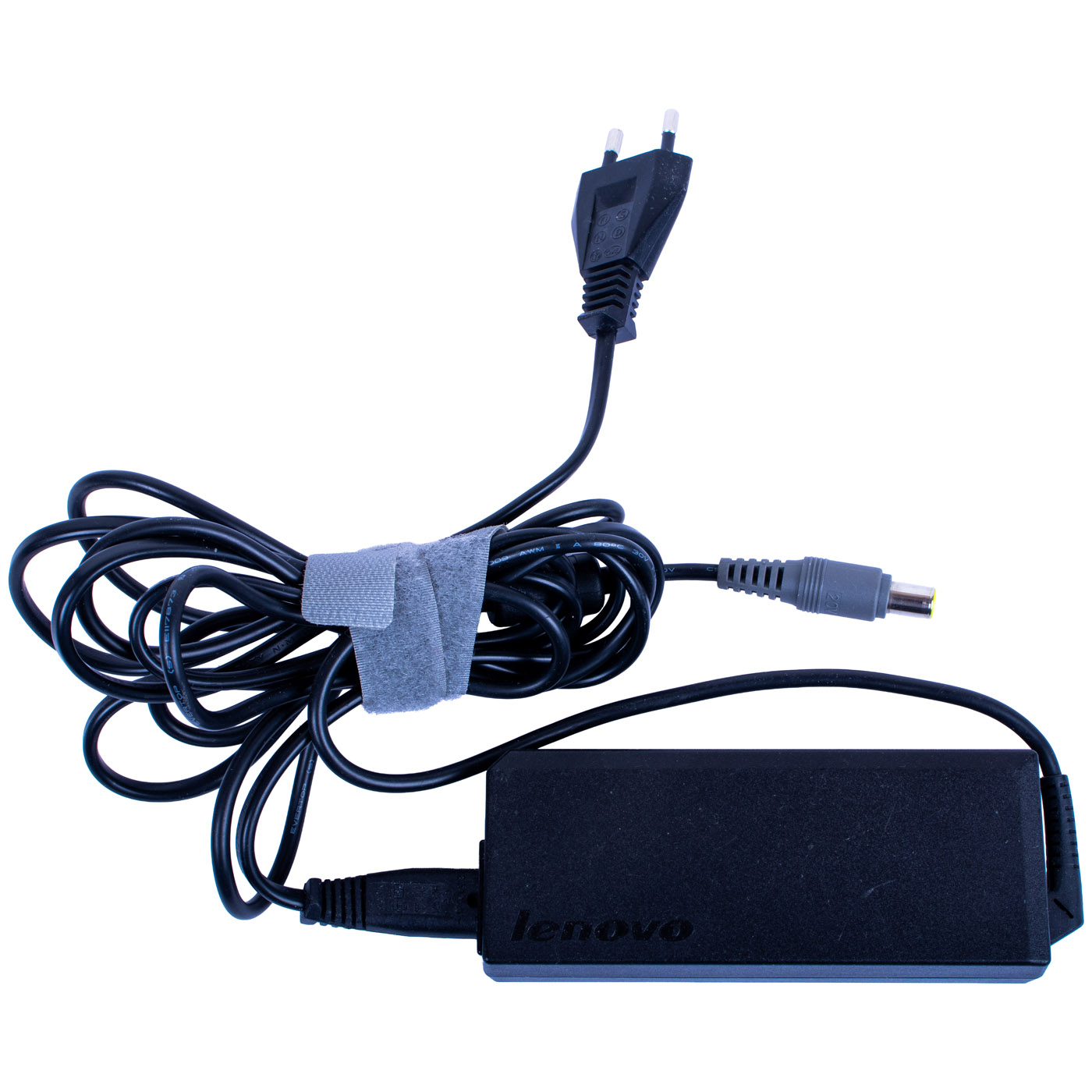

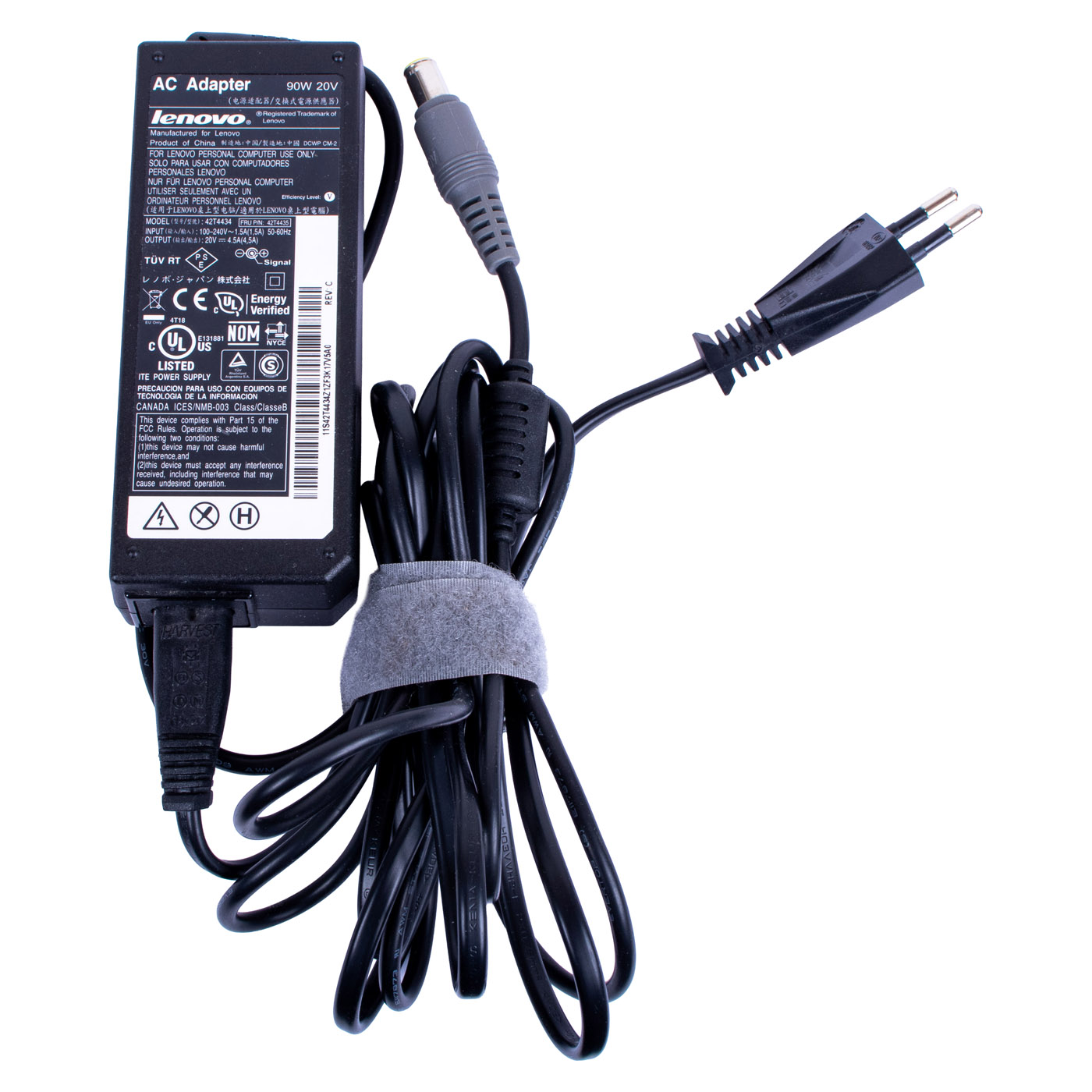

An adapter to replace a worn or lost charger, as a second adapter for home or office, or a spare for travel. It fits ThinkPads with a 7.9 mm round power jack. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered adapter has been tested and matched by FRU 42T4435 and its substitutes from the Lenovo database. We guarantee full compatibility with the listed models and 100% functionality. The adapter comes with a 6-month warranty, and if there is any compatibility issue we offer a hassle-free return within 14 days.

📞 NEED HELP? CONTACT OUR EXPERTS!

Not sure whether this adapter fits your laptop? Send us the model or MTM number from the sticker on the bottom of your laptop and we will check it in the Lenovo database. Contact us!
📱 Phone: +48-601-415357
📧 Email: sklep@abcdeal.pl

🦁 ABCDEAL - Your Trusted Lenovo Parts Specialist

We have been specialising in delivering genuine Lenovo laptop parts for years. Our experience allows us to offer top quality products that meet the expectations of even the most demanding customers. Trust the experts and restore your ThinkPad to full working order.

🎯 Choose professionals - invest in quality!

By choosing a genuine Lenovo 90W adapter from our offer, you get safe, stable charging instead of a cheap uncertified replacement. Benefit from the experience of ABCDEAL specialists.
